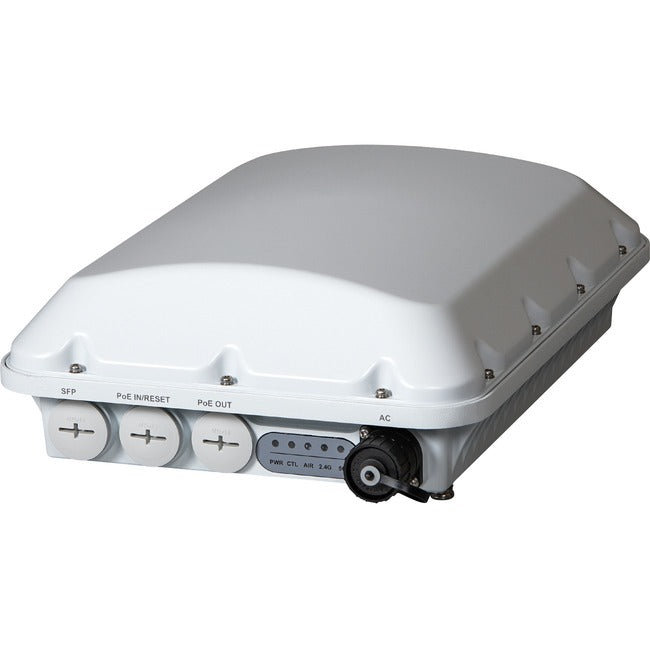

Ruckus Wireless Unleashed IEEE 802.11ac 2.47 Gbit/s Wireless Access Point - TAA Compliant
Ruckus' High Capacity, High Performance Four-Stream 802.11ac Wave 2 Outdoor AP
Ruckus T710 Unleashed enables controller-less Wi-Fi architecture for small business environments with superior performance, lower costs and simplified management. Separate controllers and access point licenses are no longer needed, significantly reducing upfront costs. Set-up is also easy, thanks to a simplified web interface that helps businesses configure Wi-Fi in just 60 seconds
Featuring BeamFlex+ adaptive antenna technology, the T710 Unleashed offers a substantial increase in performance and range by optimizing antenna coverage on a per client, per transmission basis. BeamFlex+ additionally mitigates co-channel interference by directing Wi-Fi signals where they are needed instead of towards neighboring access points. The T710's BeamFlex+ adaptive antenna system is also equipped with dual polarization antennas, allowing the access point to adapt to the physical orientation of client devices and maximize uplink performance.
With throughput capacities of 800Mbps (2.4GHz) and 1733Mbps (5GHz), the T710 Unleashed supports the highest available throughput for Wi-Fi clients. 802.11ac Multi-User MIMO (MU-MIMO) support allows the T710 Unleashed to simultaneously transmit to multiple MU-MIMO capable devices, drastically improving airtime efficiency, overall throughput, and availability. The T710 Unleashed is compatible with a wide array of MU-MIMO, SU-MIMO and legacy Wi-Fi clients
The T710 Unleashed can function either as a standalone AP or as part of centrallymanaged Wireless LAN.
The T710 Unleashed is specifically designed with industrial-grade features such as GPS and secure image download. Also included is a SFP fiber interface that enables seamless connectivity to a fiber backhaul with no additional converters. Via Ethernet connections, the T710 Unleashed supports Link Aggregation Control Protocol (LACP) to optimize backhaul throughput.
The T710 Unleashed is purpose-built to deliver unparalleled performance, capacity and coverage in dynamic outdoor environments that are characteristic of high density utilization and interference.
Ideal use cases include: public outdoor hotspots, parking lots, outdoor coverage for enterprise and schools where support for data intensive streaming multimedia applications like HD IP video is imperative.
FEATURES
- 802.11ac Multi-User MIMO (MU-MIMO)
- Concurrent dual-band (5GHz/2.4GHz) support
- 2,533Mbps maximum PHY rate (1733Mbps in 5GHz; 800Mbps in 2.4GHz)
- BeamFlex+ (PD-MRC) smart antenna, with support for 4,000+ unique antenna patterns enables up to 4dB of additional gain and up to 10dB of additional interference mitigation
- Antenna options: omni-directional and 120x30 degrees sector
- Unmatched Rx sensitivity down to -104dBm
- Improved Maximum Ratio Combining (MRC) for best-in-class receive sensitivity
- 802.11ac standard Tx Beamforming
- Space Time Block Coding for increased handset performance
- Low Density Parity Check (LDPC) for increased data throughput at all ranges
- 256-QAM support on 5GHz and 2.4GHz
- Backward compatible with legacy 802.11 clients
- Dedicated dual band RF monitor enabling enhanced performance while providing Zero-Wait DFS capability
- Gateway mode with NAT and DHCP services
- 2 10/100/1000 Ethernet ports
- Support for LACP (Link Aggregation Control Protocol) to maximize the backhaul bandwidth using both Ethernet ports
- SFP Fiber Interface providing flexibility to backhaul to fiber
- AC power input (100-250 Vac, 50/60 Hz)
- Fast and easy mounting to street lights, traffic controls and street furniture
- Statistical, real-time capacity analysis of all channels to automatically selects best performing channels
- Up to 50 percent reduction in co-channel interferenc to neighboring APs
- Up to 15dB of interference mitigation
- Enhanced DFS and Spectrum analysis capability
- Dual-polarized antennas
- Adaptive polarization diversity
- Improve network efficiency & throughput even for non-Wave 2 clients
- More efficient use of the RF spectrum
- Transmit to multiple clients at the same time with MU-MIMO
Product Type: Wireless Access Point
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Product Series: T710
Brand Name: Ruckus Wireless
Form Factor: Wall Mountable
Manufacturer: Ruckus Wireless, Inc
Product Name: Dual-Band 4X4:4 802.11AC Wave 2 Outdoor Smart Wi-Fi AP
Product Line: Unleashed
Manufacturer Part Number: 9U1-T710-US01
Manufacturer Website Address: http://www.ruckuswireless.com
Limited Warranty: 1 Year
Weight (Approximate): 6.50 lb
