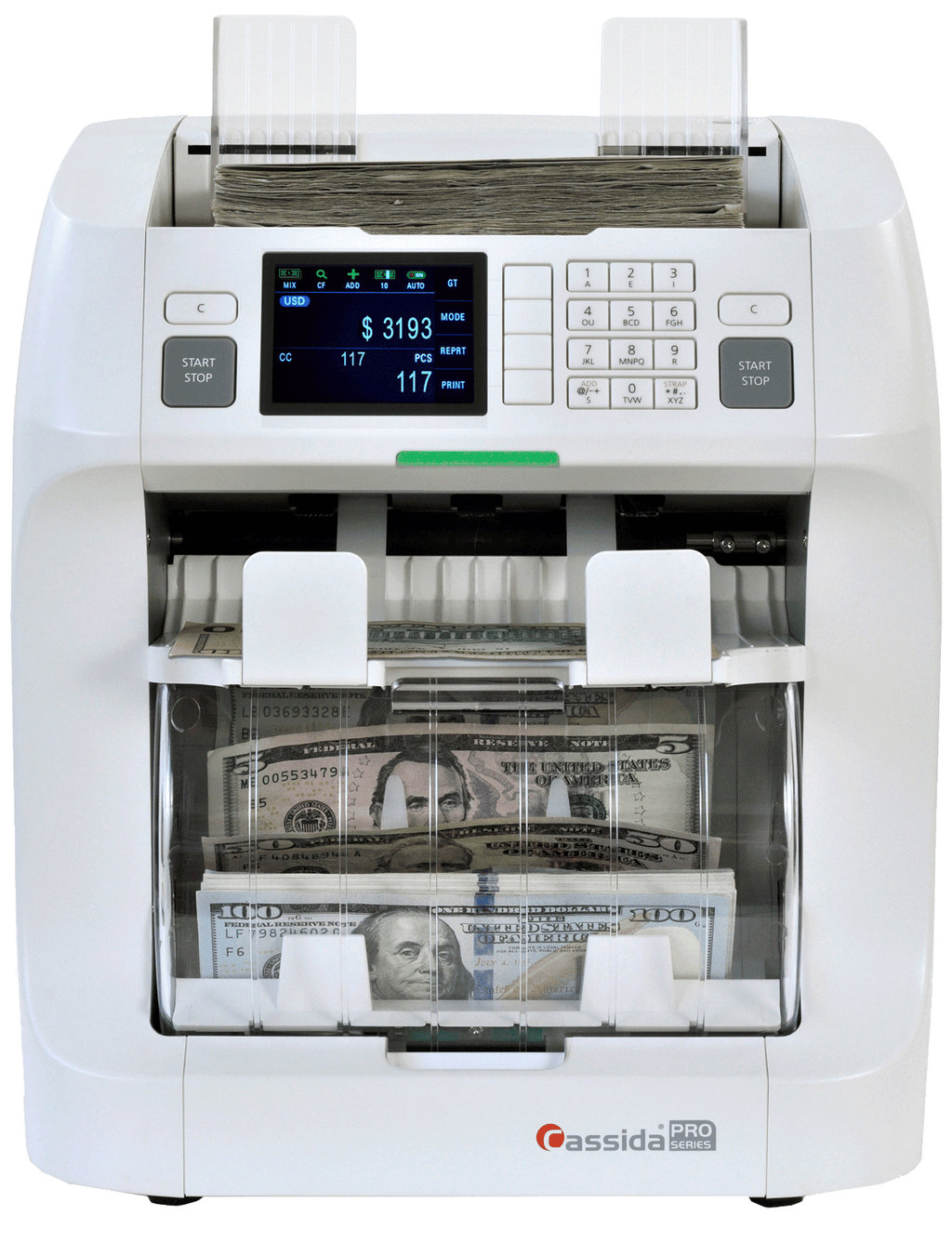

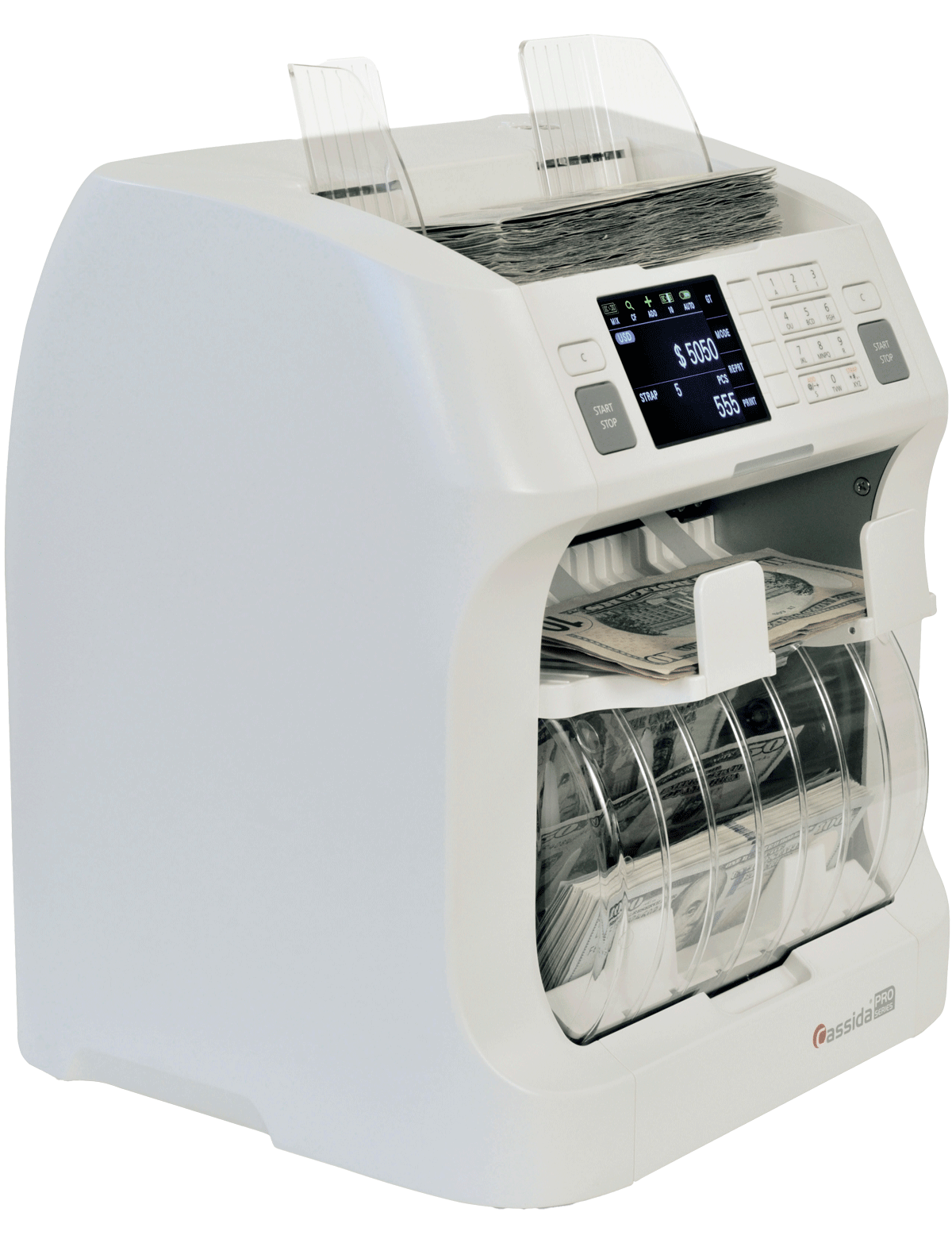

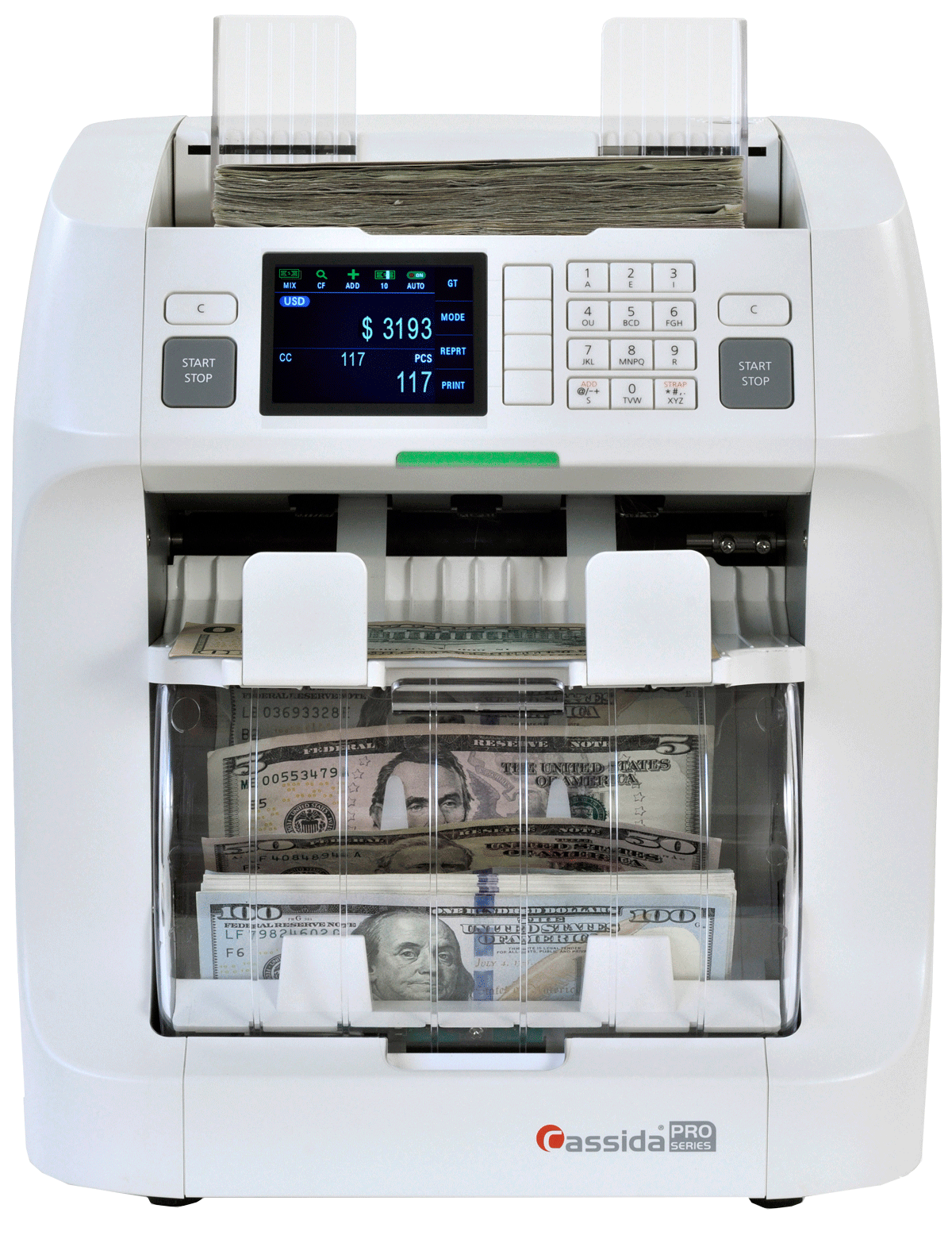

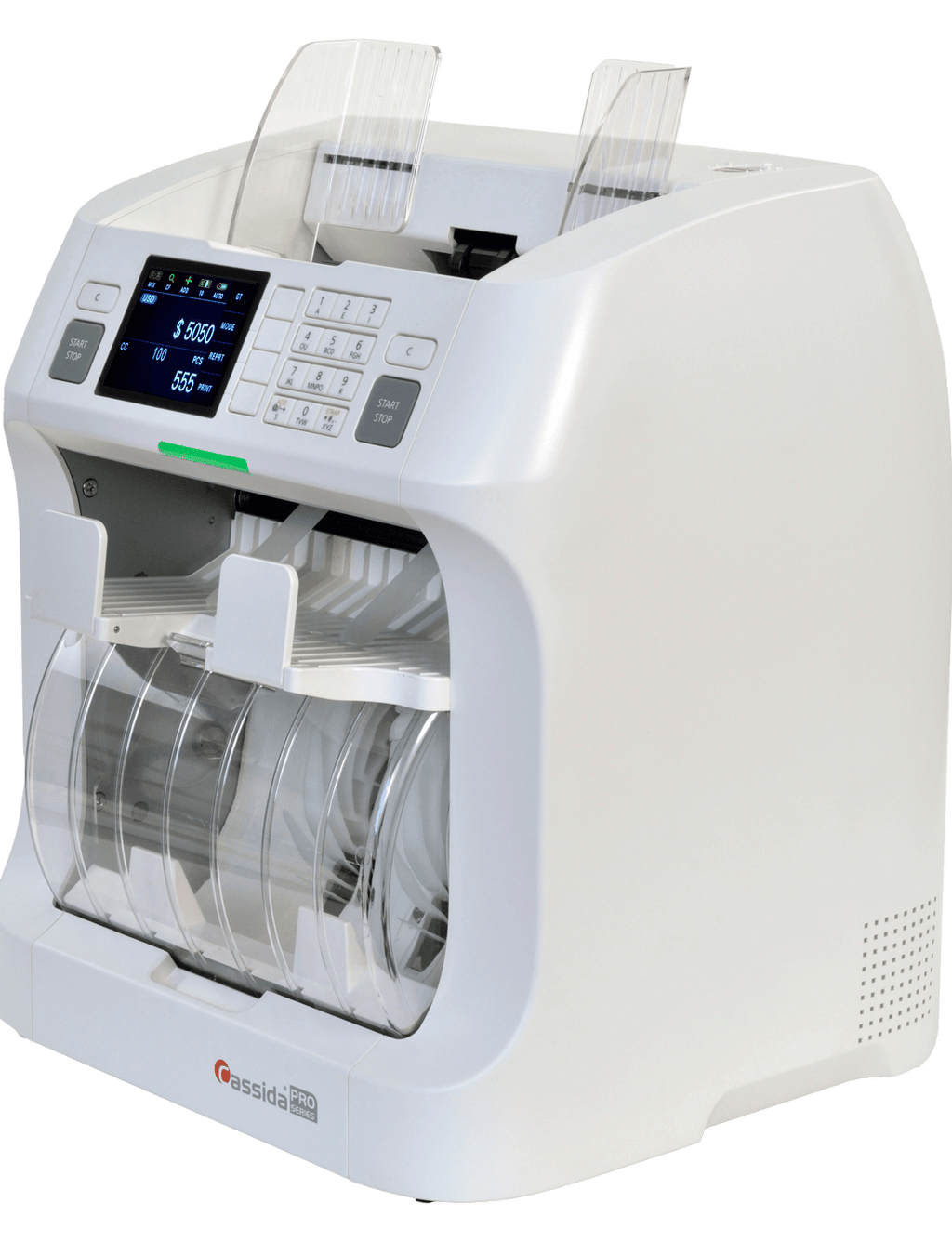

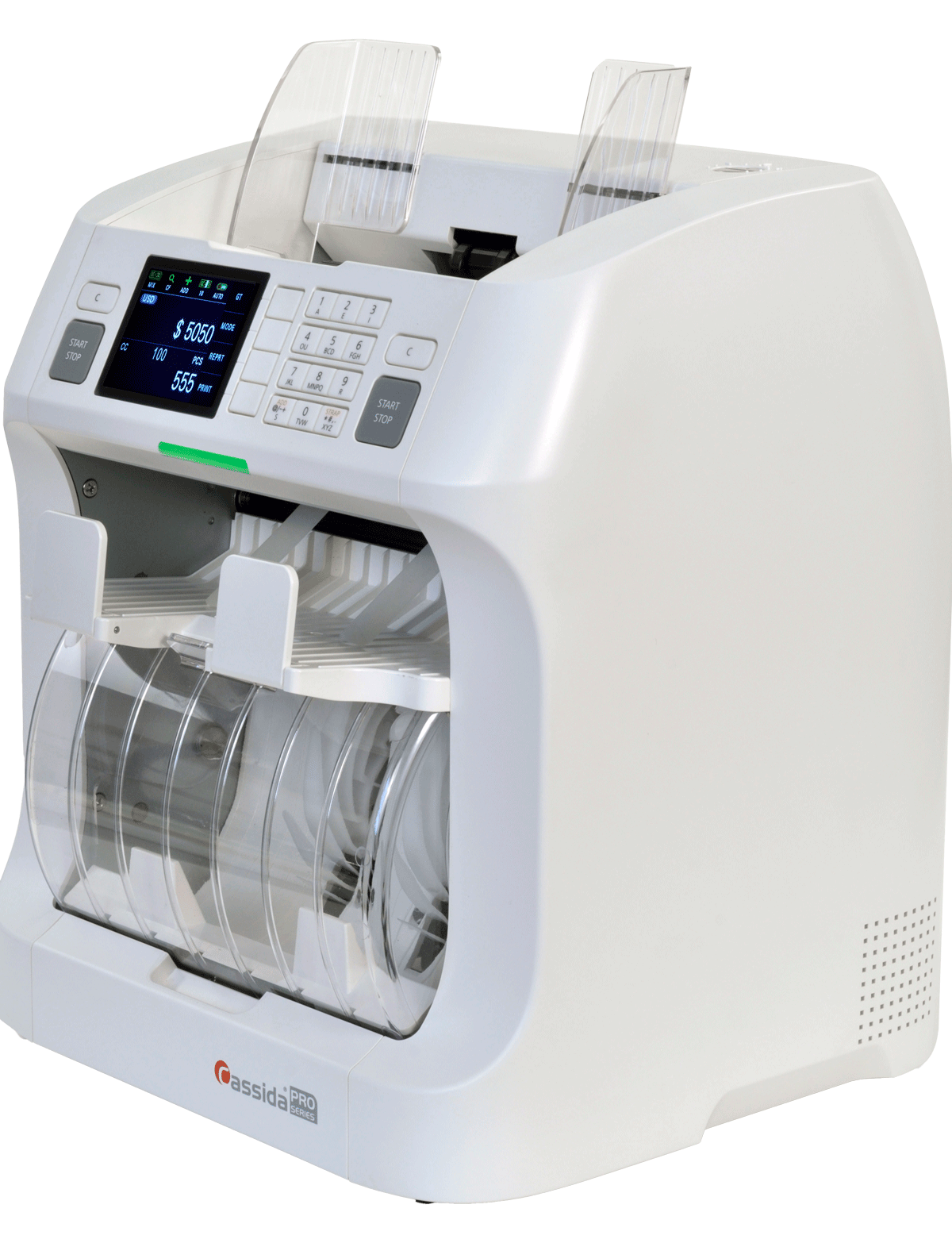

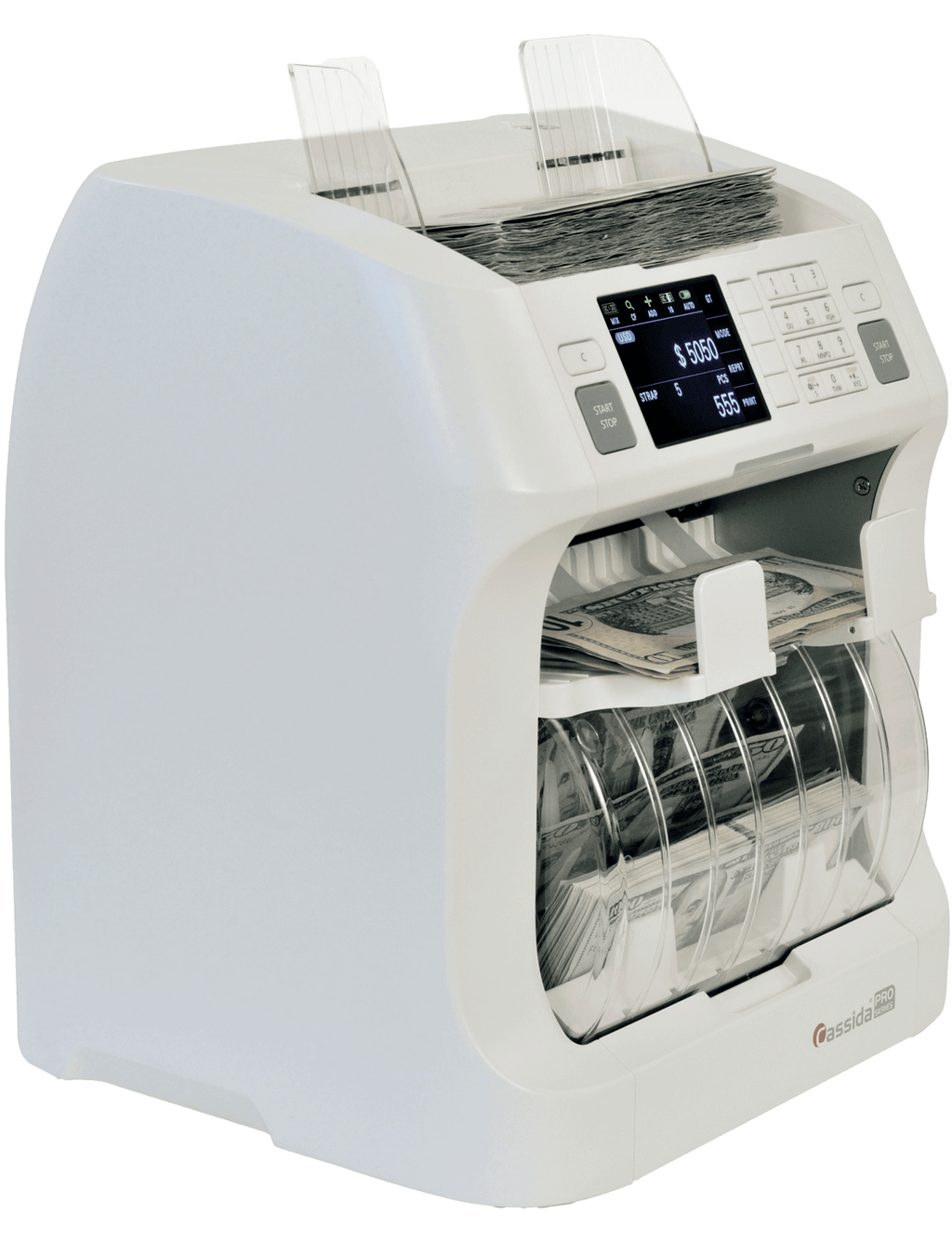

Zeus+ (2 CIS) 2-Pocket Cash Discriminator – High-Speed Mixed Denomination

Zeus+ (2 CIS) 2-Pocket Cash Discriminator – High-Speed Mixed Denomination Currency Counter & Sorter

The Zeus+ (2 CIS) is a professional-grade 2-pocket cash discriminator that counts, values, and sorts mixed banknote denominations in a single pass. Built on the Cassida PRO Zeus platform, it uses dual CIS imaging and multi-sensor counterfeit detection to deliver fast, accurate cash processing even with worn or dirty notes.

This machine is ideal for banks, credit unions, casinos, CIT/armored carriers, cash centers, and high-volume retail or gaming operations that need reliable mixed-denomination counting, denomination sorting, and strong counterfeit protection without stopping the count every time a suspect bill appears.

Key Features & Benefits

• 2-pocket design (stacker + reject) for uninterrupted counting: suspect or out-of-criteria notes go to the reject pocket while good notes continue to the main stacker.

• Dual CIS (2 CIS) imaging for full-bill front and back image analysis, enabling precise denomination recognition and fitness checks.

• High processing speed – up to 800–1,000 bills per minute, depending on mode, delivering both speed and accuracy in busy cash rooms.

• Advanced counterfeit detection – magnetic (MG), full-line UV, double-sided IR, and color spectrum analysis to identify fake or altered notes.

• Mixed-denomination value counting – Mix mode calculates the total value of a stack of different denominations in one pass, cutting manual sorting time dramatically.

• Multiple operating modes – Mixed, Sort, Count, Face, Orientation, ValuSort™ and Strapping modes (by count, amount, or denomination) for flexible workflows.

• Compact, ergonomic design – under 17 lb with a short bill transport path, quiet operation, and front dust cover/dust collector to support long service life and easy cleaning.

• Connectivity & reporting – export reports to USB, connect to a PC, remote display, or printer via serial, LAN and USB ports for audit and reconciliation.

Brief Specs – Zeus+ (2 CIS) 2-Pocket Cash Discriminator

• Model: Cassida PRO Zeus+ (2 CIS)

• Pockets:

  • 1 main stacker pocket

  • 1 reject pocket (for suspect or out-sorted notes)

• Counting speed:

  • 800 / 1,000 bills per minute (mode-dependent)

• Capacities:

  • Hopper: 500+ notes

  • Stacker: 200 notes

  • Reject pocket: 100 notes

• Detection technologies:

  • Magnetic (MG)

  • Full-line ultraviolet (UV)

  • Double-sided infrared (IR)

  • High-definition dual CIS (2 CIS)

  • Color spectrum analysis

• Supported bill size range: approx. 120 × 60 mm to 180 × 90 mm

• Power: 100–240 V AC, 50/60 Hz

• Dimensions (W × D × H): about 10.8" × 9.8" × 12" (276 × 250 × 305 mm)

• Weight: approx. 16.8 lb (7.6 kg)

• Interfaces: AC power, RS-232 serial, RJ12 (remote display), RJ45 LAN, USB-A (updates & report export), USB-B (PC connection)

Who Is the Zeus+ (2 CIS) For?

• Banks & credit unions needing reliable mixed-denomination counting, counterfeit detection and batch/strap preparation at teller lines or back offices.

• Casinos & gaming venues handling high cash volumes at cages and count rooms.

• CIT / armored carriers & cash centers requiring fast, accurate value counting and sorting for multiple clients.

• Large retailers, supermarkets & QSR chains consolidating tills and deposits with minimal manual sorting.

FAQs – Zeus+ (2 CIS) 2-Pocket Cash Discriminator

1. What does “2 CIS” mean on the Zeus+?
“2 CIS” refers to dual contact image sensors that capture high-resolution images of both sides of each banknote. This allows the Zeus+ to recognize denominations more accurately, verify security features, and reduce false rejects, even with worn notes.

2. Can the Zeus+ count mixed denominations in one pass?
Yes. In Mixed (Mix) mode, you can place a stack of different denominations into the hopper and the Zeus+ will count them, identify each denomination, and display the total value and bill breakdown on screen and in reports.

3. How does the Zeus+ handle counterfeit or suspicious bills?
The Zeus+ uses MG, UV, double-sided IR, and dual CIS color analysis to check every note. Suspect or out-of-policy bills are diverted to the reject pocket so the main stack remains clean and counting doesn’t stop.

4. What operating modes are available?
Typical modes include Mix, Sort, Count, Face, Orientation, ValuSort™ and Strapping. You can batch by denomination, by total count, or by a custom amount, making it easy to prepare deposits and strapped bundles.

5. Can I export reports from the Zeus+ to my back-office systems?
Yes. The Zeus+ can save count and sort reports to a USB flash drive and also connect via serial or LAN to optional PC software or a printer, giving you printed tickets or digital records for reconciliation and audit.
