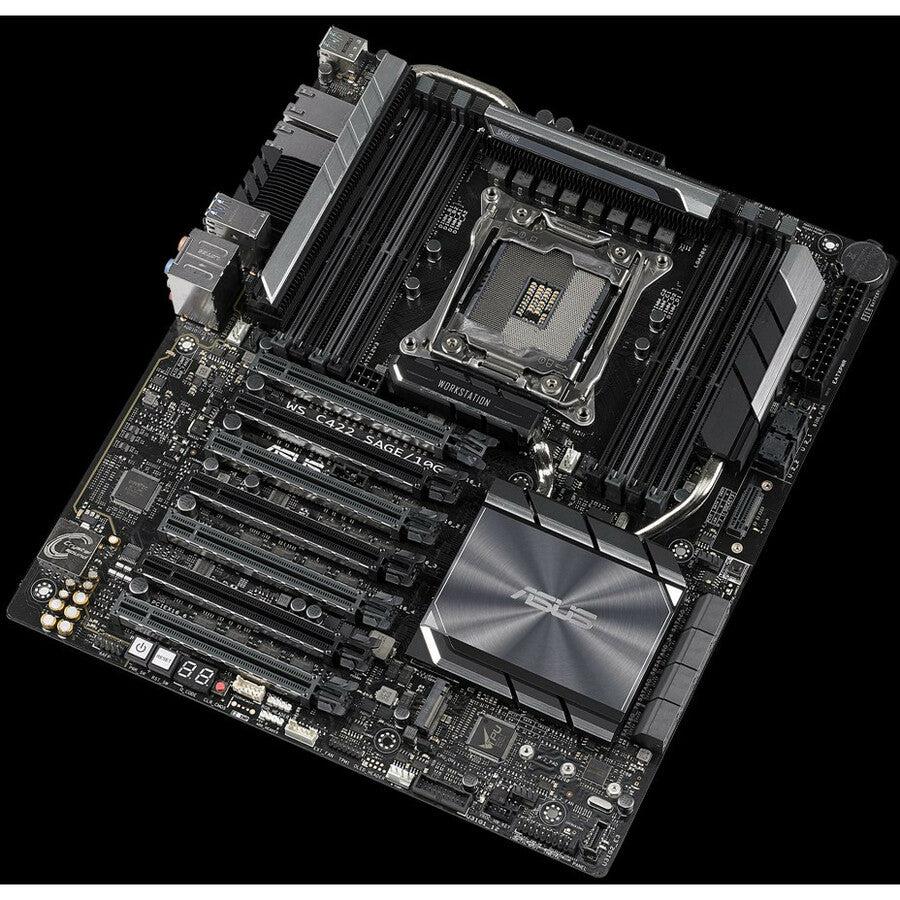

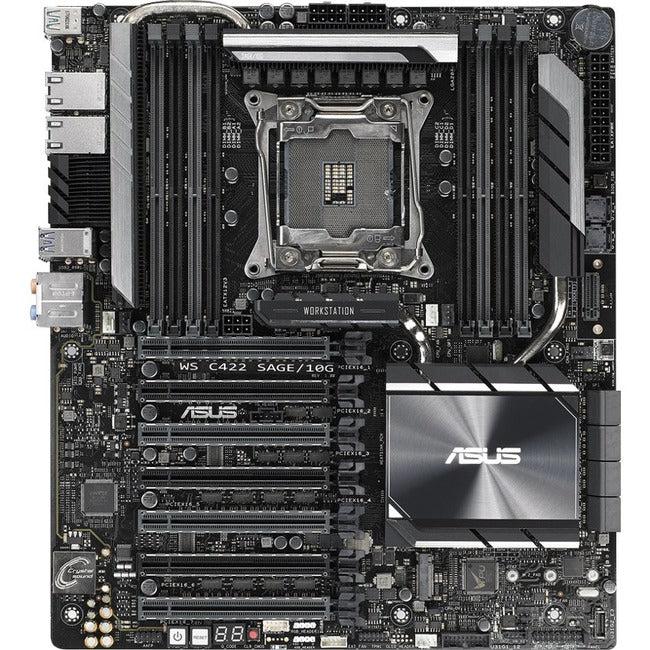

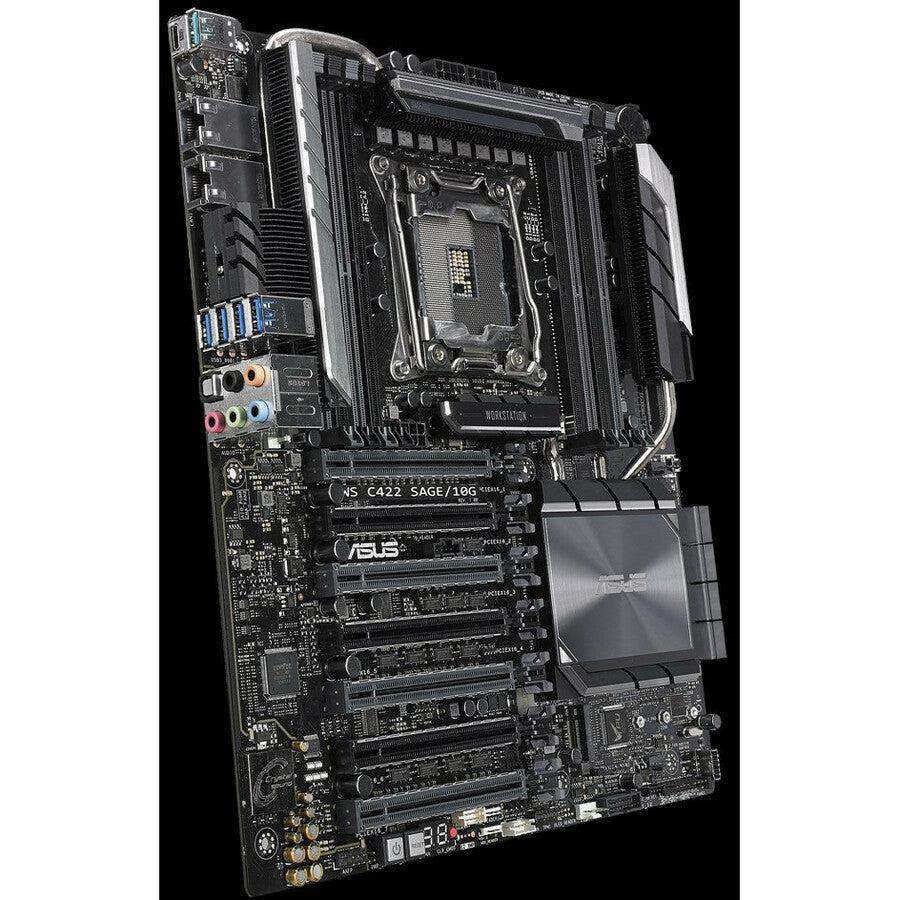

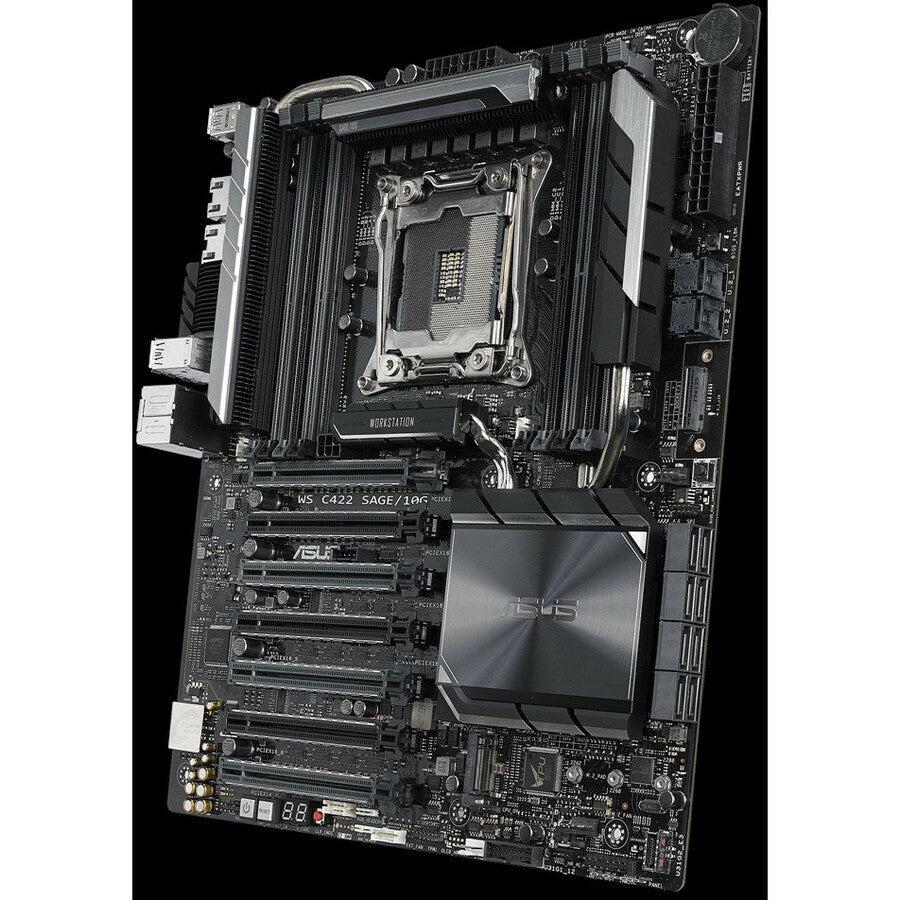

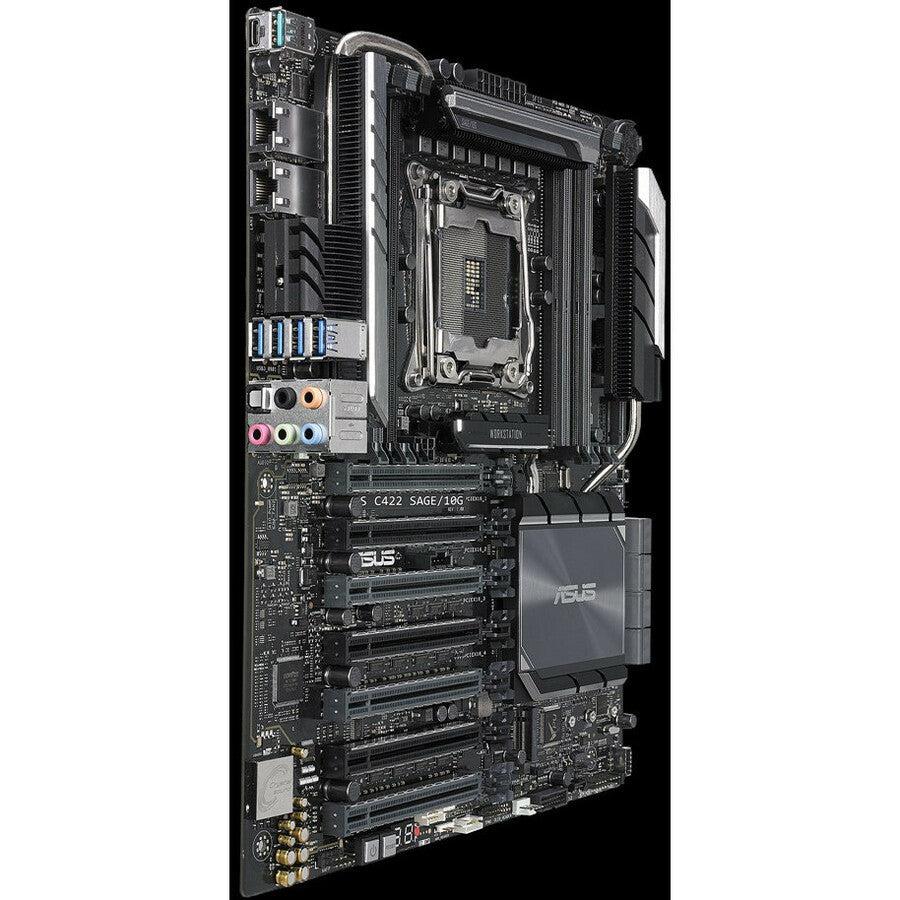

Asus WS C422 SAGE/10G Workstation Motherboard - Intel C422 Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - SSI CEB
Powerful performance with Intel® Xeon® W processor and ECC memory
WS C422 Sage/10G supports server-grade Intel® Xeon® W series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.
High Speed networking with dual Intel® 10G LAN
With built in dual Intel® 10GBASE-T networking, WS C422 Sage/10G increases data throughput and improves efficiency. This supports high-density, high-bandwidth and low-latency access-layer networks needed for extremely demanding applications, such as graphics or video production.
Ultimate graphics power with up to 4-way NVIDIA® SLI™ and AMD®CrossFireX™
WS C422 Sage/10G fits up to four dual-slot graphics cards and supports both NVIDIA® SLI™ and AMD CrossFireX™ 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA®Quadro®. NVIDIA® Quadro® is the perfect complement to WS C422 Sage/10G, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications.
ASUS Control Center
WS C422 Sage/10G features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Multiple Ultra-efficient heatsinks
Designed for the powerful Intel® Xeon® scalable processor with up to 28 cores, WS C422 Sage/10G features a capable thermal design to ensure maximum performance with no CPU throttling.
Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS C422 Sage/10G is always ready to handle any task, no matter how demanding.
With its dual PLX chips that increase the number of available PCIe lanes to enable 4-way GPU configurations, WS C422 Sage/10G features a robust thermal solution to dissipate the heat that comes with routing so much high-speed traffic. An additional heatsink array and heatpipe cover the PLX chips and are positioned in the path of maximum airflow within the chassis, reducing PLX temperatures by up to 20° C to ensure optimal cooling and system stability.
SafeSlot
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Upgrade your RAID
Intel® Virtual RAID on CPU (VROC) obliterates PCH-based RAID arrays that are bottlenecked by the 32Gbps limit of the DMI bus, allowing you to utilize CPU PCIe lanes to configure a bootable RAID array that can transfer data at insane speeds.
- Designed for 7th generation LGA2066 socket Intel® Xeon® W-Series processors with dual M.2 and U.2 ports, front panel USB 3.1 Gen2, Dual Intel® 10G LAN, support for ECC DDR4, Thunderbolt 3 via add-on card, Intel® VROC and Intel® Optane™ Memory compatibility.
- Patent-pending SafeSlot features an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs, ideal for supporting 4-Way NVIDIA®SLI® or AMD® CrossfireX™
- Industry-leading 8-channel HD audio enhanced by ASUS exclusive Realtek S1220A featuring Crystal Sound 3, DTS Headphone:X and driven by Japanese capacitors for warm, immersive sound
- AURA Sync RGB lighting via Addressable RGB headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products
- Complete IT Infrastructure Management with ASMB9 Out-of-band remote management and In-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching.
Product Type: Workstation Motherboard
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Asus
Form Factor: SSI CEB
Manufacturer: ASUS Computer International
Product Model: WS C422 SAGE/10G
Product Name: WS C422 SAGE/10G Workstation Motherboard
Manufacturer Part Number: WS C422 SAGE/10G
Manufacturer Website Address: http://usa.asus.com
Package Contents:
- WS C422 SAGE/10G Workstation Motherboard
- User's Manual
- Addressable LED Extension Cable
- 1 x Vertical M.2 Bracket Set
- I/O Shield
- 1 x COM Port Cable(s)
- 8 x SATA 6Gb/s cable(s)
- 1 x M.2 Screws
- 1 x Supporting DVD
- 1 x 3-Way SLI Bridge(s)
- 1 x 4-Way SLI Bridge(s)
- 1 x SLI HB BRIDGE(2-WAY-M)
- 1 x Q-Connector
Limited Warranty: 3 Year
