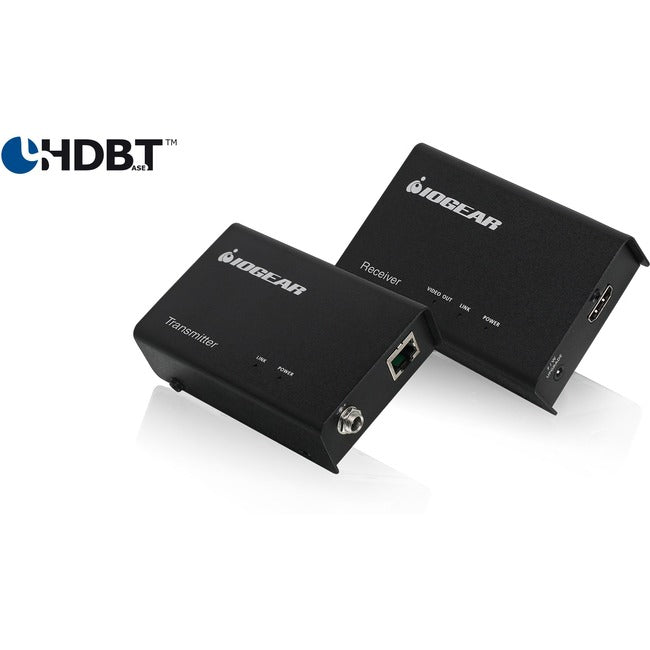

IOGEAR HDBaseT HDMI Extender
HDMI Extender over Ethernet
On average, traditional HDMI cables have distance limitations of transmitting an HDMI signal longer than 25ft. With IOGEAR's HDBaseT HDMI Extender Kit, HDMI audio and video signals can be transmitted up to 228ft using a single solid Cat6a cable. The HDMI extender kit consists of a local transmitter unit and remote receiver unit connected using a single solid Ethernet cable. This HDMI extender kit provides a low-cost and reliable solution of distributing HDMI over long distances that traditional cables are unable to address. Using existing Cat5e/Cat6/Cat6a infrastructure, HDBaseT technology allows for single cable installation avoiding the hassle of running multiple cables and reducing potential failure points. This plug-n-play solution is compatible with any operating system and requires no additional drivers or software.
What is HDBaseT?
HDBaseT is a consumer electronic and connectivity standard that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables the transmission of uncompressed multimedia content at resolutions up to 4K (UHD). The HDBaseT architecture allows for a full bandwidth of 10.2Gbps data throughput over a single Cat 5e/Cat6/Cat6a cable and supports all High Speed HDMI functions including high-definition video, audio, power, 100BaseT Ethernet, USB, and certain control signals such as CEC, RS-232 or IR.
Astonishing Picture Quality at Long Distances
With the A/V industry quickly adopting 4K (UHD) as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables that experience signal degradation at 25 feet. Using IOGEAR's HDBaseT HDMI Extender and a single Cat6a cable, transmit HDMI signals at distances up to 228ft (70m) at 1080p resolution. Be amazed at how 4K UHD (3840x2160) picture quality, four times the resolution of high-definition 1080p, can be maintained even at 130ft (40m) away from your video source using Cat6a cable. This HDMI extender kit can make any video source look great, while future proofing your setup for 4K implementation.
More from the Manufacturer
- Rack mount kit included
- Durable metal casing
- HDCP compliant
- Dolby® True HD and DTS-HD Master Audio pass through support
- Supports 3D, Deep Color and 4K image resolutions
- Keep your DVR/Set-top box, Blu-ray player or computer out of sight and place your HDTV, HD projector or HD display up to 228ft away*
- Use a single Cat5e/Cat6/Cat6a cable to transmit A/V data using HDBaseT technology
- UHD extender for long distance audio/video transmissions
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Height: 2.62"
Transmitter Width: 4"
Transmitter Depth: 1.19"
Receiver Height: 2.62"
Receiver Width: 4"
Receiver Depth: 1.19"
Transmitter Weight (Approximate): 8.47 oz
Receiver Weight (Approximate): 8.47 oz
Country Of Origin: Taiwan
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Name: HDBaseT HDMI Extender
Manufacturer Part Number: GVE330
Manufacturer Website Address: http://www.iogear.com
Package Contents:
- 1 x HDBaseT HDMI Transmitter
- 1 x HDBaseT HDMI Receiver
- 2 x Locking Power Adapters
- 2 x Wall Mount Kits
- 1 x Quick Start Guide
- 1 x Warranty Card
Limited Warranty: 3 Year
