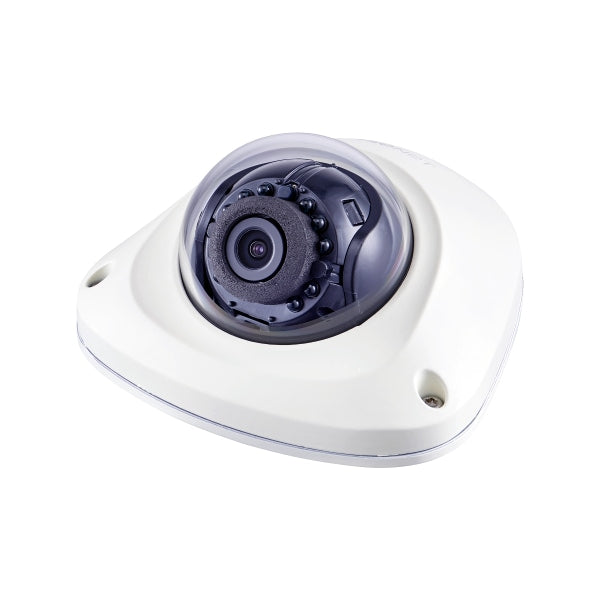

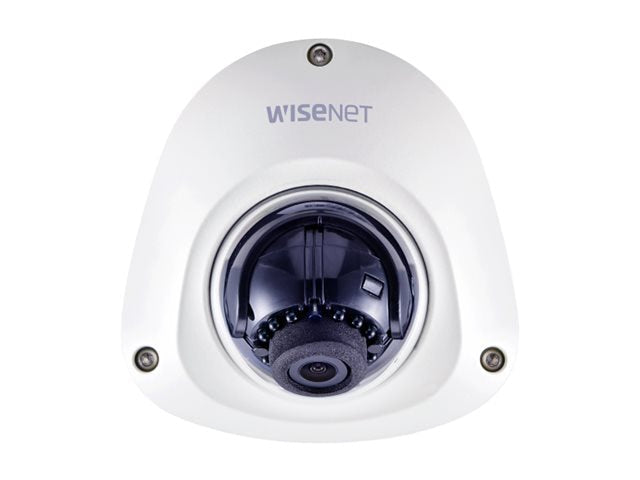

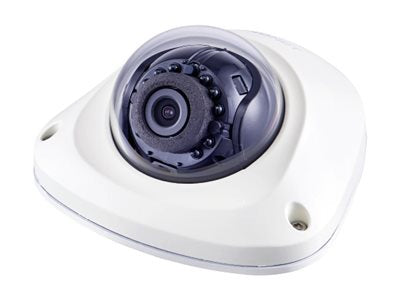

The WISENET A Series Outdoor Vandal Mini Dome Camera (ANV-L6023R) from HANWHA VISION delivers reliable 2MP surveillance in outdoor environments. Its compact, vandal‑resistant enclosure and smart analytics make it a solid choice for professional security installations that demand durable imaging and clear night visibility.
-
Resolution & Frame Rate: 2MP resolution at 30 FPS for smooth, detailed video capture.
-
Lens & Field of View: 3.6mm fixed focal lens with a horizontal FOV of 94.8° and vertical FOV of 49.3°.
-
Video Codecs: Supports H.265, H.264, and MJPEG with WiseStream II for efficient bandwidth usage.
-
High Dynamic Range: 120dB WDR to maintain visibility in challenging lighting conditions.
-
Night Vision: Integrated IR LEDs provide up to 15 meters of night visibility; Day/Night performance via ICR.
-
Intelligent Features: Virtual area intrusion detection, virtual line crossing, motion detection, tampering alerts, and hallway view mode for alternative perspectives.
-
Storage & Local Recording: Built‑in SD card slot supports up to 128GB for on‑site data retention.
-
Durability: IP66 weatherproof rating and vandal‑resistant construction ideal for harsh outdoor use.
-
Installation & Power: Power over Ethernet (PoE) for simple, single‑cable setup; white finish blends into outdoor environments.
This camera is designed to deliver dependable, high‑quality imagery around the clock. The combination of rugged housing, flexible installation options, and smart analytics helps you monitor and protect outdoor areas effectively while keeping bandwidth and storage needs in check.
Specs
- Resolution: 2MP
- Frame Rate: 30 FPS
- Lens: 3.6mm fixed focal
- Field of View: Horizontal 94.8°, Vertical 49.3°
- Video Codec: H.265/H.264/MJPEG
- WDR: 120dB
- IR Range: 15m (49.21ft)
- Storage: SD card slot, up to 128GB
- Protection: IP66, vandal-resistant
- Power: PoE
- Color: White
FAQ
-
What is the maximum storage capacity for the SD card? Up to 128GB.
-
Does the camera support night vision? Yes, with IR LEDs providing visibility up to 15 meters.
-
Is the camera weatherproof? Yes, it has an IP66 rating suitable for outdoor use.
-
Can the camera detect motion and tampering? Yes, it includes motion detection and tampering alerts.
-
What video compression formats are supported? H.265, H.264, and MJPEG.
