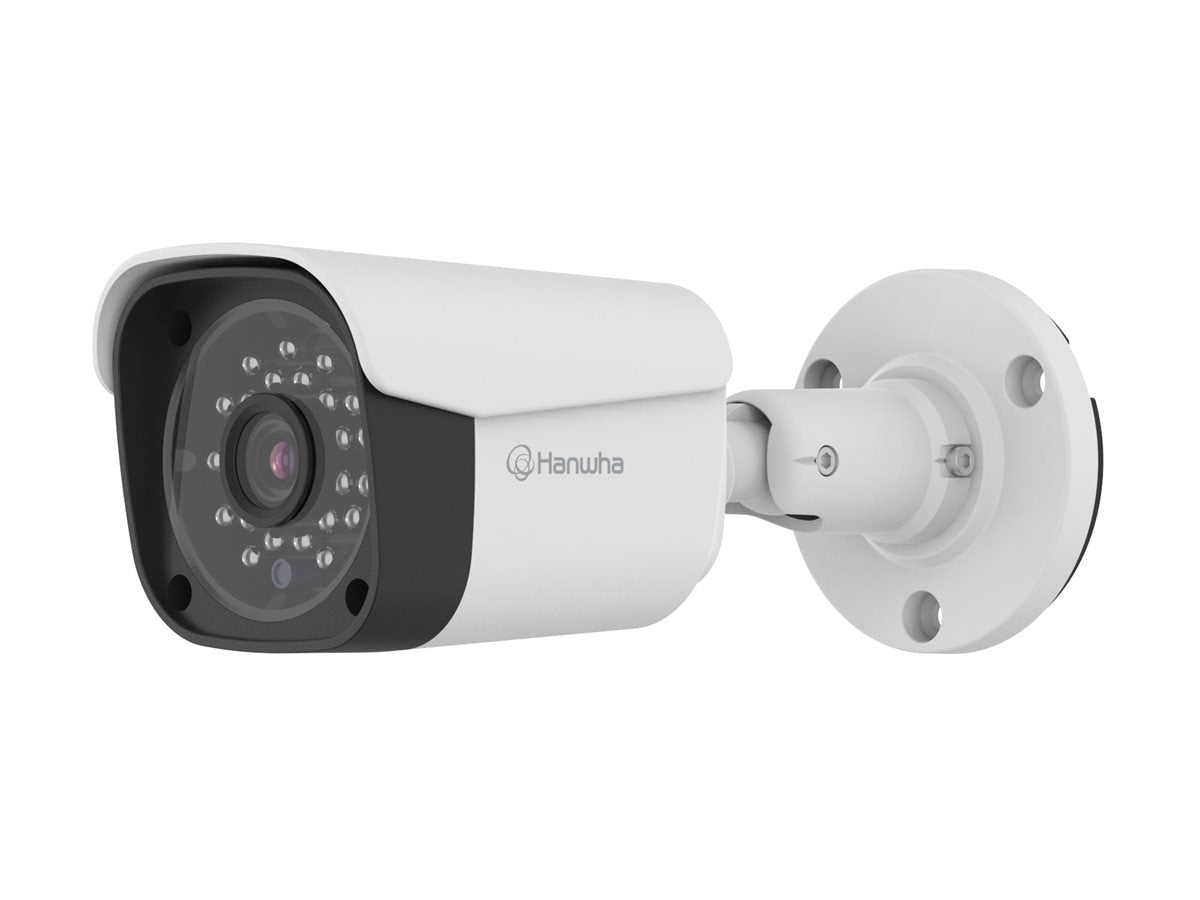

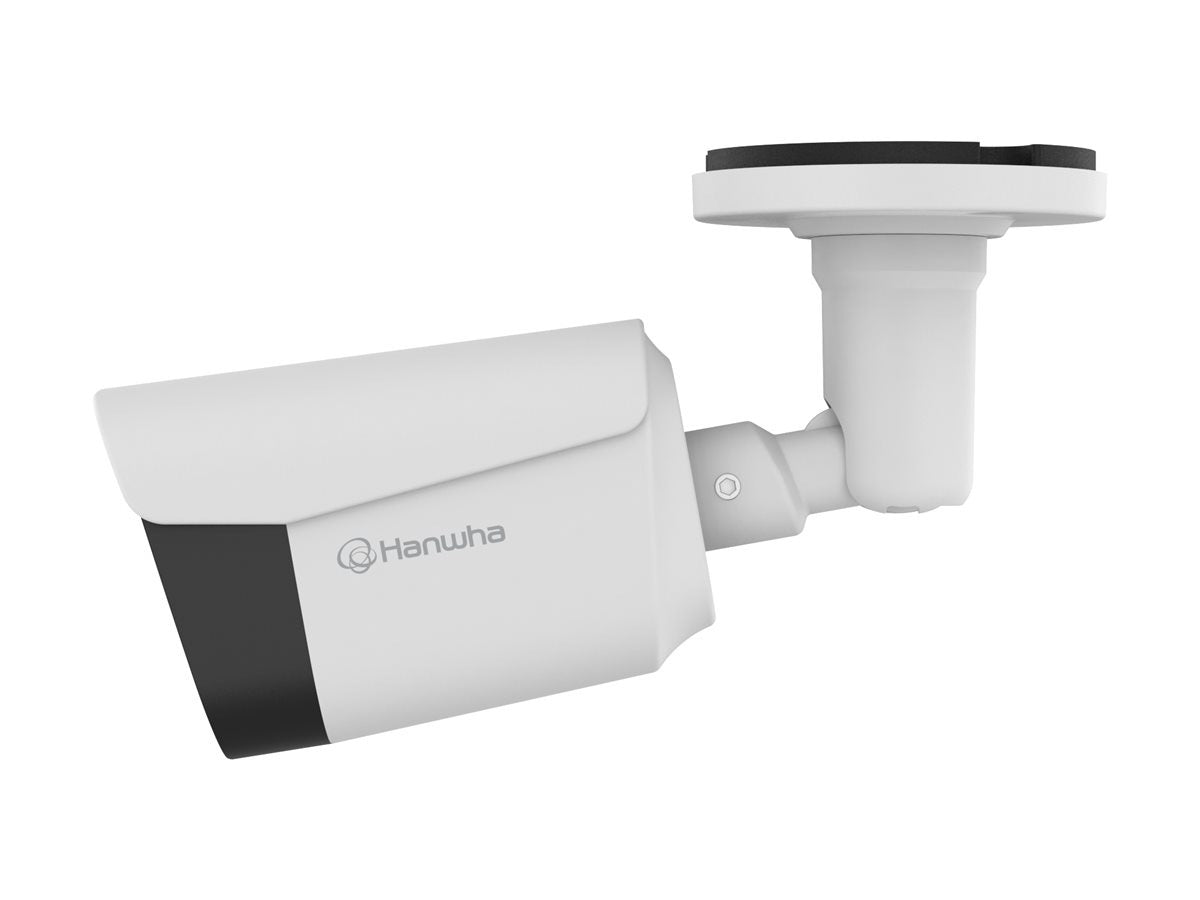

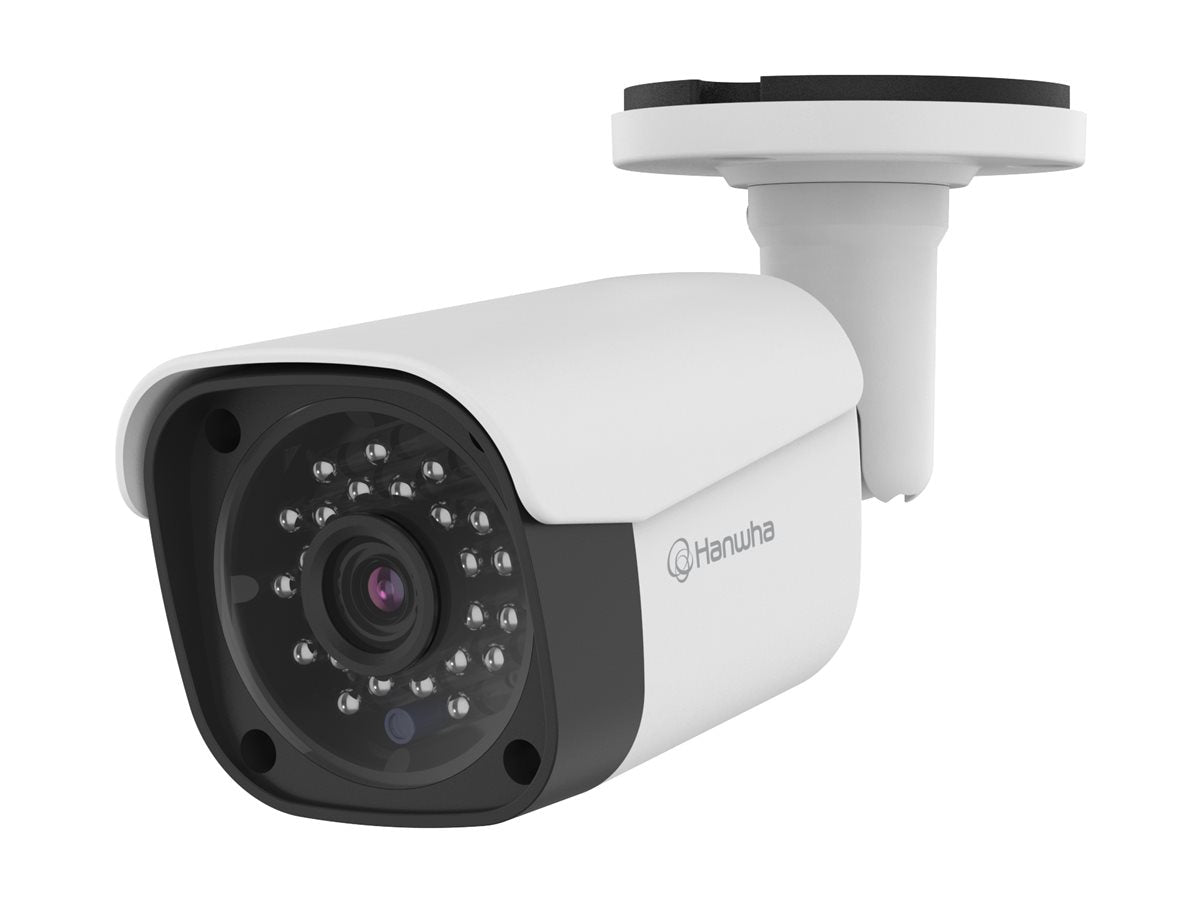

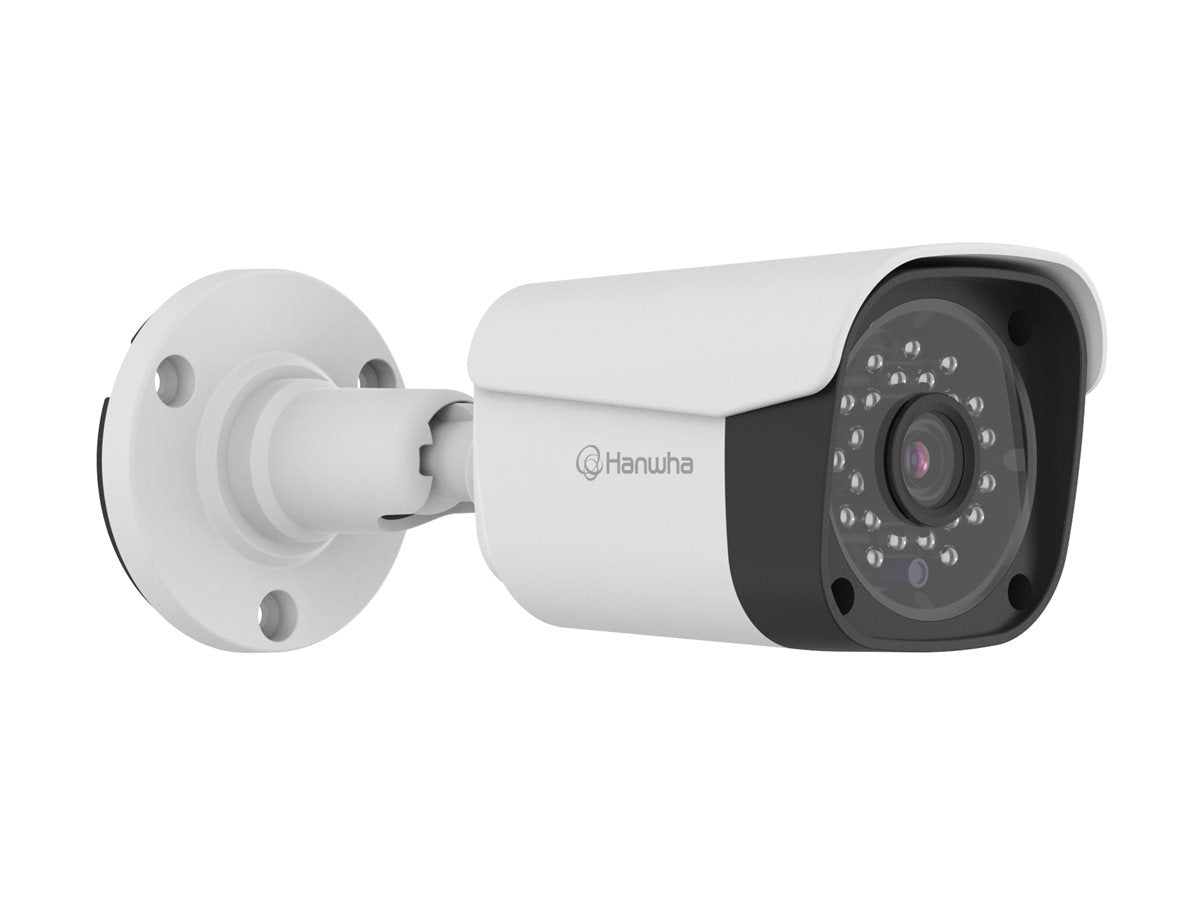

Introducing the WISENET A SERIES 5MP IR Bullet Camera from HANWHA VISION — a versatile, high-resolution surveillance solution designed for professional installations that demand reliable day/night imaging and flexible integration with existing analog systems. Built to endure outdoor environments with IP67 and IK10 ratings, it delivers consistent, actionable footage in varied conditions.
-
Resolution & Frame Rate: 5MP resolution at 30 FPS for clear, detailed video.
-
Multi-Format Compatibility: Supports AHD, TVI, CVI, and CVBS formats for easy integration with existing systems.
-
Lens: 3.6mm fixed focal length with a horizontal field of view of 94° and vertical 54°.
-
Night Vision: Infrared illumination provides visibility up to 20 meters (65.6 ft) in low light.
-
Durability: IP67 weather resistance and IK10 vandal resilience for outdoor environments.
-
Power & Output: 12V DC power input with analog video output for flexible connectivity.
-
Design & Application: Bullet form factor tailored for outdoor surveillance across diverse settings.
This camera is designed to deliver dependable security monitoring day and night. The 5MP sensor captures crisp details essential for identification, while the 3.6mm lens covers broad areas with a wide field of view. Its multi-format support simplifies retrofitting or expanding legacy analog systems, helping you maximize existing infrastructure. The rugged housing, paired with 20-meter infrared distance and vandal-resistant construction, makes it suitable for entrances, perimeters, parking lots, and other challenging outdoor environments.
Specs
-
Resolution: 5MP @ 30 FPS
-
Lens: 3.6mm fixed focal
-
IR Distance: 20m (65.6 ft)
-
Field of View: Horizontal 94°, Vertical 54°
-
Protection: IP67, IK10
-
Power: 12VDC
-
Formats: AHD, TVI, CVI, CVBS
FAQ
-
Does this camera support night vision?
Yes, it features infrared illumination up to 20 meters for clear night-time monitoring.
-
Is the camera weather-resistant?
Yes, it has an IP67 rating, making it suitable for outdoor use in harsh conditions.
-
What formats are compatible?
It supports AHD, TVI, CVI, and CVBS analog video formats.
-
Can it withstand physical impact?
Yes, it is rated IK10 for vandal resistance.
-
What power supply does it require?
The camera operates on 12VDC power input.
