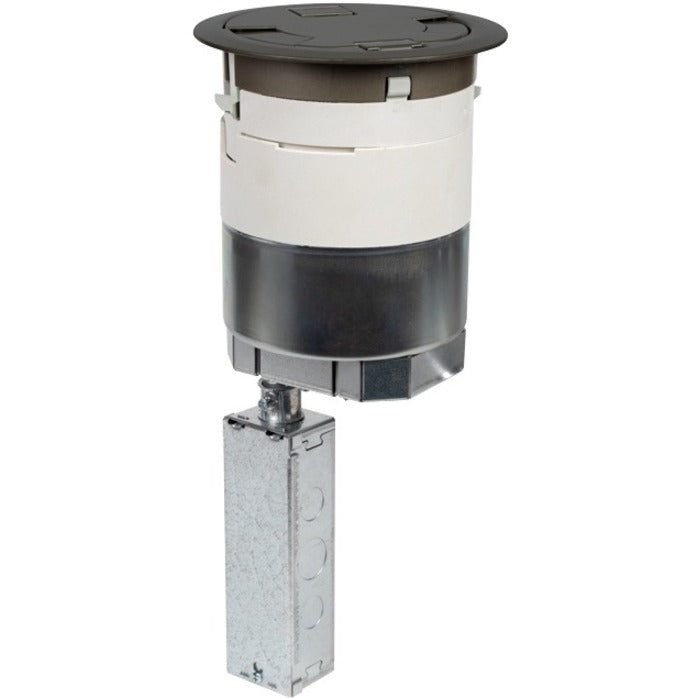

Wiremold 6ATC2PGY Prewired Evolution Poke-Thru Assembly
The Wiremold 6ATC2PGY is a professional-grade prewired poke-thru assembly engineered for seamless cable and power distribution through concrete floors. Designed for 6-inch (152 mm) diameter floor openings, this Evolution series floor box delivers a clean, integrated solution for modern office and commercial spaces. The gray powder-coated aluminum surface style cover provides durability and aesthetic appeal while protecting recessed devices 3¼ inches below the floor surface. Perfect for organizations requiring reliable cable management in open-plan environments, this prewired assembly eliminates messy surface routing and creates professional-looking workspaces.
Key Features
- Prewired Evolution poke-thru assembly for immediate installation
- Compatible with 6-inch diameter floor openings in concrete
- Supports carpet, tile, wood, and laminate floor coverings
- Devices recessed 3¼ inches below floor surface for protection
- Die-cast aluminum surface style cover with gray powder-coat finish
- Professional cable management solution for open-plan offices
- Integrated design eliminates surface-mounted cable clutter
- Durable construction for high-traffic commercial environments
Technical Specifications
| Specification |
Details |
| Manufacturer |
Middle Atlantic |
| Part Number |
6ATC2PGY |
| Product Type |
Prewired Evolution Poke-Thru Assembly |
| Floor Opening Size |
6 inches (152 mm) diameter |
| Device Recess Depth |
3¼ inches (83 mm) below floor surface |
| Cover Style |
Surface Style |
| Cover Material |
Die-cast Aluminum |
| Cover Finish |
Gray Powder-Coat |
| Compatible Floor Types |
Carpet, Tile, Wood, Laminate |
| Installation |
Prewired for quick deployment |
Frequently Asked Questions
What is a poke-thru assembly used for?
A poke-thru assembly is a floor-mounted cable management solution that allows power, data, and communication cables to pass through concrete floors from lower levels to workstations above. The Wiremold 6ATC2PGY provides a clean, integrated alternative to surface-mounted cable trays and conduit.
Can the Wiremold 6ATC2PGY be installed in different floor types?
Yes, this prewired floor box is designed to work with carpet, tile, wood, and laminate floor coverings. The recessed design ensures a flush, professional appearance regardless of your flooring material.
How deep is the device recess on this poke-thru assembly?
The devices are recessed 3¼ inches (83 mm) below the floor surface, providing protection from foot traffic and maintaining a clean, unobstructed floor appearance while keeping cables organized and safe.
Is the Wiremold 6ATC2PGY prewired for immediate use?
Yes, this is a prewired Evolution poke-thru assembly, meaning it arrives ready for installation without additional wiring configuration, reducing deployment time and labor costs in commercial environments.
