Plug & Play Setup without any Software Installation.

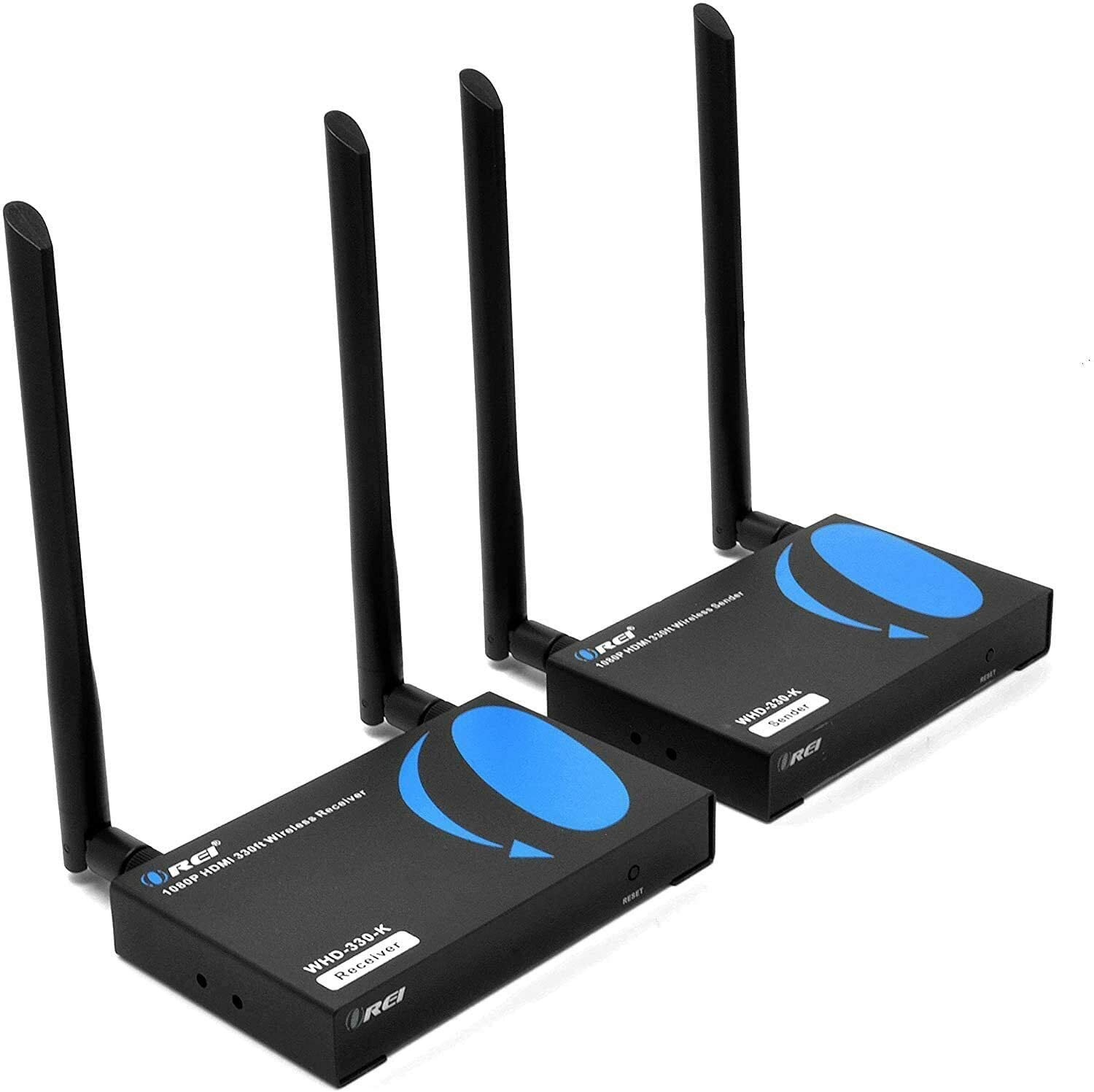

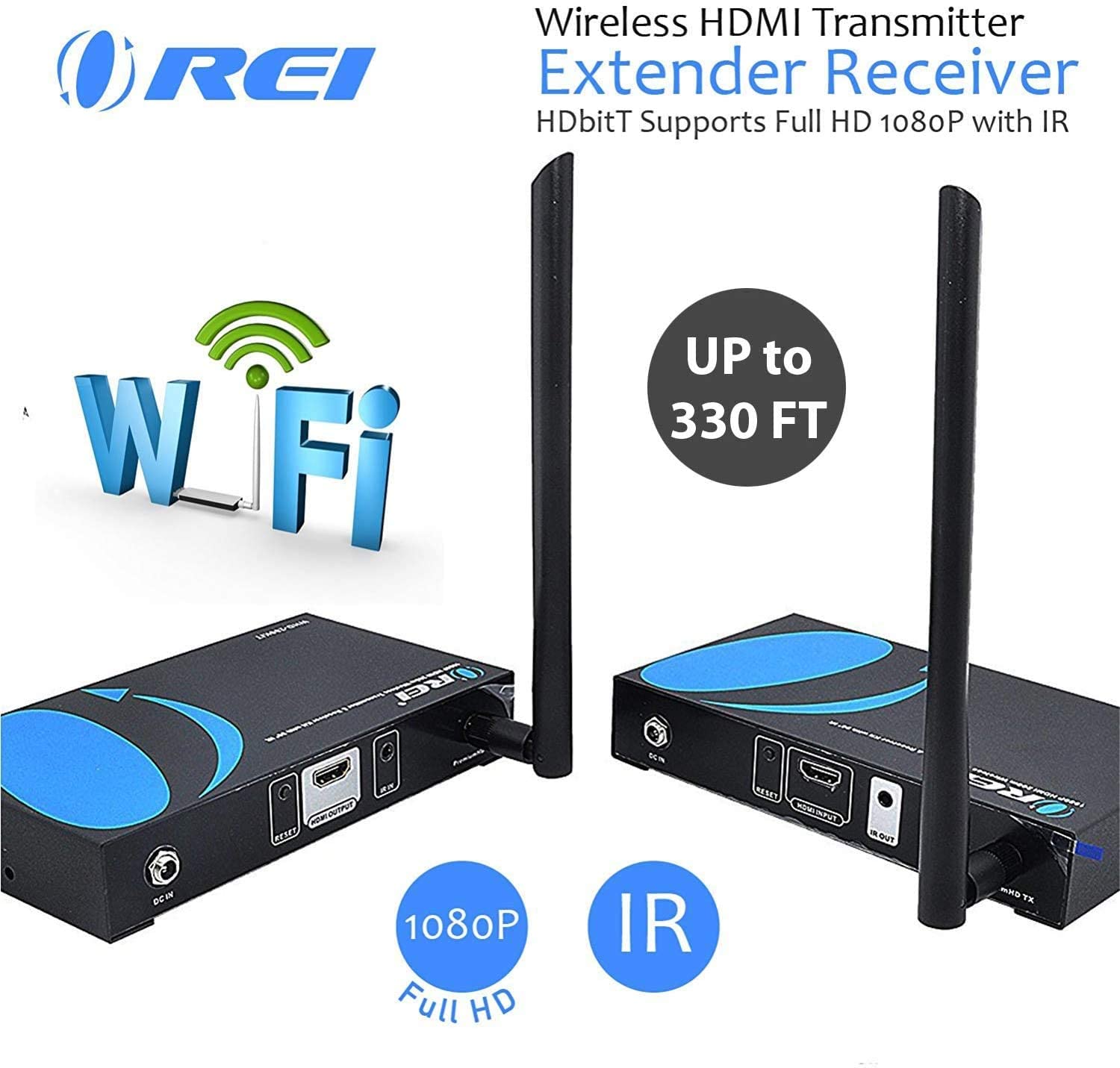

This OREI WHD-330-K Extend HDMI signal up to 330ft OREI Powerful HDMI wireless extender. This HDMI wireless extender includes transmitter unit and receiver unit and enables you to transmit and extend HDMI signal up to 100 meters wirelessly. We remastered it with strong anti-interference ability by running at 5G operation frequency.
Supports up to 1080p signal extension. Supports point to point wireless connection Supports point to point wireless connection including: HDMI 480i@60Hz, 480p@60Hz, 576i@60Hz, 576@50Hz, 720p@50/60Hz, 1080i@50/60HZ, 1080P@50/60Hz. Only 120 mili second of delay-latency time!
Note:
Transmission will not go through Wall. Direct Signal Only.
This Device is not meant for real-time gaming or PC operation.
Perfect for streaming This HDMI wireless extender is ideal to stream content from Laptop, PC, Cable, Netflix, YouTube, PS4 to HDTV/Projector and it features IR Support with Full Band IR Return 20 ~ 60 Khz. It is really a very good solution for meeting, conference, home entertainment and multi-media education.
Note: The maximum distance of 330 feet is for in line of sight use with no other wireless or physical obstructions. The transmission distance is reduced with physical obstructions such as walls, floors and even with wireless interference from wireless routers or even microwave ovens.
[tab]
AUDIO AND VIDEO

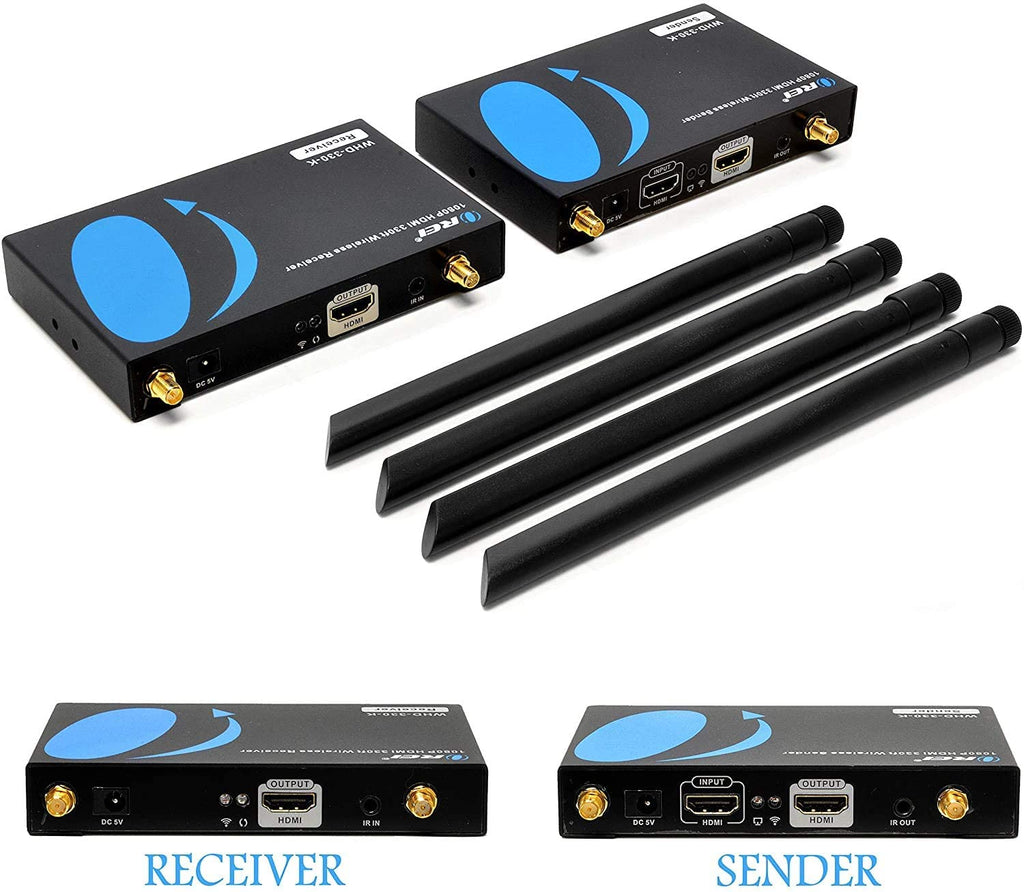

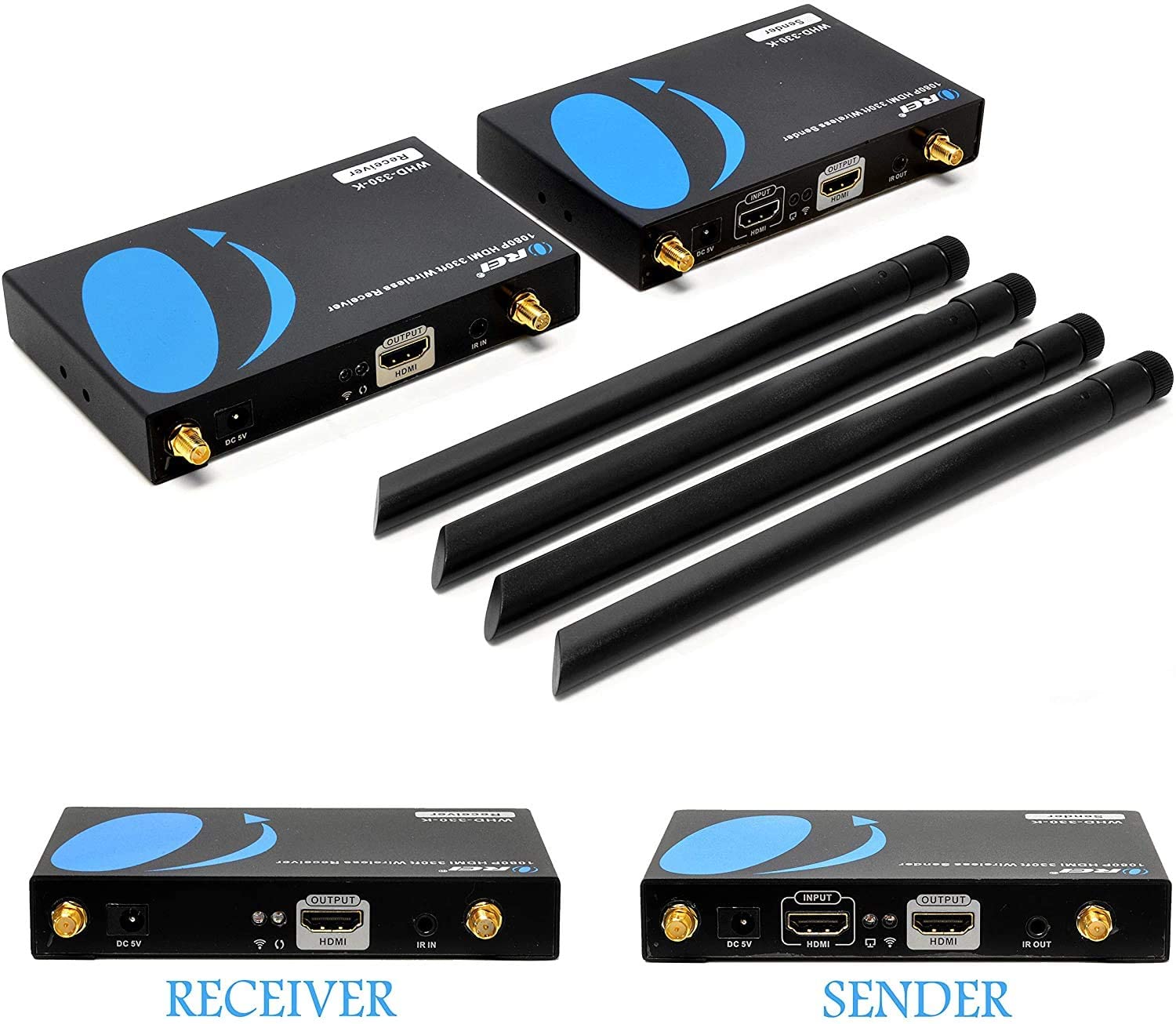

Transmitter:
INPUT PORTS:
1x HDMI Type A [19-pin female]
OUTPUT PORTS:
1x IR OUT [3.5mm Stereo Mini-jack]
2x WiFi OUT [WiFi Antenna]
Receiver:
INPUT PORTS:
1x IR IN [3.5mm Stereo Mini-jack]
2x WiFi IN [WiFi Antenna]
OUTPUT PORTS:
1x HDMI Type A [19-pin female]
COMPLIANCES
HDMI Compliance
HDMI 1.3
HDCP Compliance
HDCP 1.4
USB Version:
No USB
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080p@60Hz:
330ft/100m
VIDEO OUTPUT
Video Bandwidth:
6.75Gbps
Video Resolutions:
1080p, 1080i, 720p, 720i, 480p, 480i, the maximum is 1920×1080@60Hz The PC resolution is up to 1920×1200@60Hz
Color Space:
RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Color Depth:
8/10/12-bit (1080P60Hz)
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
No
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
Yes
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
No
SWITCHES
EDID Management:
No
EQ Dip Switches:
No
ARC:
No
AUDIO OUTPUT
HDMI Audio Formats:
LPCM 2.0CH 32KHz/44.1KHz/48KHz
SIGNALS
TMDS Signals:
3.3V
DDC Signals:
5V
WIRELESS PERFORMANCE & INTERFACE
Transfer Method:
Wireless transmission
Latency:
<200 ms
Transmission Distance:
Up to 330ft/100m. (In an open environment without Wi-Fi interference)
DIMENSIONS & WEIGHT
Transmitter:
Height:
21mm
Width:
76mm
Depth:
98mm
Weight:
100g
Receiver:
Height:
21mm
Width:
76mm
Depth:
98mm
Weight:
100g
PROTECTION
Operation Temperature:
32 - 104°F / 0 - 40°C
Storage temperature:
-4 - 140°F / -20 - 60°C
Relative Humidity:
20 - 90% RH (no condensation)
Electrostatic Protection of the whole Machine:
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
RJ-45 CONNECTOR Type
No
POWER
Power Consumption (Max):
Transmitter:
2.25W
Receiver:
1.8W
Power Supply
Input:
AC 100 - 240V 50/60Hz
Output:
DC 5V/1A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Plastic Enclosure
Processing Technology:
Molding
Finishing:
Screen Printing

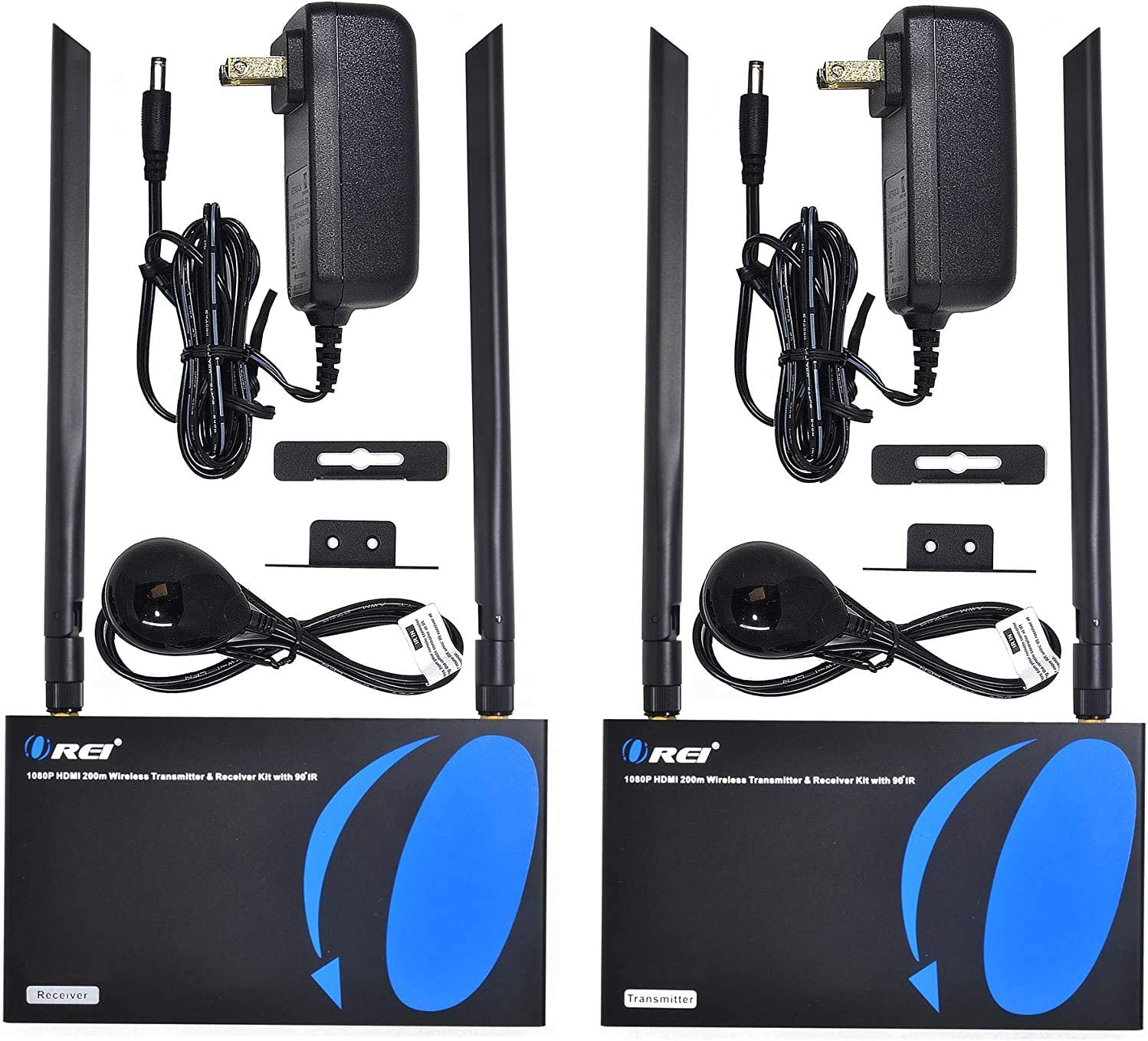

PACKAGE CONTENTS
1xHDMI Wireless Extender (Encoder)
1xHDMI Wireless Extender (Decoder)
1xIR Blaster cable (1.5 meters)
1x20~60KHz IR Receiver cable (1.5 meters)

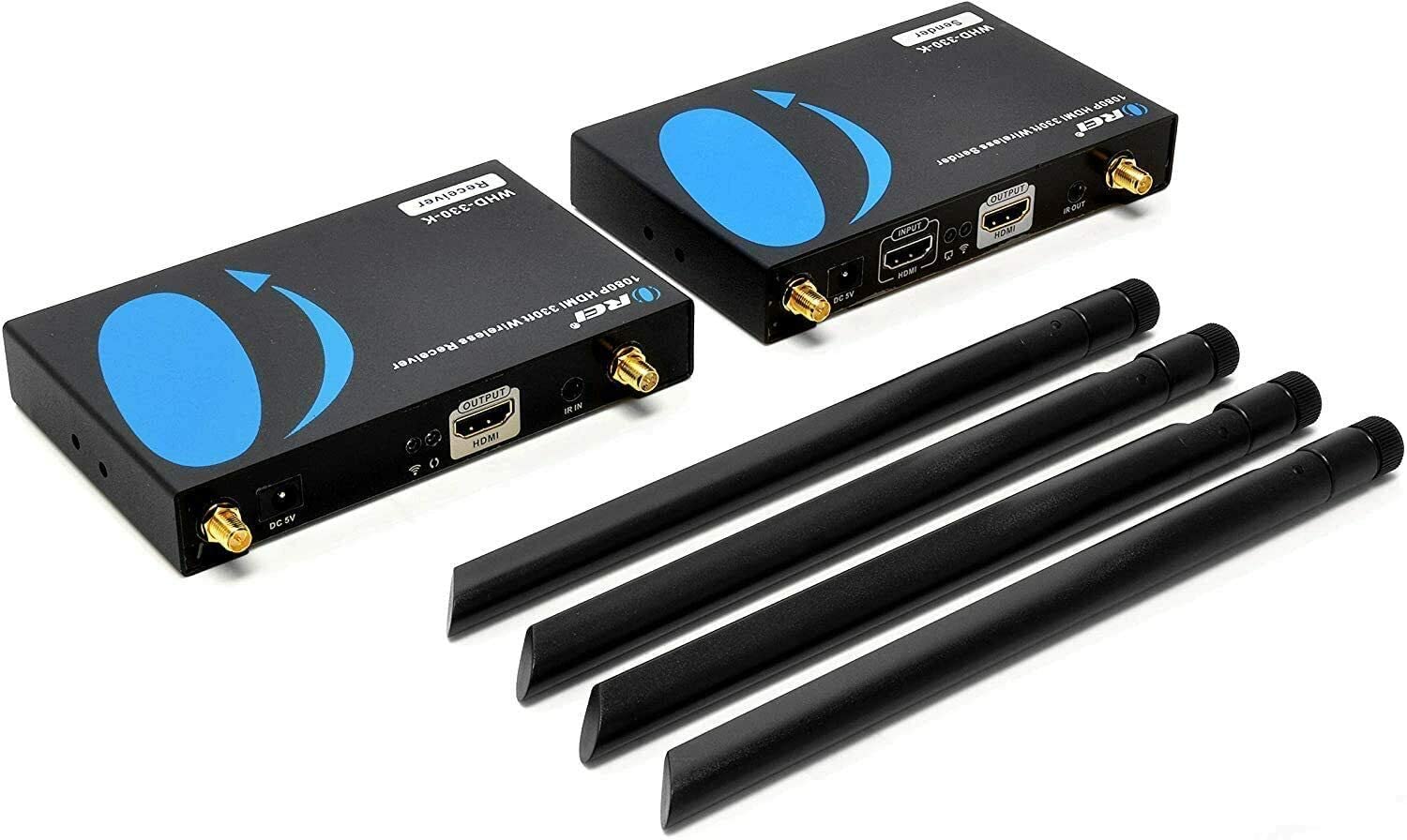

4x5G WiFi Antenna
2x5V/1A Power Adapter
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
- Please try replacing your current HDMI cables with High-Quality HDMI cables.
- Please make sure that you dont have any other wireless devices such as wifi router nearby this extender. If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.
No, WHD-330-K doesn't supports additional receivers. The WHD-PRO330-K supports up to 3 additional receivers. However, the transmission distance will be reduced with each additional receiver.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
