Wireless Frequency Band 5G near no Interference, perfect for extra TV around the House
Will not work if there is Wifi Router Nearby
Plug and Play Setup without any Software Installation
Compact design for easy and flexible installation
This Device is not mean for real-time shooting or PC operation. Good for personal Home use

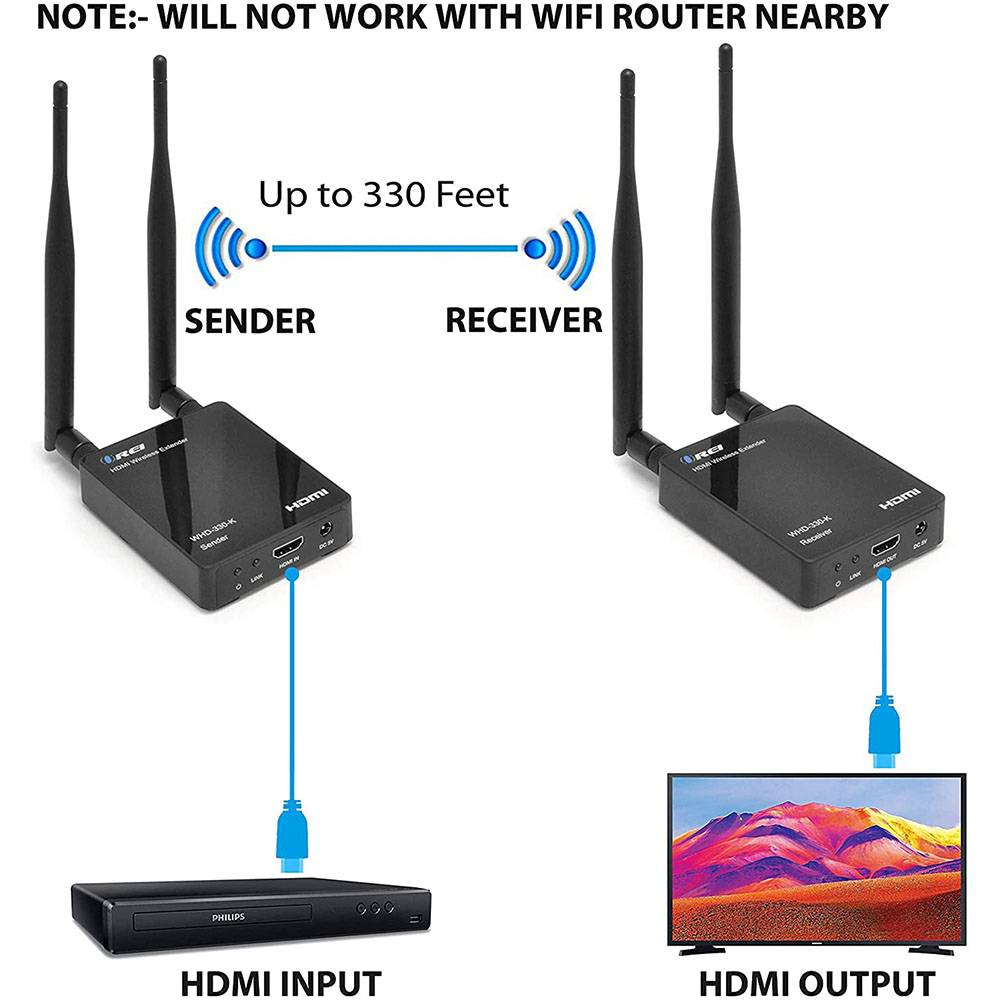

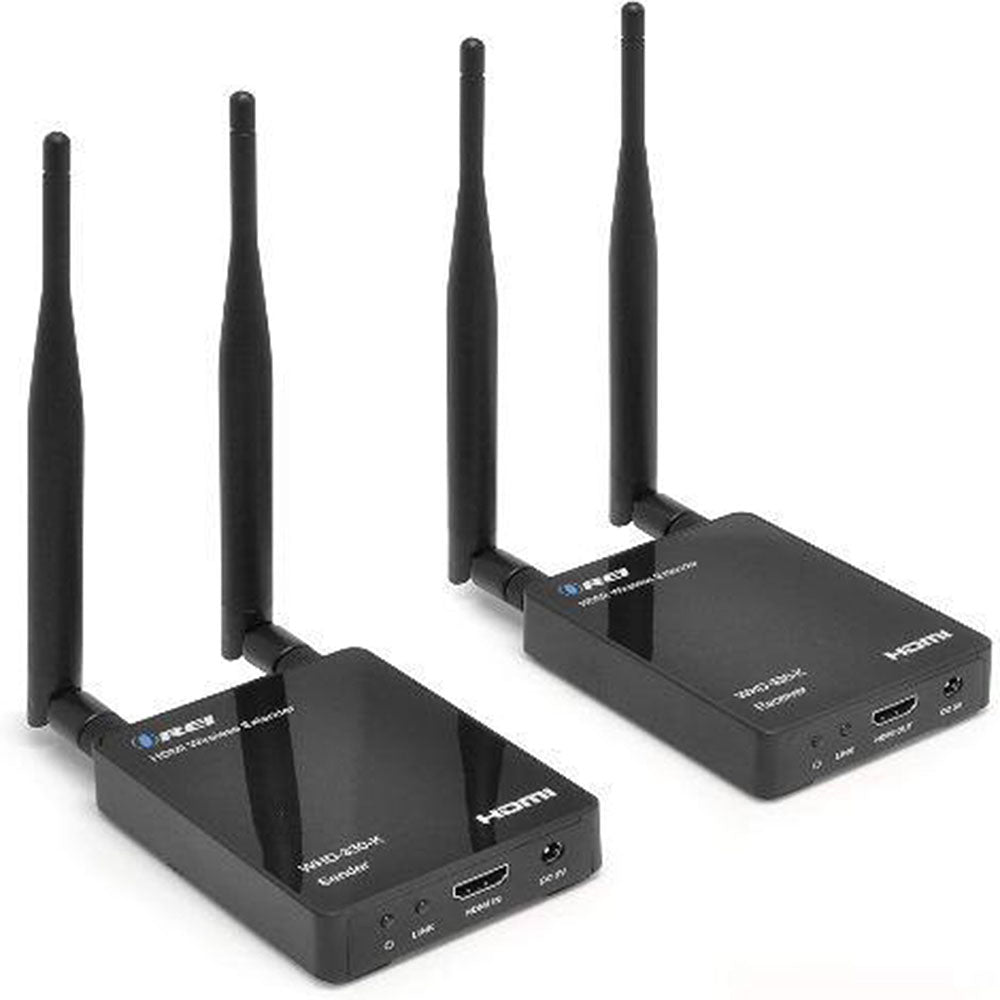

OREI WHD-330-K-B Wireless HDMI Extender extend HDMI signal up to 330ft/100 meters. This product is based on H.265 standard solution for transmitting one HD source signal to one HD display. This HDMI wireless extender includes transmitter unit and receiver unit and enables you to transmit and extend HDMI signal up to 100 meters wirelessly, it has strong anti-interference ability by running at 5G operation frequency, Low Latency: 120 Ms and supports point to point connection. It is really a very good solution for meeting, conference, home entertainment and multi-media education etc.
Supports up to 1080p signal extension. Supports point to point wireless connection including: HDMI 480i@60HZ, 480p@60HZ, 576i@60HZ, 576@50HZ, 720p@50/60HZ, 1080i@50/60HZ, 1080p50/60HZ.
It offers high quality configurable, low-bandwidth H.265 compression video and supports resolution up to 1080p@60Hz. This wireless extender is designed special to transmit high definition video & audio within one environment.
We remastered it with strong anti-interference ability by running at 5G operation frequency. Enjoy your entertainment! Plug and play. We made things super-easy for you by crafting a plug & play setup without any software installation.
Perfect for streaming. This HDMI wireless extender is ideal to stream content from Laptop, PC, Cable, Netflix, YouTube, PS4 to HDTV/Projector and it features IR Support - one-way IR control. It is really a very good solution for meeting, conference, home entertainment and multi-media education.
Note :
1 ) Transmission will not go through Wall. Direct Signal Only.
2) This Device is not meant for real-time gaming or PC operation.
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
PoC/PoE Function:
No
IR Controller:
With one-way IR control
AUDIO OUTPUT
HDMI Audio Formats:
LPCM 2.0CH 32KHz/44.1KHz/48KHz
SIGNALS
TMDS Signals:
3V
DDC Signals:
5V
WIRELESS PERFORMANCE & INTERFACE
Transmission Type:
Wireless
Transfer Method:
Wifi 5.8G
Latency:
120ms-150ms
Transmission Distance:
200m(328 feet) for 1080p
Maximun Pixel Clock:
165MHz
DIMENSIONS & WEIGHT
Height:
21mm
Width:
76mm
Depth:
98mm
Weight:
100g
PROTECTION
Operation Temperature:
32 - 104°F / 0 - 40°C
Storage temperature:
-4 - 140°F / -20 - 60°C
Relative Humidity:
20 - 90% RH (no condensation)
ESD Protection:
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Electrostatic Protection of the whole Machine:
±8KV(Air),±4KV(Contact)
POWER
Power Consumption (Max):
Transmitter:
2.25W
Receiver:
1.8W
Power Supply
Input:
AC100 - 240V 50/60Hz
Output:
DC 5V/1A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Plastic Enclosure
Processing Technology:
Shell bending and punching
Finishing:
Shell powder spraying process

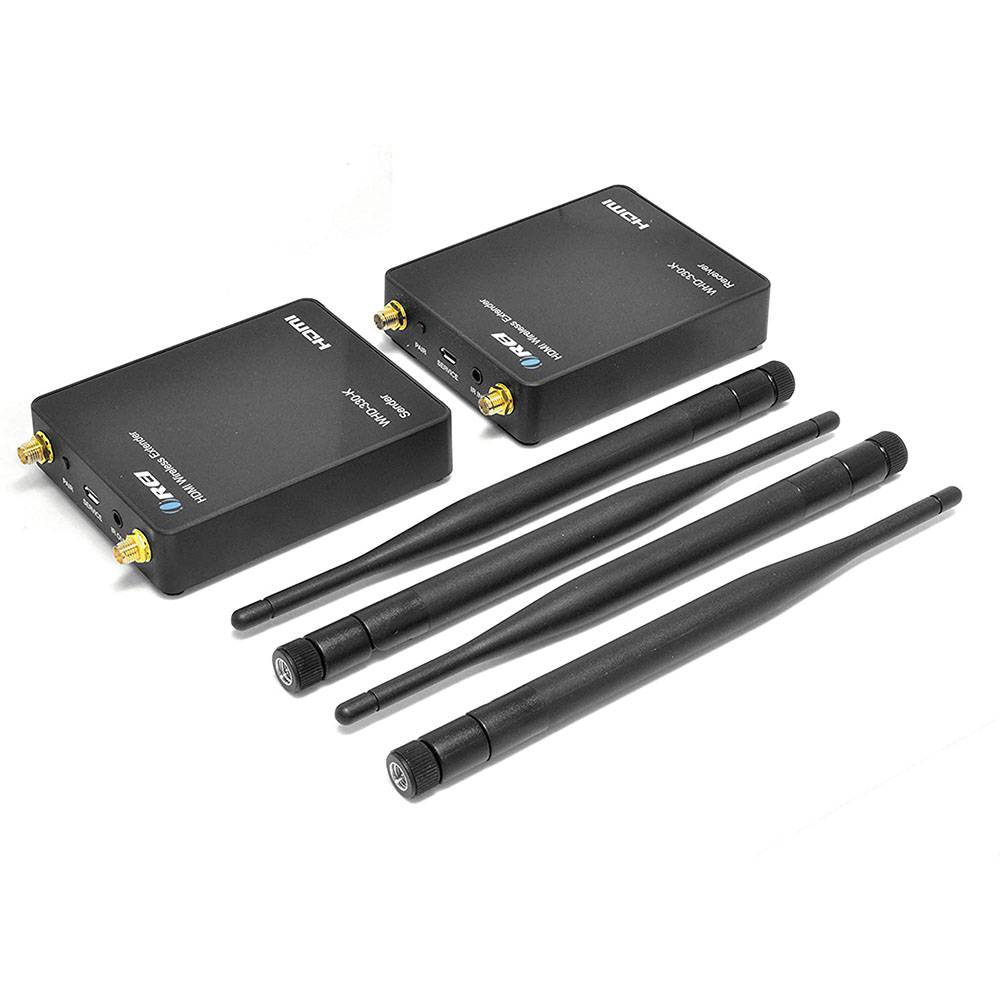

PACKAGE CONTENTS
1x Wireless HDMI Transmitter
1x Wireless HDMI Receiver
1x IR Blaster cable (1.5 meters)
1x 20~60KHz IR Receiver cable (1.5 meters)
4x 5G WiFi Antenna
2x 5V/1A Power Adapter
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
- Please try replacing your current HDMI cables with High-Quality HDMI cables.
- Please make sure that you dont have any other wireless devices such as wifi router nearby this extender. If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

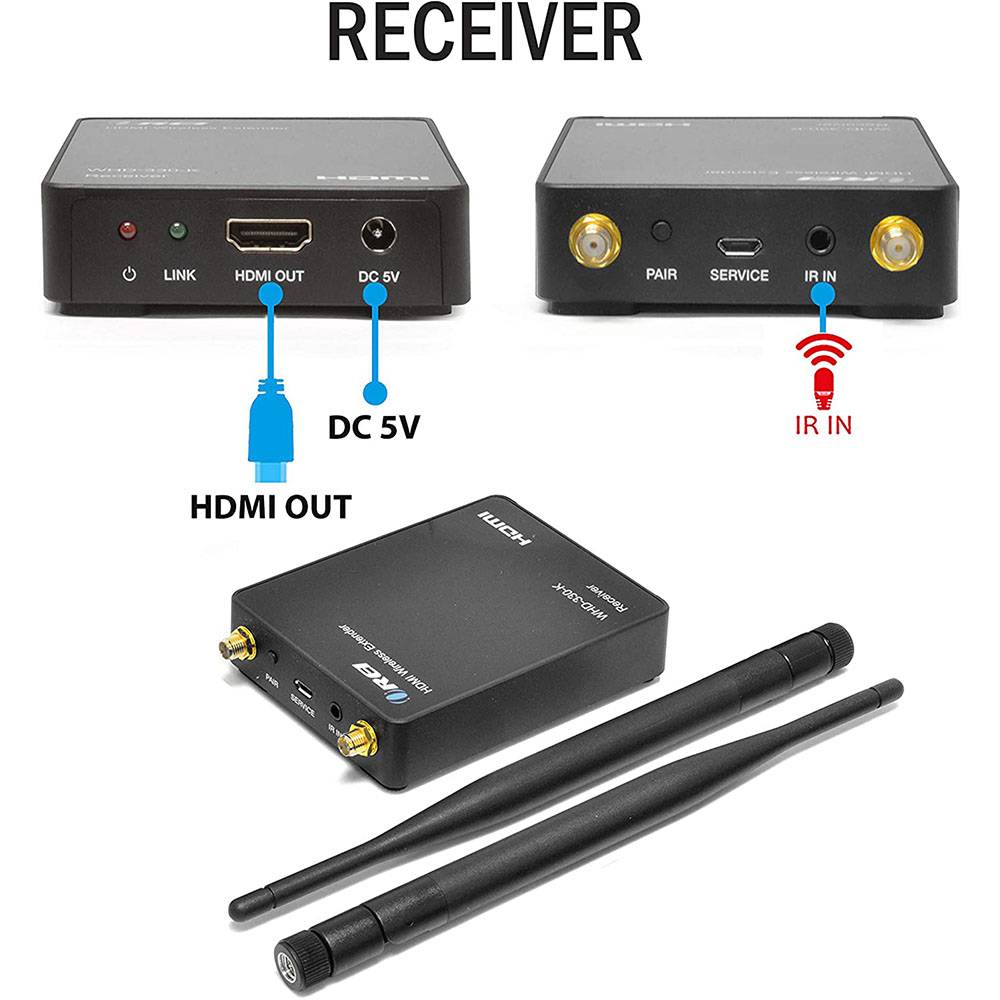

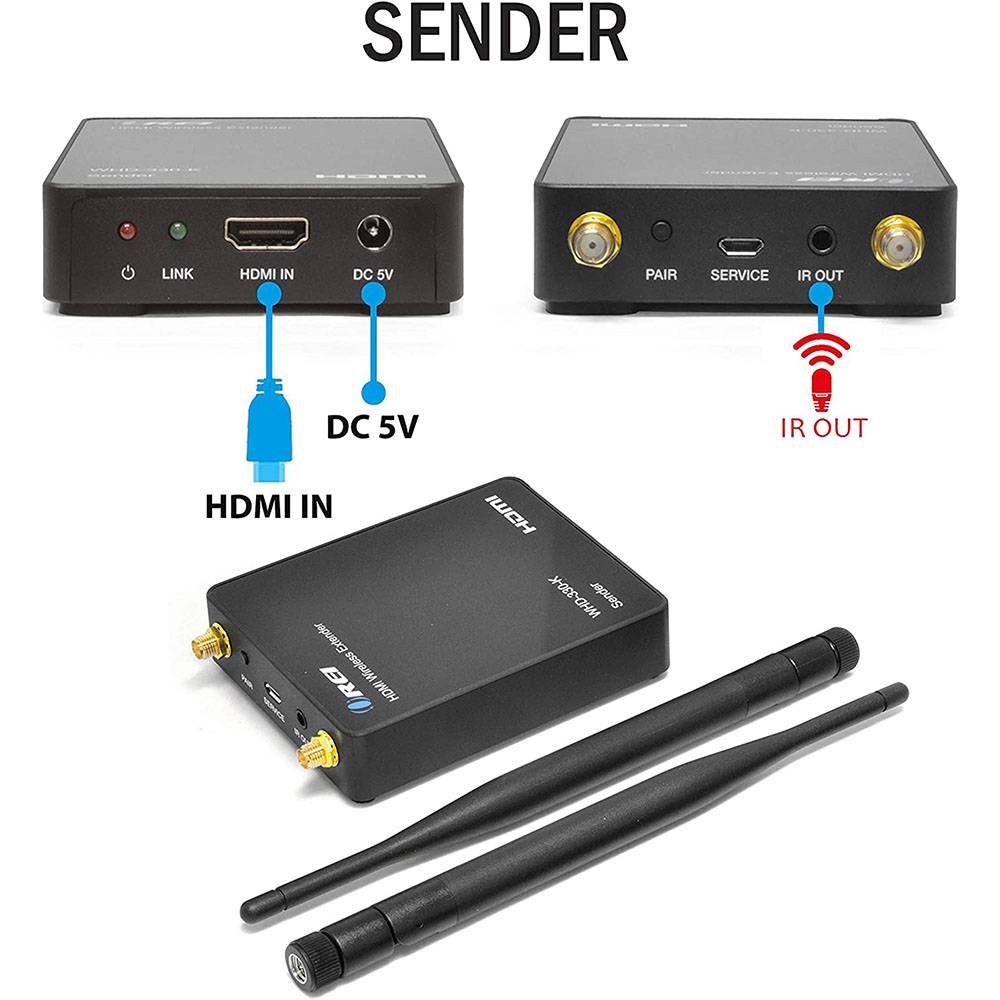

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
