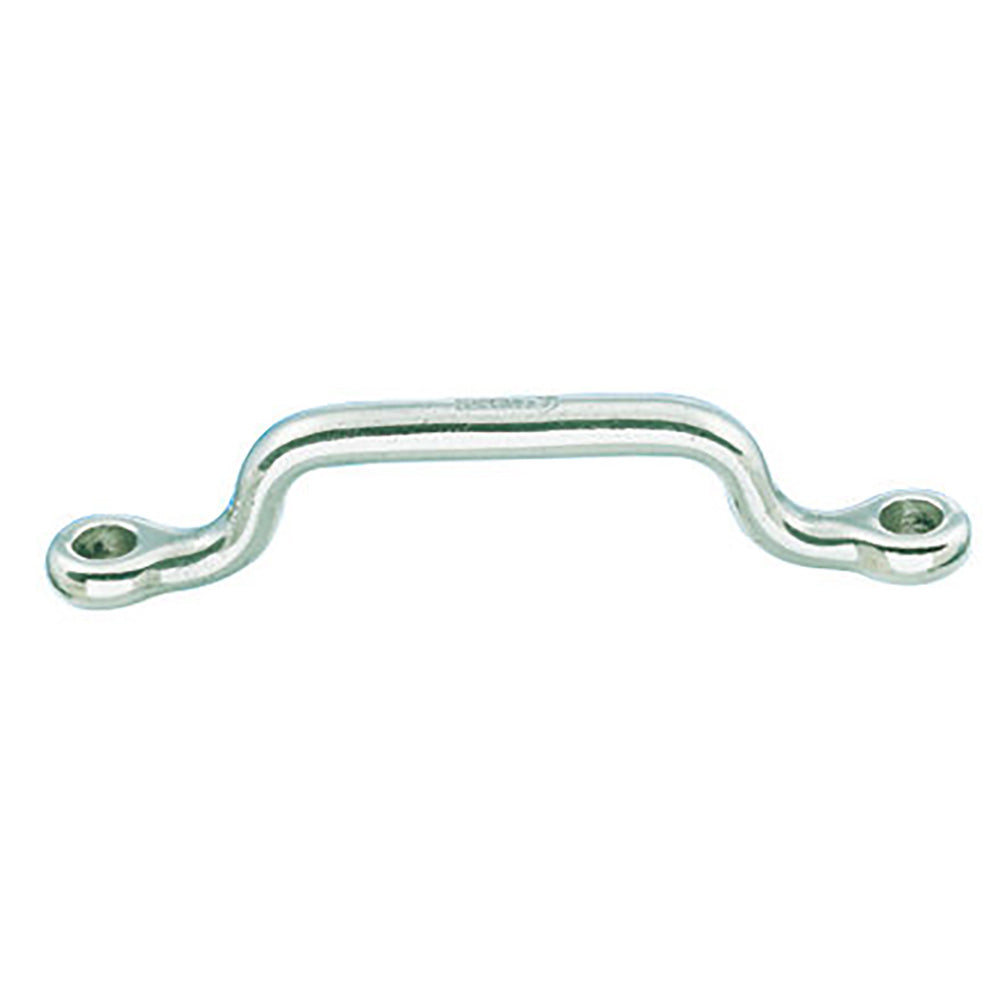

Webbing Eye Strap - 5mm Diameter - 13/64" - 86mm Spacing - 3-25/64"
Features:
- Drop-forged webbing eye straps with high-quality stainless steel (316L)
- Outstanding strength
- Specific use for webbing
Applications:
- The perfect solution to attach webbing
Specifications:
- Materials: 316L stainless steel grade
- Weight: (lb) 0.04 / (g) 18
Dimensions:
- A: (inch) 1 31/32" / (mm) 50
- B: (inch) 15/32" / (mm) 12
- D diameter: (inch) 13/64" / (mm) 5
- E: (inch) 3 25/64" / (mm) 86
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Manufacturer Part Number: 09222
