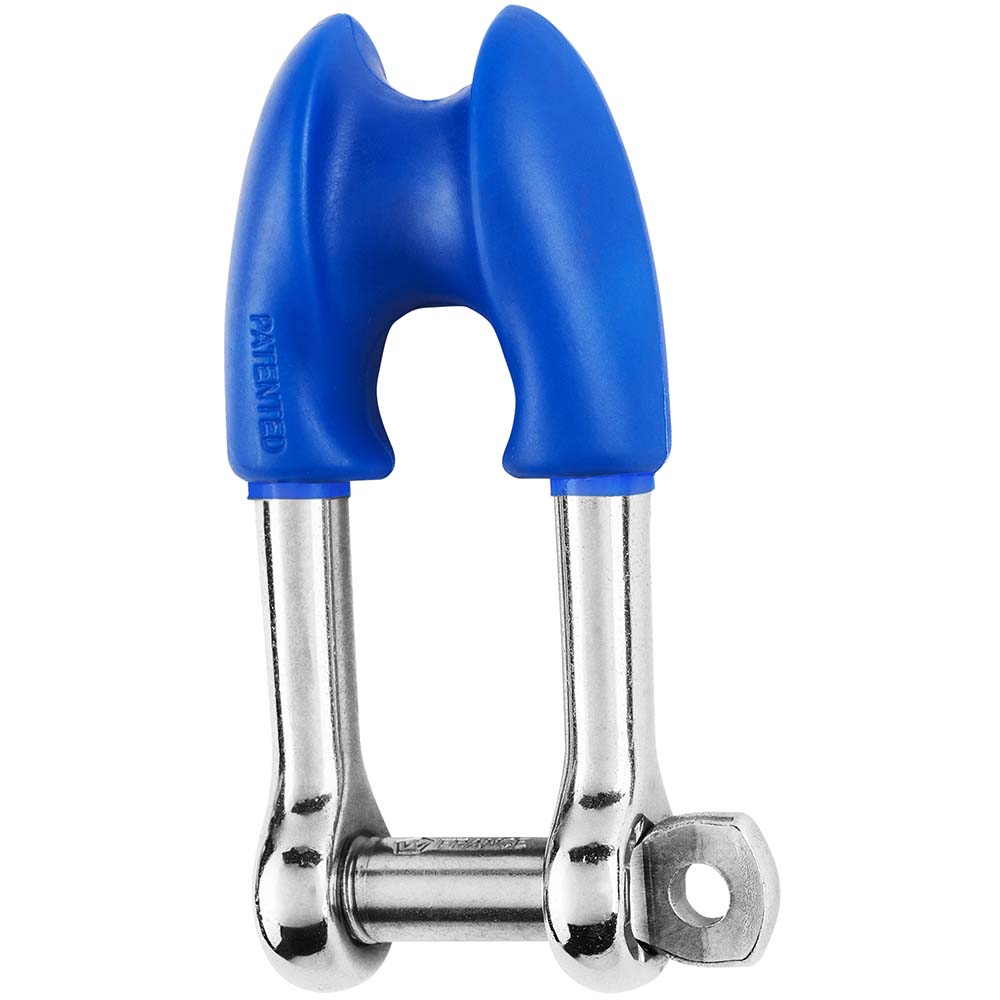

Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"
Features:
- Thimble shackle with captive pin forged in grade 316L stainless steel
- Allows to spliced a rope without adding an additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications:
- Mainsheet halyards
- Max rope size: 16 mm
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- Breaking load (lb) 11020
- Weight (lb) 0.322

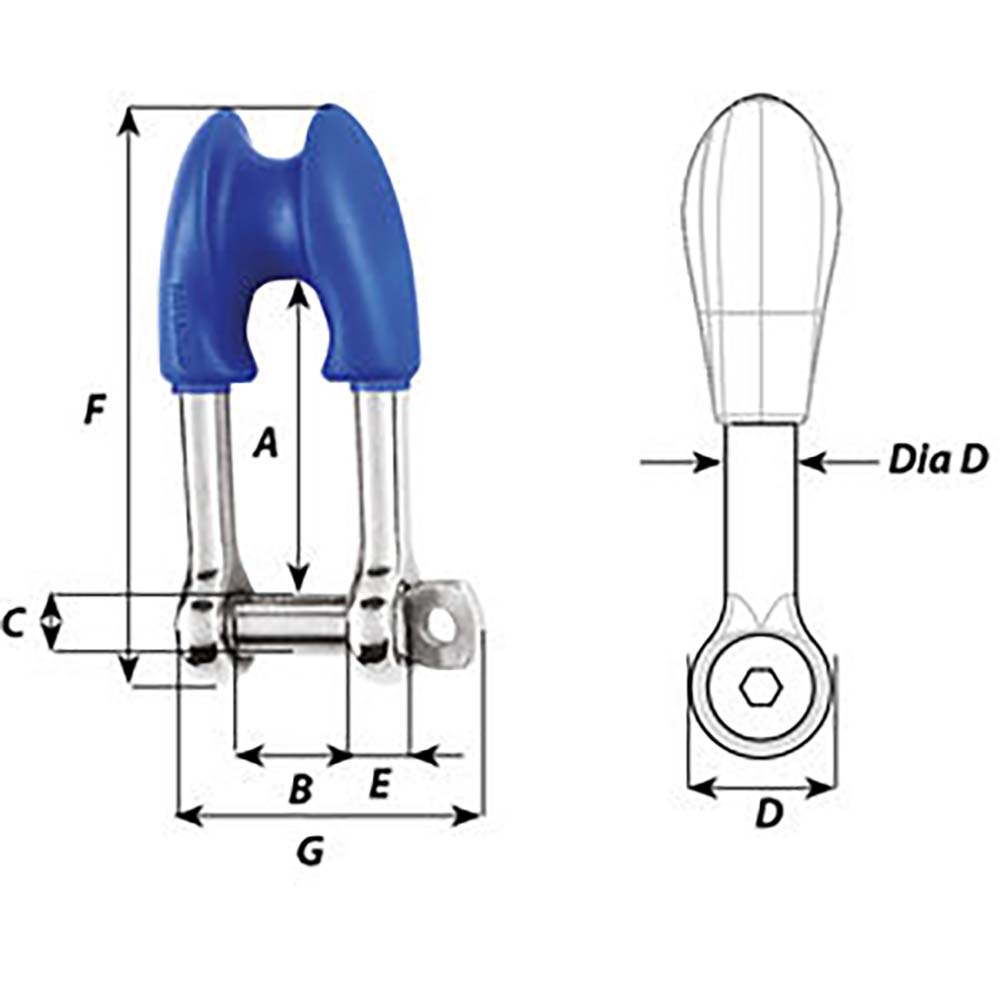

Dimensions (see 2nd image):
- A (inch) 2-1/64"
- B (inch) 25/32"
- C (inch) 25/64"
- D (inch) 25/32"
- D diameter (inch) 25/64"
- E (inch) 23/64"
- F (inch) 3-47/64"
- G (inch) 2-1/8"
Manufacturer Part Number: 01495
