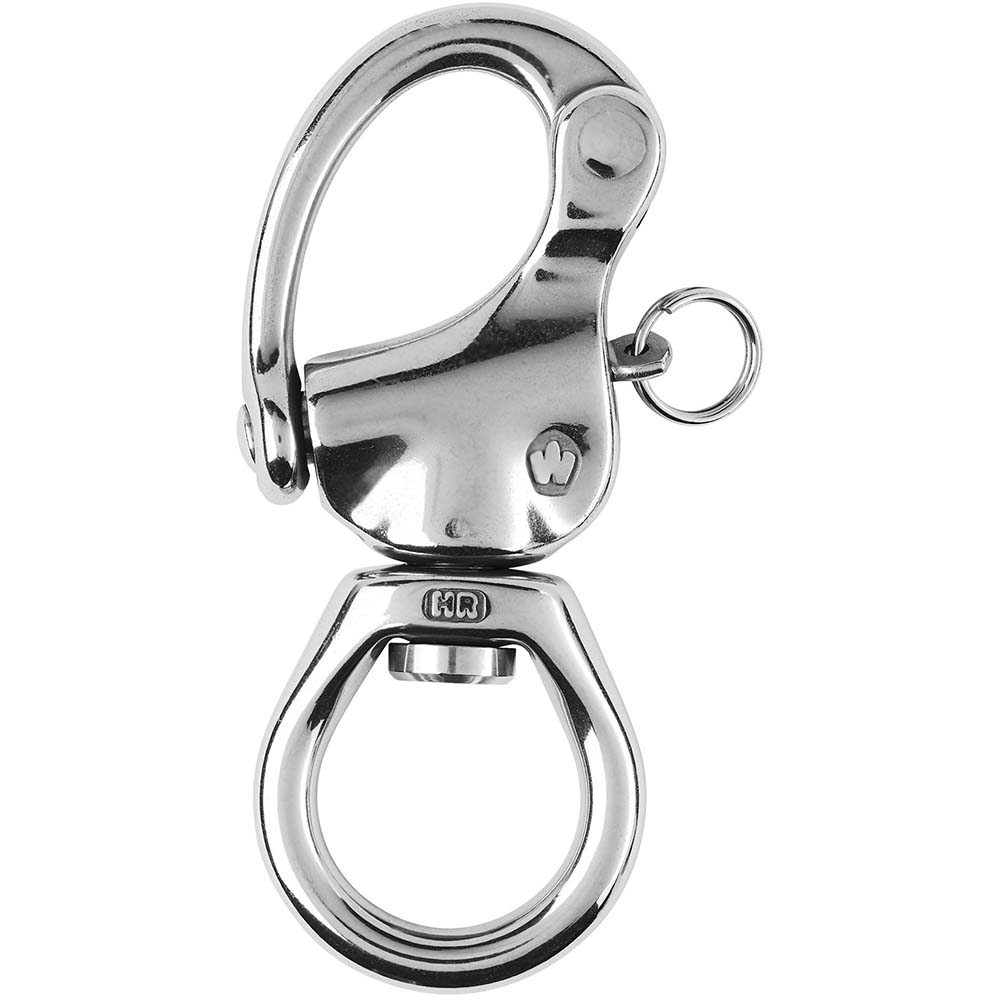

HR Snap Shackle - Large Bail - Length 140mm
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
- The large eye allows attaching several ropes
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possibility to attach a lanyard)
Applications:
- Snap shackle applications
- Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Specifications:
- Materials HR 17.4 PH stainless steel grade
- Length (inch) 5-33/64"
- Working load (lb) 6170
- Breaking load (lb) 16530
- Weight (lb) 0.877

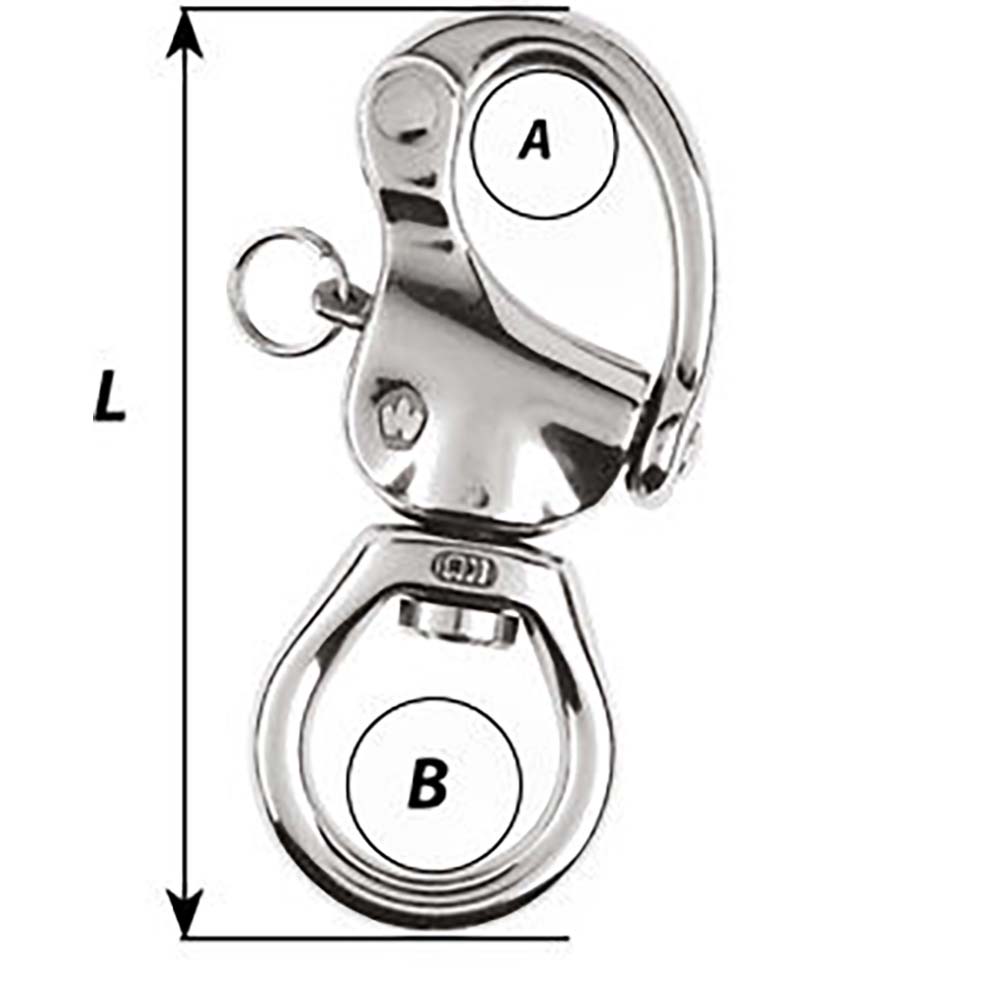

Dimensions (see 2nd image):
- A (inch) 1-1/32"
- B (inch) 1-3/8"
Manufacturer Part Number: 02377
