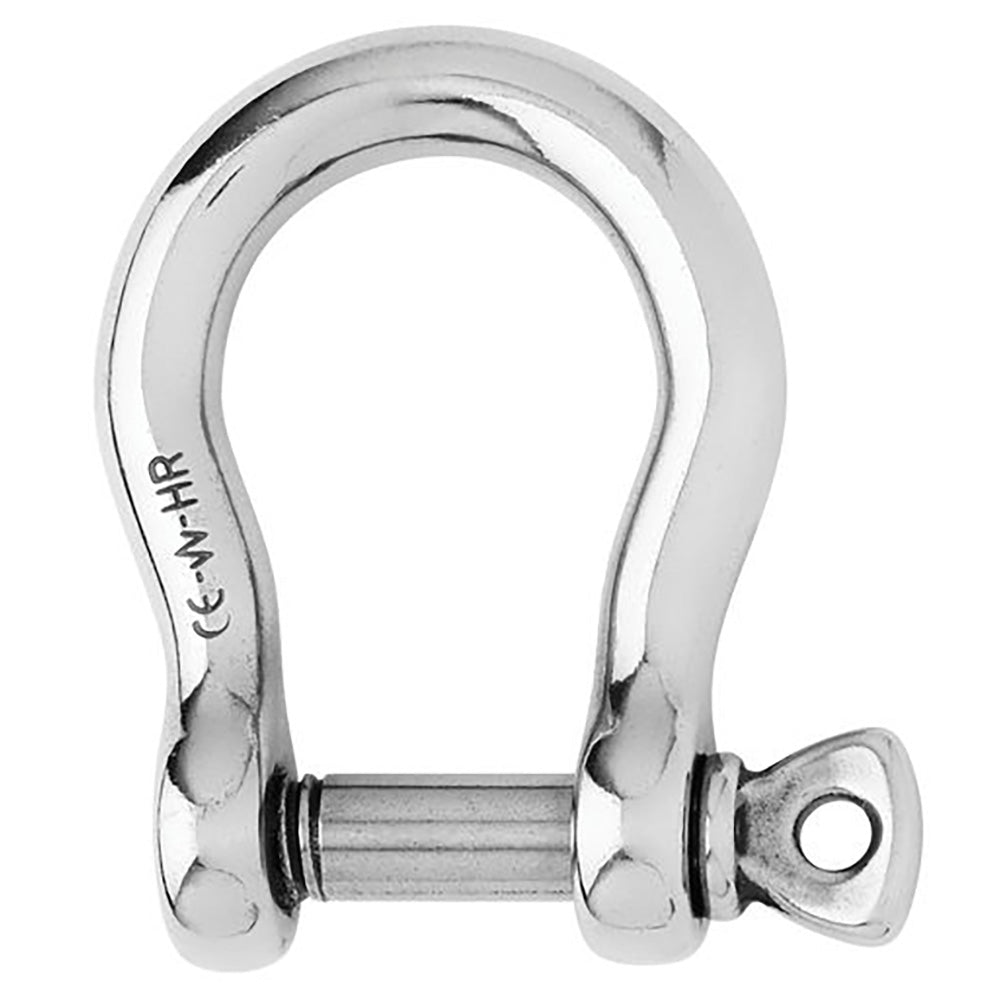

HR Bow Shackle - 14mm Diameter - 35/64"
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 11280 / (kg) 5120
- WLL: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 26450 / (kg) 12000
- Weight: (lb) 0.802 / (g) 364
Dimensions:
- A: (inch) 2 31/64" / (mm) 63
- B: (inch) 1 7/64" / (mm) 28
- C: (inch) 35/64" / (mm) 14
- D: (inch) 1 7/64" / (mm) 28
- D diameter: (inch) 35/64" / (mm) 14
- E: (inch) 33/64" / (mm) 13
- M: (inch) 2 53/64" / (mm) 72
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Manufacturer Part Number: 11240
