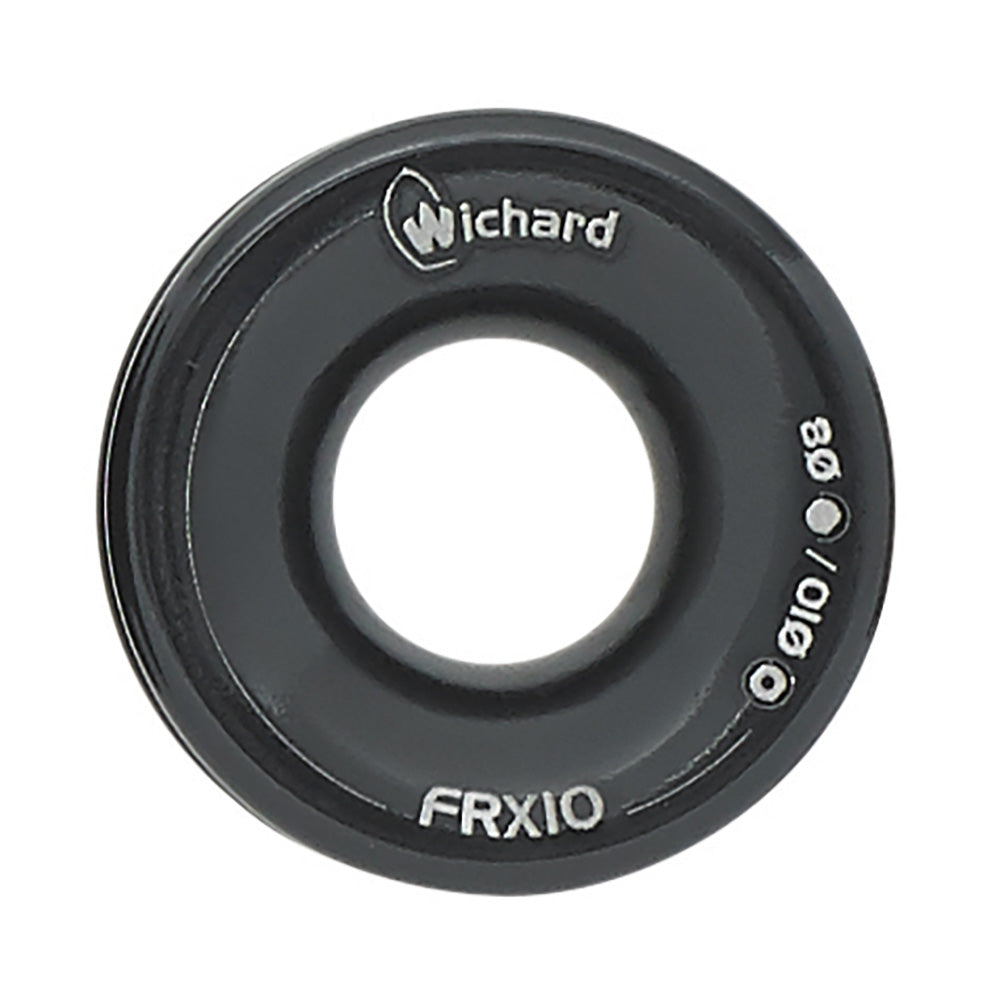

FRX10 Friction Ring - 10mm (25/64")
Features:
- Efficient and light
- FRX Wichard thimbles are efficient, light, and reliable
- Very strong and can be used for heavy loads and semi-static lines
- FRX thimbles are designed to make your lines run smoothly with minimum wear
- They are hard anodized (50 microns) for a longer lifespan
Applications:
- Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more
Specifications:
- Materials: Anodized aluminium
- Working load: (lb) 1760 / (kg) 800
- Weight: (lb) 0.011/ (g) 5

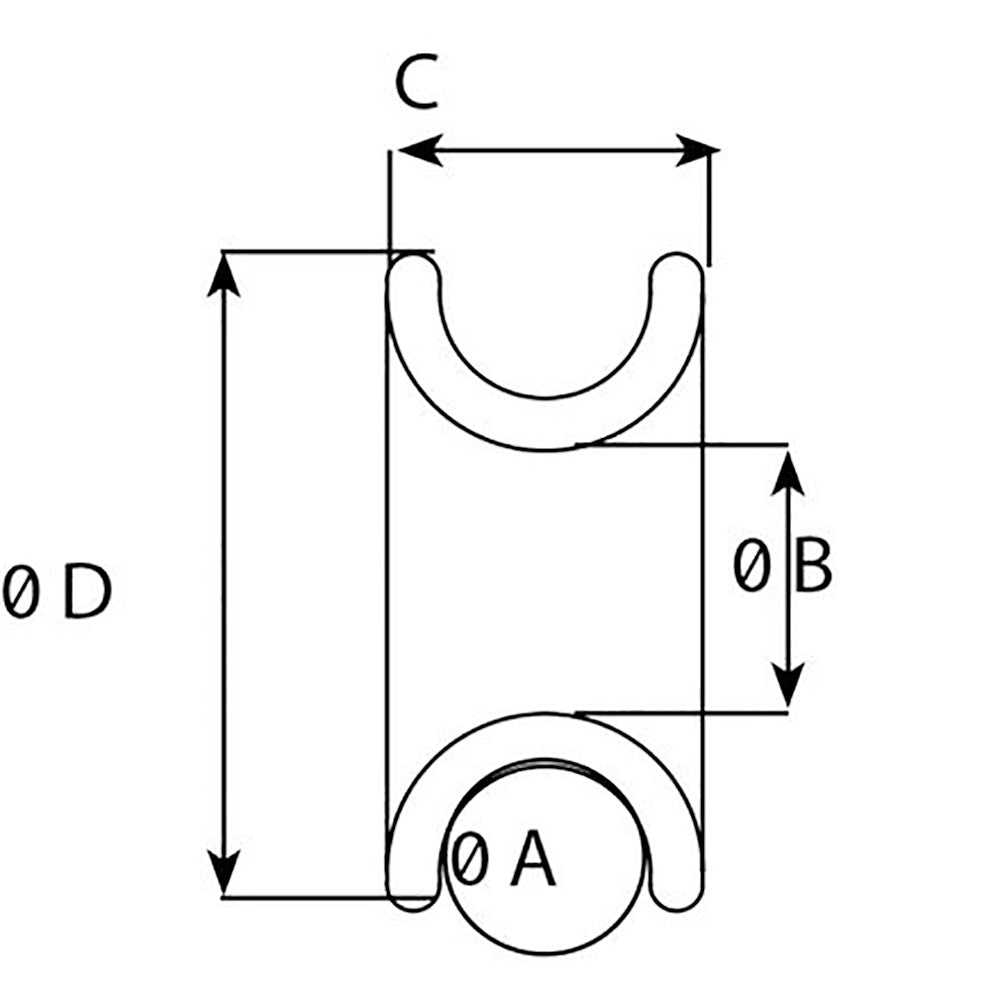

- A: (inch) 5/16" / (mm) 8
- B: (inch) 25/64" / (mm) 10
- C: (inch) 15/32" / (mm) 12
- D diameter: (inch) 63/64" / (mm) 25
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
