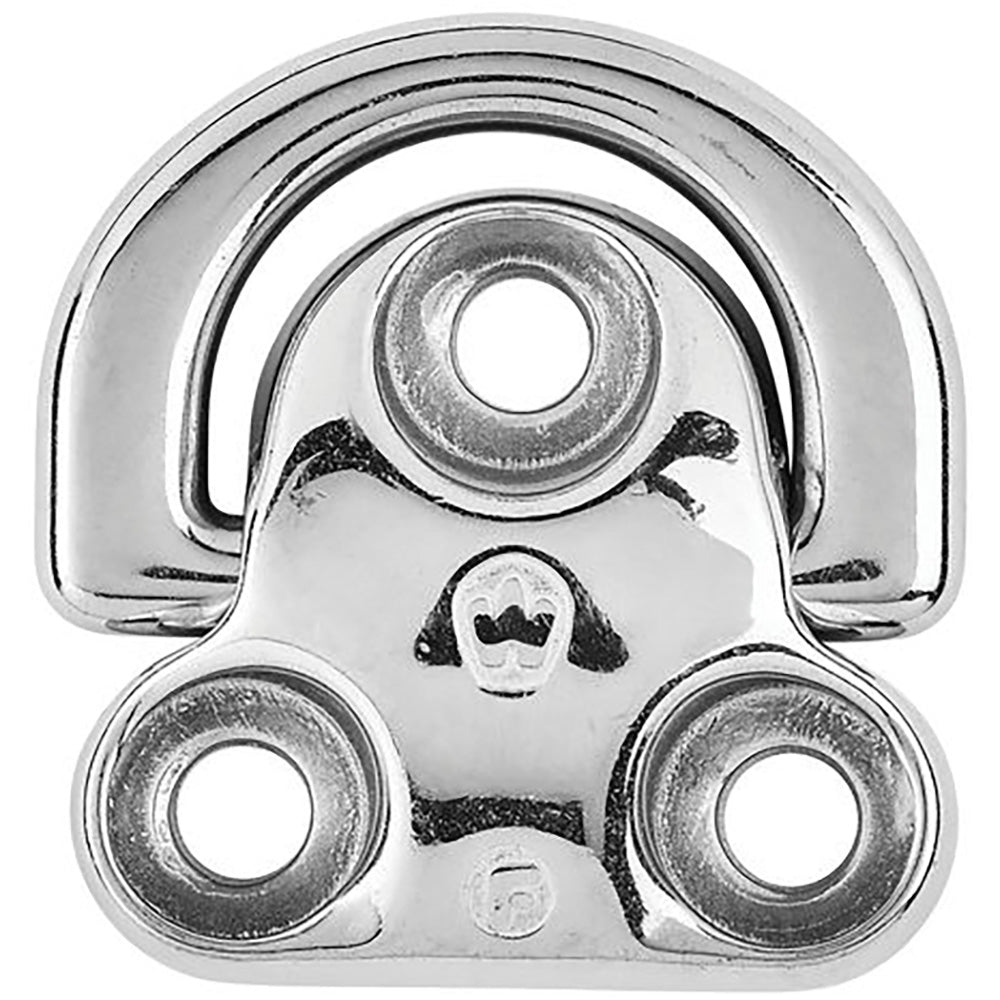

Folding Pad Eye - Diameter 25/64"
Features:
- Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether, etc...)
- Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
- Modern and optimized design to suit the aesthetics of modern boats
- They can be folded down to minimize the risk of injuries
- The silicon pad eliminates noise and unpleasant vibrations
- Modern design
Applications:
- For any fastening/attachment application: shroud, stay, blocks, lifeline, jib tack point, etc…)
Specifications:
- Materials 17.4 pH stainless steel/316L stainless steel grade
- Working load (lb) 8990
- Breaking load (lb) 19840
- Weight (lb) 0.783

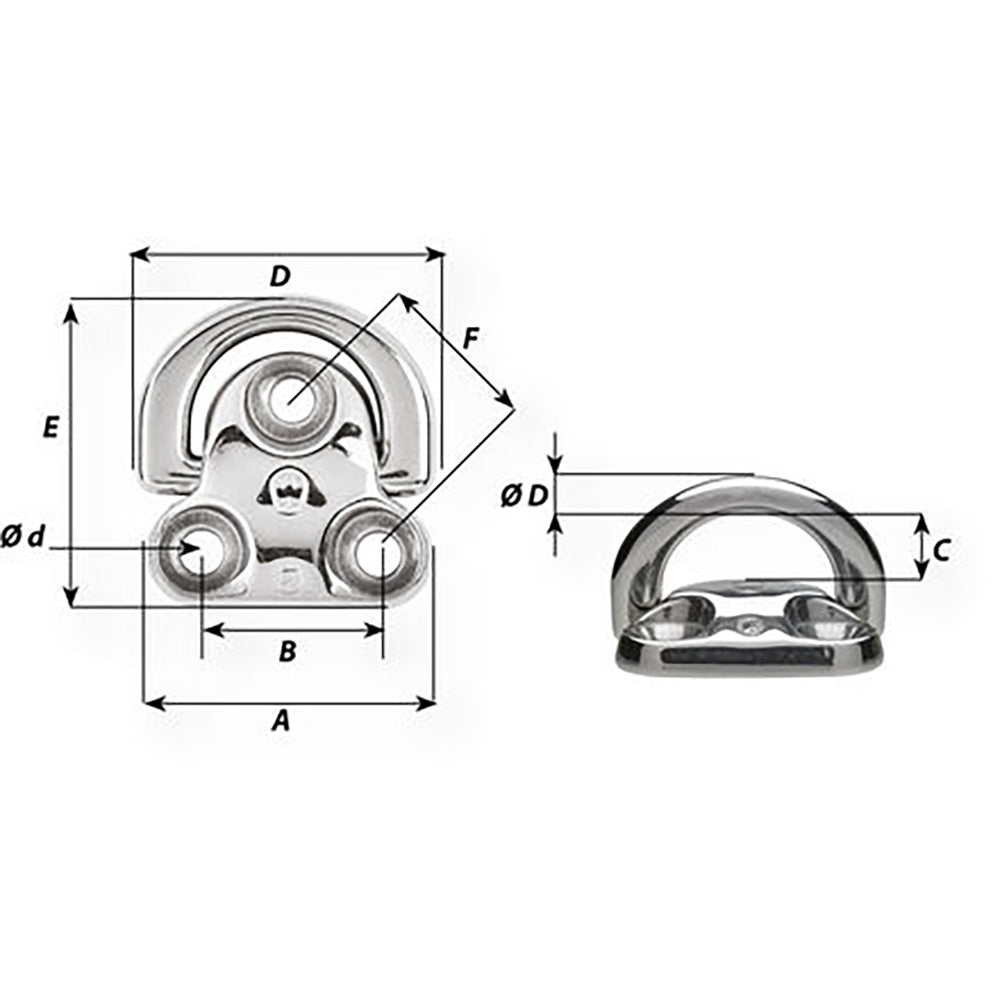

- A (inch) 2 61/64"
- B (inch) 1 49/64"
- C (inch) 63/64"
- D (inch) 3 5/32"
- d diameter (inch) 25/64"
- D diameter (inch) 25/64"
- E (inch) 2 43/64"
- F (inch) 1 49/64"
Manufacturer Part Number: 06606
