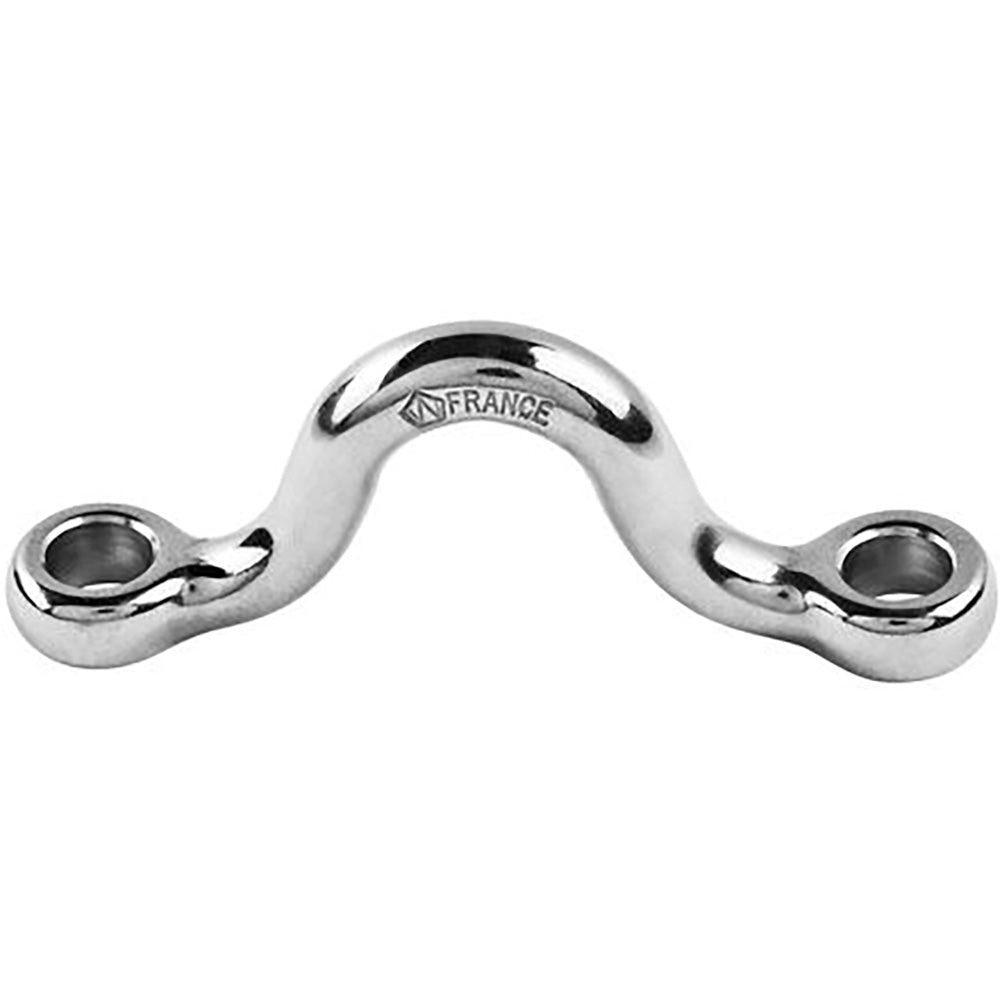

Eye Strap - 6mm Diameter - 15/64"- 45mm Spacing - 1-49/64"
Features:
- Complete range of drop-forged saddles with high-quality stainless steel (316L)
- Outstanding strength
- The round shape reduces the wear of the components connected to them (straps, ropes...)
Applications:
- Fastening applications
- Attachment of straps & cordage
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 5290 / (kg) 2400
- Weight: (lb) 0.035 / (g) 16
Dimensions:
- A: (inch) 15/32" / (mm) 12
- B: (inch) 5/8" / (mm) 16
- D diameter: (inch) 15/64" / (mm) 6
- E: (inch) 1 49/64" / (mm) 45
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Manufacturer Part Number: 09203
