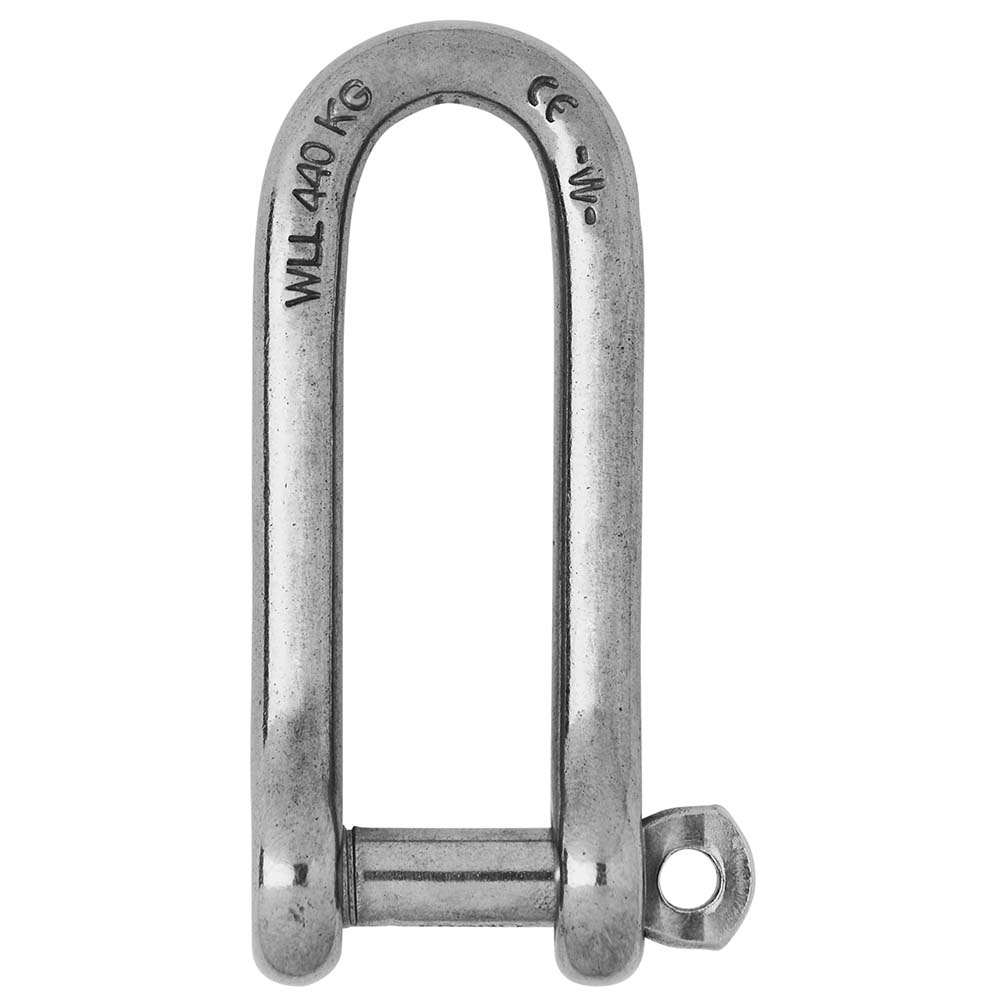

Captive Pin Long D Shackle - Diameter 6mm - 1/4"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1490
- WLL (lb) 970
- Breaking load (lb) 4850
- Weight (lb) 0.088

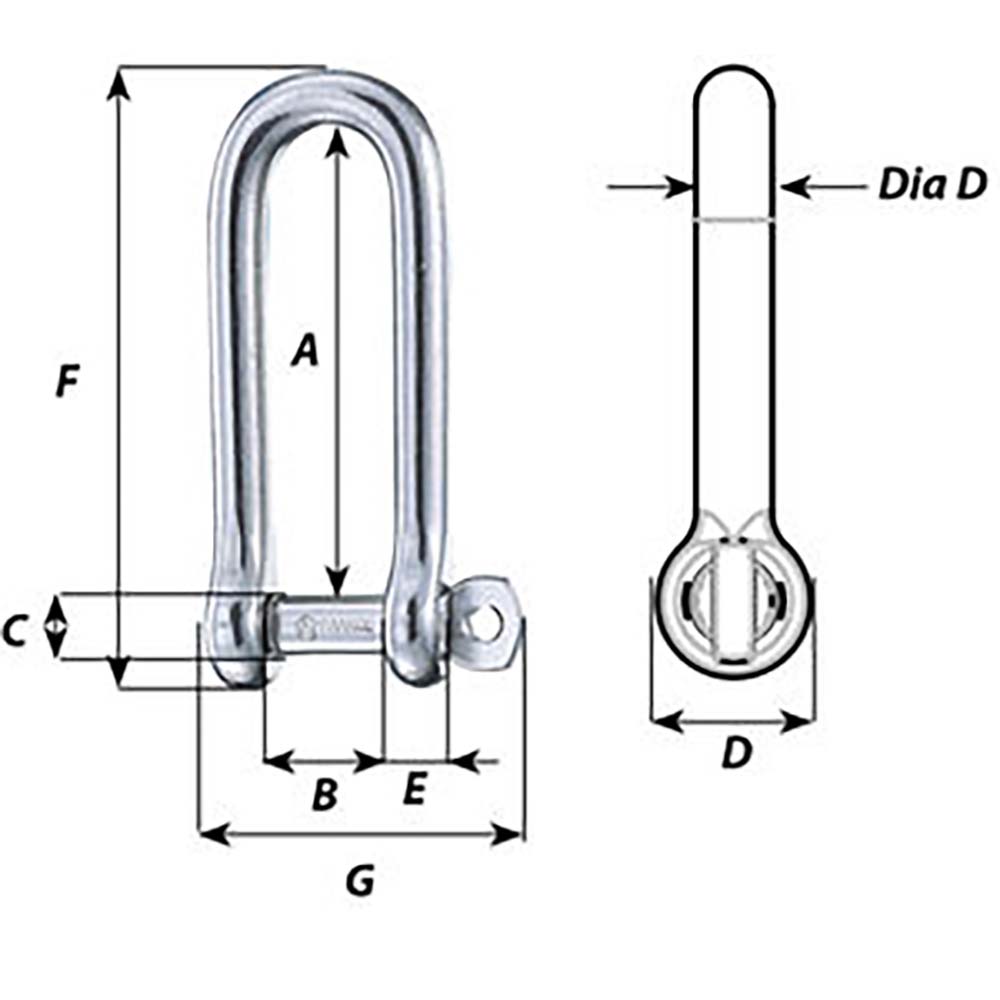

Dimensions (see 2nd image):
- A (inch) 1-13/16"
- B (inch) 15/32"
- C (inch) 9/32"
- D (inch) 35/64"
- D diameter (inch) 15/64"
- E (inch) 15/64"
- F (inch) 2-31/64"
- G (inch) 1-17/64"
Manufacturer Part Number: 01413
