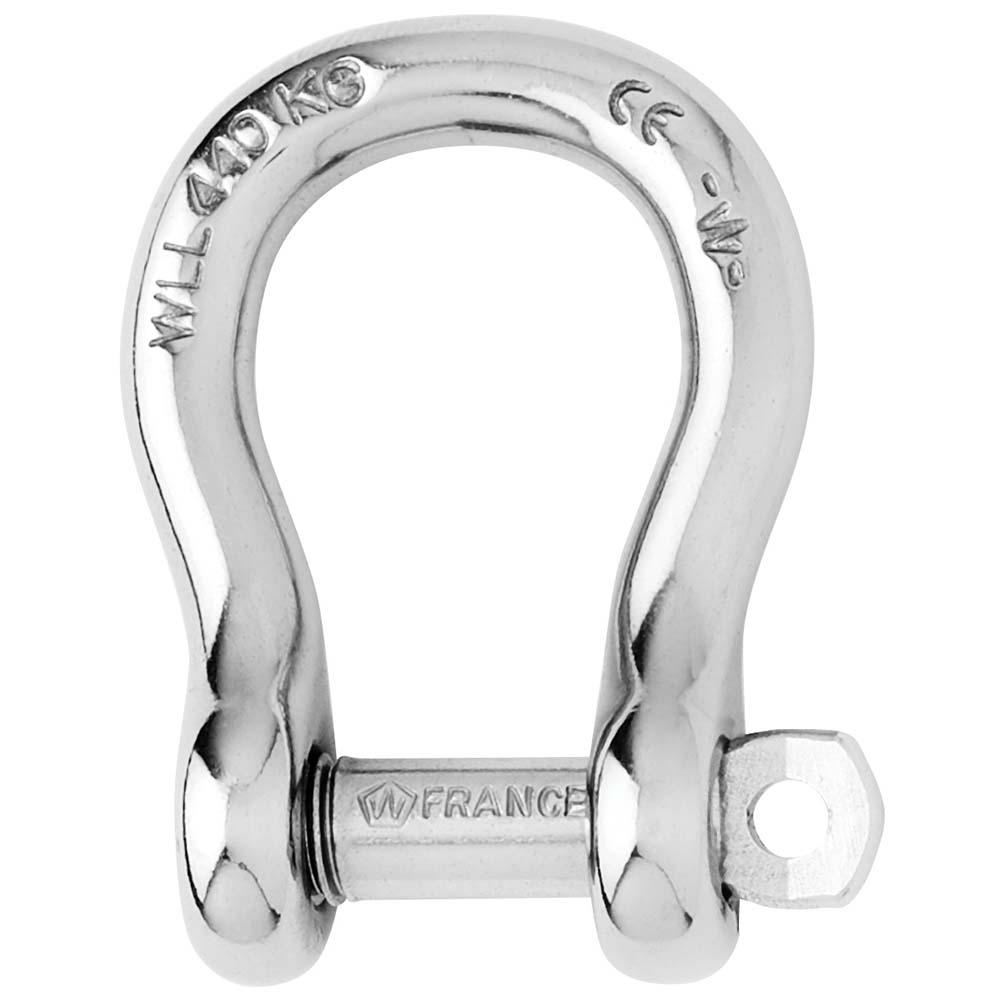

Captive Pin Bow Shackle - Diameter 8mm - 5/16"
Features:
- Captive pin bow shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single handed operation for more safety
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1630
- Breaking load (lb) 8150
- Weight (lb) 0.165

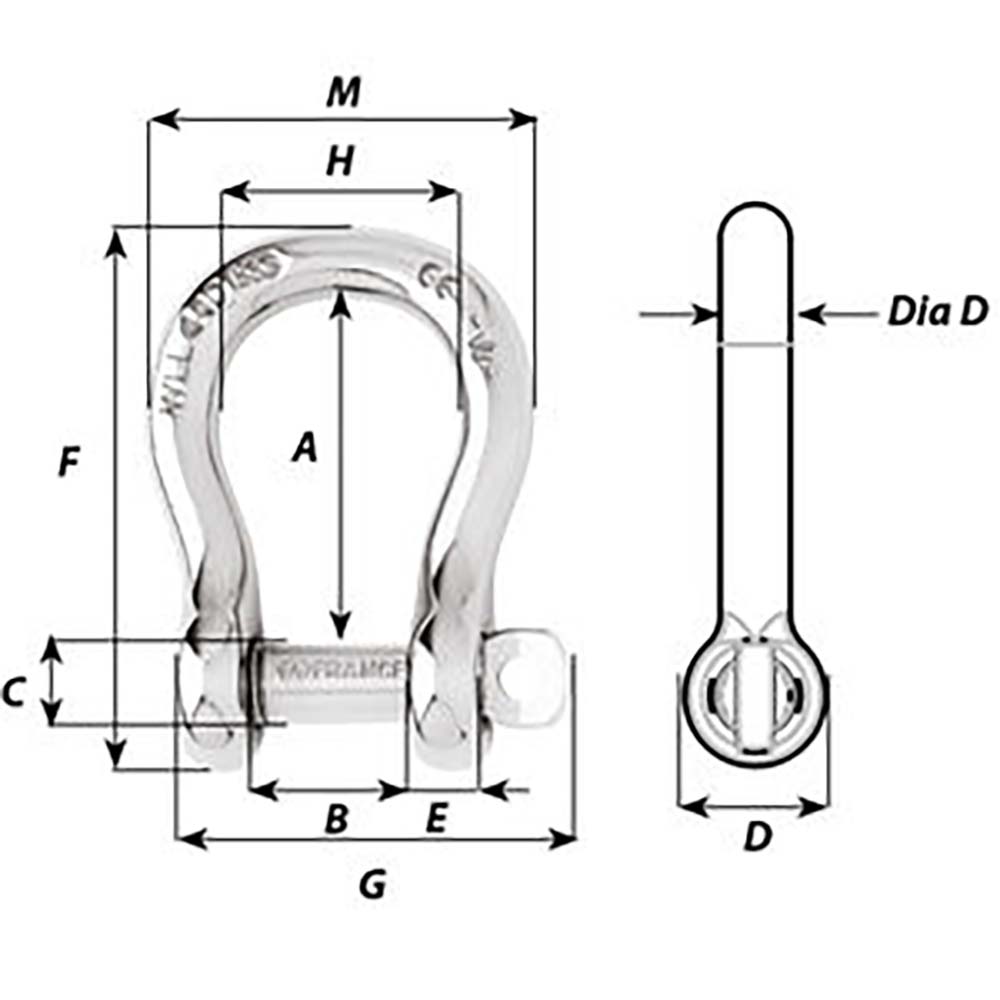

Dimensions (see 2nd image):
- A (inch) 1-29/64"
- B (inch) 5/8"
- C (inch) 23/64"
- D (inch) 45/64"
- D diameter (inch) 5/16"
- E (inch) 5/16"
- M (inch) 1-21/32"
Manufacturer Part Number: 01444
