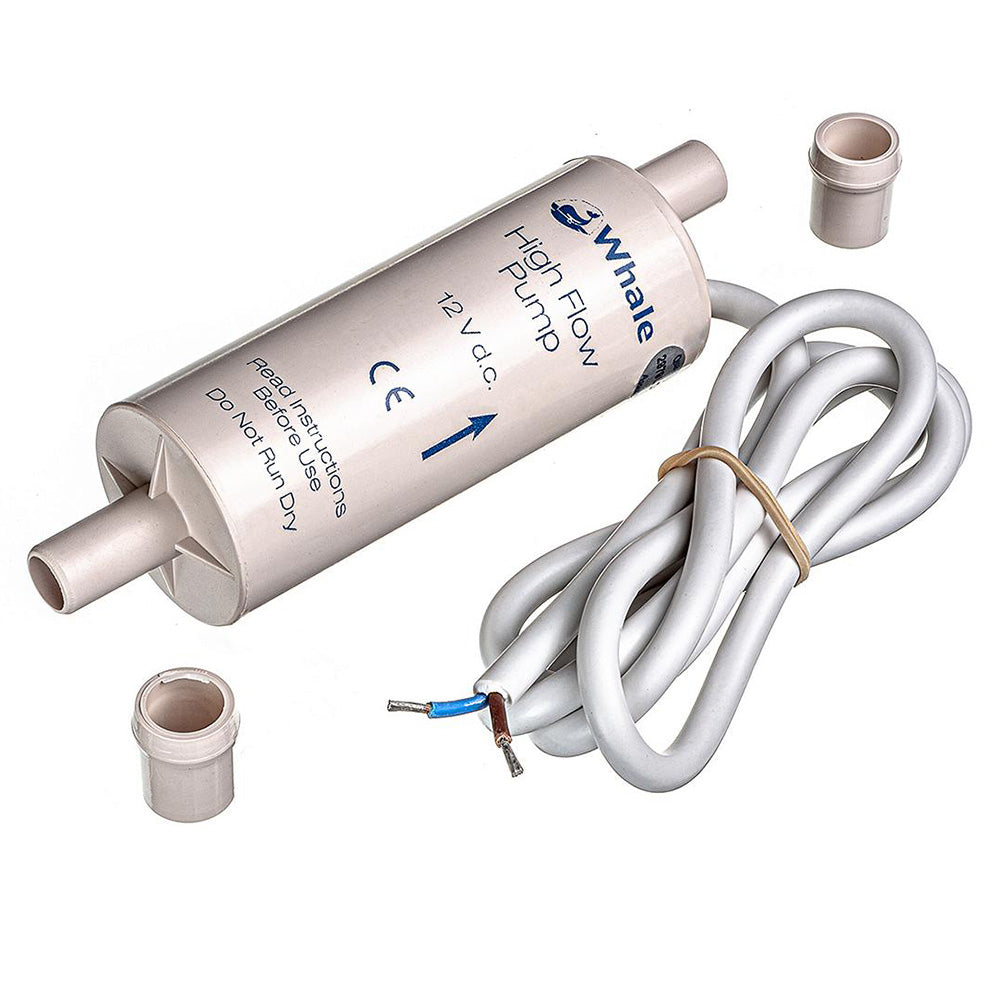

Inline Booster High Flow Electric Galley Pump - 12V
This high-performance whale pump fits inline to increase the flow rate.
Features:
- The narrow design is ideal for dropping into the water tank
- Compact, quiet, lightweight design for use with pressure switch and microswitch systems
- An inexpensive way to upgrade a manual water system
- Also suitable for pumping diesel
- Low power consumption
Specifications:
- Pump Type: Inline
- Weight: 015 kg (0.3 lbs.)
- Voltage: 12 VDC
- Recommended Fuse Size: 5 amps
- Cable Length: 1m (3 ft.)
- Hose Connection: Suitable for 10 mm (38 in.) or 13 mm (1/2 in.) flexible hose use WX1511B (stern adapter 11-15 mm) and connect WX1504 (15 mm (5/8 in.) equal straight
- Filter Included: No
- Length: 129 mm (5-1/16 in.)
- Width: 36 mm (1-7/16 in.)
Materials:
- Pump Body: ABS
- Seal: Nitrile
- Strainer: Polyurethane
- Impeller: PBT
- Cable: PVC
Performance:
- Discharge Head: Flow rate per minute/current draw @ 12VDC
- 0 m (0 ft.): 15.8 liters (4 US gallons) 3.8 amps
- 1 m (3 ft.): 14.8 liters (4 US gallons) 3.7 amps
- 3 m (10 ft.): 12.8 liters (3.5 US gallons) 3.5 amps
1 Year Warranty:
- CE certified
- ISO 88846
- ISO 10133
- ABYC H-23
- IP67
Manufacturer Part Number: GP1692
