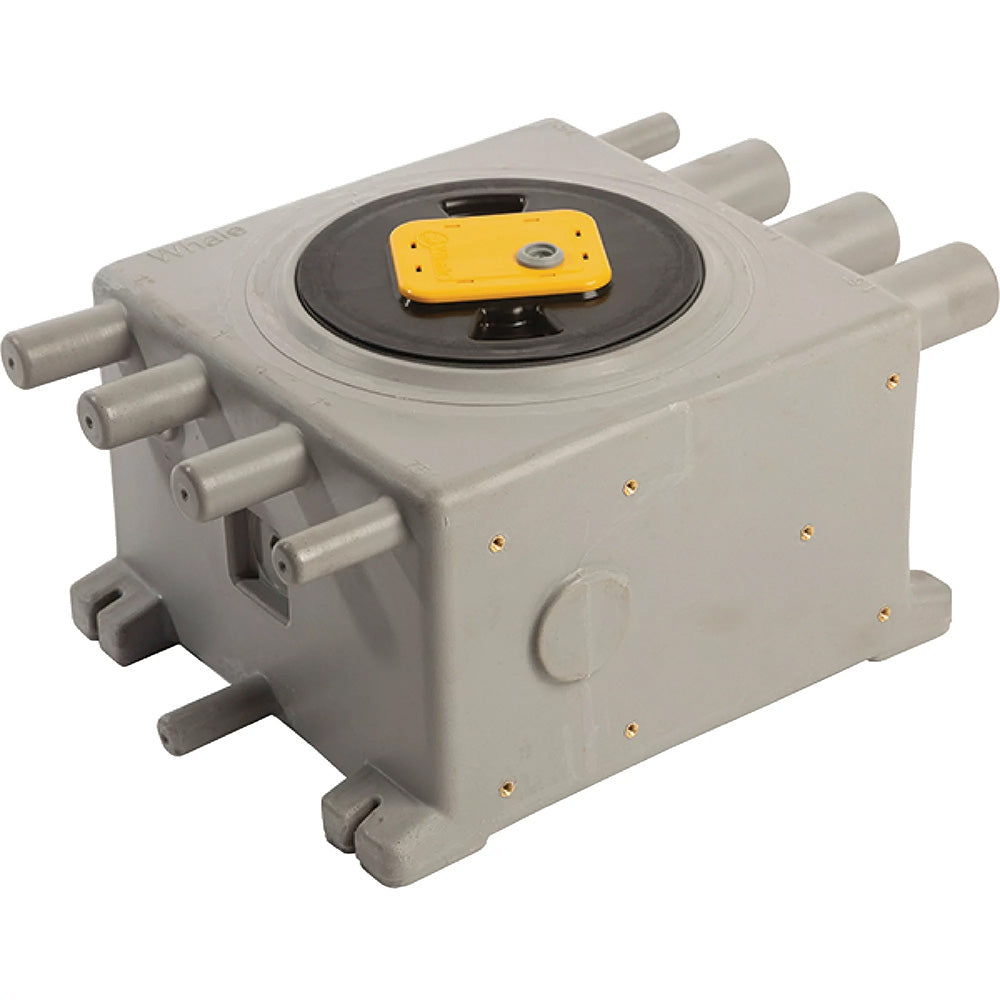

Grey Waste Tank - 8 Liter - 2.1 Gallons - 1 Sensor
This tank has a unique ‘triple seal’ lid that isolates electronics from the harsh grey waste environment for advanced durability.
Features:
- Integrated sensors for automatic pump control; a solid-state switch protected against water ingress
- Easy wiring - connect any 12V or 24V DC pump system (up to 20 amps with no relay required)
- Ports shaped for drilling accuracy (8-liter and 20-liter tanks only)
- Double switch models - the second sensor can be wired to a high-level alarm or second pump
- Pumps can be top- or side-mounted on a 20-liter tank
Specifications:
- Capacity: 8 liters (2.1 gallons)
- No. of Sensors: 1
- Electrical Connections: Tinned wire ends
- Inlet Hose Connections: 19mm (¾") x 2, 25mm (1") x 3, 38mm (1½") x 3
- Outlet Hose Connections: 19mm (¾") x 1, 25mm (1") x 1
- Materials: Tank: MDPE, Seals: EPDM/Neoprene, Monprene®, Lid: Glass-filled Polypropylene, ABS, Polyurethane
- Service Kits (Lid & Sensor Array): AK1005
Manufacturer Part Number: GT0810B
