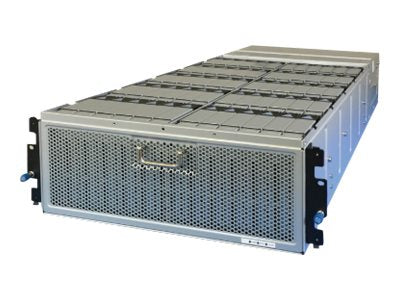

WD 4U60 - Storage enclosure - 60 bays - HDD 360 TB - rack-mountable - 4U
- Host connectivity 2 x SAS QSFP+ receptacles per IO Module, optional connectivity cables are available
- QSFP+ to HD mini SAS cables for host
- QSFP+ to QSFP+ cables for daisy-chaining
- Hot Swappable: two power supplies (with integrated fans), drive modules, and IO Modules
- Fully compliant with SAS 3.0 specification for operation up to 12Gbps
- Cable management arm simplifies maintenance of hot-swappable CRUs
The HGST 4U60 Storage Enclosure is a high-density, scalable, and cost-effective design, using 60 Ultrastar 3.5-inch drive modules in a 4U enclosure. It offers 2x2x4-lane SAS 12GB/s performance, high availability (HA), and hot-swappable components. The design is targeted towards data centers that need a dense solution with HA capabilities, while maintaining a low power profile.
-
Robust storage capacity
Designed to support up to 60 devices or modules, the WD 4U60 chassis offers a substantial storage solution, accommodating a wide range of data-intensive applications.
-
Efficient power redundancy
With a 1+1 power redundancy scheme and two installed power supplies, the system ensures continuous operation, minimizing downtime and maintaining performance even in the event of a power supply failure.
-
Optimized for reliability
Featuring hot-swap 3.5" bays and SCSI Enclosure Services 3 (SES3) for enhanced management and monitoring, the WD 4U60 is built for dependable service and easy maintenance.
-
High environmental adaptability
Operating efficiently within a broad humidity range of 8 - 80% (non-condensing) and up to a maximum temperature of 35°C, the chassis is designed for resilience in varied environmental conditions.
