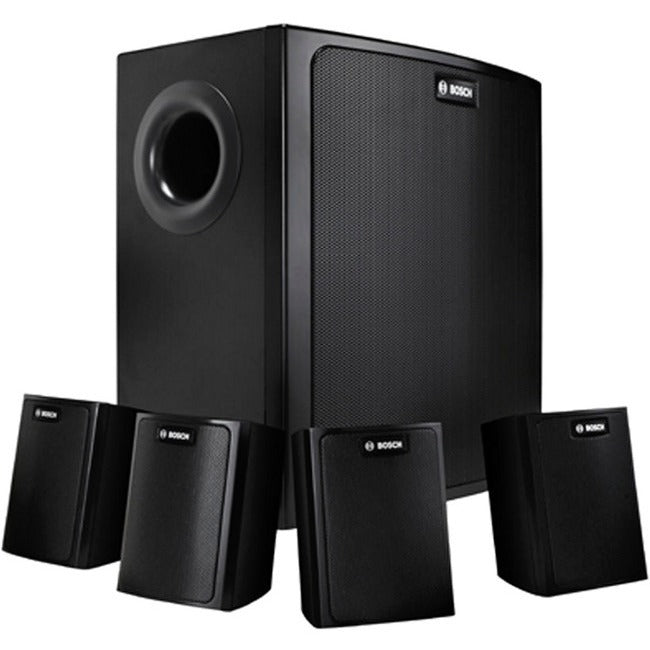

Bosch LB6-100S Speaker System - Black
The LB6-100S is a very compact full-range loudspeaker ideal for applications requiring high-quality sound. Its shape flexibility and size make it nearly invisible for use in background/foreground music systems for restaurants, bars, patios, retail, and other applications. The system consists of a high performance 8-inch subwoofer module with a crossover network to support the included four (4) 2- inch satellite speakers. Available colors are black or white. The system provides for easy signal connections at the subwoofer and can support either 4/8 ohm or 70/100v signal connections. Its high power handling allows the system to be used in a wide variety of environments and spaces to provide high quality background or foreground music subwoofer. All signal connections for the subwoofer and satellite speakers shall be made using phoenix style connectors. The system shall be operable either in stereo or monaural mode when powered with a 4/8 low impedance amplified source. The system shall be capable of operating up to 100 watts when driven with a 100V or 70V amplified source signal. The loudspeaker system shall meet the following performance criteria: Power handling, 200 watts of Long Term Program Rating; Frequency response, 42 Hz - 20 kHz (-10 dB from rated sensitivity); Impedance, 8 ohms nominal in stereo mode, 4 ohms nominal in mono mode. The high frequency transducer in the satellites speakers shall provide even coverage of a minimum 100° horizontally by 100° vertically averaged over a frequency range of 1-8 kHz and a minimum 150° horizontally by 150° vertically averaged over a frequency range of 1-4 kHz. The subwoofer enclosure shall be constructed of MDF with a vinyl wrapped exterior. The satellite speakers shall be constructed of fire rated ABS. The subwoofer enclosure shall be 15.75 inch (400 mm) high, 15.75 inch (400 mm) wide, and 9.06 inch (230 mm) deep. The satellite loudspeakers shall be adjustable over a range of 160° horizontally and 60° vertically. The support bracket shall be low profile and fully detachable from the enclosure.
The surface mount loudspeaker system shall be the LB6-100S-D or the LB6-100S-L models made by Bosch.
Product Type: Speaker System
Subwoofer Height: 15.75"
Subwoofer Width: 15.75"
Subwoofer Depth: 9.06"
Satellite Speaker Height: 4.53"
Satellite Speaker Width: 3.35"
Satellite Speaker Depth: 3.74"
Product Color: Black
Brand Name: Bosch
Manufacturer: The Bosch Group
Product Model: LB6-100S
Product Name: LB6-100S-D Compact Sound Speaker System Black
Mount Type: Wall Mountable
Manufacturer Part Number: LB6-100S-D
Manufacturer Website Address: http://www.bosch.com
Package Contents:
- LB6-100S-D Compact Sound Speaker System Black
- Wall Bracket
- Hex Wrench
Satellite/Speaker Weight (Approximate): 1.10 lb
Subwoofer Weight (Approximate): 26.57 lb
