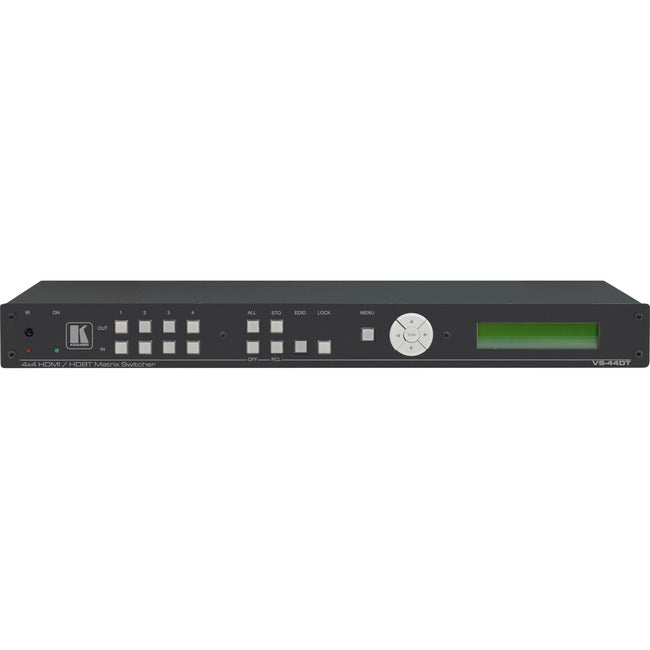

Kramer VS-44DT 4x4 4K60 4:2:0 HDMI/HDBaseT Extended-Reach PoE Matrix Switcher
VS-44DT is a 4x4 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher that transmits video, audio, Ethernet, RS-232 and IR signals over extended distances. The unit accepts up to four HDMI and four IR inputs as well as Ethernet and RS-232 network and control. The inputs can be routed to any or all of the four HDBaseT outputs, the first two of which also have simultaneous HDMI outputs. VS-44DT connects to compatible HDBaseT receivers such as, TP-780RXR, TP-580RXR and TP-588D. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
- HDBaseT Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-UNIKAT cables.
- Cables - For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VS-44DT.
- HDBaseT Extension - Includes Video, Audio, Ethernet, RS-232 and IR signals.
- Outputs - 4 HDBaseT with outputs 1 and 2 having simultaneous HDMI outputs.
- PoE Support - PoE provider to HDBaseT receivers such as the TP-588D and TP-780RXR.
- HDTV Compatible.
- HDCP Compliant.
- EDID Capture - Copies and stores the EDID from a display device.
- HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD® and 7.1 PCM.
- Non-Volatile Memory - Stores and recalls preset matrix configurations.
- Automatic Output Shutdown - If no input signal is detected after a configurable idle period.
- Kramer Protocol 3000 Support.
- Lock Button - Prevents unwanted tampering with the settings.
- Flexible Control Options - Embedded Web server and RS-232.
- Worldwide Power Supply - 100-240V AC.
APPLICATIONS
- Event rooms
- Large conference rooms
- Lecture halls
- 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher
- Resolutions up to 4K@60Hz (4:2:0)
- Managed by Kramer Network
Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Kramer
Form Factor: Rack-mountable
Manufacturer: Kramer Electronics LTD
Product Model: VS-44DT
Product Name: VS-44DT 4x4 4K60 4:2:0 HDMI/HDBaseT Extended-Reach PoE Matrix Switcher
Manufacturer Part Number: 20-00044010
Manufacturer Website Address: http://www.kramerelectronics.com
Package Contents:
- VS-44DT 4x4 4K60 4:2:0 HDMI/HDBaseT Extended-Reach PoE Matrix Switcher
- Rack "Ears" and IR Blaster
Limited Warranty: 7 Year
Weight (Approximate): 7.28 lb
