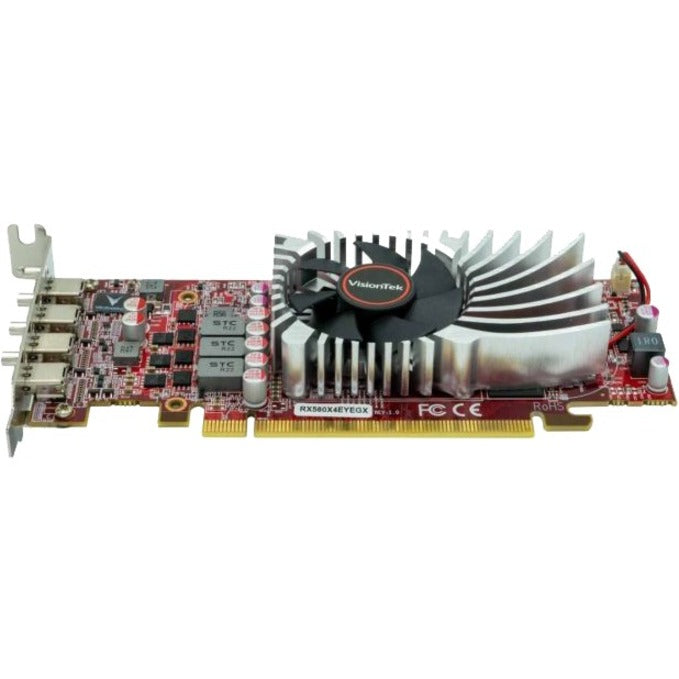

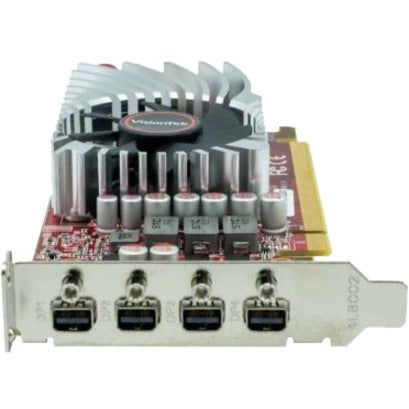

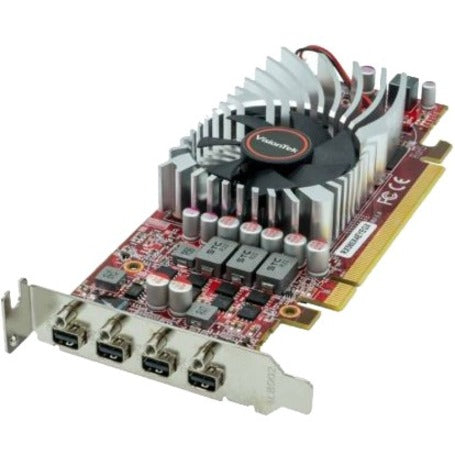

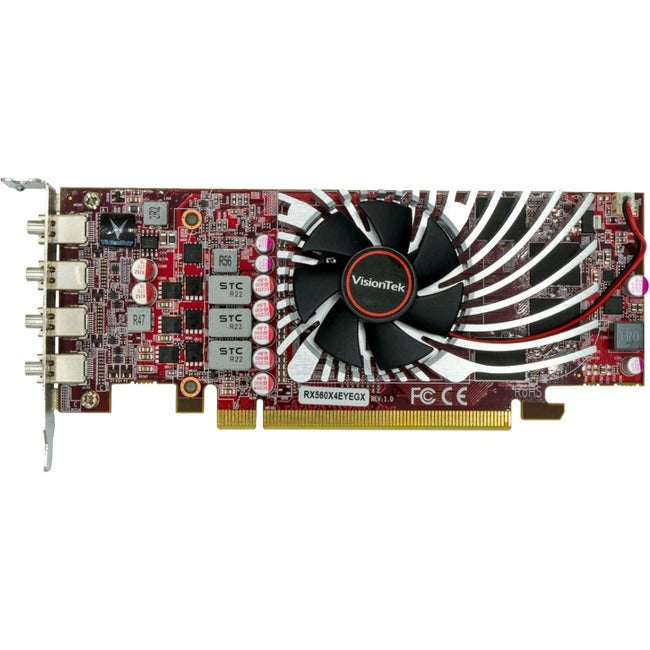

VisionTek AMD Radeon RX 560 Graphic Card - 2 GB GDDR5
Corporate
Showcase your business with a Digital Signage video wall. Individual display settings allows for complete flexibility in orientation and placement. Announce your VIP guests, keep employees informed, showcase your business.
Signage
Restaurant owners, wow your customers with Digital Signage Menus. Easily update your offerings on your system and have them displayed beautifully on up to four screens in 4K brilliance. Let your live action menu entice customers!
Professional
Stay up to date on trades and notifications. By installing our four monitor graphics card, you can expand your workspace, keeping all of your information in front of you and accessible. Success comes to those who are prepared.
Corporate | Digital Signage | Professional
The VisionTek RX560 4M Graphics Card gives you the power and performance you need to take business to the next level. From showcasing your company with a Reception Video Wall, to your restaurant installing Live Action Menus or you the Professional looking to stay on the cutting edge and keeping all of your information in front of you, we have you covered.
Versatile
Whether you want to power a convenience store display, a multi-monitor display wall in a public venue, feed four individual monitors to separate rooms in your business office environment, the RX560 4M is ready to present your desired message or content from a single PC.
No Additional Power Supply Needed
Thanks to an energy efficient design, the RX560 4M requires only 75 watts of power so it can be run off the system power bus. With most systems featuring a factory-installed 350 watt or higher power supply, you don't have to purchase and install a larger power supply.
High Speed Memory for High Performance
While consumer grade cards use common DDR3 memory, the RX560 4M uses 2GB of higher bandwidth GDDR5 memory to deliver lag-free content with the highest resolution possible.

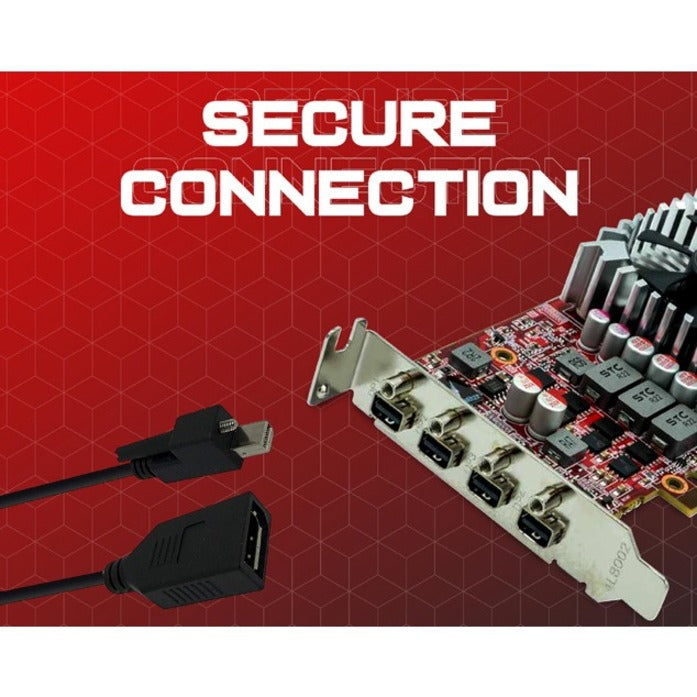

Secure Cable Connections
The RX560 4M features a unique bracket that utilizes the included mDP to DVI screw attaching cables and mDP to DP adapters to prevent accidental cable disconnection.
Small Form Factor - Low Profile Design
Short/Small Form Factor (SFF) design fits in today's Low-Profile desktops and workstations via the short bracket mounted on card. The card is convertible to standard ATX design with the included tall bracket for standard chassis as well.
Four Independent Surround Sound Audio Channels
By incorporating Discrete Digital Multi-Point Audio technology into its chipset, the RX560 4M is able to deliver HD 7.1 surround sound independently to four displays via the four interfaces on the card. Gone is the need for multiple PCs and cards to provide audio to multiple displays. And, you don't need a 3.5mm mini-DIN cable to connect to the motherboard. This attention to detail to support business application use via the mini DisplayPort interface is unmatched by any other graphics card manufacturer.
Supports up to Four 4K Displays
The RX560 4M 2GB GDDR5 graphics card supports up to four displays with 4K resolutions.
The included adapters will support your four display configuration if using at least two DisplayPort displays and two DVI displays. For other display connections, you may need to purchase the appropriate active adapters.
- Advanced dynamic power management with AMD PowerPlay™ technology
- Supports DirectX 12 and OpenGL
- AMD Avivo™ HD video and display technology
- Accelerated Video Transcoding (AVT)
- Compliant with DirectX® 12 and earlier revisions
- AMD Stream technology
- Designed for DirectCompute 11 and OpenCL
- AMD Eyefinity technology multi-display support for up to four displays
Product Type: Graphic Card
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Brand Name: VisionTek
Form Factor: Plug-in Card
Length: 7.3"
Manufacturer: VisionTek Products, LLC
Product Name: RX560 4GB 4M Graphics Card Graphic Card
Manufacturer Part Number: 901443
Manufacturer Website Address: http://www.visiontek.com
Platform Supported: Linux

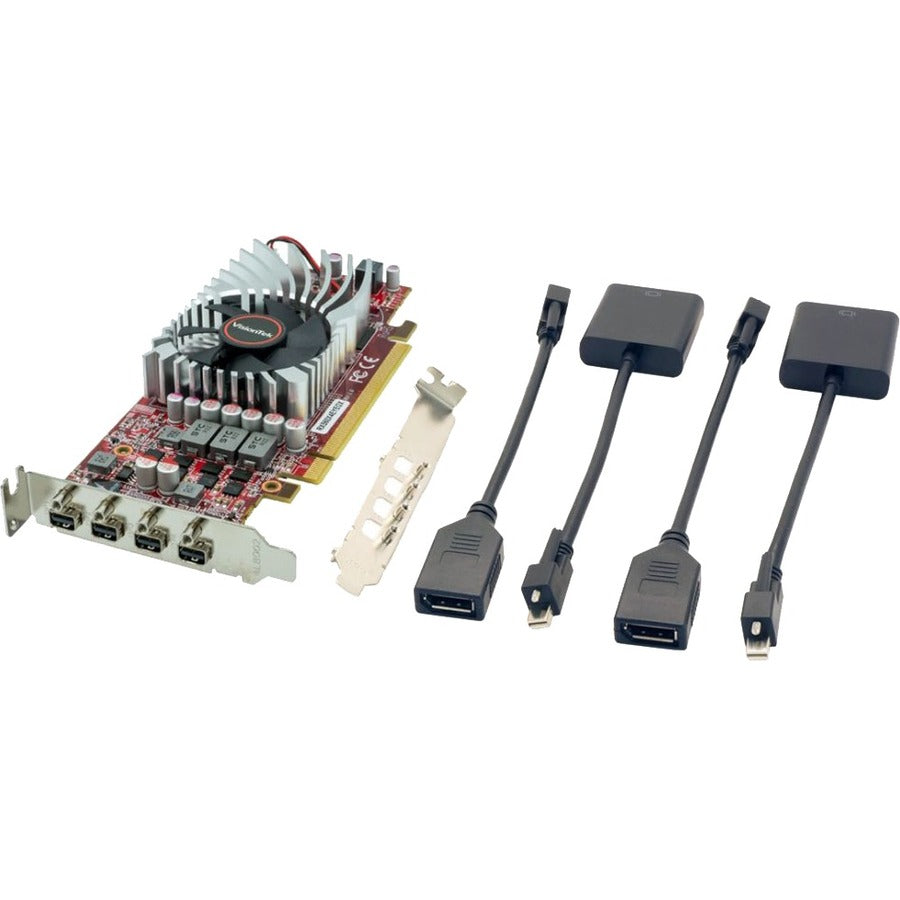

Package Contents:
- RX560 4GB 4M Graphics Card
- 2 x mDP to DP Adapters
- 2 x mDP to DVI Adapters
- Installation Guide
- Tall/Full Height Bracket
Limited Warranty: 3 Year
Weight (Approximate): 0.32 lb
