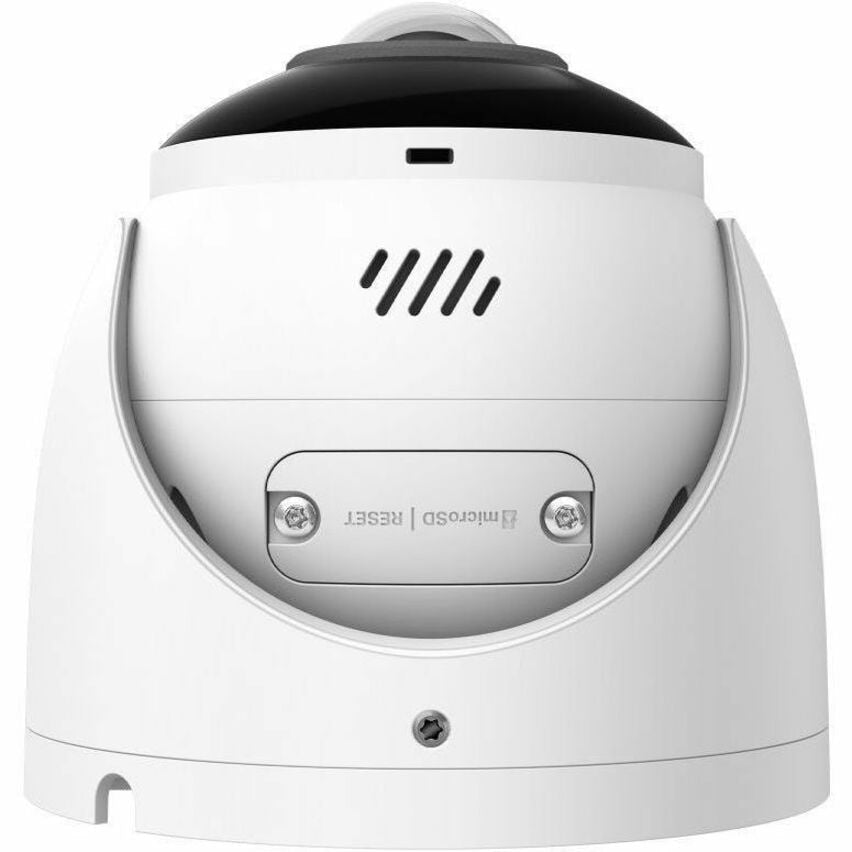

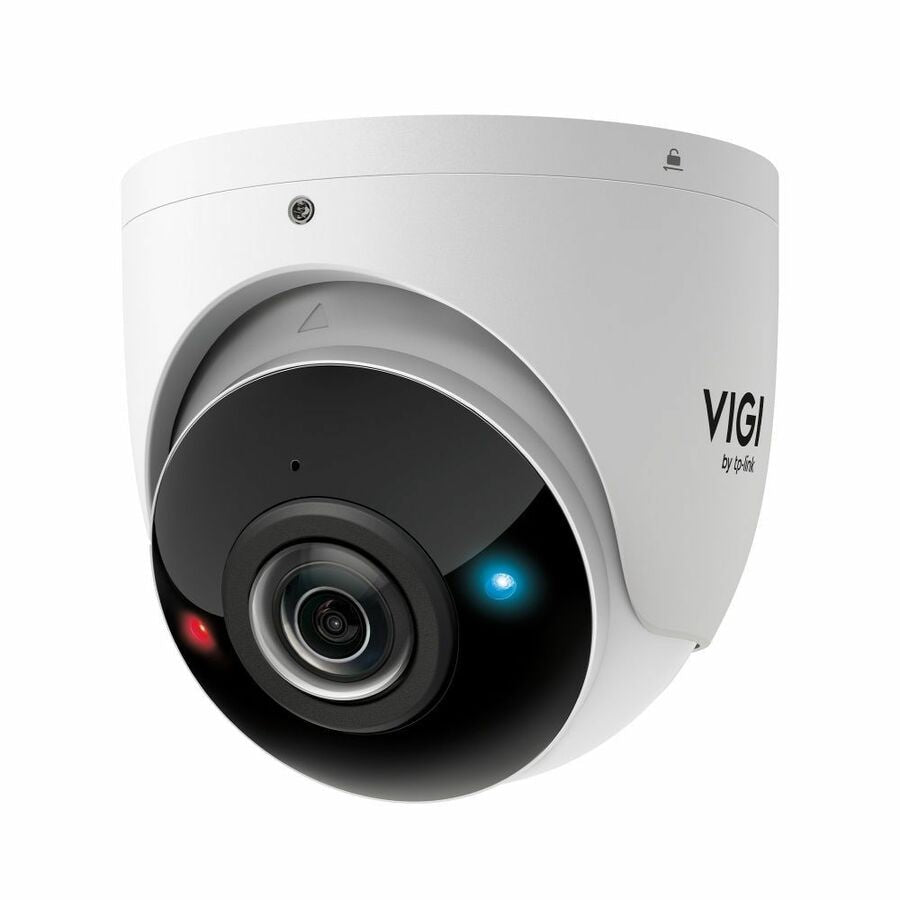

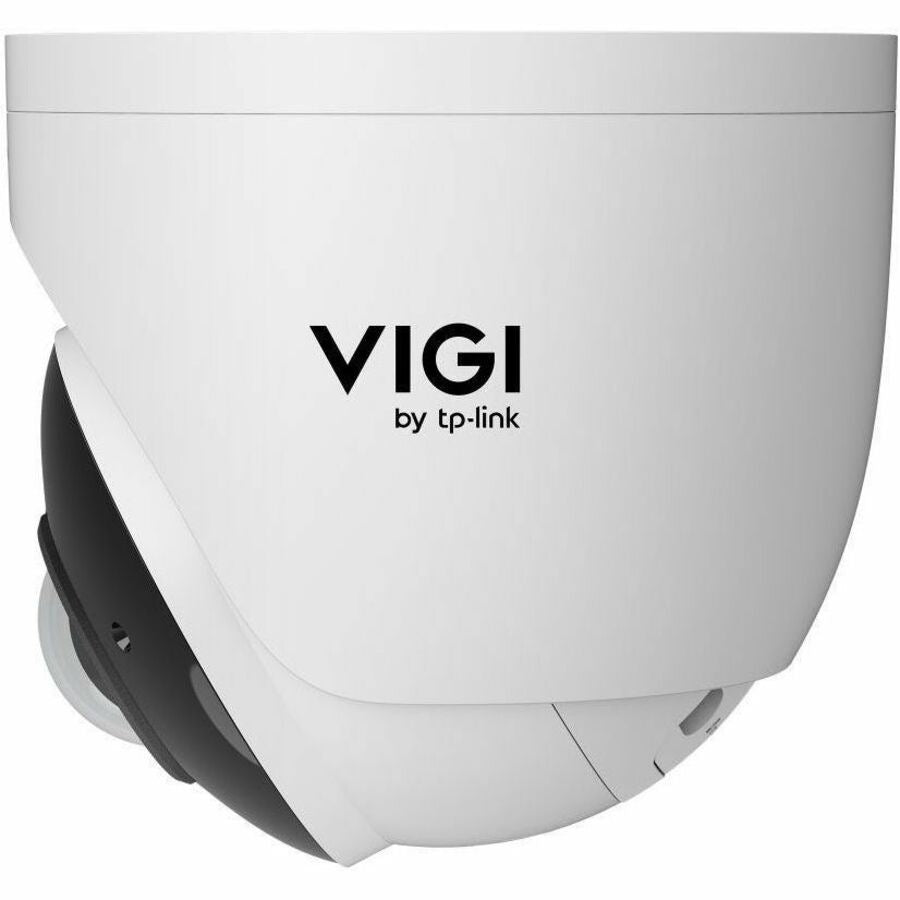

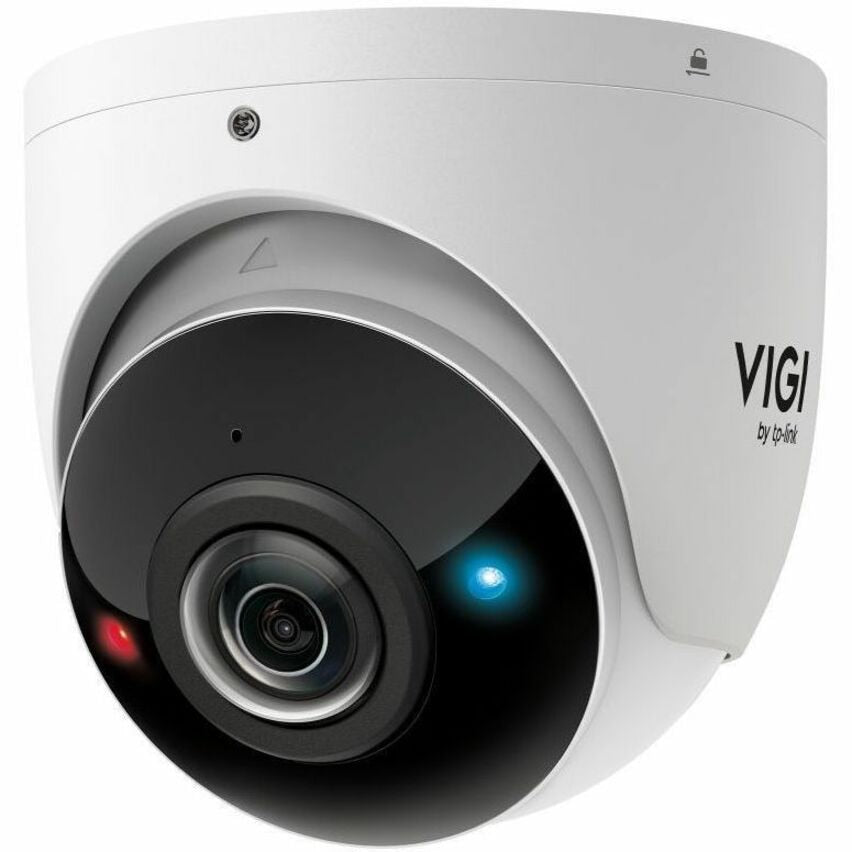

The VIGI 8MP IR Panoramic Turret Network Camera from TP-LINK's trusted security lineup delivers ultra-wide coverage and intelligent analytics for businesses that need reliable, low-maintenance surveillance.
Designed for environments ranging from retail and offices to parking areas, it captures a crisp 180° panoramic view with day-to-night reliability while integrating smoothly with existing security systems.
-
8MP Ultra-High Resolution: 3840x2160 resolution with a 1.65mm fixed lens for a wide 180° panoramic view
-
1.65mm Panoramic Lens: Ultra-wide field of view to reduce blind spots and simplify camera placement
-
1/2.7" Progressive Scan CMOS: Ensures clear, detailed video across varying lighting conditions
-
Efficient Video Compression: Supports H.265+/H.265/H.264+/H.264 for lower bandwidth and storage use
-
Smart Night Vision: IR LED up to 20 meters with Smart IR for balanced exposure in low light
-
120dB WDR: Maintains detail in high-contrast scenes from bright to dark
-
Rugged Durability: IP67 weatherproof and IK10 vandal-resistant for outdoor and demanding environments
-
Flexible Power Options: Power over Ethernet (PoE) or DC 12V for easy installation
-
Audio & Alarm I/O: Built-in microphone and speaker; alarm in/out for integrated alerts
-
Smart Analytics: Human and vehicle classification with dedicated analytics for precise monitoring
-
Storage & Compatibility: Micro-SD slot up to 512GB; ONVIF Profile S/T/G; works with VIGI App, web, NVR, and VMS
-
Event Signaling: Red-Blue warning lights to draw attention to important events
-
Frame Rate: 25/30fps at 3840x2160 for smooth motion
The camera’s panoramic view minimizes blind spots across large spaces, enabling more efficient security layouts with fewer cameras. Its strong day/night performance, along with smart analytics that distinguish people and vehicles, helps security teams respond faster while reducing false alarms. Local micro-SD storage provides added redundancy, and flexible power options plus broad compatibility make this camera a future-ready fit for existing systems—backed by TP-LINK’s engineering and support within the VIGI ecosystem.
Specifications
-
Resolution: 8MP (3840x2160) at 25/30fps
-
Lens: 1.65mm fixed lens; 180° FOV
-
Sensor: 1/2.7" Progressive Scan CMOS
-
Video Compression: H.265+/H.265/H.264+/H.264
-
Night Vision: IR up to 20 meters; Smart IR
-
Dynamic Range: 120dB WDR
-
Durability: IP67 weatherproof; IK10 vandal-resistant
-
Power: PoE or DC 12V
-
Audio/Alarm: Built-in microphone and speaker; alarm in/out
-
Storage: Micro-SD slot up to 512GB
-
Analytics: Human and vehicle classification
-
Connectivity: ONVIF Profile S/T/G; VIGI App, web, NVR, VMS
-
Q: What is the focal length and field of view?
A: The camera uses a 1.65mm fixed lens with a wide 180° panoramic view to cover large areas with a single device.
-
Q: How far can it see in the dark?
A: Night vision reaches up to 20 meters with Smart IR for balanced illumination.
-
Q: Is this camera suitable for outdoor use?
A: Yes. It has IP67 weatherproof and IK10 vandal-resistant ratings for harsh outdoor conditions.
-
Q: How can I monitor the camera remotely?
A: You can monitor remotely via the VIGI App, a web interface, compatible NVRs, and VMS platforms.
-
Q: What analytics are included?
A: It supports human and vehicle classification analytics to help distinguish people and vehicles and reduce false alarms, plus Red-Blue warning lights for event signaling.
