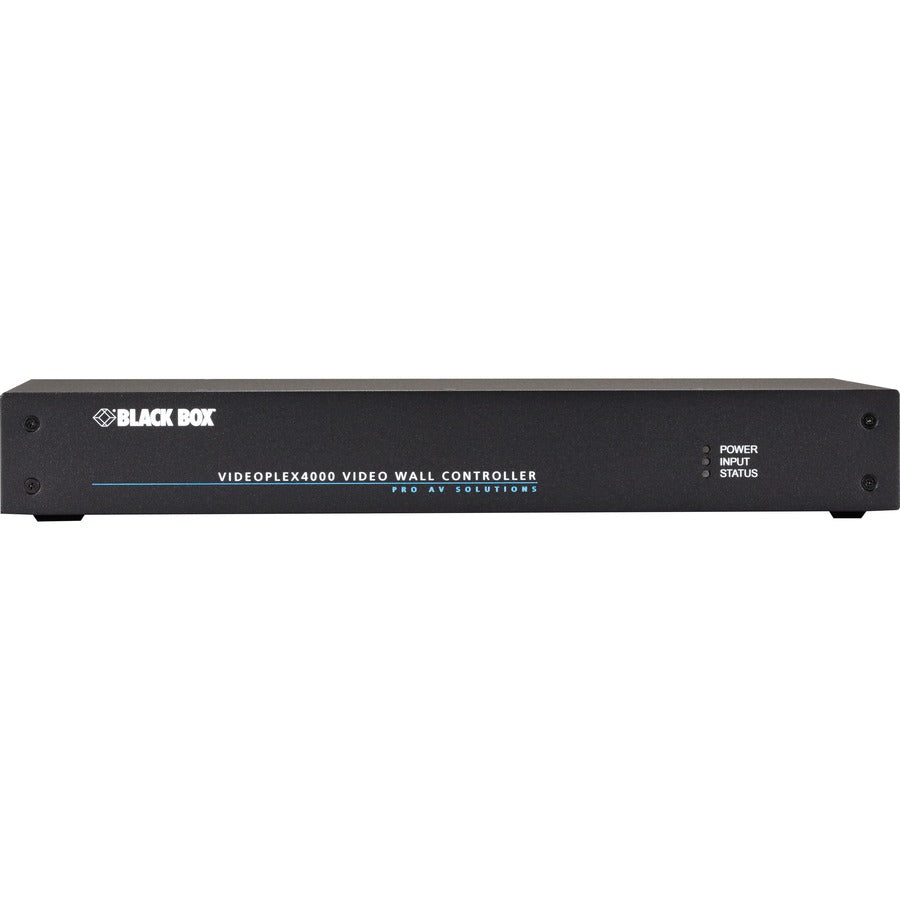

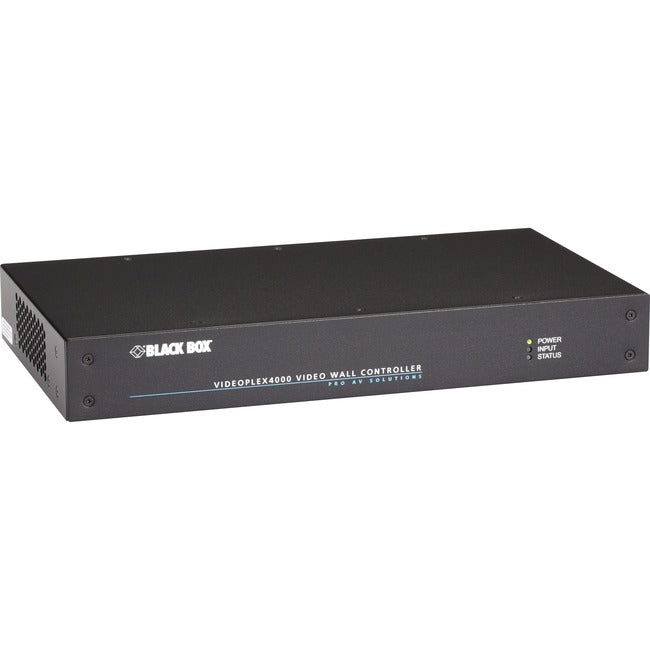

Black Box VideoPlex4000 Video Wall Controller - 4K, HDMI
- Supports non-rectangular screen arrangements and any mix of monitor orientations so users can create an almost unlimited multi-monitor canvas.
- Stack multiple units to create larger video walls.
- Enables you to rotate, crop, and scale video.
- Automatically corrects for bezels.
- Enables easy control of cropping, scaling, rotation, and gaps.
- Comes with user friendly software with drag and drop configuration.
- Supports HDMI.
- HDCP support on all inputs and outputs.
- Dual Ethernet ports enable network connectivity and cascading.
VideoPlex4000 gives users the flexibility to create individually shaped video walls with four-or more-HDMI displays and no restrictions on how the screens are arranged or screen sizes. Users can freely scale and position images, including rotations of up to 270°. One image can be reproduced on each screen or cropped regions of the image can be shown on each screen. This video wall controller upscales input and outputs distortion-free images making it ideal for live camera feeds or animated content.
- Standalone video wall controller/scaler outputs high-resolution HDMI video, up to 4K, to four monitors per device.

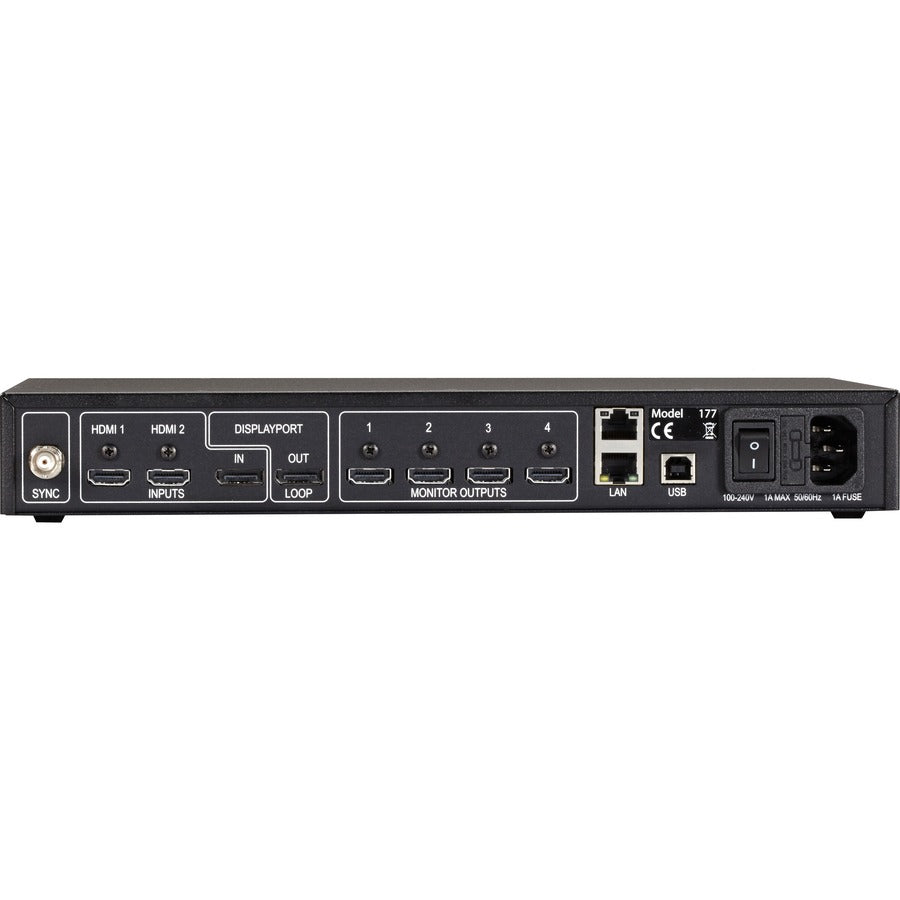

- Super flexible connectivity: dual HDMI 1.4 4K @ 30 Hz inputs and one DisplayPort 1.2 for 4K @ 60 Hz inputs.
- Supports four 1080p outputs to four independent HDMI displays.
- Supports non-rectangular screen arrangements and any mix of monitor orientations so users can create an almost unlimited multi-monitor canvas.
- Stack multiple units to create larger video walls.
- Enables you to rotate, crop, and scale video. Automatically corrects for bezels.
- Enables easy control of cropping, scaling, rotation, and gaps.
- Comes with user friendly software with drag and drop configuration.
- Supports HDMI and has HDCP support on all inputs and outputs.
- Dual Ethernet ports enable network connectivity and cascading.
Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United Kingdom
Brand Name: Black Box
Form Factor: Rack-mountable
Manufacturer: Black Box Corporation
Product Name: VideoPlex4000 Video Wall Controller - 4K, HDMI
Product Line: VideoPlex4000
Manufacturer Part Number: VSC-VPLEX4000
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- VideoPlex4000 Video Wall Controller - 4K, HDMI
- 1 x USB 2.0 Cable, Type A to Type B
- 1 x IEC-320 C13 to NEMA 5-15 Power Cable
- 6 x Rackmount Screws
- 6 x HDMI Cable Locks
- 6 x Cable Tie Wraps
- 1 x DVD
- 1 x Quick Start Guide
Limited Warranty: 3 Year
Weight (Approximate): 4.10 lb
