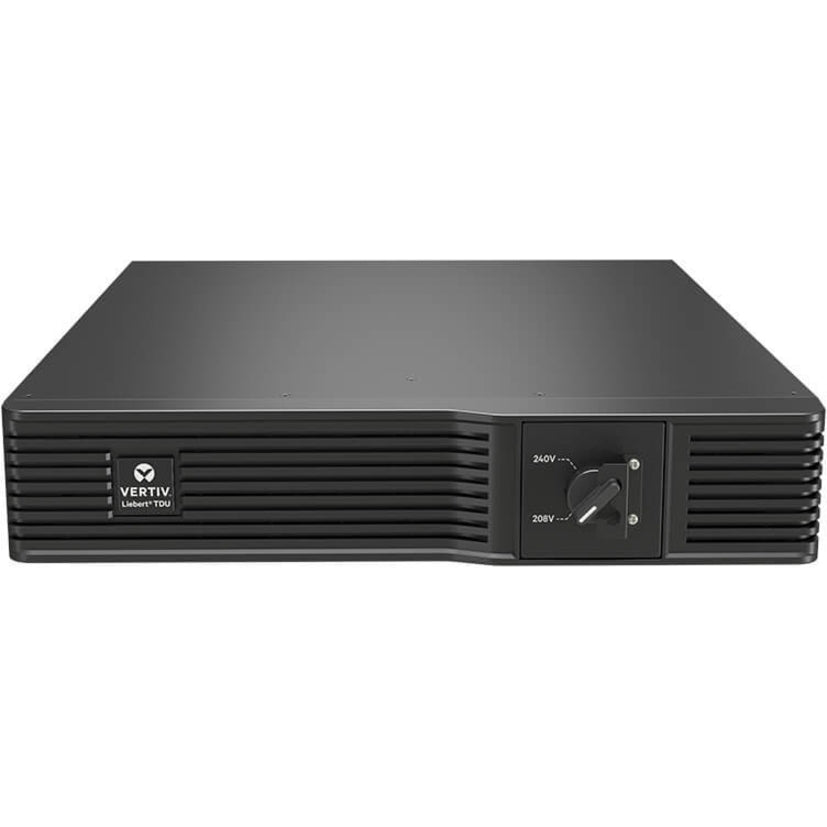

Vertiv Liebert TDU - 4000VA/4000W 120VAC|Step Down Transformer/Voltage Converter
The Vertiv Liebert Transformer Distribution Unit (TDU) is a step down transformer / voltage converter that provides 120VAC output power from 208VAC or 240VAC input. Many 5kVA and higher single phase UPS products only accept 208VAC input power, so users consider Vertiv Liebert TDU, which accepts 208 or 240VAC (200/220/230 VAC acceptable) input and converts it to 120VAC (L-N) output. It is designed to work with Vertiv Liebert GXT3-6000RTL630, GXT4-6000RTL630, GXT4-3000RT208, and PSI5-5000RT208 but can be used with other UPS products with 208VAC in & out, and have a compatible input power plug. This 4000VA/4000W TDU has 10 power output connections: 8 NEMA 5-15/20R and 2 NEMA L5-20R. The integrated forced airflow in the unit assists in keeping the rack cool. This energy efficient device offers AC-AC efficiency of 94%. It meets standards in safety, RFI/EMI, environmental and transportation. This 2U rack-tower comes with a mounting kit for easy installation.
More from the Manufacturer
- This step down transformer delivers 120V load support for 208V only UPS operation.

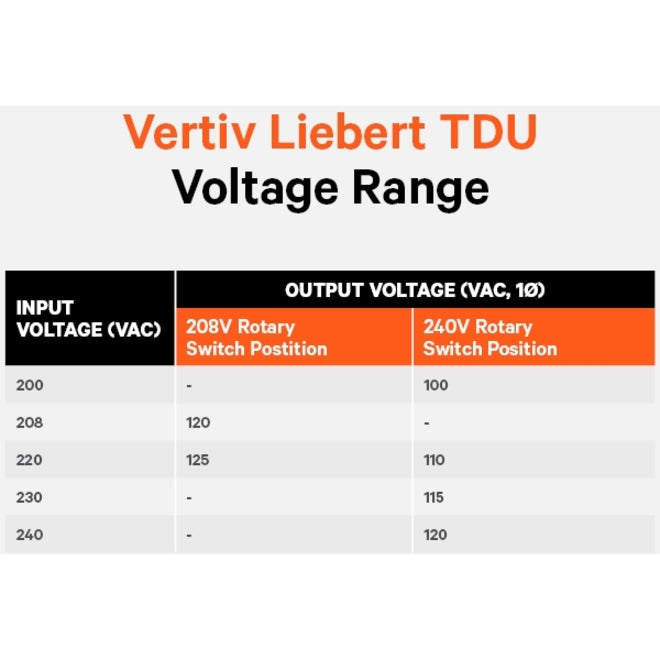

- With voltage selector, it accepts 208 or 240VAC input and offers 120VAC (L-N) output.

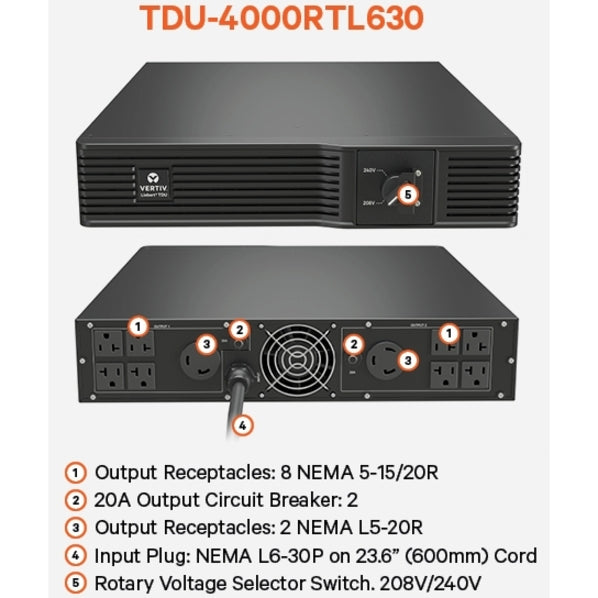

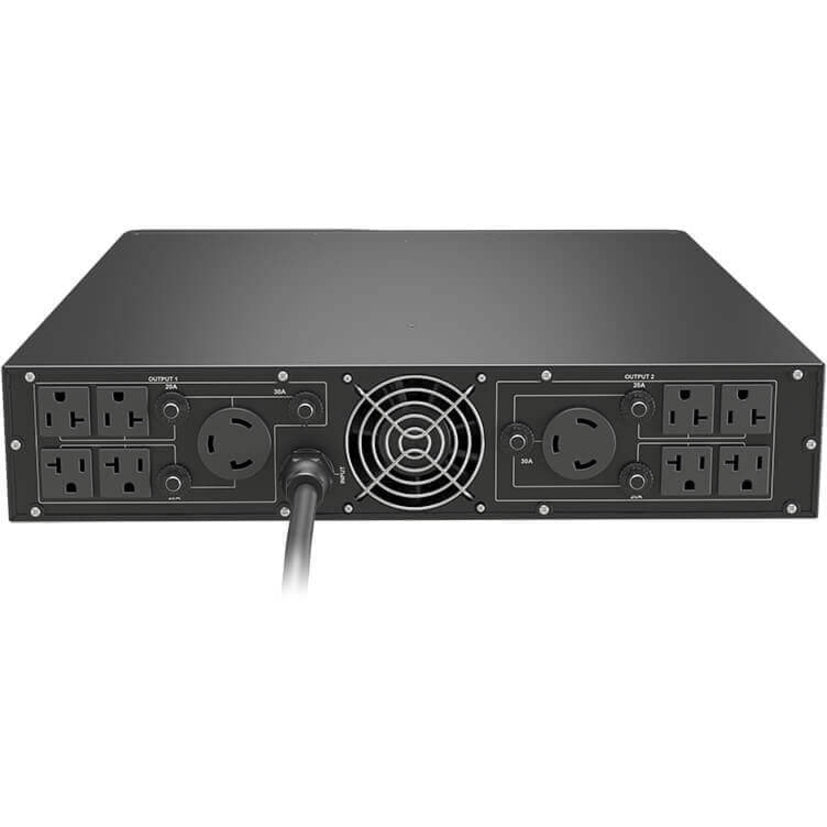

- It comes with 10 power output connectors: 8 NEMA 5-15/20R and 2 L5-20R or 2 L5-30R.

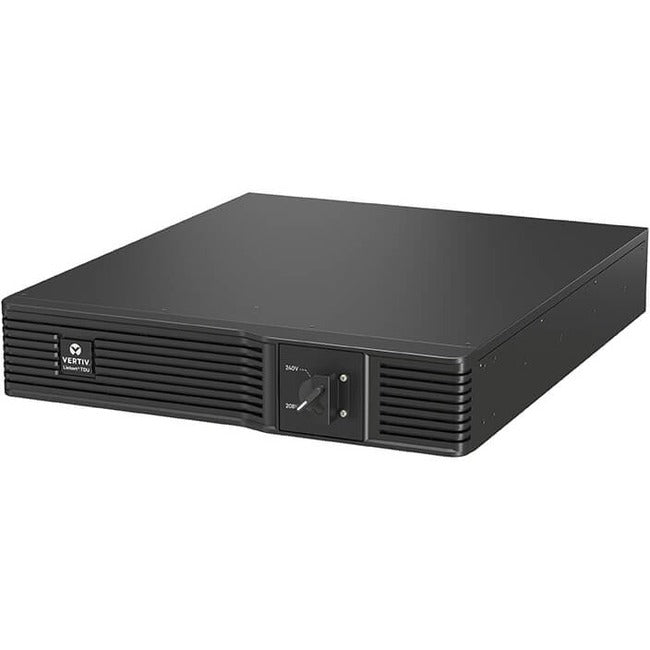

- The 2U rack tower comes with mounting brackets for quick and easy installation.
- It meets standards in safety, RFI/EMI, environmental and transportation.
Product Type: Step Down Transformer
Rack Height: 2U
Brand Name: Liebert
Form Factor: Tower/Rack Mountable
Manufacturer: Vertiv
Product Name: Transformer Distribution Unit
Manufacturer Part Number: TDU-4000RTL630
Manufacturer Website Address: http://www.vertiv.com/
Limited Warranty: 2 Year
