Vertiv Liebert POD PD2 - (4) NEMA L5-20R| (4) 5-20R| UPS Maintenance Bypass

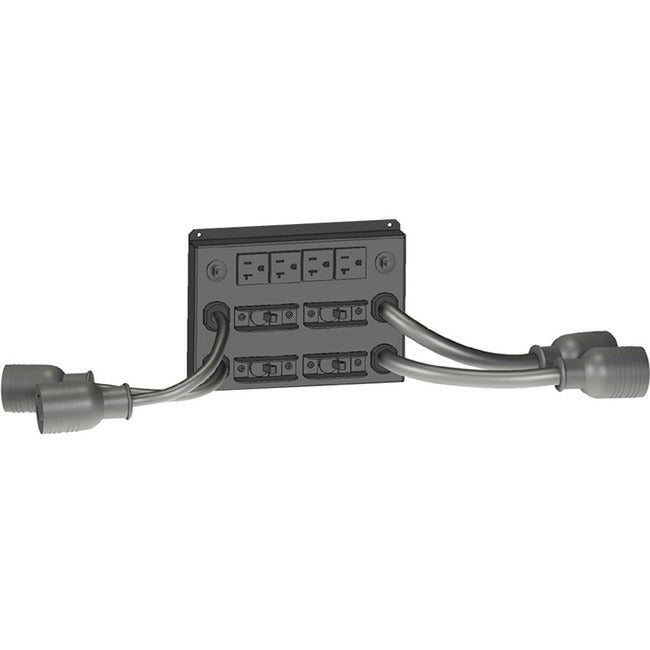

The Vertiv Liebert POD PD2-107 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA uninterruptible power supply (UPS) models, it is a POD that allows you to conduct UPS maintenance or replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures, saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-107 is a plug-and-play unit that will replace the existing POD box on your UPS. It has four NEMA L5-20R and four NEMA 5-20R output connectors and is equipped with a 2PH+N+G Hardwire 4-wire input connector. It also has a circuit breaker and supports a max current of 63A.
More from the Manufacturer
- Input: Hardwire 4-wire (2PH+N+G)
- Output: Four (4) NEMA L5-20R, Four (4) NEMA 5-20R
- Max Current: 60A
- Easy plug-and-play deployment to ensure continuous uptime of your network even during UPS maintenance
- Avoid initiating unnecessary downtimes while conducting UPS maintenance
- Power output distribution unit with UPS maintenance bypass feature
Product Type: PDU
Brand Name: Liebert
Manufacturer: Vertiv
Product Model: PD2-107
Product Name: PD2-107 8-Outlets PDU
Manufacturer Part Number: PD2-107
Manufacturer Website Address: http://www.vertiv.com/
Packaged Quantity: 1
Weight (Approximate): 6.60 lb
Limited Warranty: 3 Year
