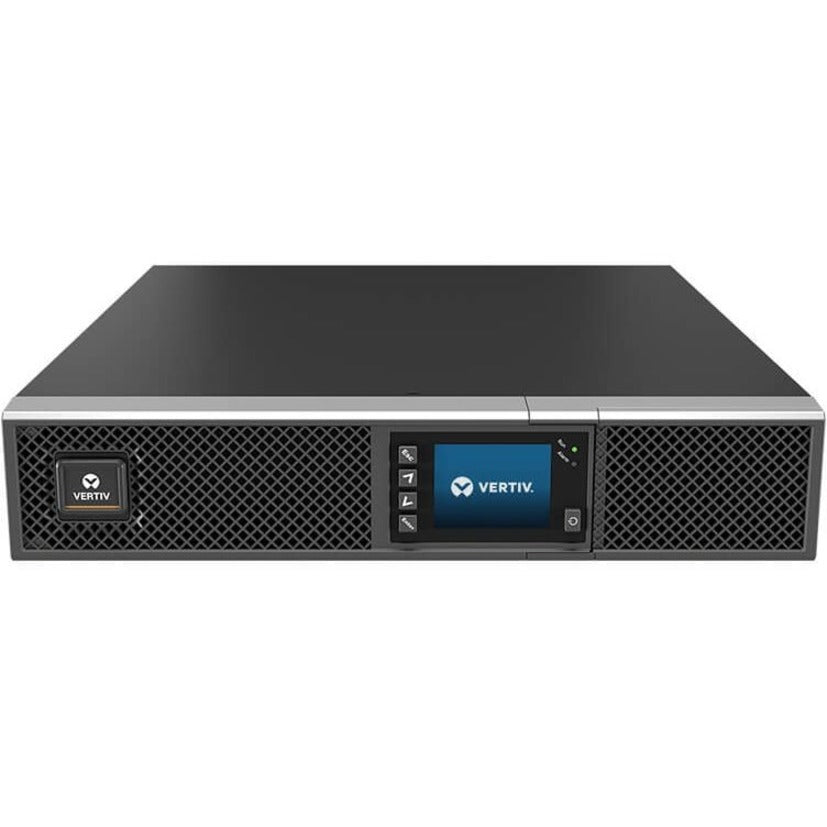

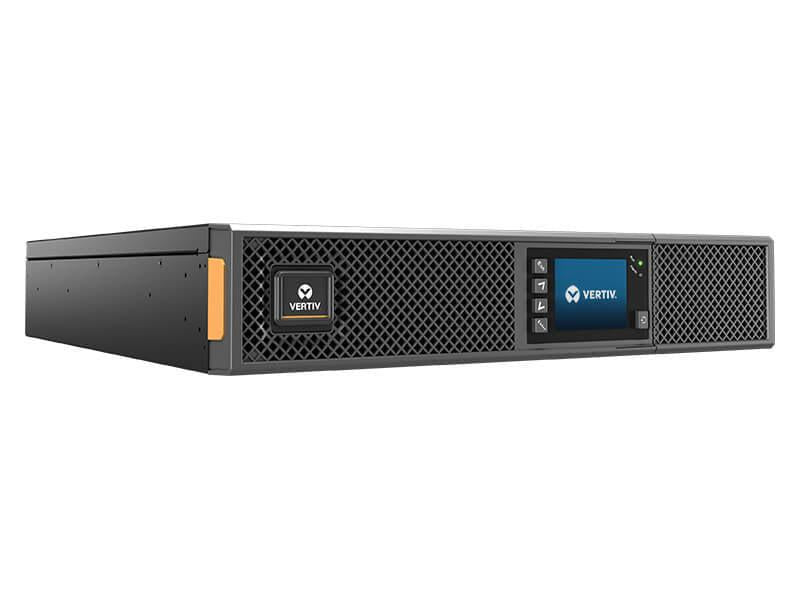

This Vertiv Liebert GXT5 UPS 3000VA is perfect for IT administrators and data center professionals who need premium online double conversion UPS protection for critical servers and network equipment. Our Vertiv solution delivers:
-
Online double conversion technology providing continuous power conditioning and zero transfer time protection
-
2U UPS rack mount design optimizing valuable rack space in server rooms and data centers
-
Unity Power Factor 1.0 delivering full 3000W output capacity for maximum efficiency and load support
-
ENERGY STAR certified UPS performance reducing operational costs while maintaining enterprise-grade reliability
Key Features
-
True online double conversion eliminating power disturbances and voltage fluctuations for sensitive equipment
-
Unity Power Factor technology supporting modern high-efficiency IT loads with optimal power delivery
- Compatible with rack tower configuration providing flexible installation options for various environments
- Consistent power disturbance protection maintaining clean, stable power under all operating conditions
-
ENERGY STAR certification meeting strict efficiency standards for reduced energy consumption and costs
Technical Specifications
| Manufacturer |
Vertiv Corporation |
| Model Series |
Liebert GXT5 |
| Type |
Online Double Conversion UPS |
| Capacity (VA) |
3000 VA |
| Capacity (Watts) |
3000 W |
| Input Voltage |
230V AC |
| Output Voltage |
230V AC |
| Form Factor |
2U Rack Mount / Tower |
| Power Factor |
Unity Power Factor 1.0 |
| Technology |
True Online Double Conversion |
| Transfer Time |
Zero (continuous online operation) |
| Input Frequency |
50/60 Hz ± 5 Hz |
| Output Frequency |
50/60 Hz ± 0.1 Hz |
| Efficiency |
Up to 95% (ECO mode) |
| Battery Type |
Valve Regulated Lead Acid (VRLA) |

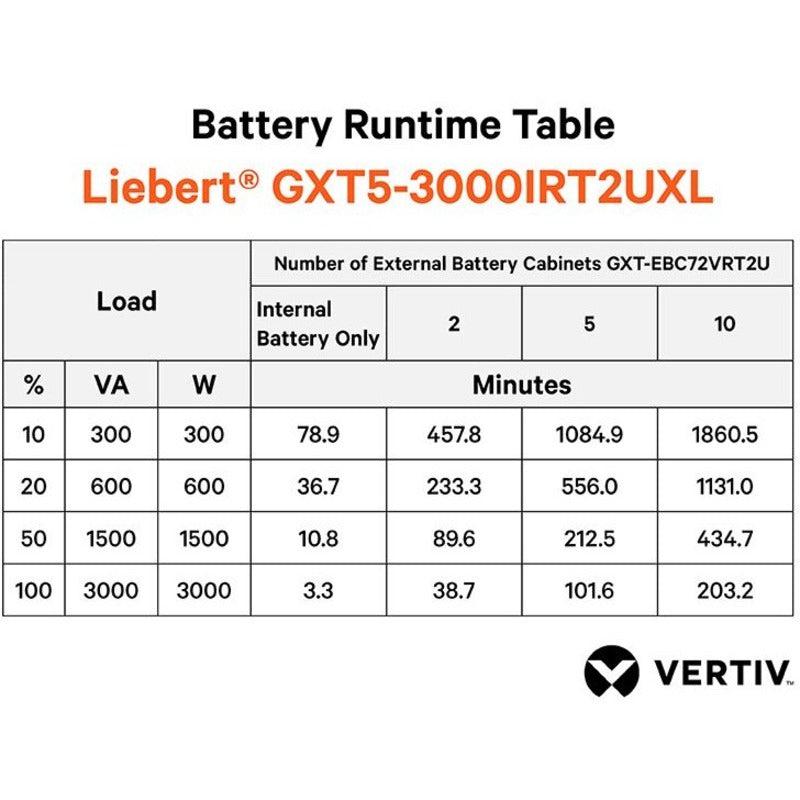

| Battery Runtime |
5-10 minutes at full load (expandable) |
| Recharge Time |
3 hours to 90% capacity |
| Display |
LCD display with status indicators |
| Communication |
USB, RS232, SNMP (optional) |
| Network Monitoring |
Intelligent network management capabilities |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
5°F to 122°F (-15°C to 50°C) |
| Humidity |
0-95% non-condensing |
| Altitude |
Up to 3000m (10,000 ft) |
| Noise Level |
Less than 45 dBA at 1 meter |
| Dimensions (H x W x D) |
3.5" x 17" x 22" (2U rack height) |
| Weight |
Approximately 85 lbs (39 kg) |
| Safety Certifications |
UL Listed, CE Marked, FCC Class A |
| Energy Efficiency |
ENERGY STAR Certified |
| Load Segments |
Critical and non-critical load management |
| Surge Protection |
Built-in surge and spike protection |
| Software |
Liebert MultiLink monitoring software included |
| Hot-Swappable |
User-replaceable batteries |
| Parallel Capability |
Up to 4 units for redundancy |
| Warranty |
3-year full system warranty |
Frequently Asked Questions
Q: What is online double conversion UPS and why is it important?
A: Online double conversion technology continuously converts AC power to DC and back to AC, providing zero transfer time and complete isolation from power disturbances. This Vertiv Liebert GXT5 UPS ensures your critical equipment receives clean, stable power regardless of input conditions, making it ideal for sensitive servers and network infrastructure.
Q: How does Unity Power Factor benefit modern IT equipment?
A: The Unity Power Factor 1.0 feature allows this 3000VA UPS system to deliver the full 3000W output capacity, supporting modern high-efficiency servers and storage systems. Unlike traditional UPS systems with lower power factors, this ensures maximum utilization of the 2U UPS capacity for today's IT loads.
Q: Can this UPS be used in both rack and tower configurations?
A: Yes, this rack tower UPS offers flexible installation options. It can be rack-mounted in standard 19-inch racks using 2U of space, or used as a floor-standing tower unit. This versatility makes the Vertiv Liebert GXT5 suitable for various data center and server room environments.
Q: What makes this UPS ENERGY STAR certified and how does it save costs?
A: The ENERGY STAR certified UPS meets strict efficiency standards, operating at up to 95% efficiency in ECO mode. This power disturbance protection system reduces energy consumption and heat generation, lowering operational costs while maintaining enterprise-grade reliability for mission-critical applications.
Vertiv Liebert GXT5 UPS 3000VA online double conversion 2U rack tower UPS with Unity Power Factor and ENERGY STAR certification for enterprise protection.
