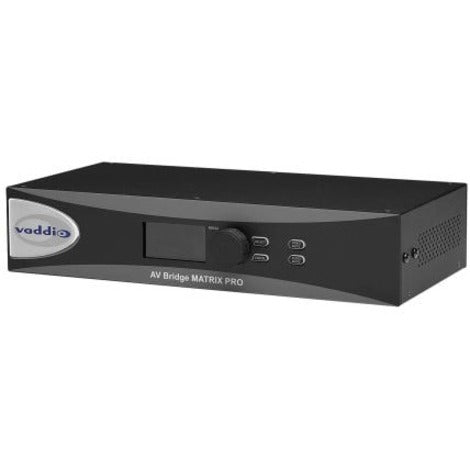

Vaddio AV Bridge MATRIX PRO Audio/Video Bridge
Ideal for conferencing and lecture capture applications, AV Bridge MATRIX PRO combines audio and video mixing functionality into a single device, allowing you to add multiple cameras, microphones and other AV devices into a traditional AV room design.
Why have a full rack of gear when one device can do it all? The AV Bridge MATRIX PRO encoder provides a simple way to add multiple cameras, microphones and other AV devices to a traditional AV room design. It then manages the complex process of mixing, switching and controlling those devices into a single USB and IP stream.
Users get the advantage of integrating their PC-based platform and intuitive UC interface while being connected to multiple sensory inputs that provide a professional AV experience. At the same time, they also get access to cloud-based applications and a UC platform of choice for content creation and sharing, audio conferencing, video conferencing, and a multitude of other collaboration activities.
- AV encoder with simultaneous IP and USB 2.0 streaming
- High-definition image quality - 1080p/30 streaming and 1080p/60 HDMI
- Four-input HD video switcher
- 9x5 cross-point audio matrix mixer/switcher
- Four EasyMic audio ports with built-in AEC
- Easy, intuitive web-based user interface for system configuration and settings
- Remote IP control of up to four Vaddio Cameras
Product Type: Audio/Video Bridge
Brand Name: Vaddio
Form Factor: Rack-mountable
Manufacturer: Legrand Group
Product Name: AV Bridge MATRIX PRO Audio/Video Bridge
Product Line: AV Bridge MATRIX PRO
Manufacturer Part Number: 999-8230-000
Manufacturer Website Address: http://www.legrand.us
Package Contents:
- AV Bridge MATRIX PRO Audio/Video Bridge
- Quick-start Guide
- 24V 3.75A Power Supply with AC Cord Set(s)
- 2 x Rack Ears
- 8 x 3-position Phoenix-style Connectors
- 12-position Phoenix-style Connector
- 6' USB Type A to B Cable
Weight (Approximate): 5.51 lb
