USB-EX165-K: 480Mbps USB2.0 Extender Over CAT6/7 up to 50m

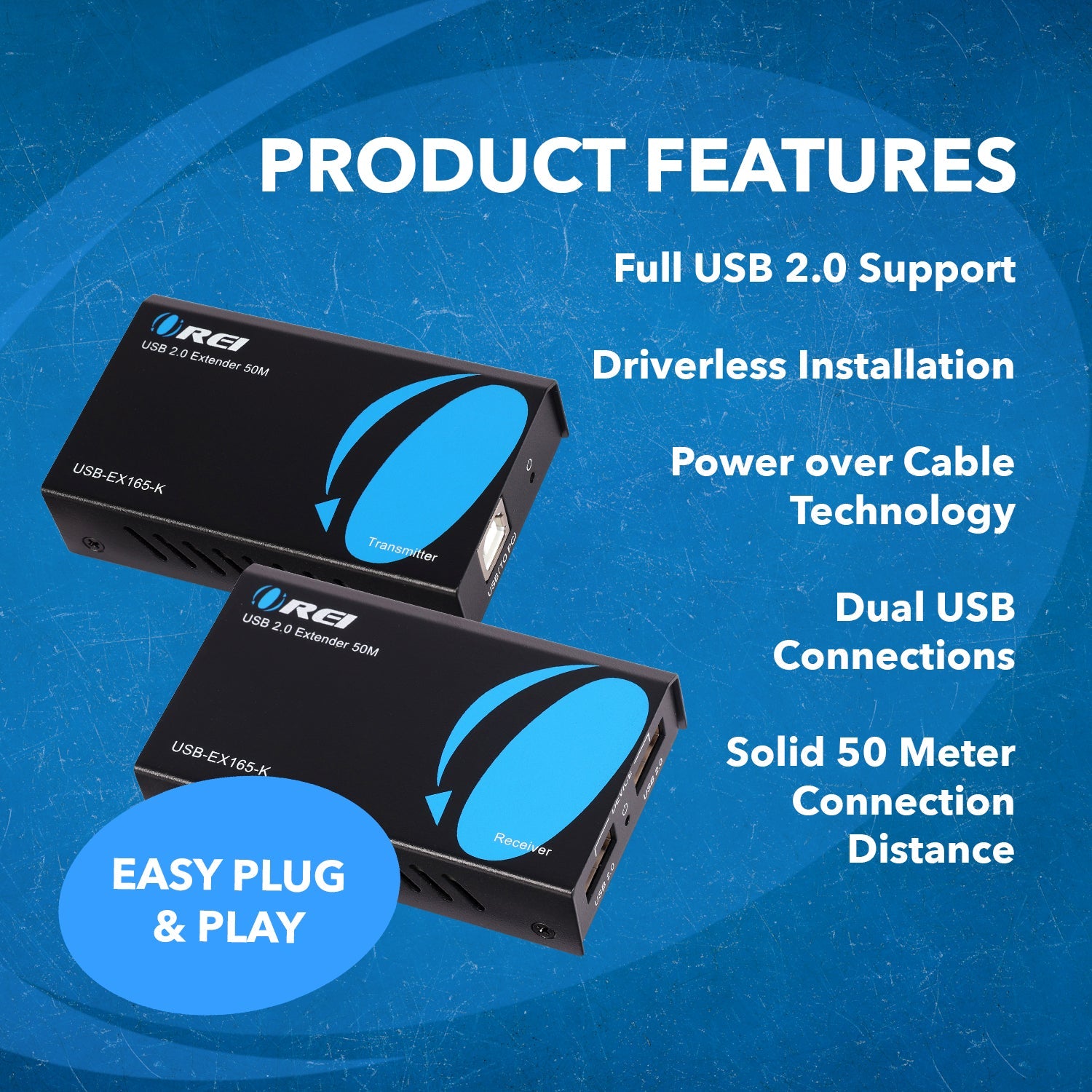

Key Features:
USB 2.0, 1.1 and 1.0 compliant
2 USB 2.0 ports to connect up to 4 devices like USB drives, printers, webcam, etc.
Data transfer speeds up to 480Mbps

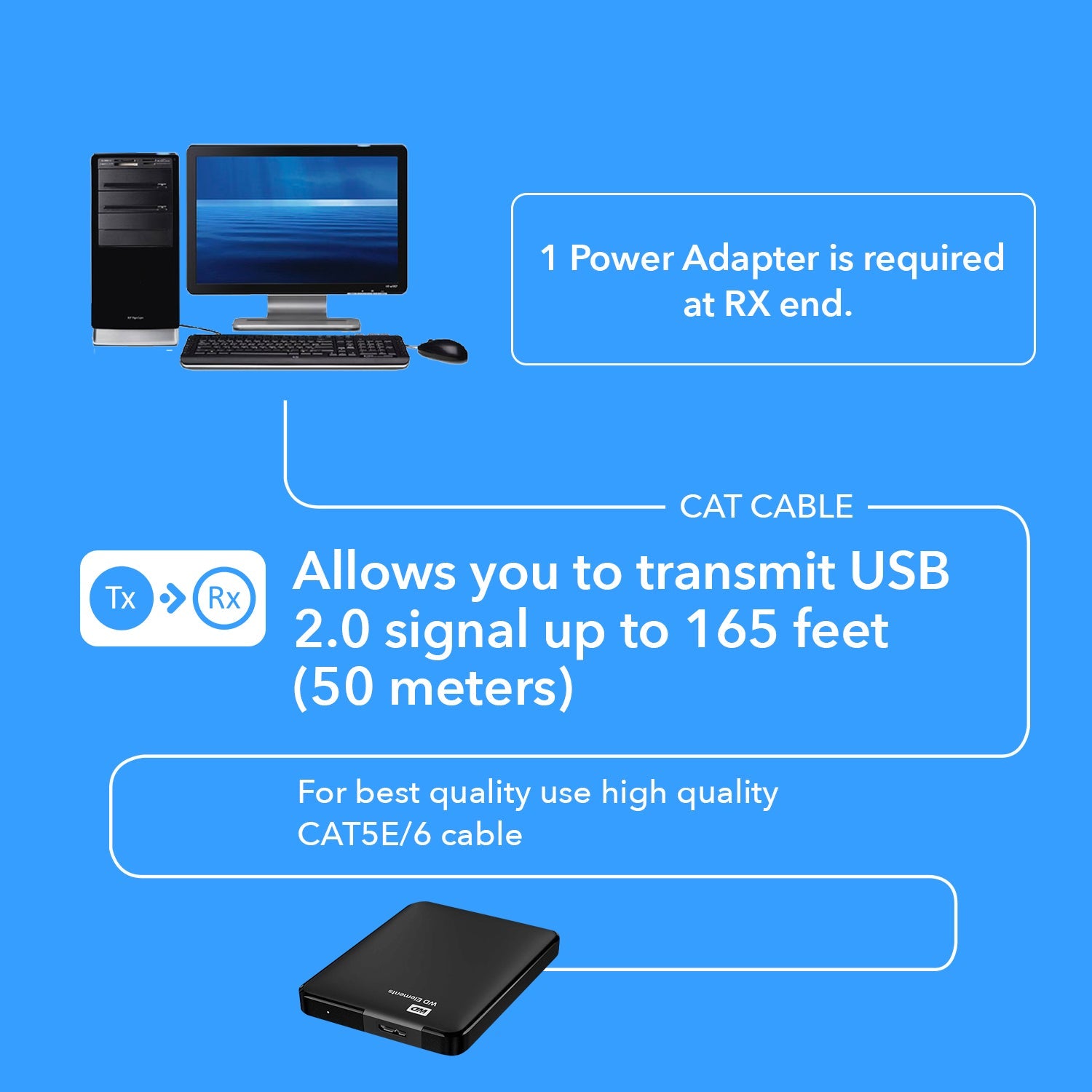

USB signal transmission up to 165 feet over a CAT 6/7 cable

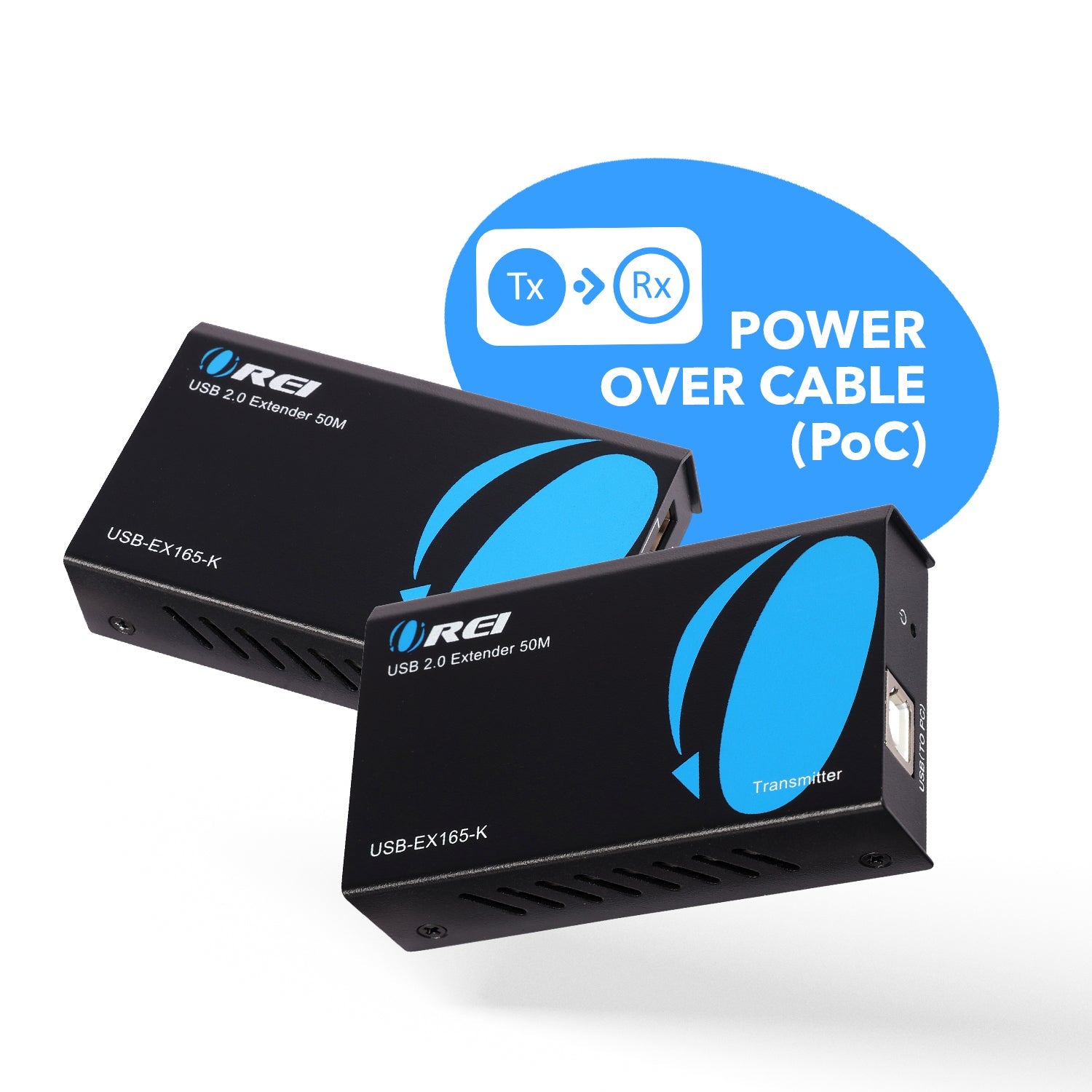

Powered by the source, the Transmitter does not need an additional power adapter
Ideal for various home or commercial setups
Small and compact design
Strong build

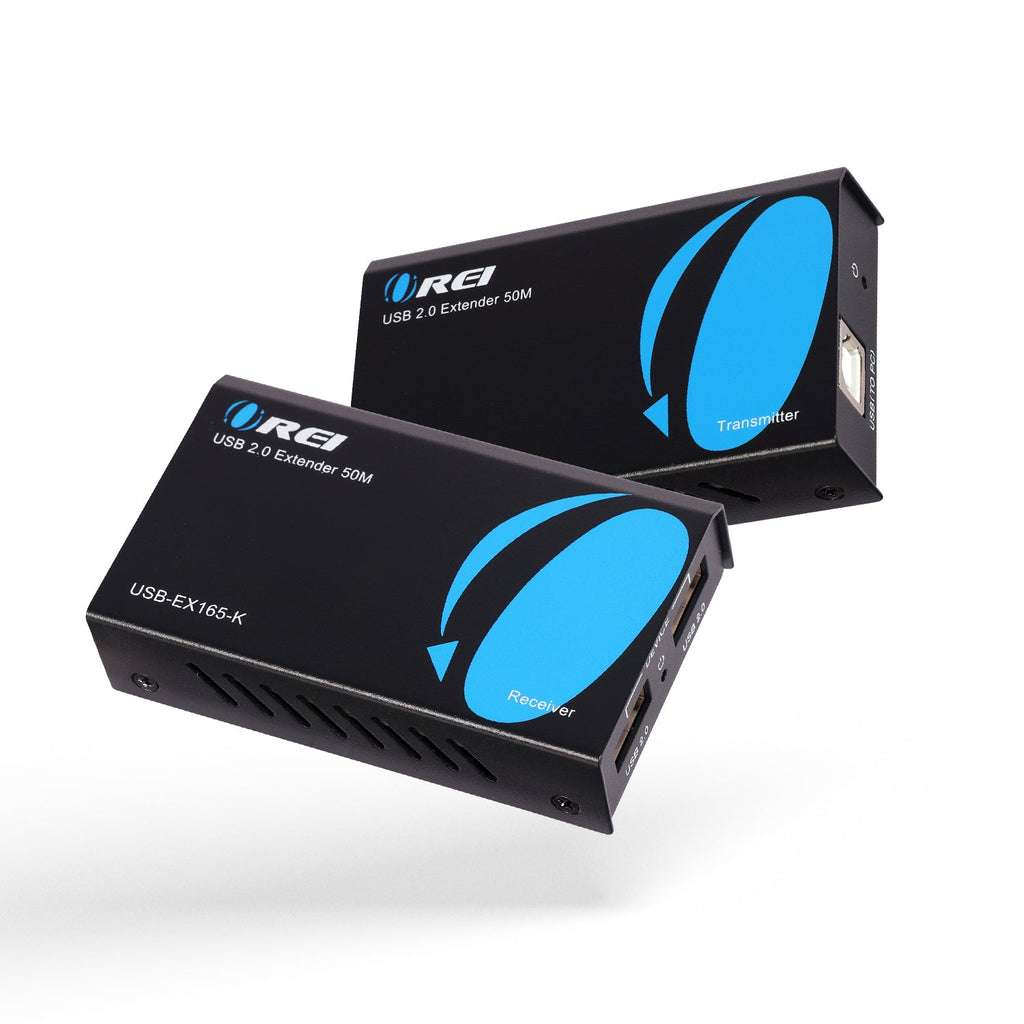

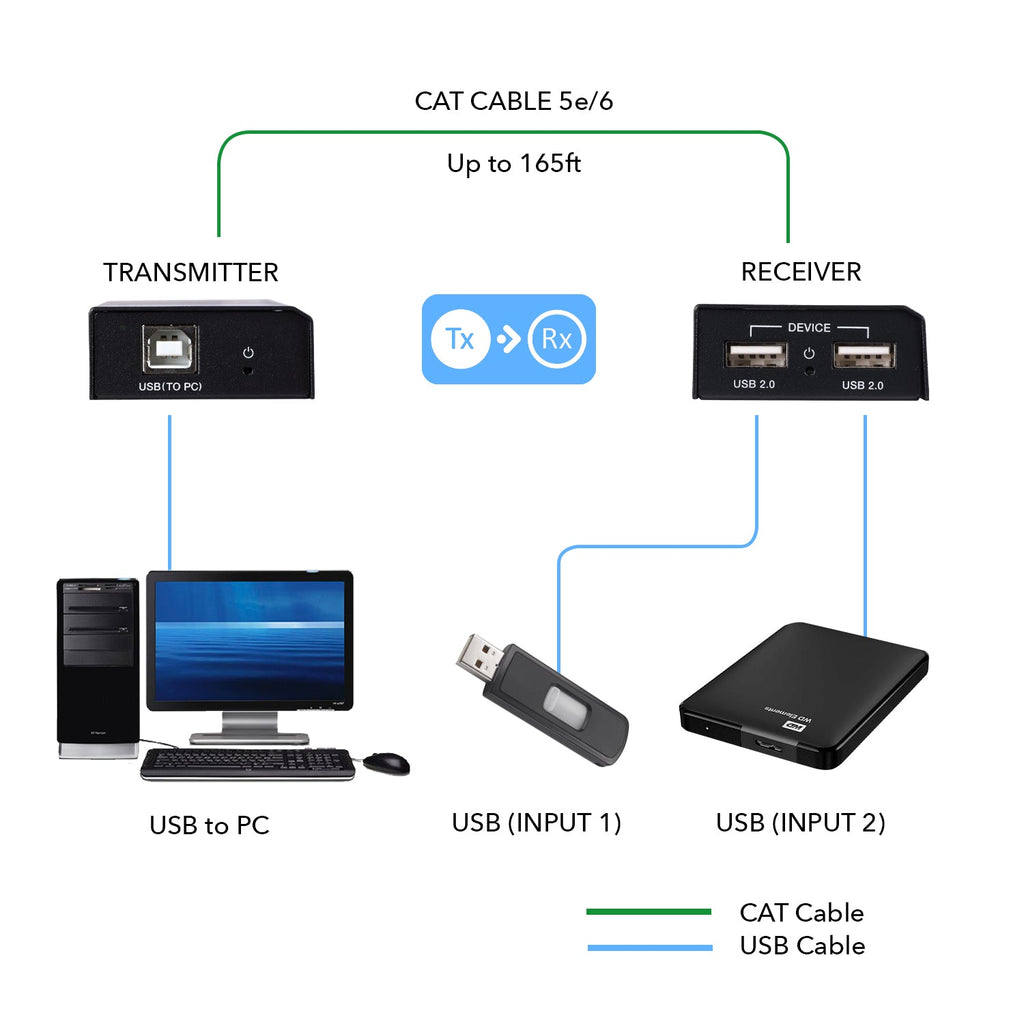

The USB-EX165-K is a USB extender that transmits USB signals over a CAT6/7 cable. Supporting the USB 2.0 protocol with backward compatibility, it offers a 480 Mbps transmission rate. It extends USB signals up to 165 feet over CAT5e/6 cable. The Transmitter has a USB B port to connect to a computer, while the Receiver has 2 USB 2.0 ports for peripherals like webcams, printers, and USB drives. Powered by the source, the Transmitter doesn't need an additional power adapter. Ideal for commercial or residential setups.
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × USB [USB-B, female]
OUTPUT:
1 × CAT [RJ45, 8-Pin, female]
Receiver:
INPUT:
1 × CAT [RJ45, 8-Pin, female]
OUTPUT:
2 × USB [USB-A, female]

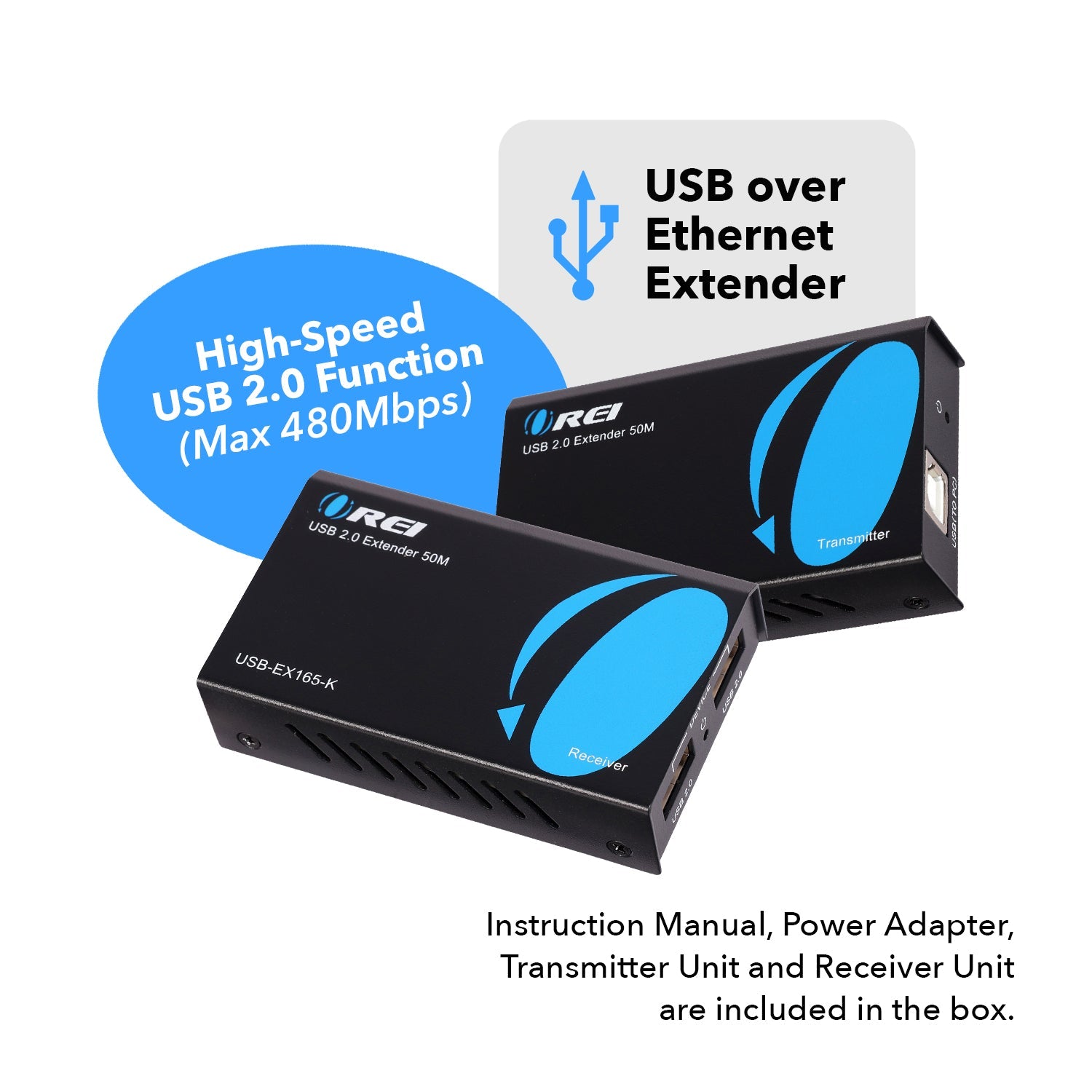

PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x USB cable
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e/6/7 cables:
We recommend you use CAT6/7 cables for optimum performance.
EXTENDING DISTANCE
USB 2.0:
165 Feet
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
Yes
PoC/PoE:
No
IR Control:
No
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
COMPLIANCES
USB Compliance
USB 2.0
POWER
Power Consumption:
TX: 0.7W & RX: 1W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

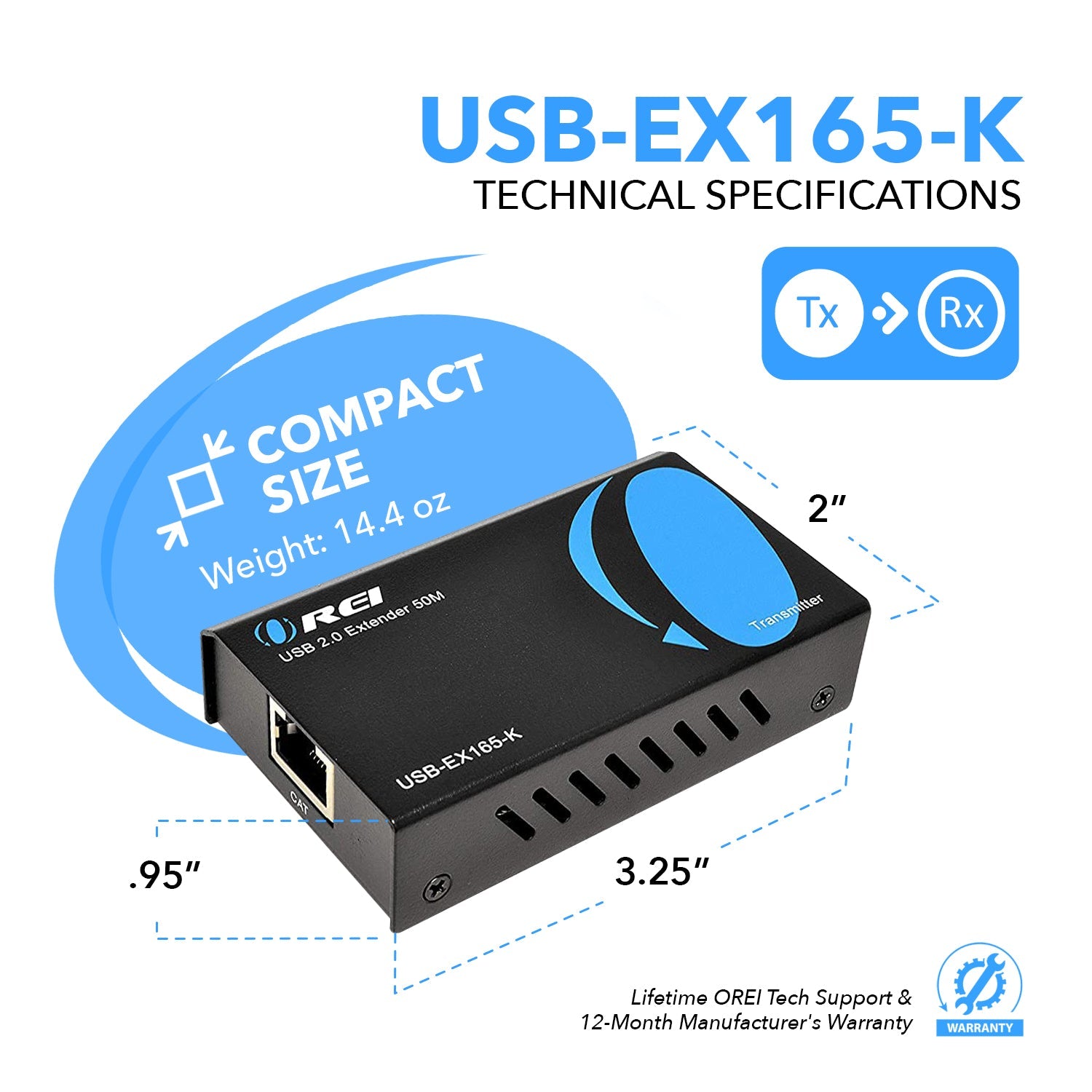

DIMENSIONS & WEIGHT
Transmitter:
Length:
82mm / 3.23in
Width:
49mm / 1.93in
Height:
20mm / 0.79in
Weight:
100g / 3.5oz
Receiver:
Length:
82mm / 3.23in
Width:
49mm / 1.93in
Height:
20mm / 0.79in
Weight:
100g / 3.5oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[shortdes]
480Mbps USB2.0 Over CAT6/7 Extender Up To 165 Feet
Supports USB 2.0 protocol with a transmission rate of up to 480Mbps.
Designed to be compact, facilitating easy and flexible installation.
[/shortdes]
General Information
UPC
850008956898
