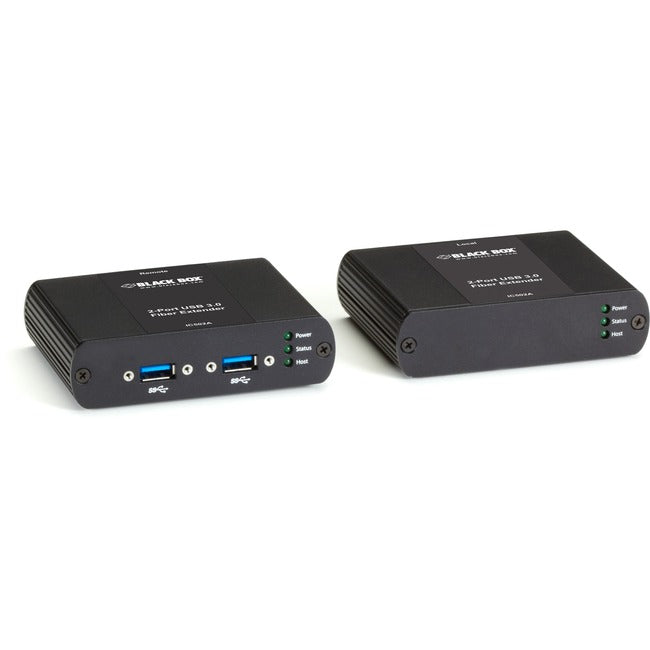

Black Box USB 3.0 Extender - Multimode, 2-Port
Extend a SuperSpeed USB 3.0 signal beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over Multimode fiber to two peripherals. Compatible with the USB 3.0 or "SuperSpeed USB" standard, the extender boasts speeds up to 5 Gbps, about ten times that of USB 2.0. This way, you can extend your USB bus connections to newer USB 3.0 devices that use higher bandwidths and require bidirectional asynchronous, full-duplex data transfer. Plus, it supplies more power than USB 2.0 to the remote devices. With the higher data-transfer rate and power, the extender is ideal for connecting industrial USB 3.0 machine vision cameras, particularly those with high power sensors. It's also great for post-production video editing and broadcast applications with USB 3.0 peripherals and external USB CD/DVD drives in different rooms
- Does not support USB 2.0 or USB 1.1 interfaces.
- Works with Windows®, Mac® OS X®, and Linux® systems.
- Features locking USB power ports for secure plug-ins.
- Plug and play. No drivers to install on your computer.
- Receiver supplies 900 mA power to the remote USB devices.
- Transfers at 5-Gbps speeds-ten times faster than USB 2.0.
- Extends USB 3.0 signals up 100 meters (330 ft.) over OM3 multimode fiber cable.
- Ideal for linking to USB 3.0 security and industrial cameras, external DVD drives, and other high-bandwidth USB devices.
Product Type: USB Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Certifications & Standards: CE
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: USB 3.0 Extender - Multimode, 2-Port
Manufacturer Part Number: IC502A-R2
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- Local extender unit
- Remote extender unit
- USB 3.0 cable
- Power supply with country-specific cord
- Quick start guide
Limited Warranty: 2 Year
Additional Information:
- Power Local unit: From the USB bus; Remote unit: From 100-240 VAC, 50-60 Hz adapter (included); Output: 24 VDC (locking)

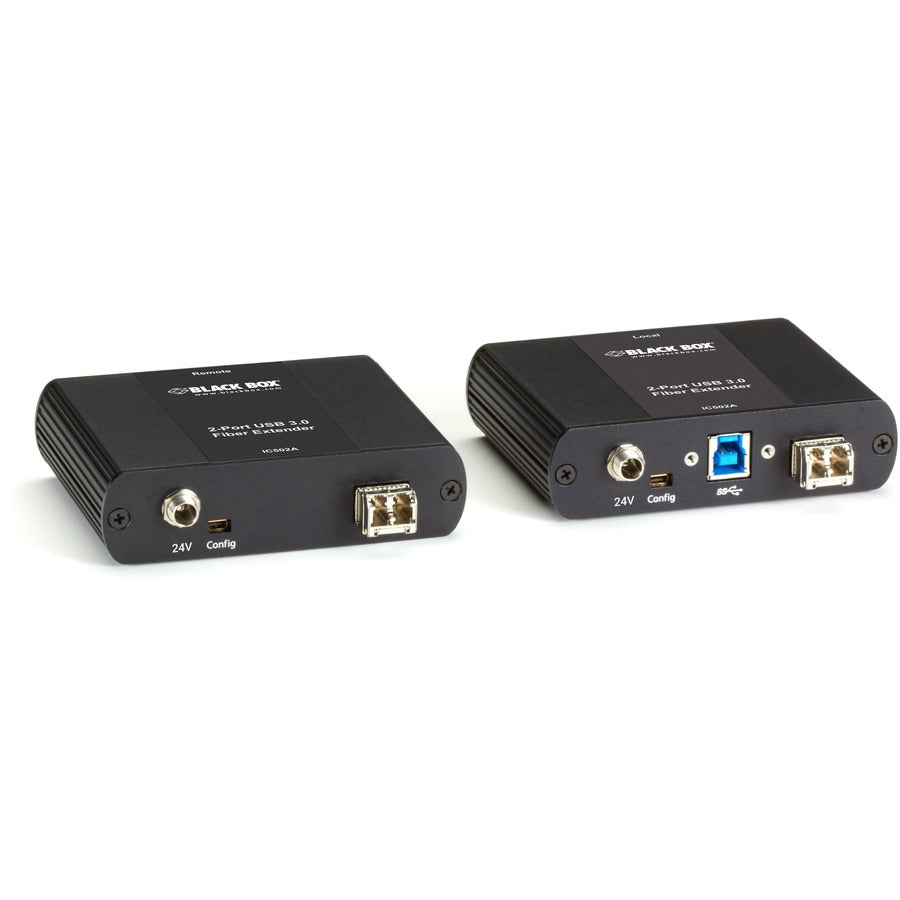

- Local unit: USB: (1) USB 3.0 Type B F (locking); Interconnect: (2) LC fiber
- Remote unit: USB: (2) USB 3.0 Type A F (locking); Interconnect: (2) LC fiber
- On each unit: (3) LEDs (Power, Link, Host)
