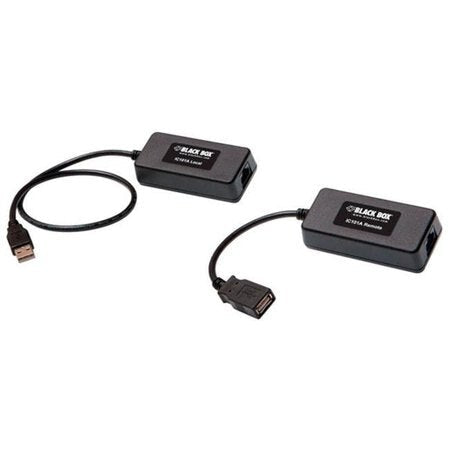

Black Box USB 1.1 CAT5 Extender, 1-Port
The IC101A extends USB 1.1 peripherals beyond the 16 ft (5 m) lImitation reaching distances of up to 131 ft (40 m) over CATx cables. The IC101A extender enables users to extend USB peripherals including keyboards, mice, interactive white boards, and game controllers up to 131 feet (40 meters), up to 278 feet (85 meters) may be achievable with low-speed HID devices such as keyboards and mice.
- Supports all major operating systems, including Windows®, Mac OS X®, and Linux®.
- Plug and play. No software drivers needed.
- Extender supplies up to 400mA to USB devices.
- Will support USB 2.0 at a maximum of 12 Mbps, or 1.5 Mbps for low-speed USB 1.1 devices.
- Some low-speed HID devices can be extended out to 279 feet (85 meters).
- Extend USB peripherals including keyboards, mice, interactive white boards, and game controllers up to 131 feet (40 meters).
Product Type: USB Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Certifications & Standards:
- FCC (Class A)
- CE (Class A)
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: USB 1.1 CAT5 Extender, 1-Port
Manufacturer Part Number: IC101A
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- 1 x Local unit with integrated USB cable
- 2 x Remote unit with integrated USB cable
- Quick Start Guide
Limited Warranty: 3 Year
Additional Information:
- Available Current: 400mA when Local Extender is supplied with 700mA
- Environmental: Operating temperature: 32 to 151° F (0 to 55 ° C); Operating humidity: 0 to 94% relative, noncondensing
- Link Connector: RJ-45
- Pig Tail Length Local: 18" (45.7 cm); Remote: 6" (15.2 cm)
- Range Full-speed and low-speed: Up to 131 ft. (40 m); Low-speed: Up to 279 ft. (85 m)
- USB Connector Local: (1) USB Type A Plug; Remote: (1) USB Type A receptacle
