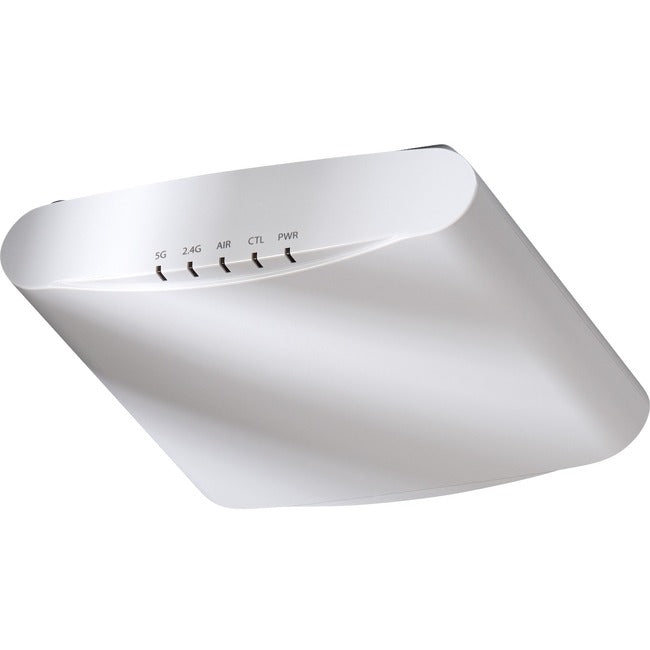

Ruckus Wireless ZoneFlex R510 IEEE 802.11ac 867 Mbit/s Wireless Access Point
HIGH PERFORMANCE, 802.11AC WAVE 2 MID-RANGE SMART WI-FI ACCESS POINTS WITH ADAPTIVE ANTENNA TECHNOLOGY
Ruckus R510 Unleashed enables controller-less Wi-Fi architecture for small business environments with superior performance, lower costs and simplified management. Separate controllers and access point licenses are no longer needed, significantly reducing upfront costs. Set-up is also easy, thanks to a simplified web interface that helps businesses configure Wi-Fi in just 60 seconds.
The Ruckus ZoneFlex R510 Unleashed delivers high-performance and reliable 802.11ac wireless networking with MU-MIMO (Multi-User Multiple-Input Multiple-Output) capability. MU-MIMO helps boost network throughput by serving multiple clients simultaneously and also benefiting non-Wave 2 clients, thus improving overall network performance.
The R510 Unleashed, through its USB port, also enables IoT readiness for technologies like BLE, which helps drive business efficiencies from both a revenue and cost perspective. It does this with existing 802.3af power, obviating the need for expensive, capital intensive switch upgrades.
Each ZoneFlex R510 Unleashed integrates Ruckus-patented BeamFlex+, a software-controlled, high gain antenna design that continually forms and directs each Wi-Fi packet over the best performing signal path.
Using dual-polarized antennas, the R510 Unleashed adapts in real time to anticipate hand-held device movement and rotation ensuring consistent performance.
MU-MIMO
MU-MIMO helps Wave 2 and non-Wave 2 clients. The R510 Unleashed can communicate simultaneously to multiple Wave 2 clients increasing network performance. This frees up airtime for non-Wave 2 clients resulting in enhanced aggregate network throughput
ADVANCED WLAN APPLICATIONS
The ZoneFlex R510 Unleashed supports a wide range of valueadded applications such as BYOD/guest onboarding, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. The ZoneFlex R510 Unleashed works with a wide range of authentication servers including Microsoft's Active Directory, LDAP, and RADIUS.
COMPLETE LOCAL AND REMOTE MANAGEMENT
The ZoneFlex R510 Unleashed can be securely managed from anywhere at anytime using any browser on any device.
- Gateway mode with NAT and DHCP services
- USB Port for IoT technologies
- Two 10/100/1000 Ethernet ports, one with 802.3af Power over Ethernet (PoE)
- 802.11ac standard Tx Beamforming
- Standard 802.3af Power over Ethernet (PoE)
- Automatic interference mitigation, optimized for high-density environments
- Up to an additional 4dB BeamFlex gain / 10dB interference mitigation / 3dBi physical antenna gain
- Dual-band concurrent (5Ghz/2.4GHz)
- BeamFlex+ (PD-MRC) smart antenna, with support for 64 unique antenna patterns enables up to 4 dB of additional gain and up to 10 dB of additional interference mitigation
- 802.11ac Multi-User MIMO (MU-MIMO)
Product Type: Wireless Access Point
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: No
Brand Name: Ruckus Wireless
Form Factor: Wall Mountable
Manufacturer: Ruckus Wireless, Inc
Product Model: R510
Product Name: ZoneFlex R510 Wireless Access Point
Product Line: ZoneFlex
Manufacturer Part Number: 9U1-R510-US00
Manufacturer Website Address: http://www.ruckuswireless.com
Limited Warranty: Lifetime
Weight (Approximate): 12.35 oz
