Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Support HDR, HDR10, HDR10+, Dolby Vision, ALLM/VRR pass-through
2x1 Switch with Dual Output
Built-in Equalizer, Retiming and Driver
Auto EDID management
Compact design for easy and flexible installation

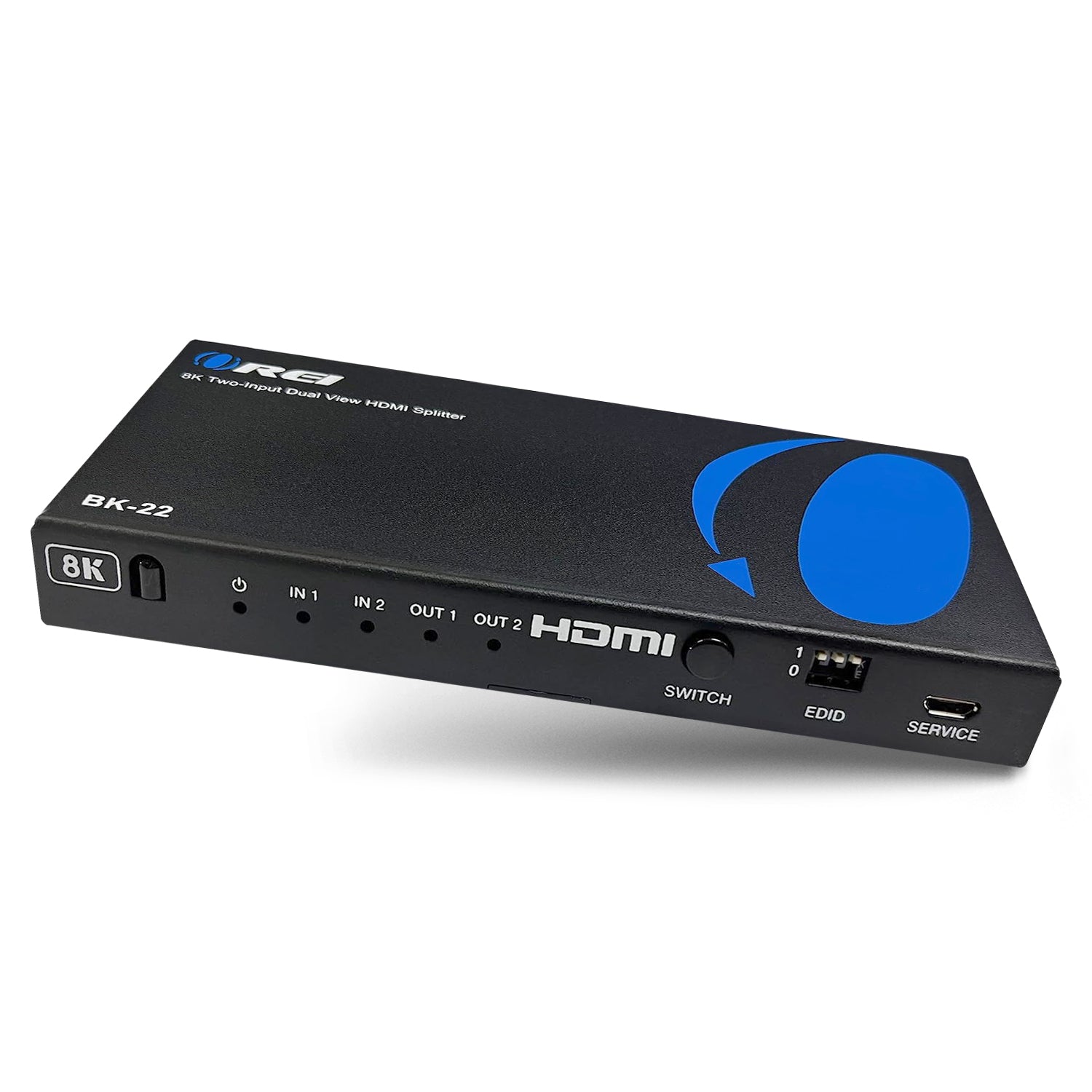

The BK-22 is an 8K HDMI splitter that distributes media signals to two displays. It supports video resolutions up to 8K@60Hz 4:2:0 and is compatible with VRR, FVA, and ALLM. Compliant with HDMI 2.1 and HDCP 2.2 standards, this splitter offers a video bandwidth of 40 Gbps, with pass-through for HDR, HDR10, HDR10+, Dolby Vision, and HLG. Additionally, it supports a wide range of audio formats, including LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio. The BK-22 features two HDMI inputs and two HDMI outputs, allowing you to connect two sources and two displays simultaneously. The BK-22 can be controlled using the buttons on the front panel. Offering a compact design with easy installation this product is ideal for both residential and commercial setups.
[shortdes]
2 Input 8K HDMI splitter With IR control
Video resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4

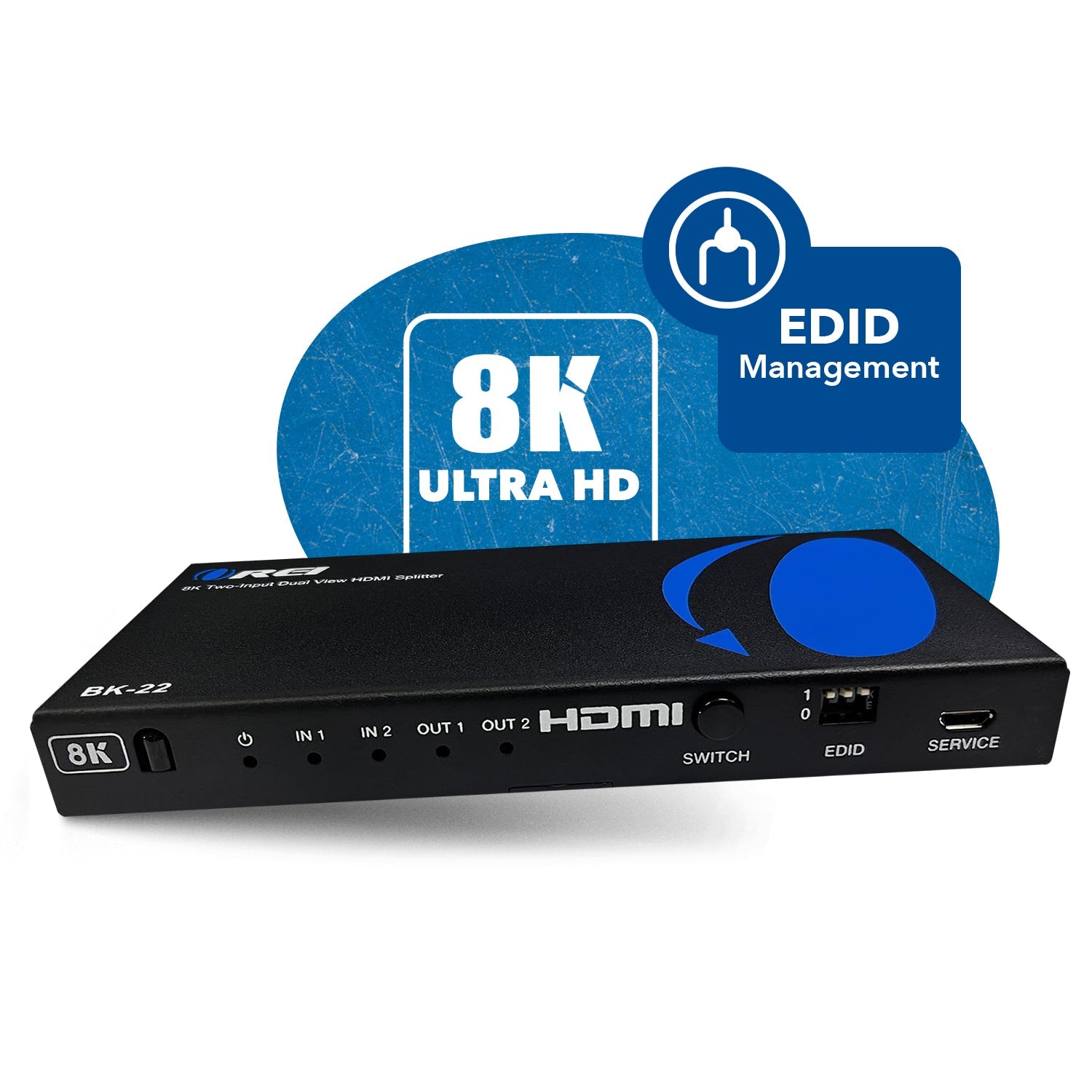

Advanced EDID management
[/shortdes]
[tab]
CONNECTIVITY

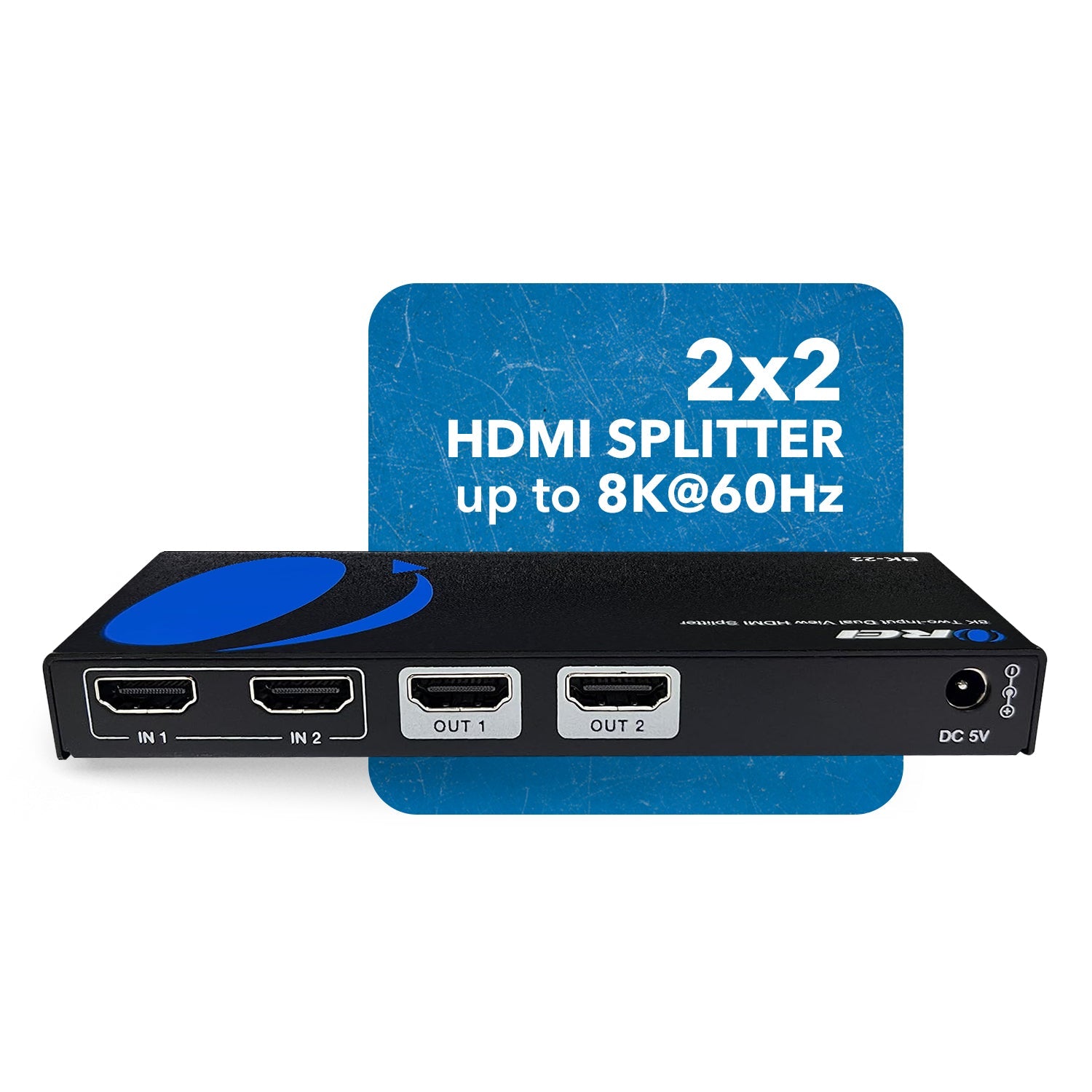

INPUT:
2 × HDMI [Type A, 19-pin female]
OUTPUT:
2 × HDMI [Type A, 19-pin female]
1 × SERVICE [Micro-USB, Update port]
PACKAGE CONTENTS
1x BK-22
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.1
We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
8K@60Hz:
6 Feet
4K@60Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
40Gbps
Video Resolutions:
Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit & 4K@120Hz 4:4:4 10bit
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
COMPLIANCES
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
POWER
Power Consumption:
2.25W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

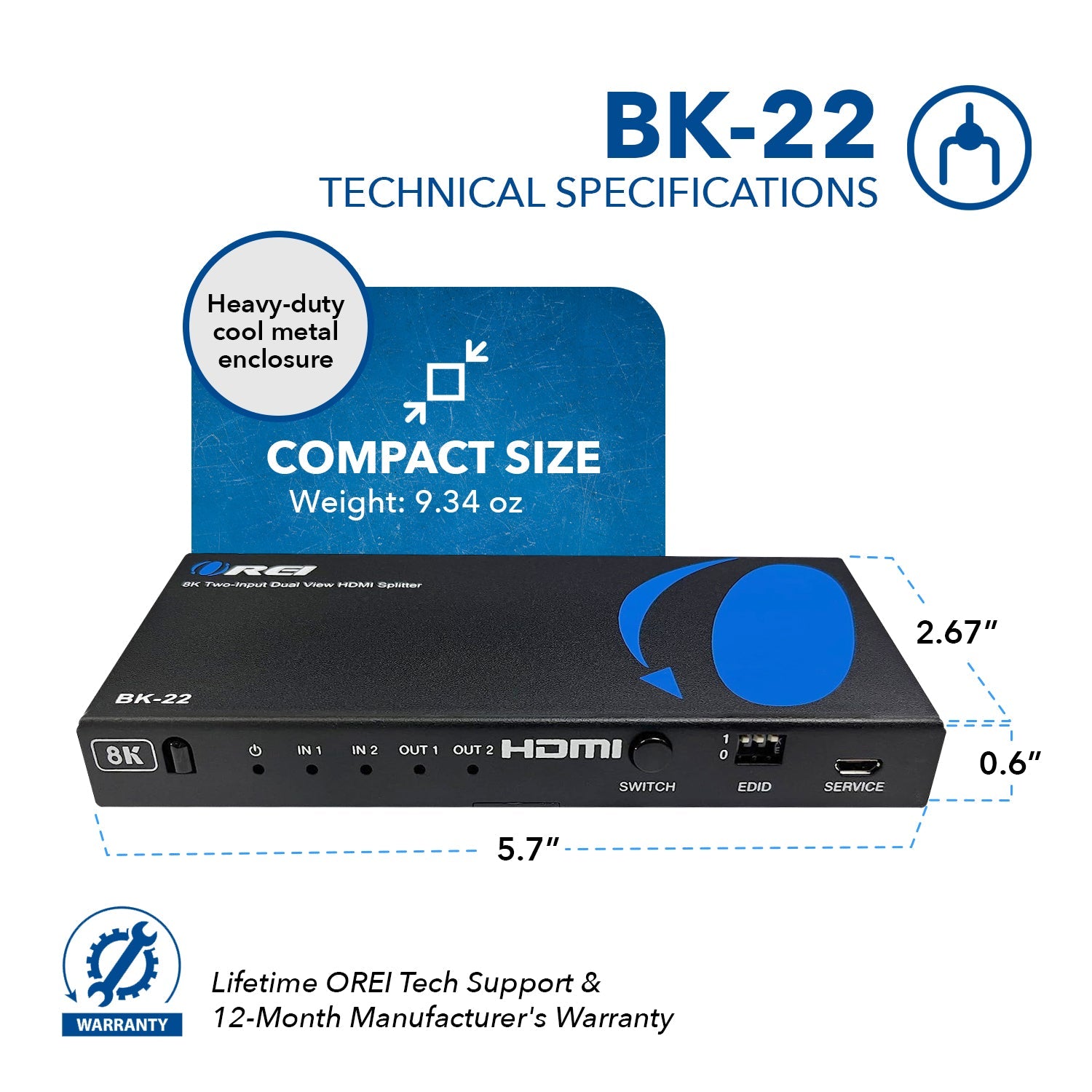

DIMENSIONS & WEIGHT
Length:
115mm / 4.53in
Width:
68mm / 2.68in
Height:
18mm / 0.71in
Weight:
220g / 7.76oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output

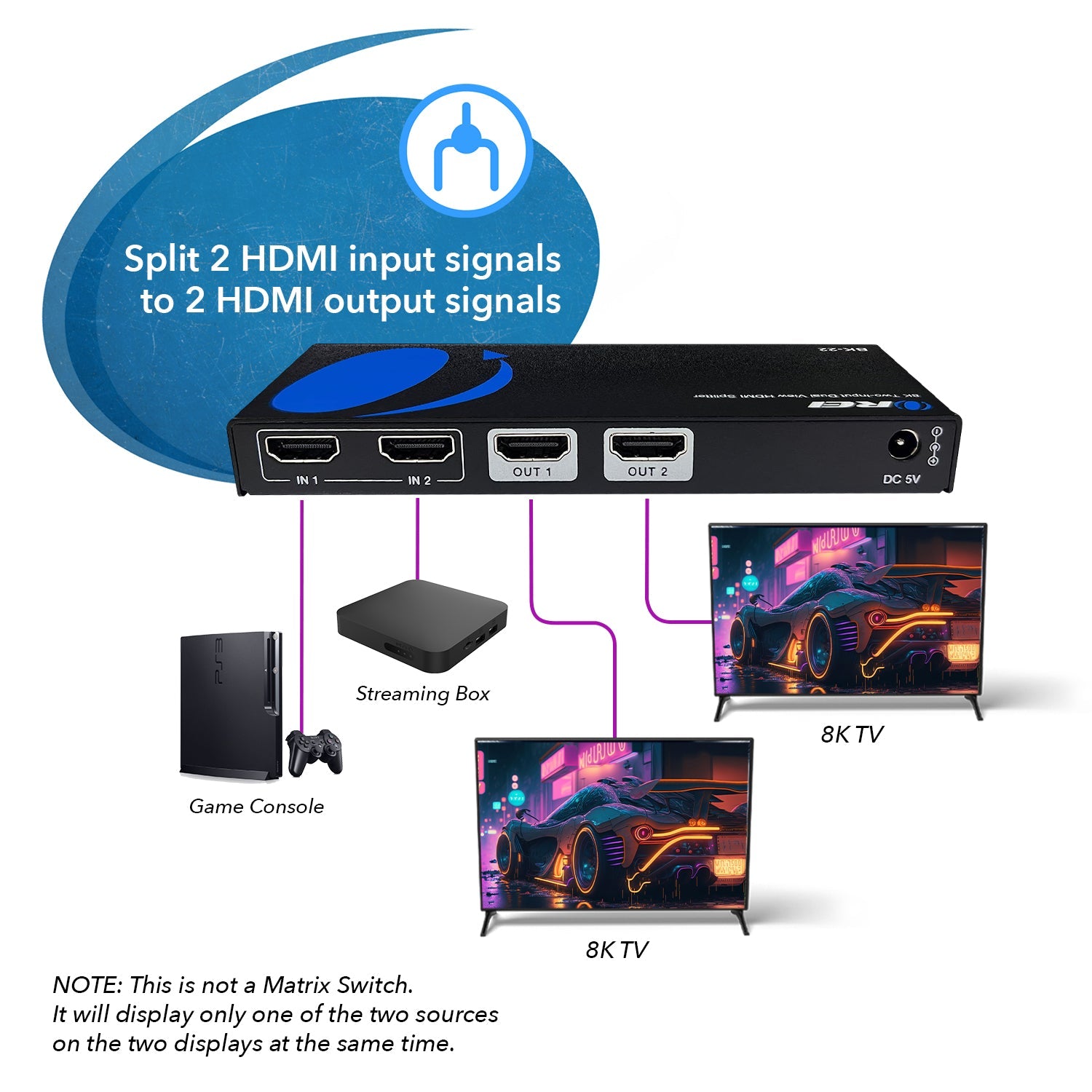

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
Yes, if the connected displays do not support the same resolution then the splitter will lower the output resolution to the next best resolution supported by both displays and same goes with the audio signal.
[/tab1]
