It can also display the same or 4 different screens on all 4 displays.
This is HDCP 2.2 compliant
18G Switcher with audio de-embedded
Video Resolution up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4, HDR, HDR10, HDR10+, Dolby Vision passthrough
Supports full 3D/2D, Ultra HD resolutions up to 4K@60Hz, 2K@60Hz, and HD resolutions up to 1080p
4 IN 4 OUT HDMI SWITCH - Smart EDID management, EDID bypass
Audio output : PCM, Dolby True HD, DTS-HD Master Audio up to 7.1 Ch.
Downscale function 4K & 1080p Together
Flexible control via panel or IR remote control
Built-in auto-adjusting amplifier ensures no signal loss

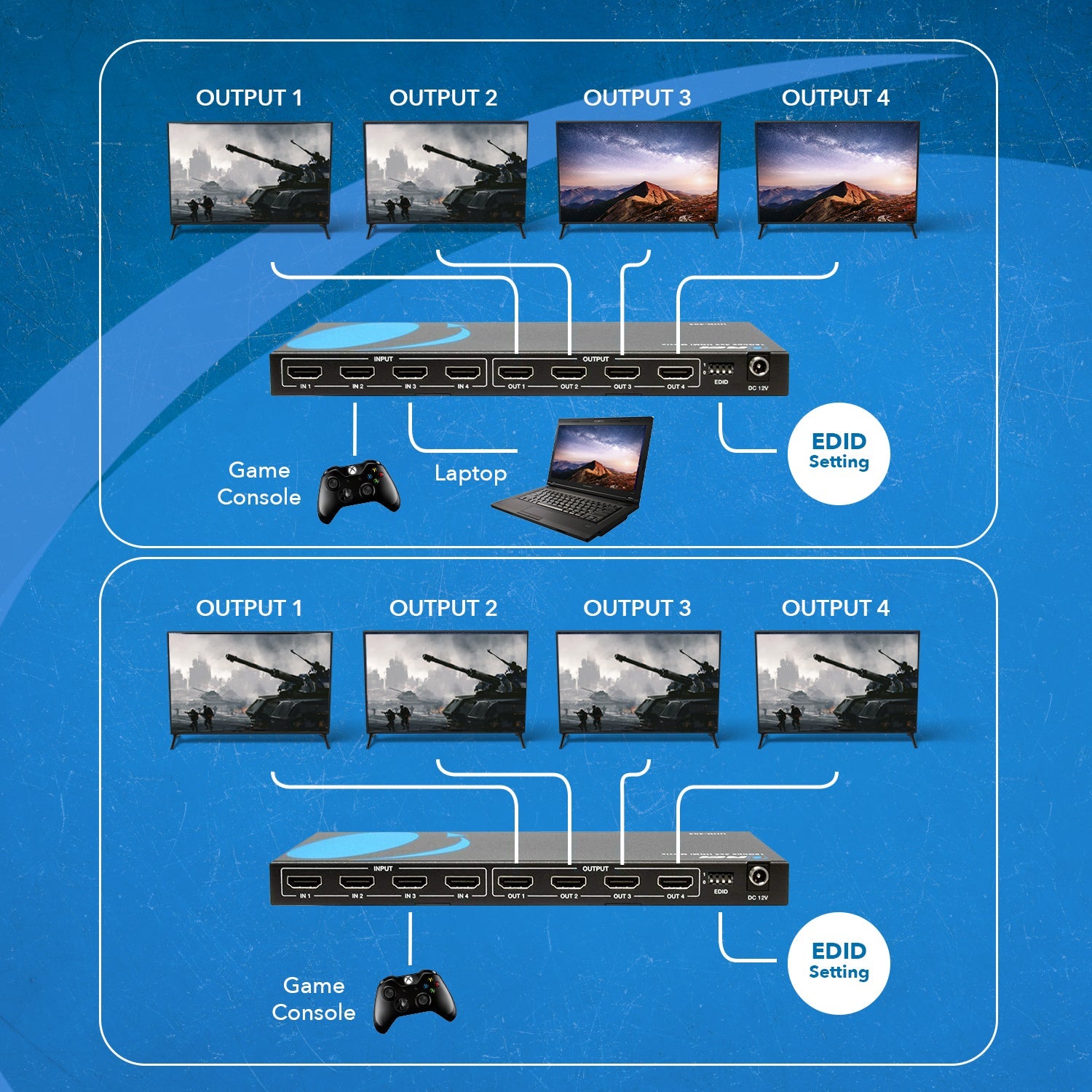

Few sample applications:

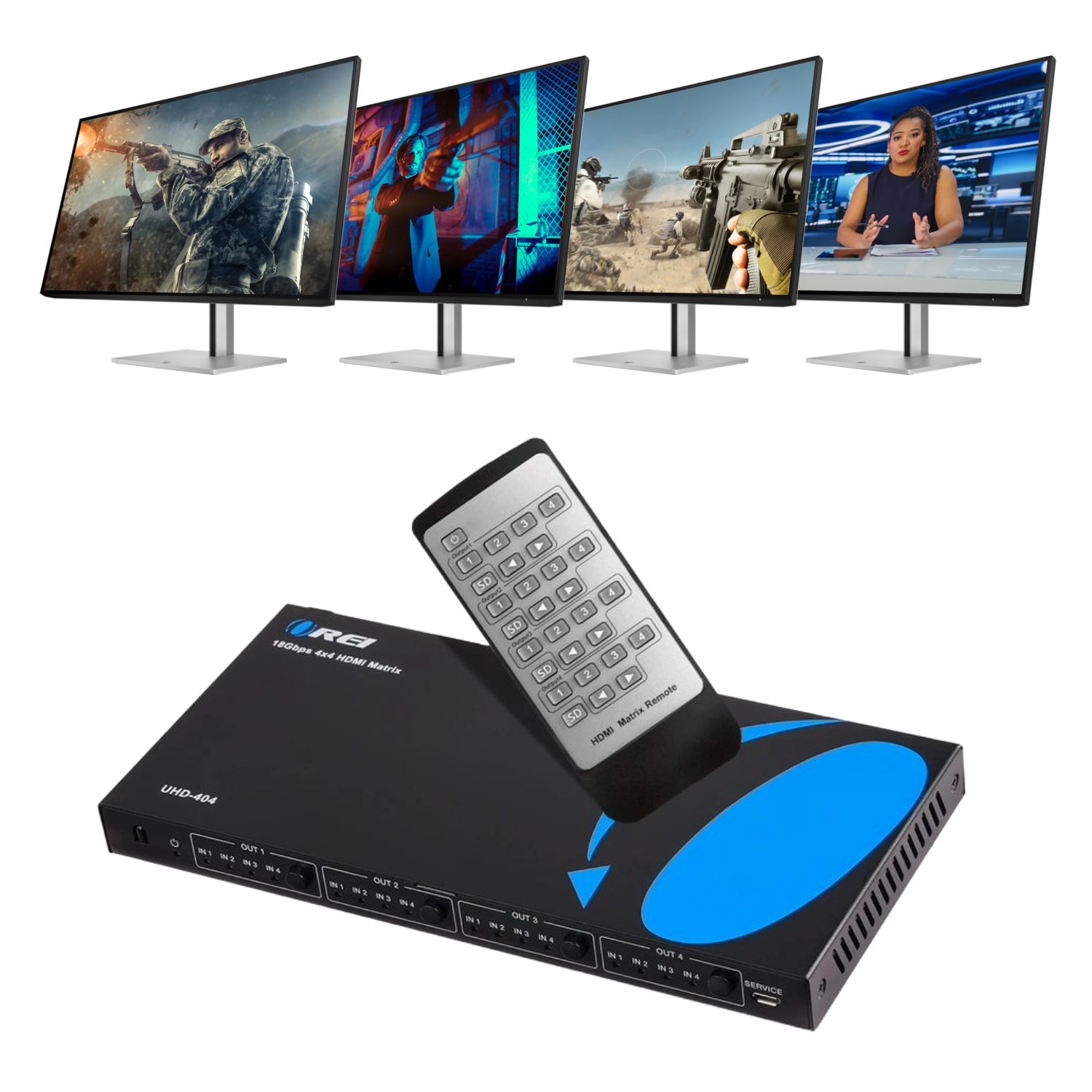

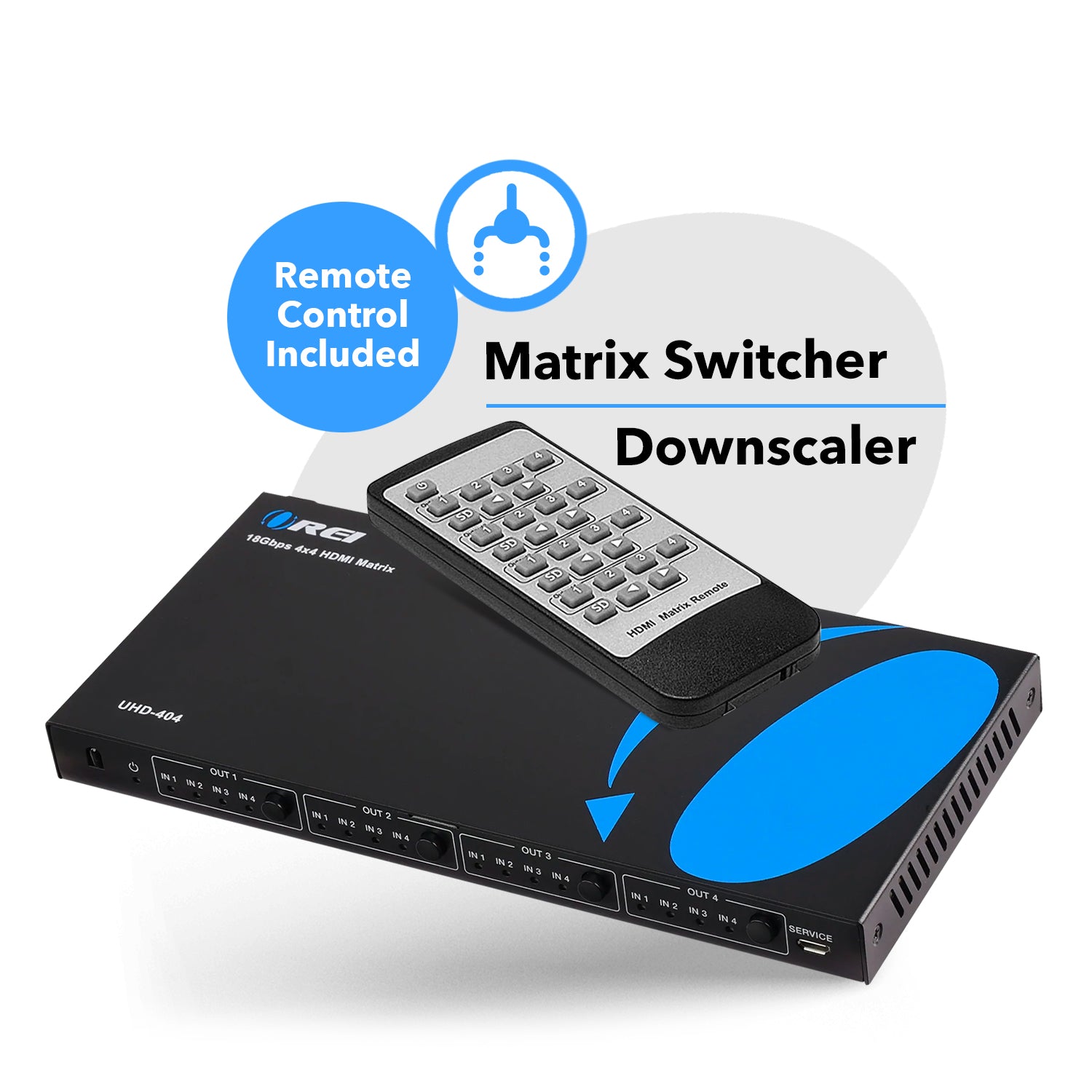

The OREI UHD-404 4x4 switcher is perfect for splitting, switching your HDMI signal to 4 different display. This matrix has 4 HDMI inputs and 4 HDMI outputs, so you can switch between 4 input source devices and send the signal simultaneously to 4 displays. This HDMI Matrix supports the transmission of the video signal (up to 4K2K@60Hz YCbCr 4:4:4) with multichannel digital audio from up to four high definition sources to up to four HDMI outputs.

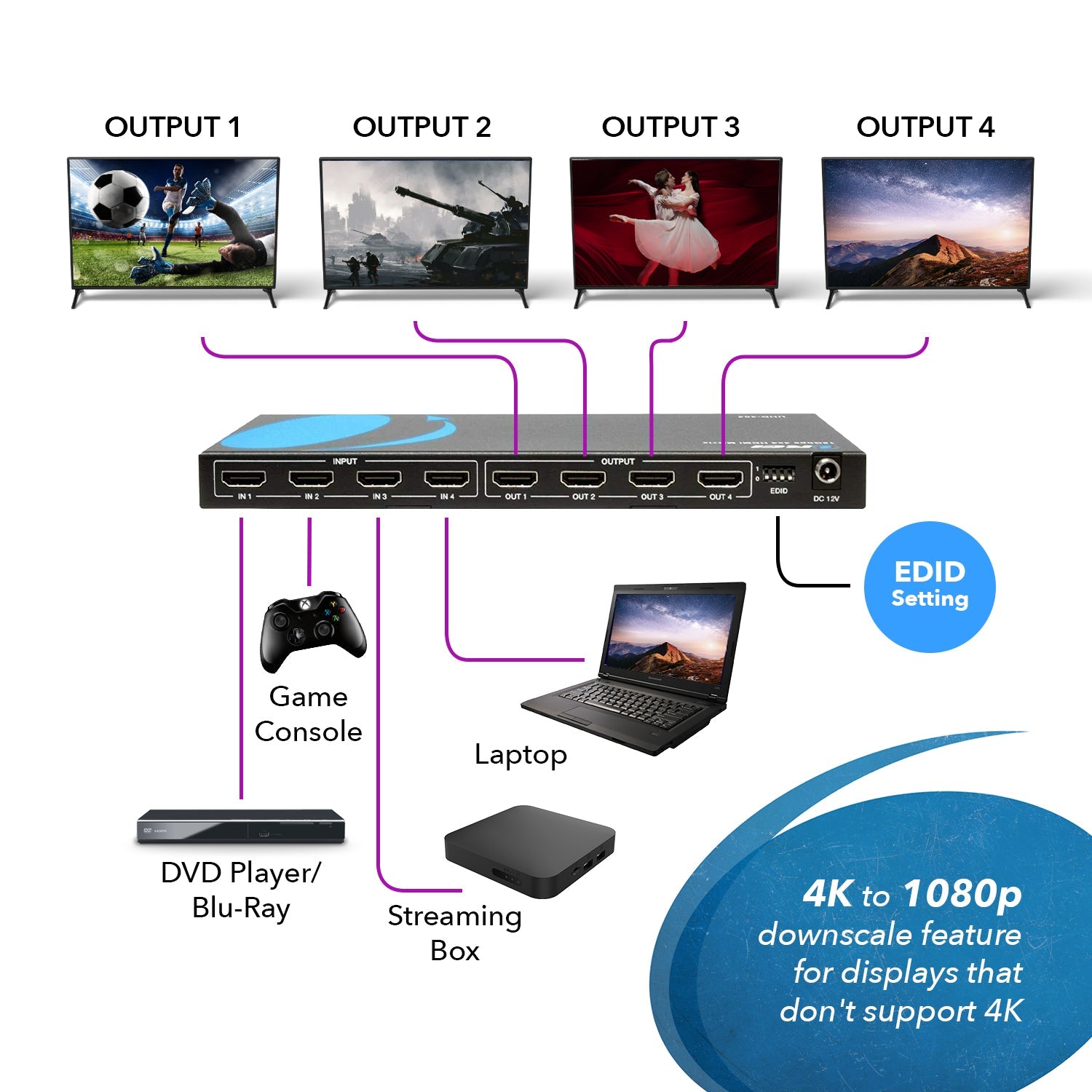

In this switcher, each output supports downscale functionality. It can display the same or different screen on 4 displays (the user can choose the display screen for any signal source). No setup or special configuration is required, simply connect the input device(s) and output device(s) and start using it.
HDMI Audio Formats: Supports up to 7.1-channel audio, Dolby Digital, DTS Digital, Dolby TrueHD, and DTS-HD Master audio formats.
[tab]
AUDIO AND VIDEO
Inputs:
4 × HDMI Type A (19-pin female)
1×IR Receiver Window
1×Micro USB
Output Ports:
4 × HDMI Type A (19-pin female)
Video Bandwidth:
594 MHz / 18 Gbps
Video Resolution:
480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Color Space:
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
HDMI Audio Formats:
LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio
COMMUNICATION AND CONTROL
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2 / 1.x
POWER
Power Supply:
Input: AC100~240V 50/60Hz, Output: DC 12V/2.5A(US/EU standard, CE/FCC/UL certified)
Power Consumption:
11.04W
CONTROL
CEC:
Pass through
ENVIRONMENTAL
Operating Temperature:
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature:
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:
20 ~ 90% RH (non-condensing)

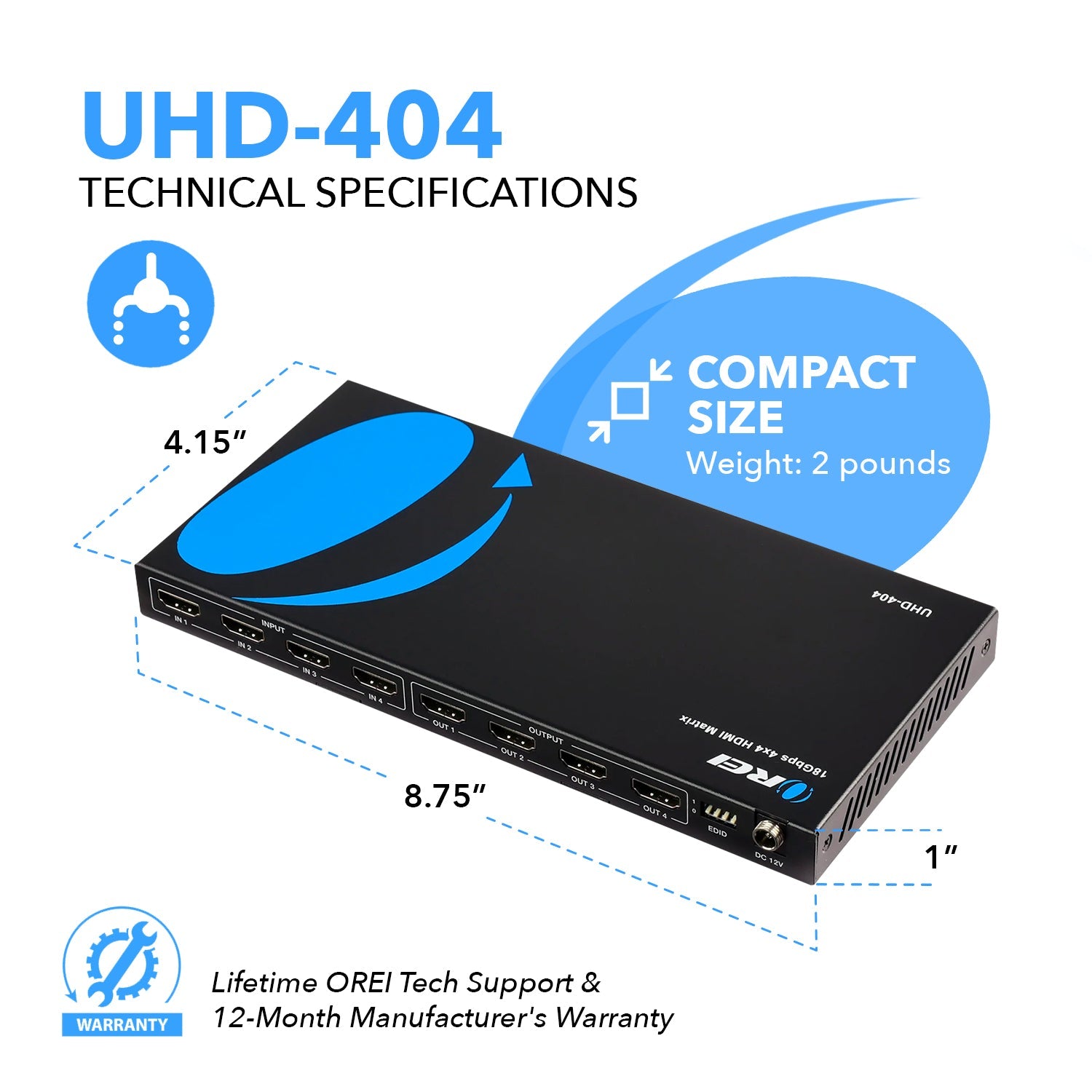

DIMENSIONS & WEIGHT
Height:
19 mm
Width:
220 mm
Depth:
205 mm
Weight:
535 g
REGULATORY
REGULATORY:
CE | FCC | RoHS
PACKAGE CONTENTS
1 × UHD-404 4×4 HDMI matrix switch
1 × Power Adapter
1 × Matrix IR Remote Control
2 × Mounting Ears
1 × User Manual
Warranty
1 - Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
Yes, the included power adapter does support 220V
Yes
Yes, our HDMI matrixes are designed for commercial use so you can run them continuously 24x7
[/tab1]
[shortdes]

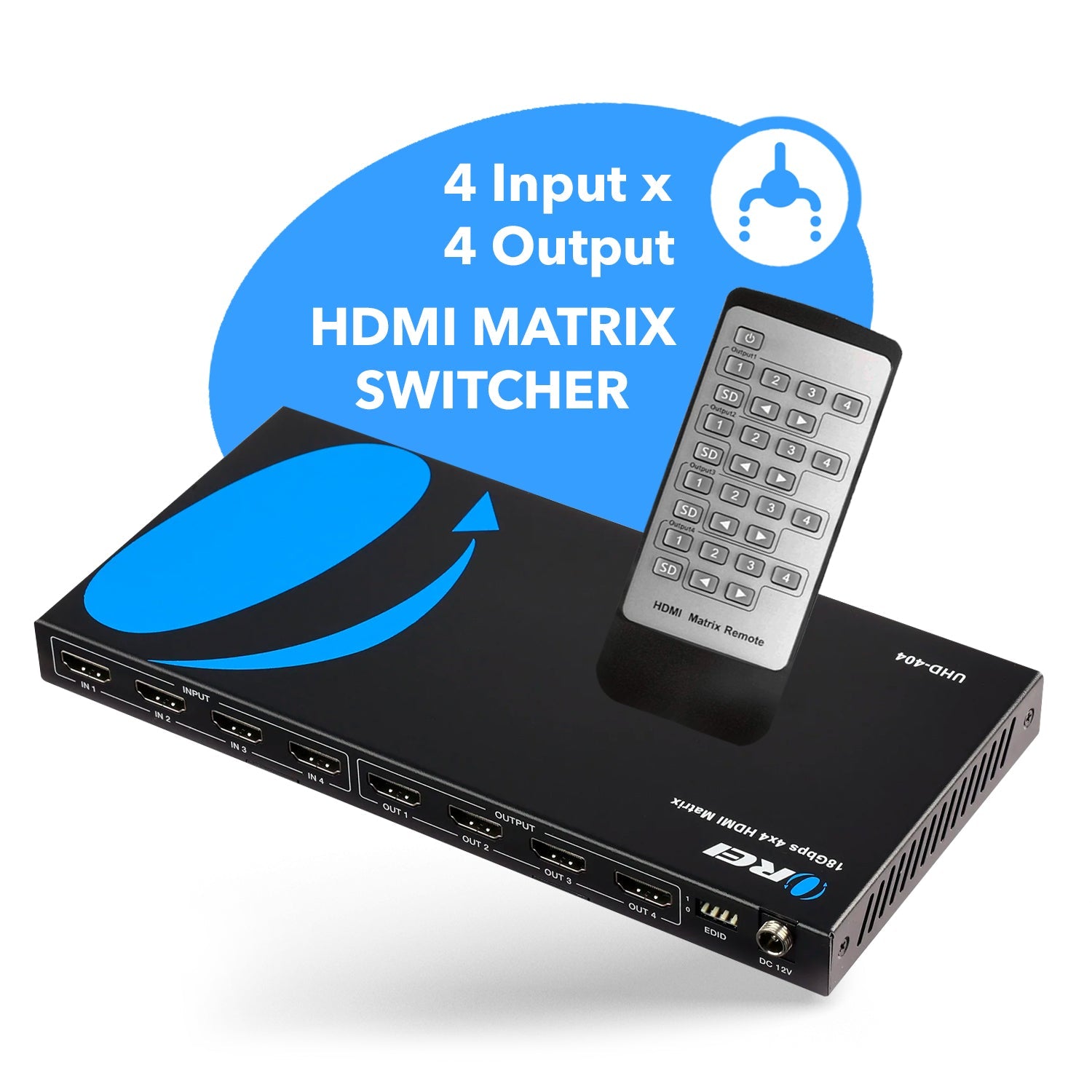

4 Inputs - 4 output HDMI Matrix switch
Video resolution up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4 - EDID Control
Supports HDR, HDR10, HDR10+, Dolby Vision
Compliance: HDMI 2.0b, HDCP 1.x, 2.2
[/shortdes]
General Information
UPC
850008956737
