Supports max video resolution up to 4K@60Hz with 18 Gbps bandwidth
Support LPCM, AC3, DD+, DTS, DTS-HD, and up to 7.1 audio channels via the HDMI port

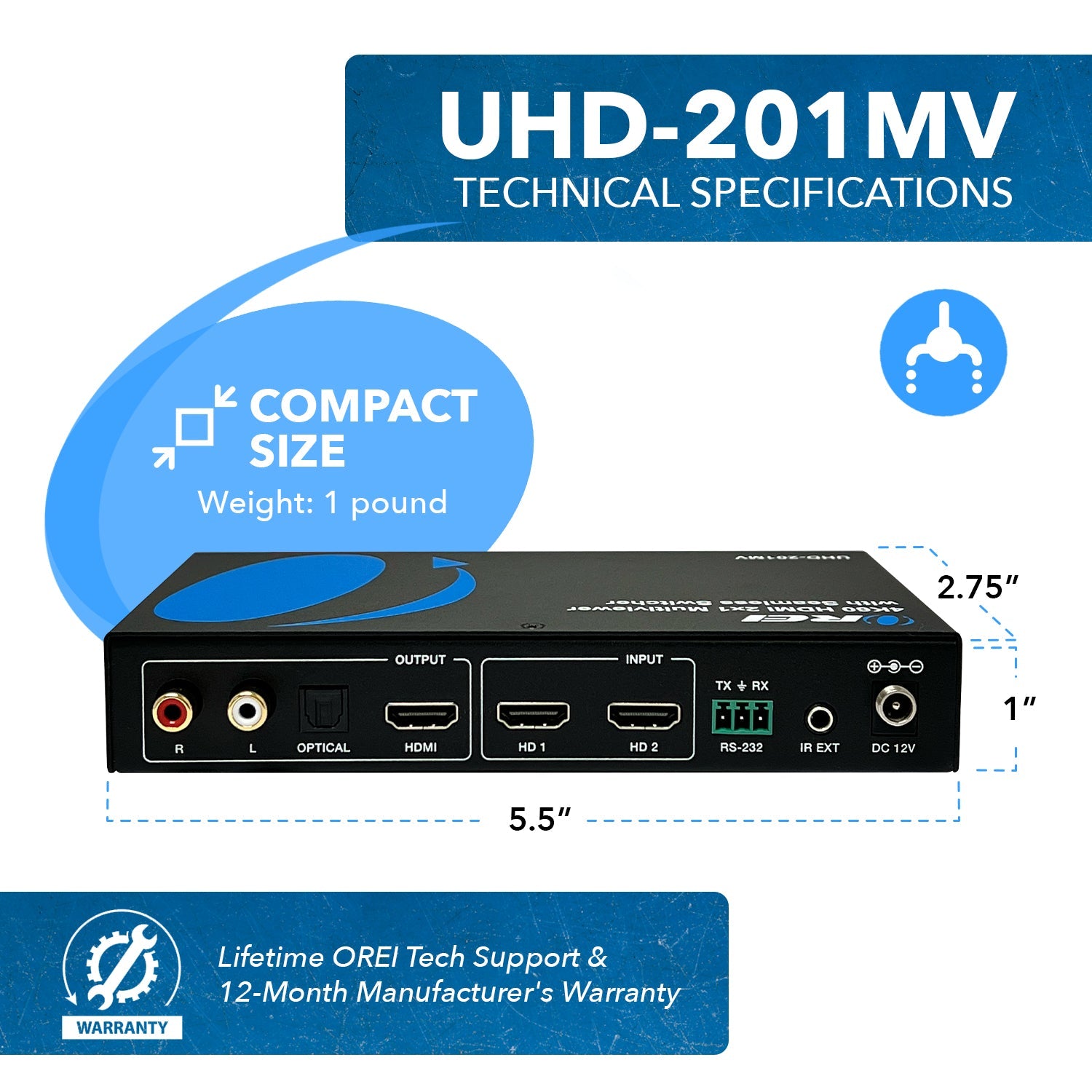

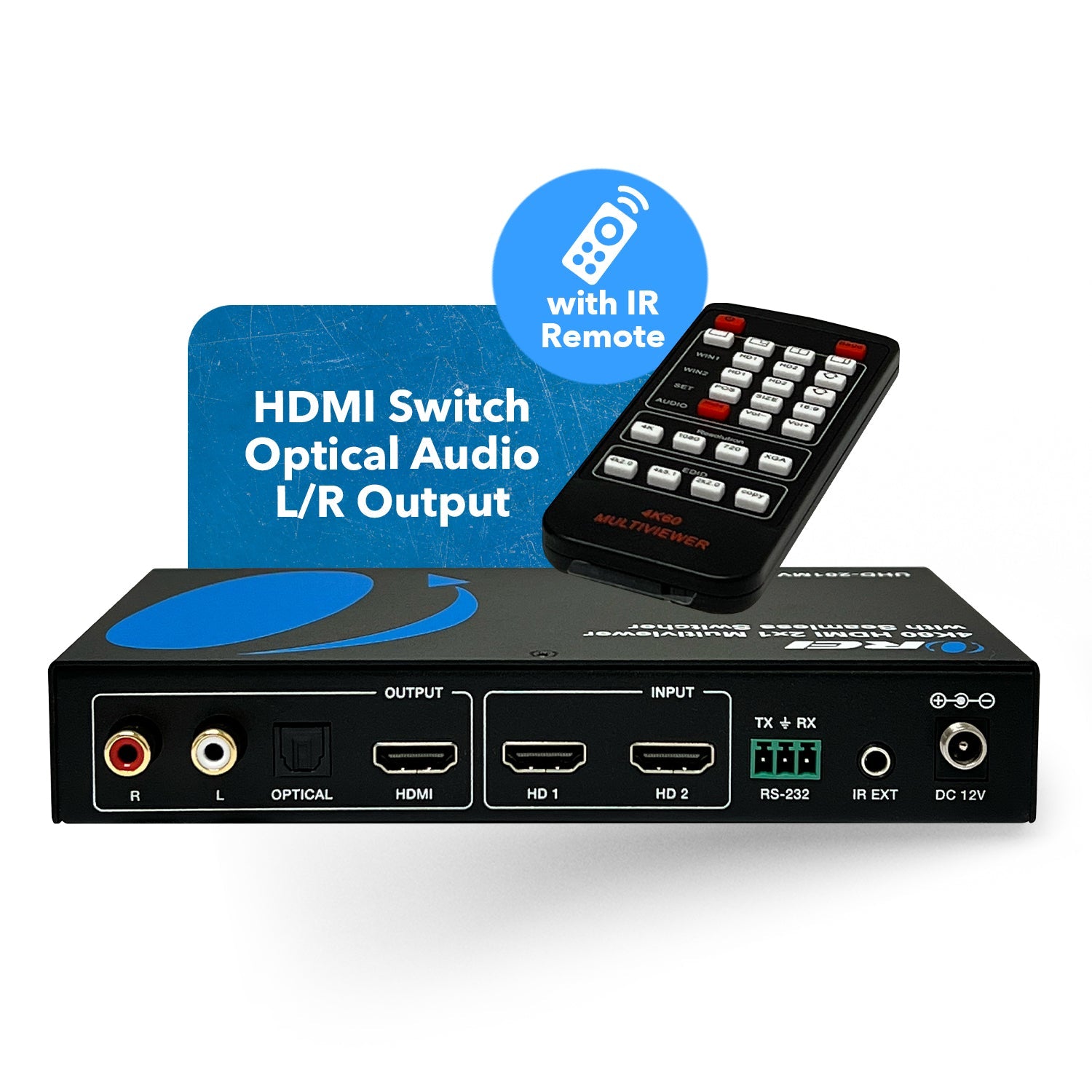

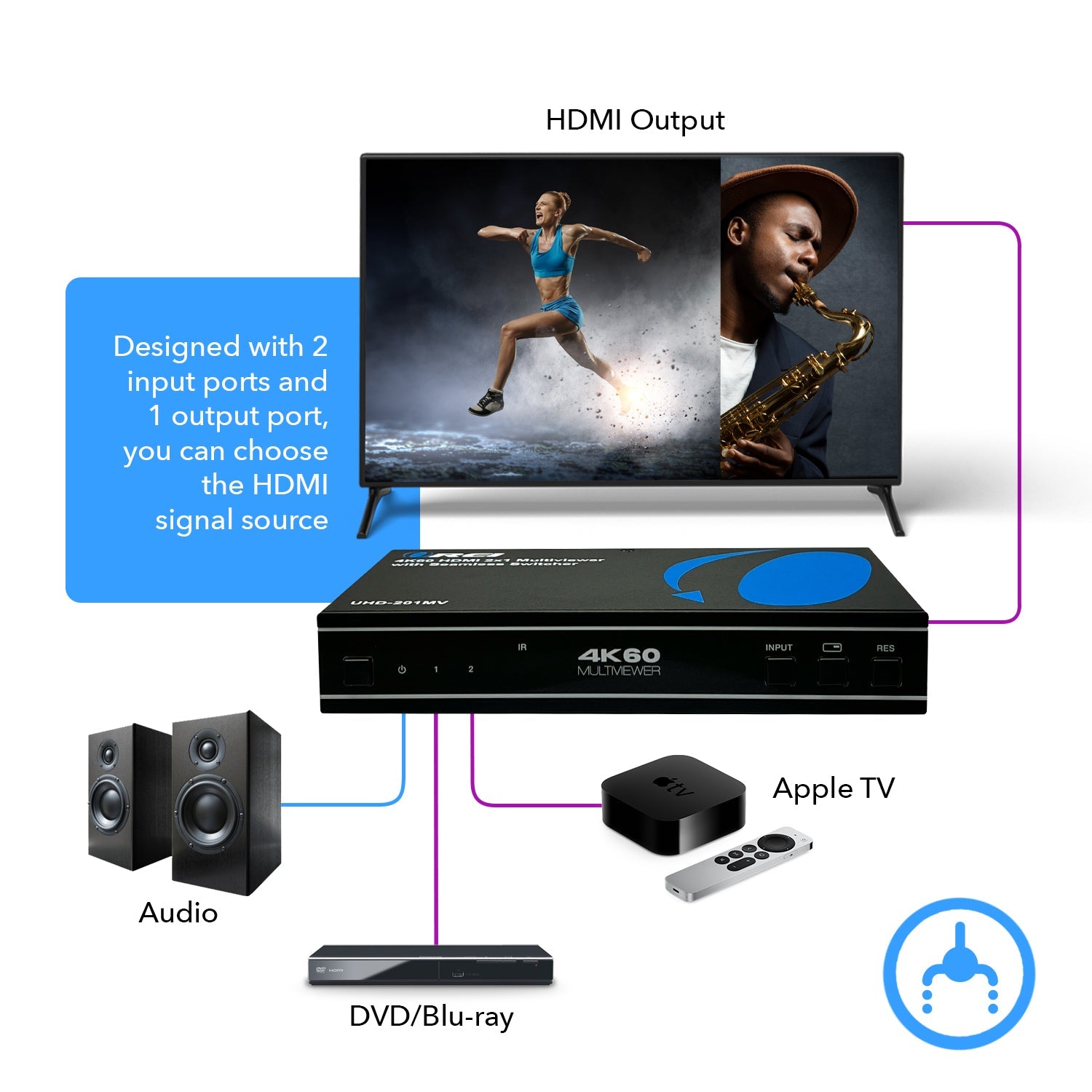

This HDMI switcher is designed with 2 HDMI Input ports, 1 HDMI output port, 1 Optical output, and an L/R output port.
Seamless switching on single-screen display mode and fast switching on multiview display mode

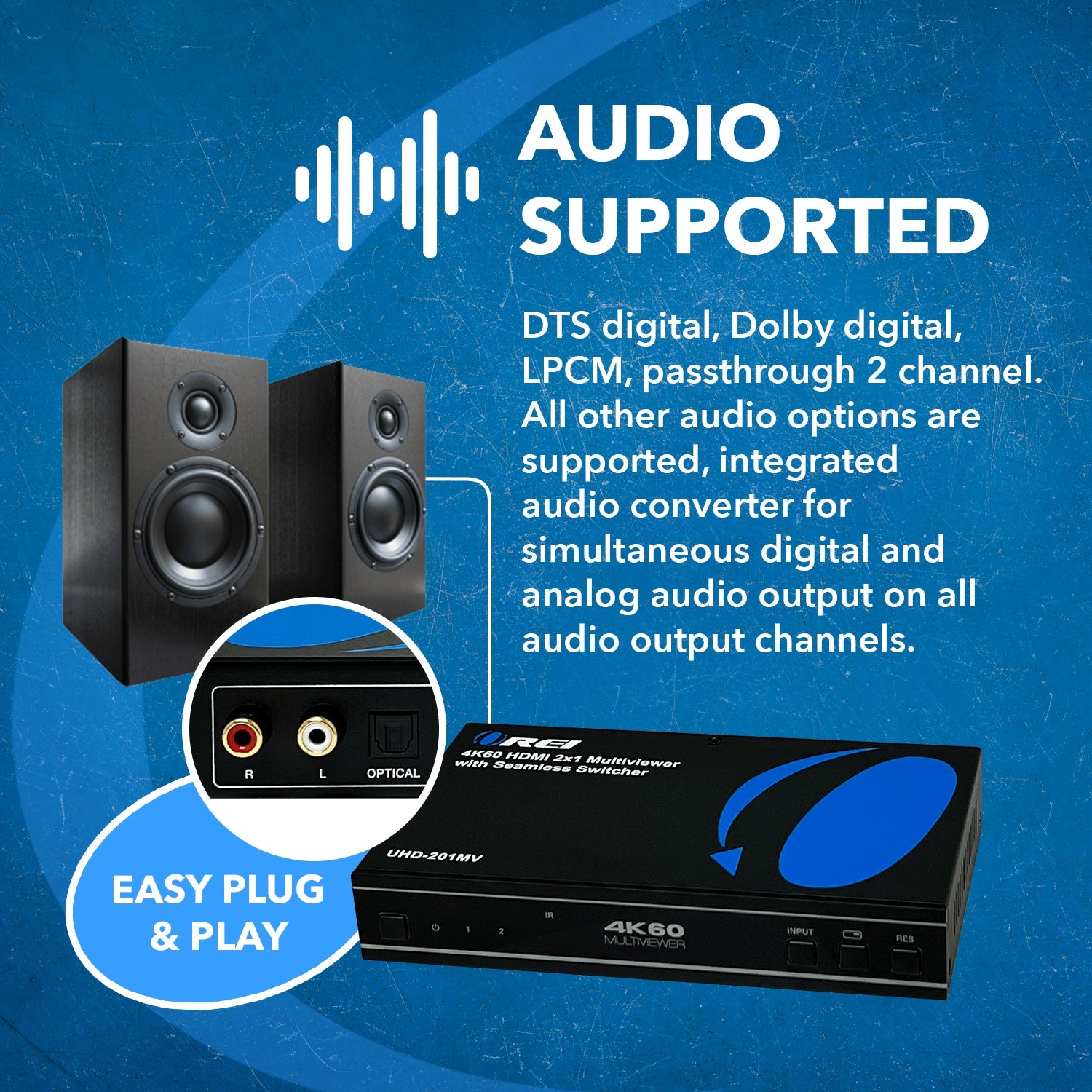

Audio de-embedding via analog and optical fiber audio ports

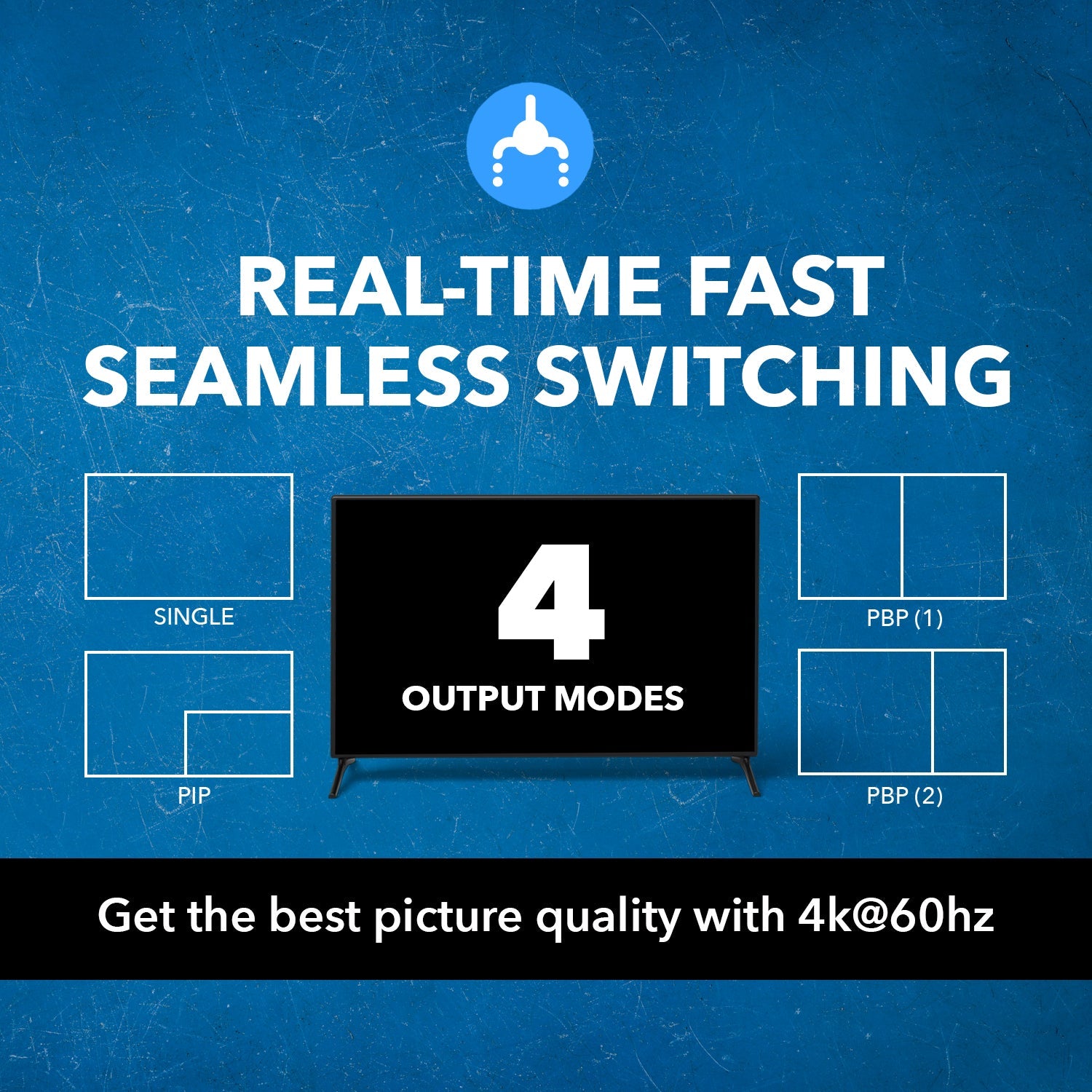

Supports Up to 4 display modes: SINGLE, PIP, PBP (1), PBP (2)
Support volume control and independent audio selection

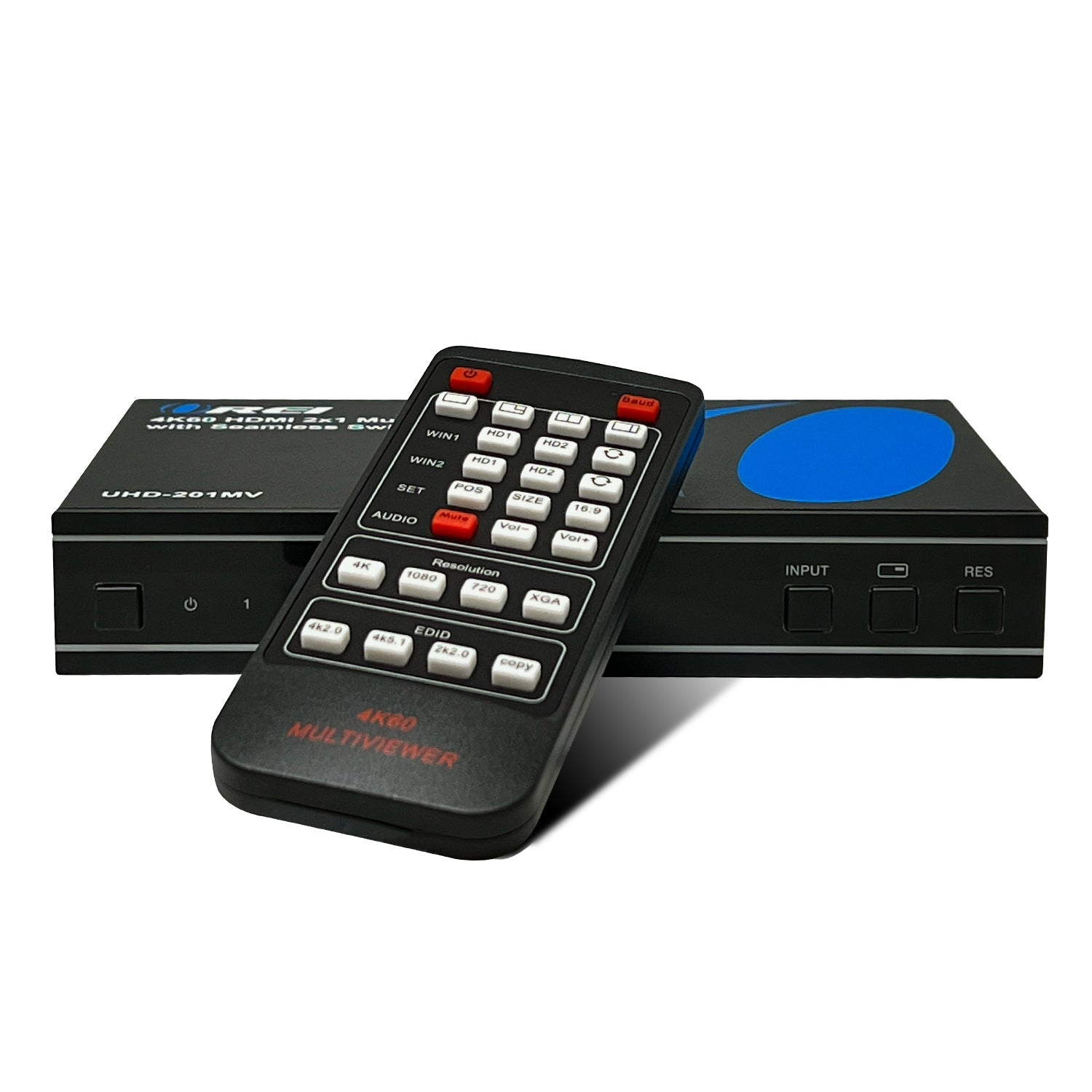

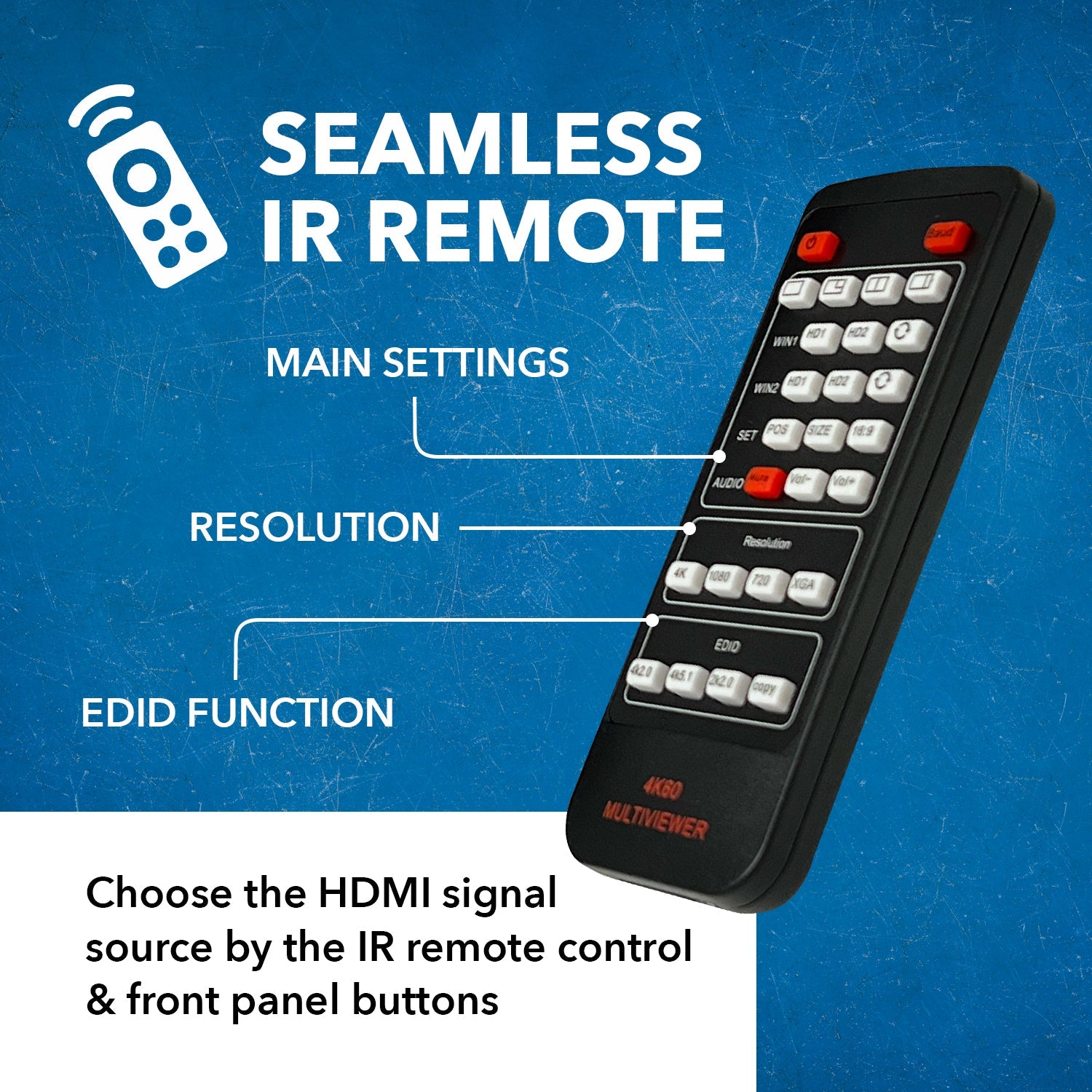

Control via front panel buttons, IR remote, RS-232 commands
This HDMI MultiViewer 2x1 switch is compatible with gaming consoles such as PlayStation, Xbox One, Nintendo, Roku, DVD, blue ray, players Amazon fire TV, cable TV, Chromecast, and so many other HDMI devices
Compact design for easy and flexible installation
The OREI UHD-201MV 4K@60Hz 2x1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60Hz) for multiple sources on a single screen. It can combine up to two video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the two inputs on a single monitor. This device supports a full range of input video resolutions up to 4K@60Hz (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems. This device can be controlled via front panel buttons, IR remote, and RS-232 commands.
[shortdes]

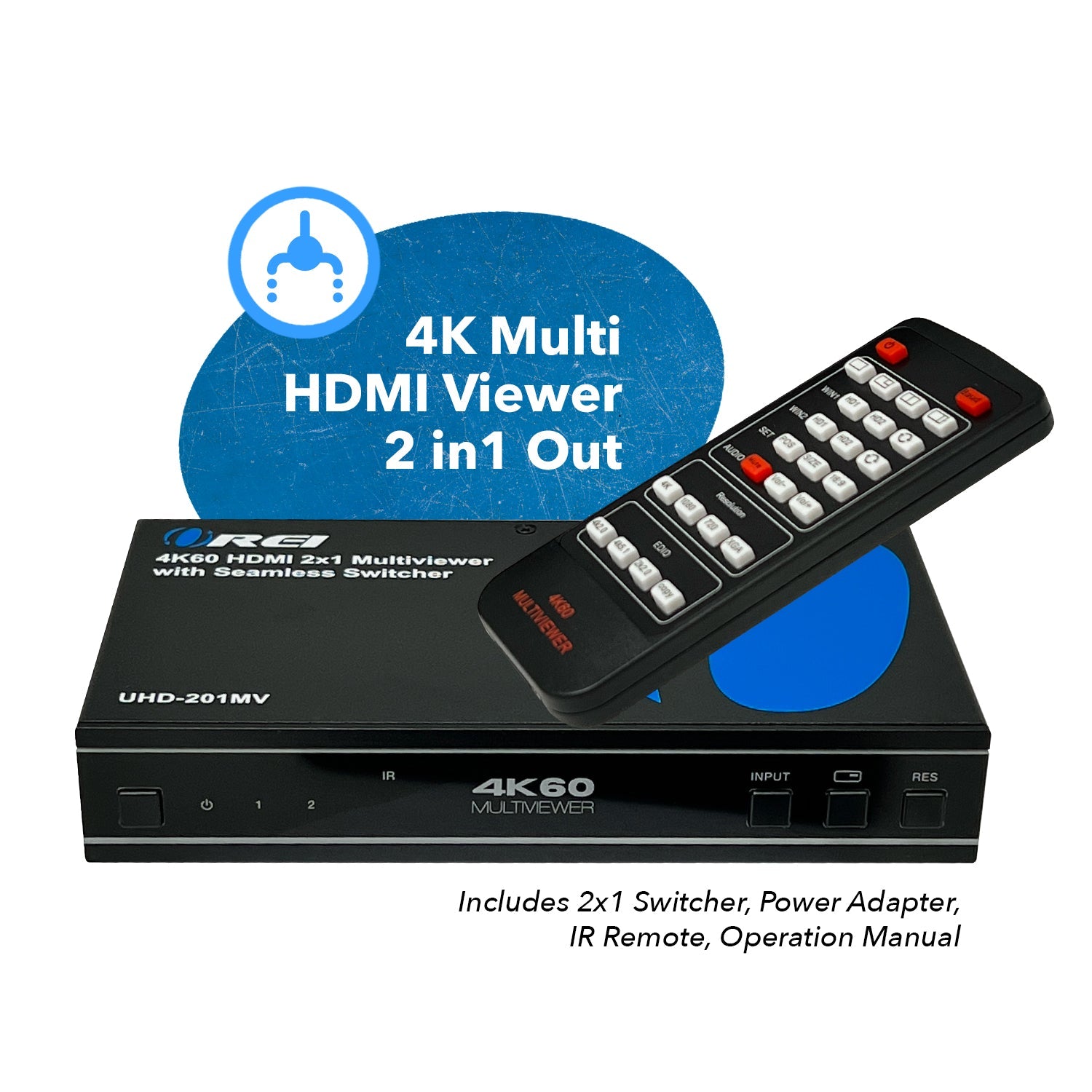

2 Inputs - 1 output HDMI Multiviewer switch
Supports video resolution up to 4K@60Hz
Supports up to 4 display mode
Supports EDID management
[/shortdes]
[tab]
CONNECTIVITY
Input:
2×HDMI IN Type A [19-pin female]
Output:
1×HDMI OUT Type A [19-pin female]
1 x OPTICAL AUDIO OUT [S/PDIF]
1 x L/R AUDIO OUT RCA [Red & White]
Control Ports:
1x RS-232 [3pin-3.81mm phoenix connector]
1x IR Ext [3.5mm Stereo Mini-jack]
AUDIO AND VIDEO
Video Bandwidth:
18Gbps
Video Resolution:
Up to 4K2K@60
Audio Formats:
HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0;
OPTICAL (SPDIF): Dolby Digital, DTS 5.1, PCM2.0.
Note: It does not support HBR audio.
Color Depth:
8 bit
Color Space:
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
COMPLIANCE
HDMI Compliance:
HDMI 2.0b
HDCP Compliance:
HDCP 1.x, 2.2
POWER
Power Supply:
Input: AC 100 - 240V 50/60Hz
Output: DC 12V/1A
Power Consumption (Max):
4.56W
FUNCTIONS
RS-232
Control via RS-232 commands
PROTECTION
Operating Temperature:
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature:
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (Non-condensing)
ESD Protection:
Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)
