Support digital and analog audio extract output from output A
Support 18Gbps video bandwidth
EDID can be selected with AUTO, COPY, and STD mode via the selector on the front panel
2 in 2 out HDMI Switch smart EDID management, 4K/60Hz 4:4:4, 2x2 18G switcher w/ audio de-embedded, HDR, HDCP 2.2
Support HDR function

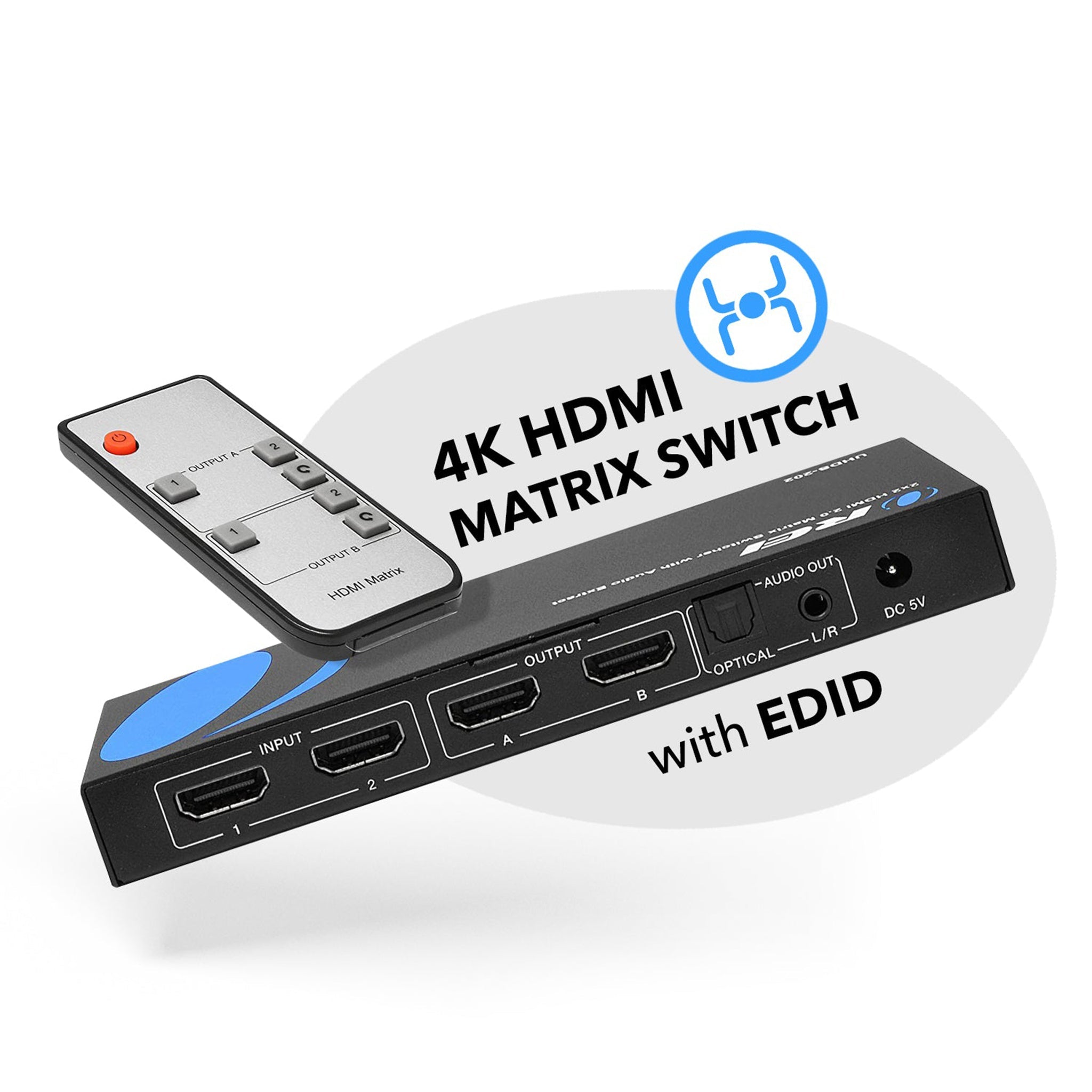

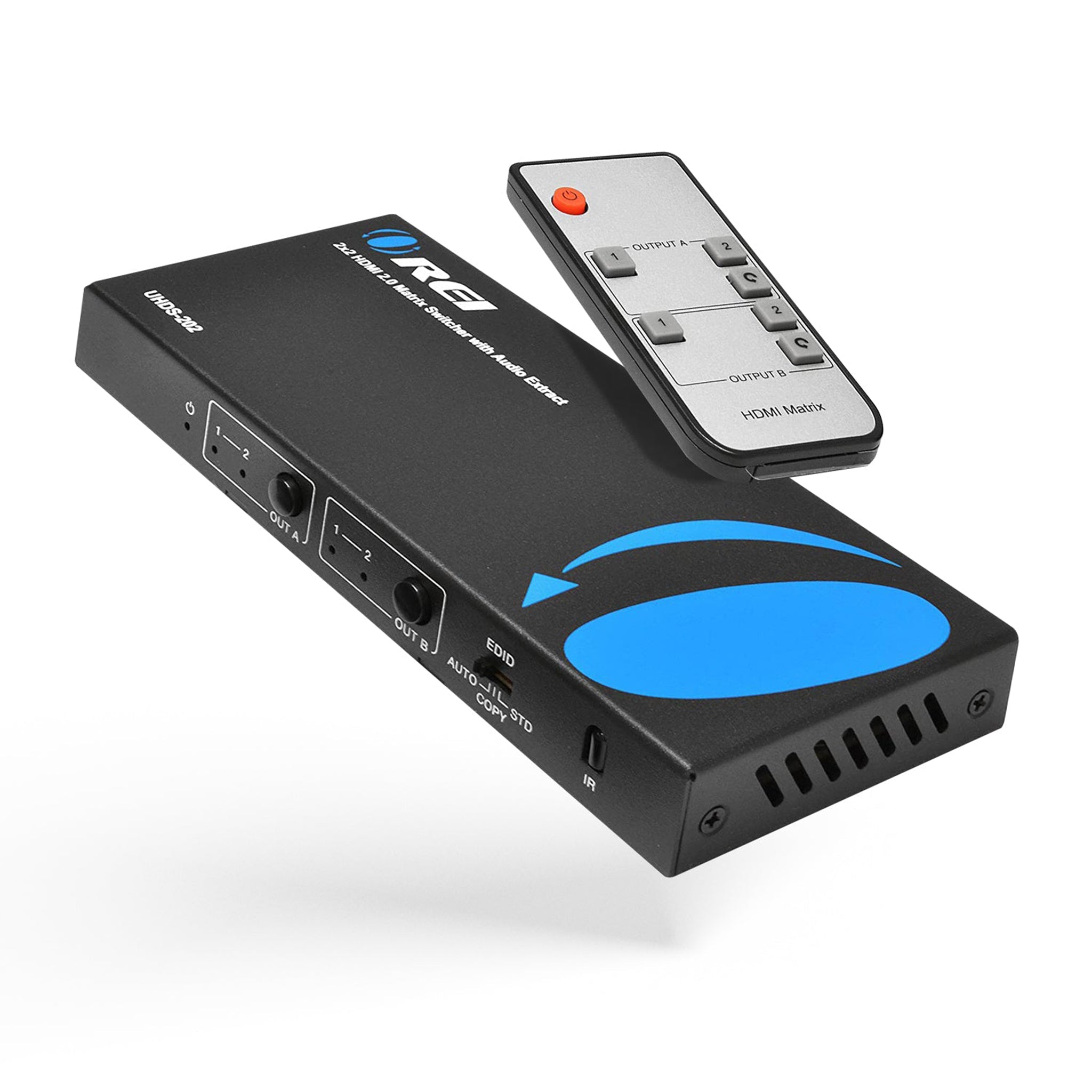

Flexible control via panel buttons and IR remote

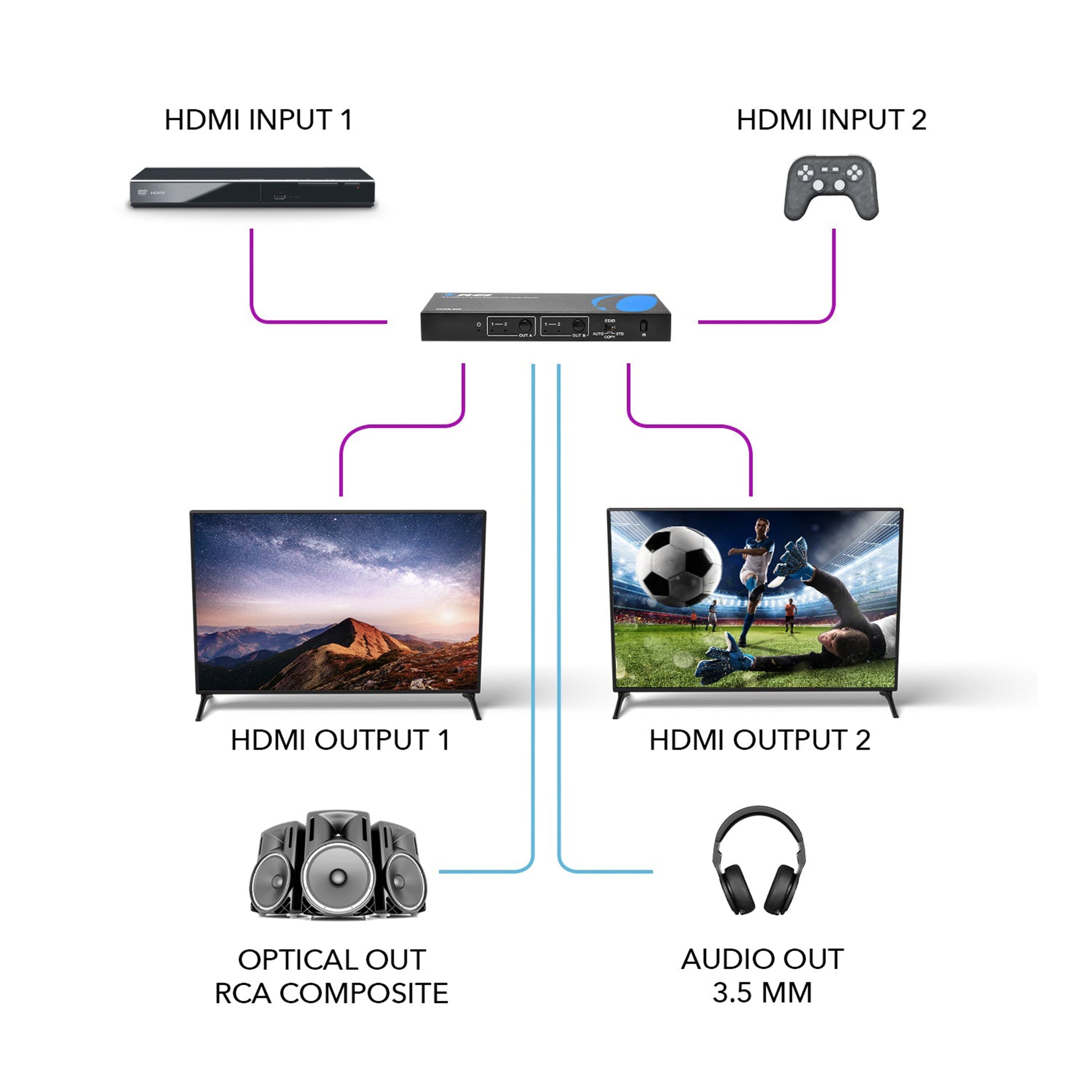

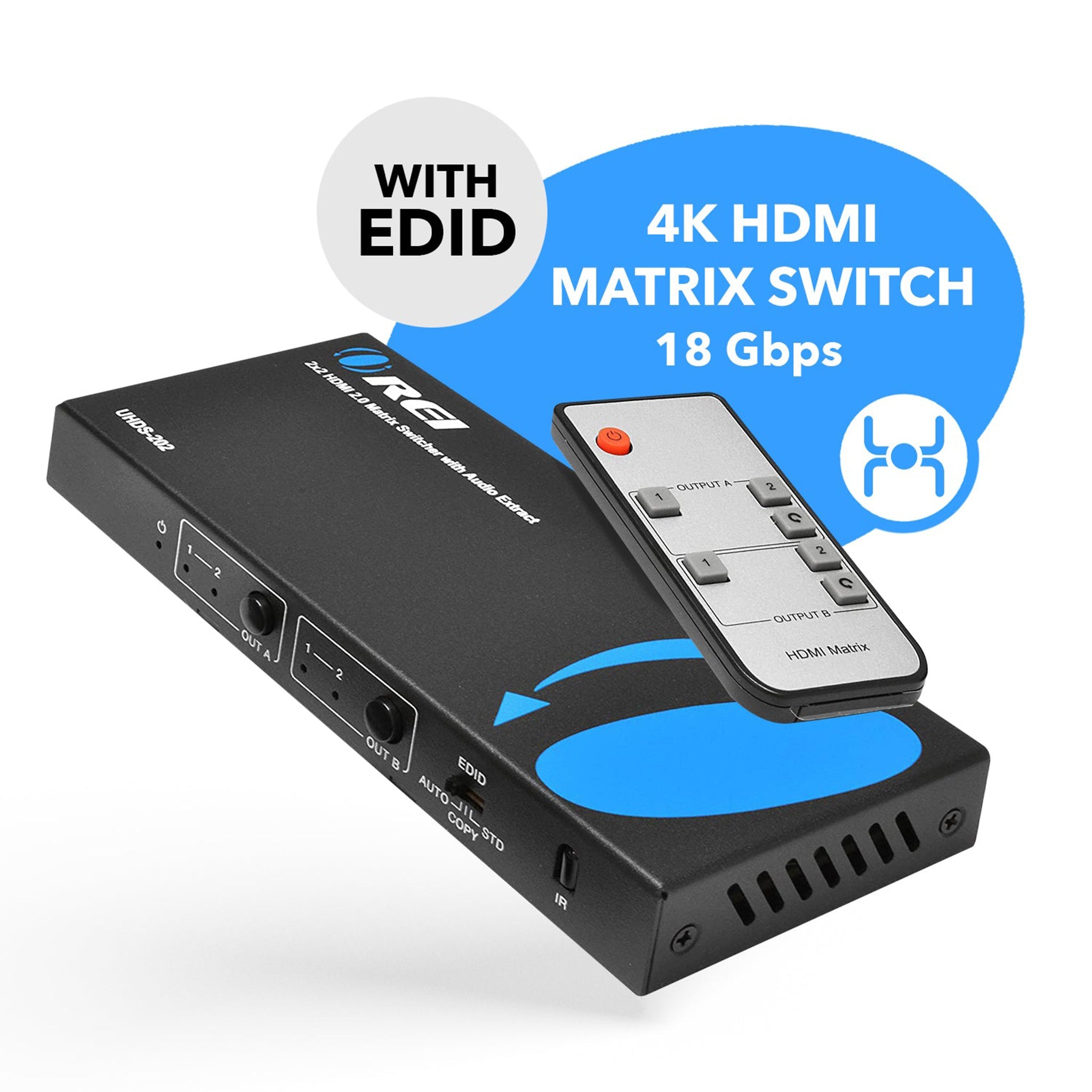

This OREI UHDS-202 18Gbps 2x2 HDMI Matrix switcher supports the transmission of the video signal (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two HDMI displays simultaneously. This product supports audio extract from output A to optical and analog output. This HDMI has 2 input into 2 output Matrix Switcher.
Supports highest video resolution up to 4K x 2K at 60Hz), EDID bypass. 2 IN 2 OUT HDMI SWITCH - Smart EDID management, 4K/60Hz 4:4:4,4x1 18G switcher w/ audio de-embedded, HDR. This HDMI switch designed with 2 input ports and 2 output ports, you can choose the HDMI signal source by the IR remote control, easy to access.

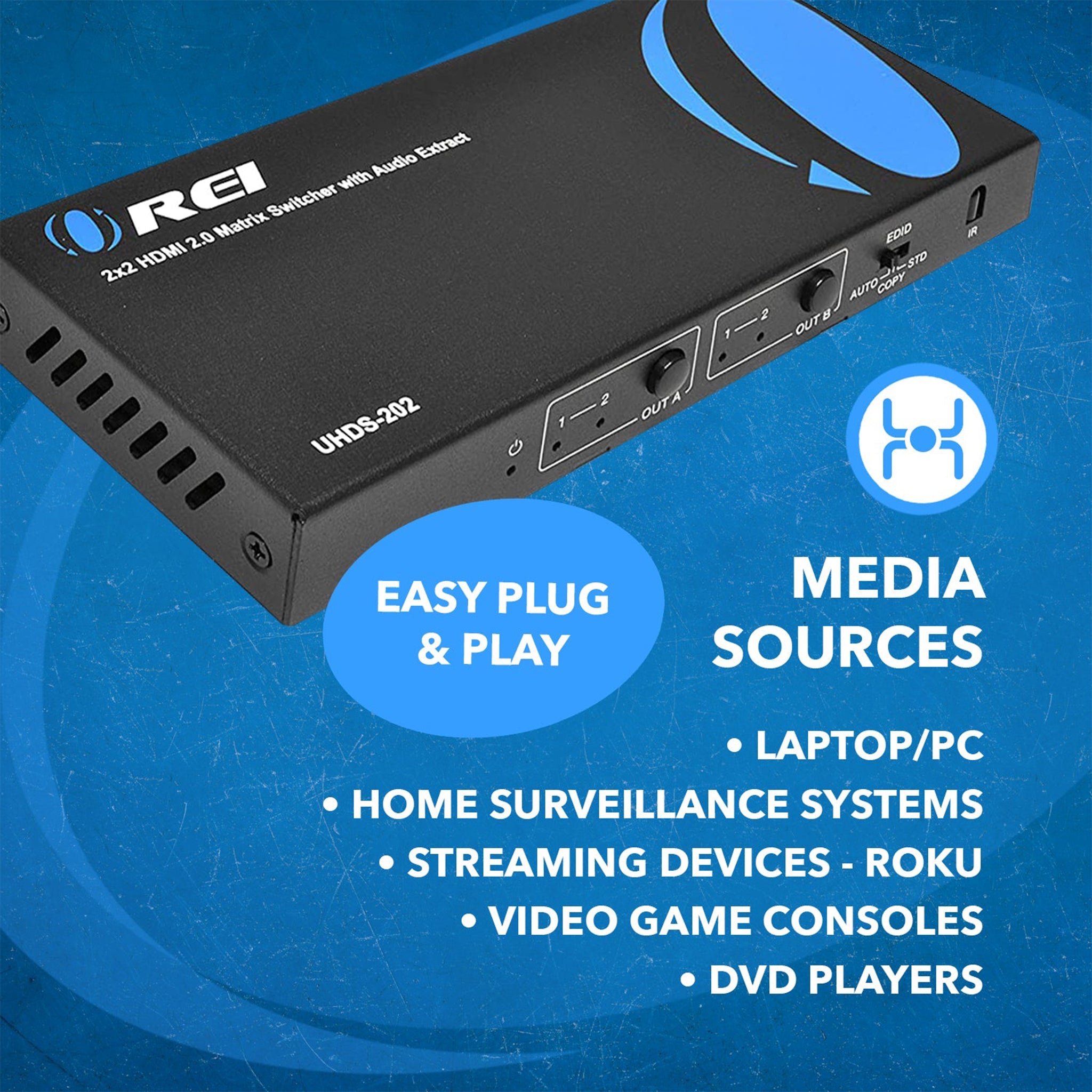

It supports three modes of EDID setting (AUTO, COPY, and STD). Flexible control via panel buttons and remote, the corresponding LED indicator on the front panel will be illuminated.
[shortdes]
2 Inputs - 2 outputs HDMI Matrix switch
Video resolution up to 4K2K@50/60Hz YCbCr 4:4:4 - EDID Control
Supports Dolby Vision, HDR 10+
Compliance: HDCP 2.2, 1.x
[/shortdes] [tab]
AUDIO AND VIDEO
Inputs:
2×HDMI Type A [19-pin female] 1×IR Receiver Window
