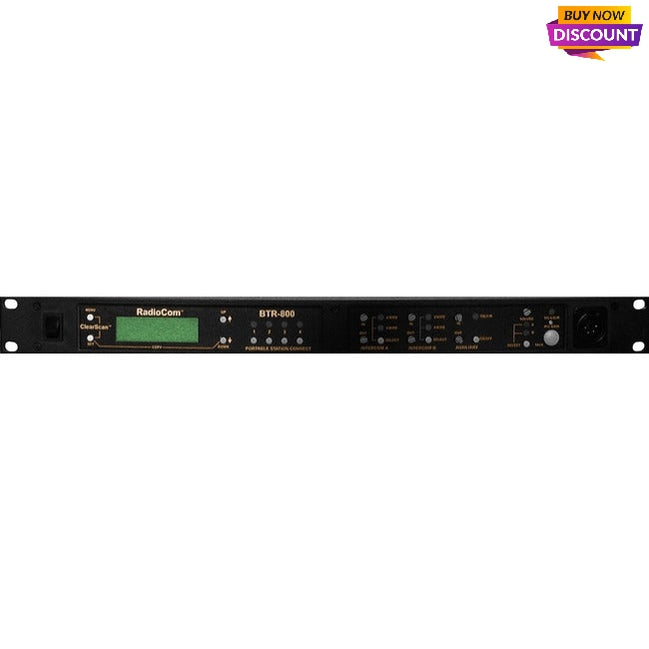

RTS Two-Channel UHF Synthesized Wireless Intercom Base Station

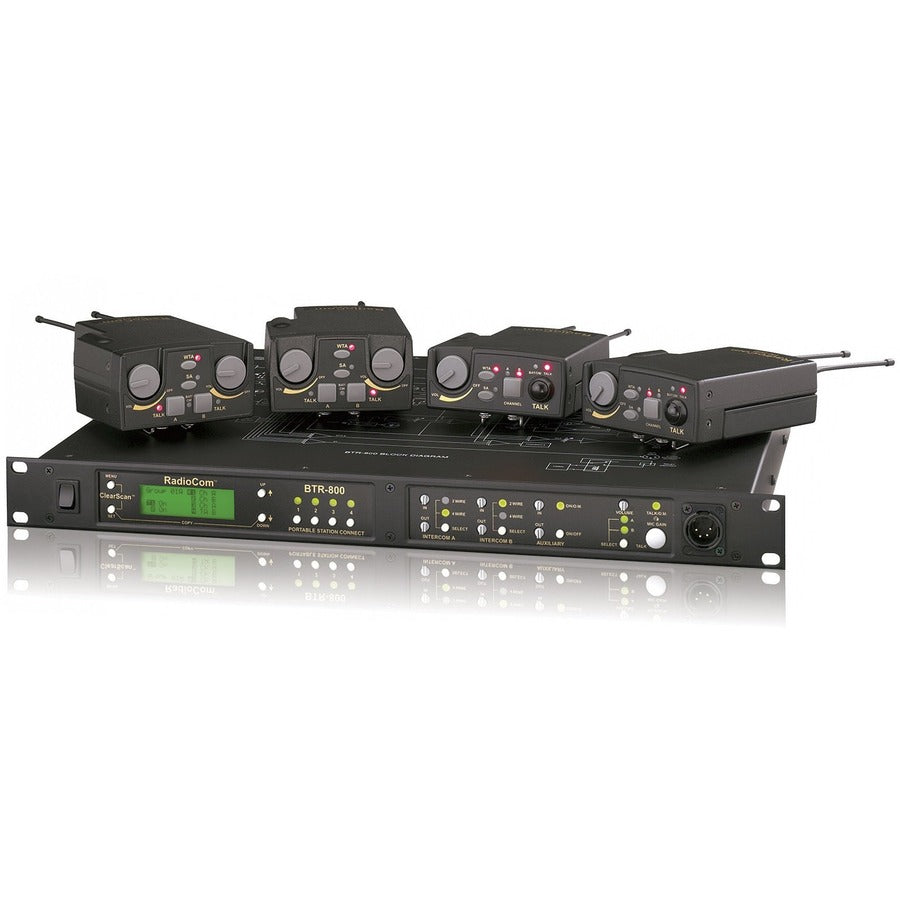

The RTS RadioCom BTR-800 UHF-synthesized wireless intercom systems offer the ultimate in reliable, high performance, high fidelity full-duplex communications. The BTR-800 system includes the BTR-800 frequency-agile base station, working with up to four (4) TR-800 or TR-825 frequency-agile beltpacks. The BTR-800 base station provides full-duplex communications with the beltpacks.
The BTR system incorporates two (2) audio channel operation, permitting the beltpack operator to choose between two (2) separate audio channels of communications, with the base station tracking the beltpack selection. This allows the user the flexibility to create a party line and a private line within the same beltpack.

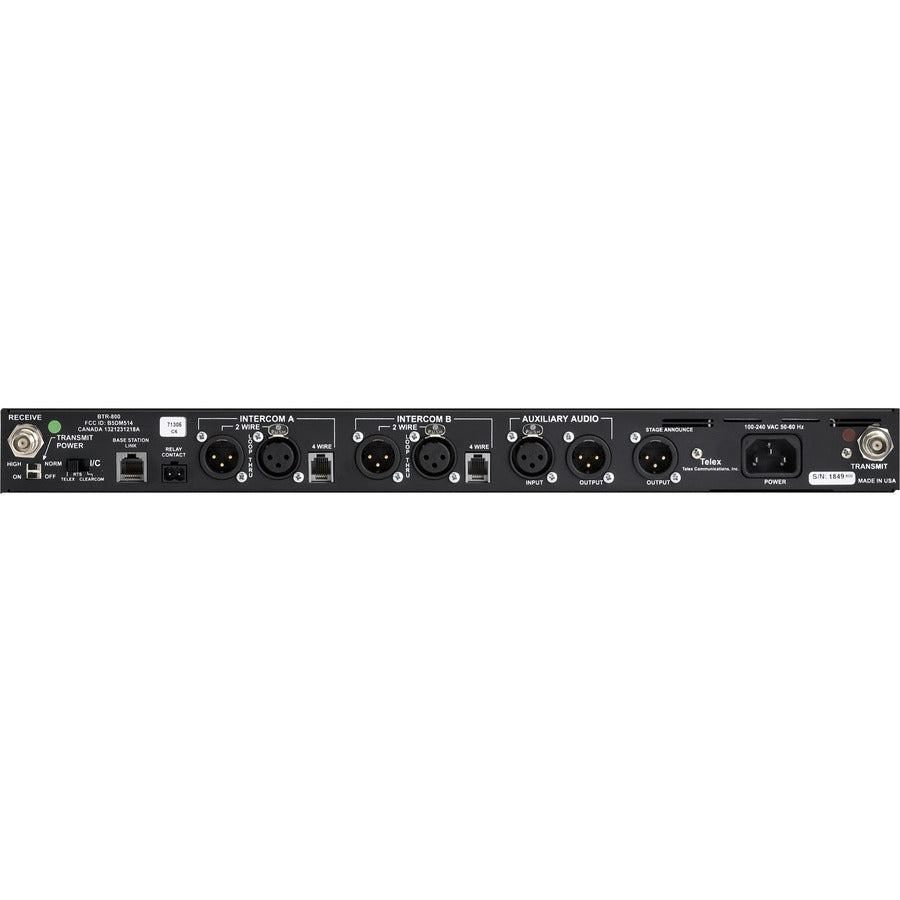

The BTR-800 system is perfectly suited for standalone operation and can interface with Audiocom, RTS Two-Wire Intercom, Clear-Com as well as RTS Digital Matrix Intercom systems and other 4-wire communications systems. In addition to the external intercom systems interfaces listed above, the system provides connections for auxiliary balanced audio input and output, as well as WTA (Wireless Talk-Around) and SA (Stage Announce) features.
The RTS RadioCom BTR series has been designed for reliable, efficient operation. Operating in the UHF range, the units operate reliably at line-of-sight distances of 1,000 feet. With available antenna systems, from RTS RadioCom, the effective operating range can be extended. The high-efficiency beltpacks provide up to 12 hours of uninterrupted operation using standard alkaline batteries.
- Frequency-Agile Base Station & Beltpacks.
- Backlit Base Station LCD.
- ClearScan Function.
- Full-Duplex Operation.
- Compatible with Audiocom, RTS TW, Matrix, Clear-Com, and other wired intercom types.
- Two Channels of Intercom Audio.
- WTA (Wireless Talk About) Beltpack Control.
- SA (Stage Announce) Beltpack Control/. Relay contract closure on the base when the SA button is pressed.
- TR-825 features two audio channel binaural operation in either stereo or mono mode.
- Beltpack units contained in a weather and shock resistant diecast magnesium case.
Product Type: Intercom Master Station
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: BTR
Brand Name: RTS
Form Factor: Rack-mountable
Manufacturer: The Bosch Group
Product Model: BTR-800
Product Name: Two-Channel UHF Synthesized Wireless Intercom Base Station
Product Line: RadioCom
Manufacturer Part Number: BTR-800-FD
Manufacturer Website Address: http://www.bosch.com
Weight (Approximate): 7.14 lb
