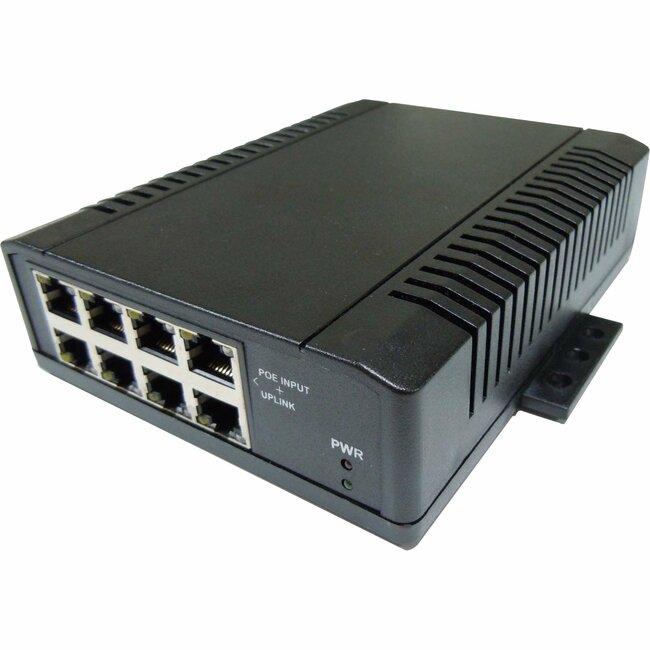

Tycon Power PoE 8 Port Switch
The TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a non compliant model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
- Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
- Cascade to other network devices through the uplink port to expand your local area network
- Electrical power is transmitted along with data in a single cable to devices such as Access Points, IP cameras or IP phones
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
- Rail mounting is ideal for factory areas, in vehicles and marine applications
Product Type: Ethernet Switch
Product Series: TP-SW8
Brand Name: Tycon Power
Form Factor: Rail-mountable
Manufacturer: Tycon Power Systems
Product Model: TP-SW8-NC
Product Name: PoE 8 Port Switch
Manufacturer Part Number: TP-SW8-NC
Manufacturer Website Address: http://www.tyconpower.com
Package Contents:
- PoE 8 Port Switch
- DIN Rail Mounts
Limited Warranty: 1 Year
Weight (Approximate): 15.87 oz
