Name: Tyan Transport Hx Tn83-B8251 (B8251T83E8Hr-2T-N) Dual-Socket Amd Epyc 7003 2200W 2U Rackmount 4-Gpu Hpc Server Barebone System
Brand: TYAN
SKU: B8251T83E8HR-2T-N
Price: 5670.00 CAD
Availability: OutOfStock

Tyan Transport Hx Tn83-B8251 (B8251T83E8Hr-2T-N) Dual-Socket Amd Epyc 7003 2200W 2U Rackmount 4-Gpu Hpc Server Barebone System

Roll over image to zoom in Click on image to zoom

Mfr Part Number: B8251T83E8HR-2T-N
Form Factor: 2U Rackmount
Chassis Model: TN83
Motherboard Name: S8251GM2NE-2T, The motherboard not sold separately
Processor:
- Socket Type: (2) AMD Socket SP3
- Supported CPU Series: (2) AMD EPYC 7002/7003 Series Processors
- Configurable Thermal Design Power (cTDP) Wattage: Max up to 240W
- Notification: 240W CPUs are supported with certain condition. Please contact Tyan Technical Support before purchasing
Memory:
- (8)+(8) DIMM slots
- DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
- Up to 2,048GB RDIMM / 4,096GB LRDIMM 3DS
- 8 Channels per CPU, 1.2V
Slots:
- Pre-installed TYAN Riser Card (PCIe Gen.4)

  - (1) M8251T83-L32-4F riser card for (2) FH/FL PCIe Gen.4 x16 + (2) FH/FL PCIe Gen.4 x8 slots (left) split by Mux.

  - (1) M8251T83-R32-4F riser card for (2) FH/FL PCIe Gen.4 x16 + (2) FH/FL PCIe Gen.4 x8 slots (right) split by Mux.

  - (1) M8251T83-LR32-2L riser card for (1) HH/HL PCIe Gen.4 x16 (right) +(1) HH/HL PCIe Gen.4 x16 (left) slots
- Physical Dimension Abbreviation: FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm)
LAN:
- (2) GbE ports + (1) GbE dedicated for IPMI
- Intel X550-AT2 Controller
- Realtek RTL8211E
Storage SATA: (8) SATA from (2) Slim SAS (8 ports) / (2) SATA-DOM, Direct from AMD EPYC CPU Controller, 6Gb/s
Stotage NVMe: (4) SFF-8654 for (8) front NVMe Connector (U.2)
Graphic: D-Sub 15-pin, Up to 1920x1200, Aspeed AST2500 Chipset

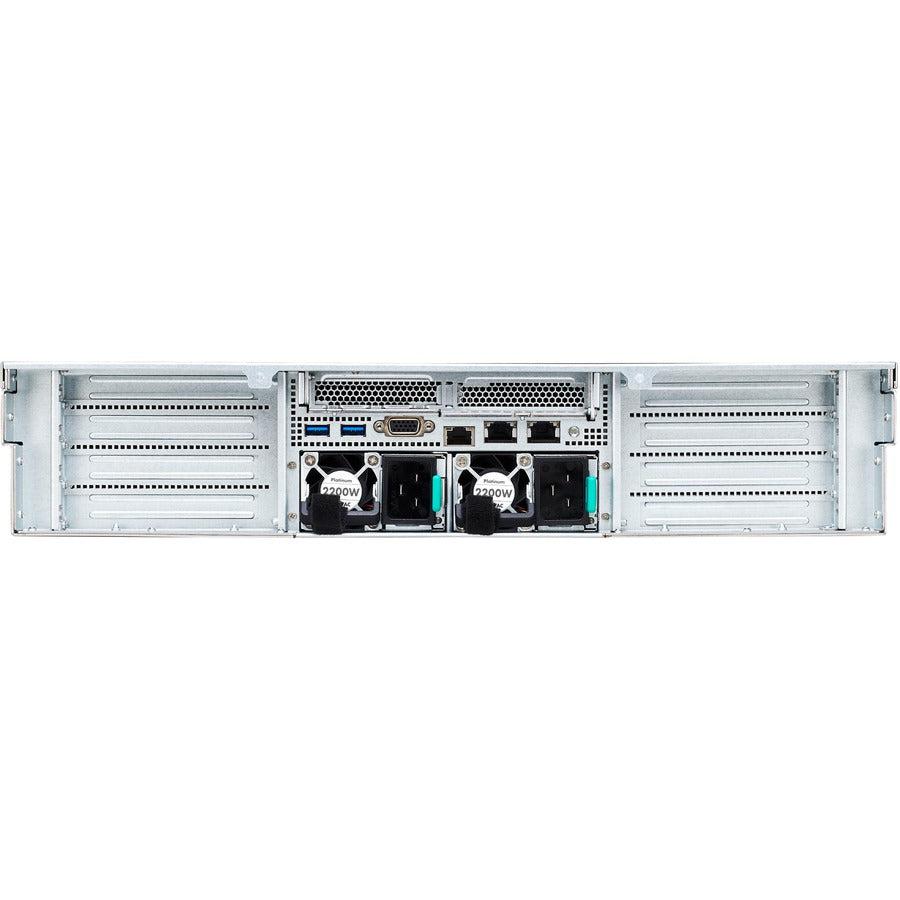

I/O Ports:
- USB: (1) USB3.1 Gen.1 port (Type-A) / (2) USB3.1 Gen.1 ports (via Cable) / (2) USB3.1 Gen.1 ports (@ rear)
- COM: (1) header ( COM1 )
- VGA: (1) D-Sub 15-pin port
- RJ-45: (2) 10 GbE ports + (1) dedicated GbE for IPMI
- SATA: (2) SATA-DOM connectors / (8) SATA from (2) Slim SAS connectors
Server Management:
- Onboard Chipset: Onboard Aspeed AST2500
- AST2500 iKVM Feature: 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
- AST2500 IPMI Feature: IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS:
- Brand / ROM size: AMI / 32MB
- Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S0, S5
Regulation: FCC (SDoC)-Class A, CE (DoC)-Class A, CB/LVD, RCM-Class A, VCCI-Class A

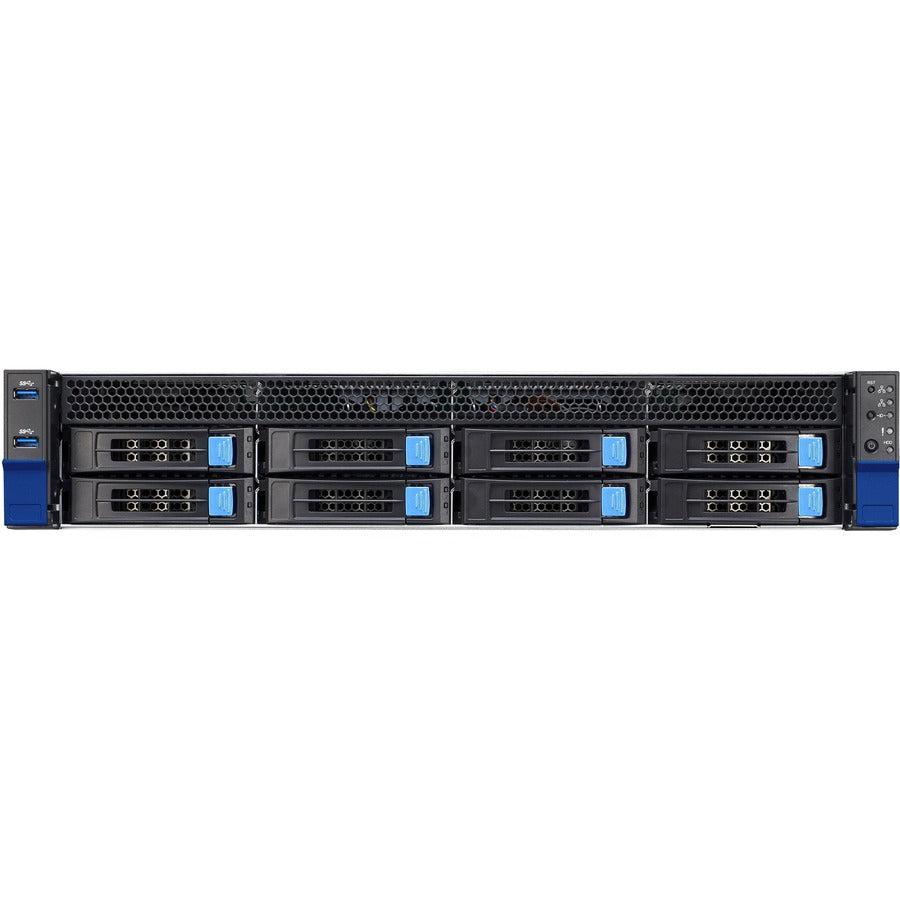

Front Panel:
- Buttons: (1) UID / (1) PWR w/ LED / (1) RST
- LEDs: (1) HDD / (1) UID / (2) LAN / (1) System Event
- I/O Ports: (2) USB 3.1 Gen.1 ports
Internal Drive Bay:
- Type: (8) 3.5/2.5" Hot-swap HDD/SSDs
- HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s /NVMe
- Supported HDD Interface: (8) SATA 6Gb/s / NVMe
- Notification: The SAS/SATA HDD backplane is connected to onboard SATA connection by default.
System Cooling:
- FAN: (5) 8cm fans
Power Supply: CRPS
- Input Range: AC 200-240V/12.6A
- Frequency: 47-63 Hz
- Output Watts: 2,200 Watts
- Efficiency: PFC / 80 plus Platinum
- Redundancy: 1+1
Operating Environment:
- Operating Temp.: 10 C ~ 35 C (50 F~ 95 F)
- Non-operating Temp.: - 40 C ~ 70 C (-40 F ~ 158 F)
- In/Non-operating Humidity 90: 90%, non-condensing at 35 C
RoHS 6/6 Compliant: Yes
Dimensions (DxWxH): 32.71" x 17.25" x 3.43" (831 x 438.4 x 87mm)
Weight: 20.3 kg (44.8 lbs)
Package Contains:
- 1 x TN83-B8251 Barebone
- 1 x Quick Installation Guide

General Information

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B8251T83E8HR-2T-N
Manufacturer Website Address	http://www.tyan.com
Brand Name	Tyan
Product Line	Transport HX
Product Model	TN83-B8251
Product Name	Transport HX TN83-B8251 2U 4-GPU HPC Server
Product Type	Barebone System
UPC	635872048692

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Ethernet Technology	10 Gigabit Ethernet

Total Number of USB Ports	5

Power Description

Maximum Power Supply Wattage	2200 W

Height	3.4"
Width	17.3"
Depth	32.7"
Weight (Approximate)	44.80 lb

Miscellaneous

Package Contents	Transport HX TN83-B8251 2U 4-GPU HPC Server 1 x Quick Installation Guide
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year
