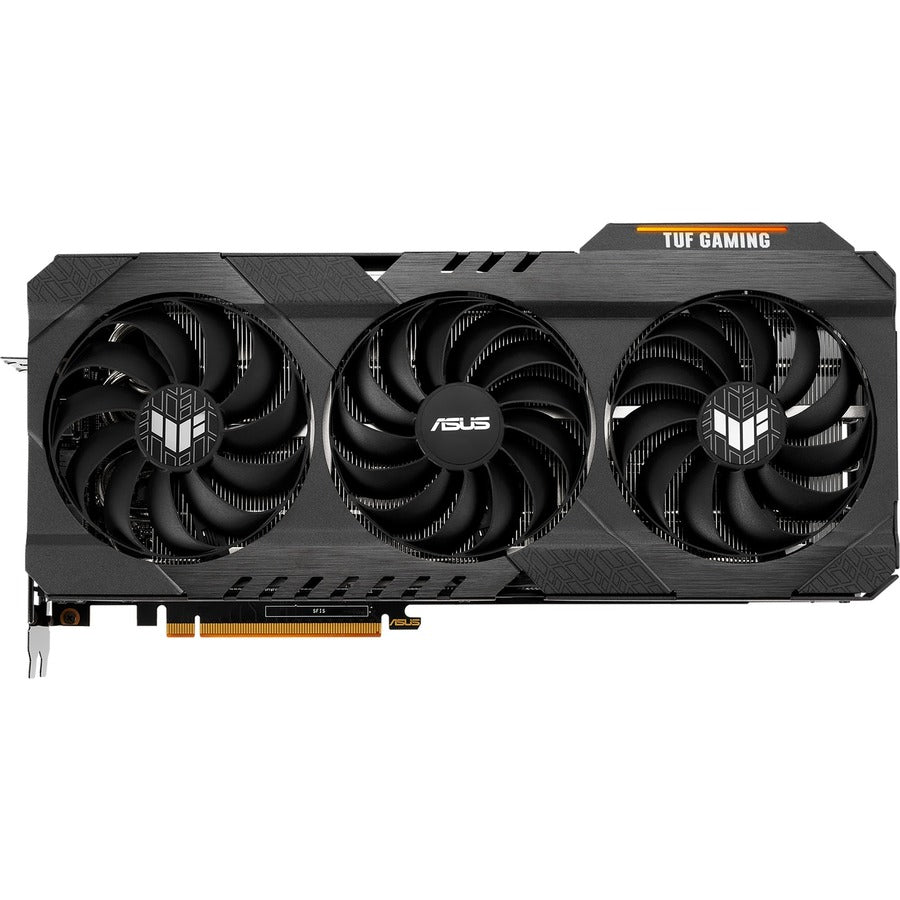

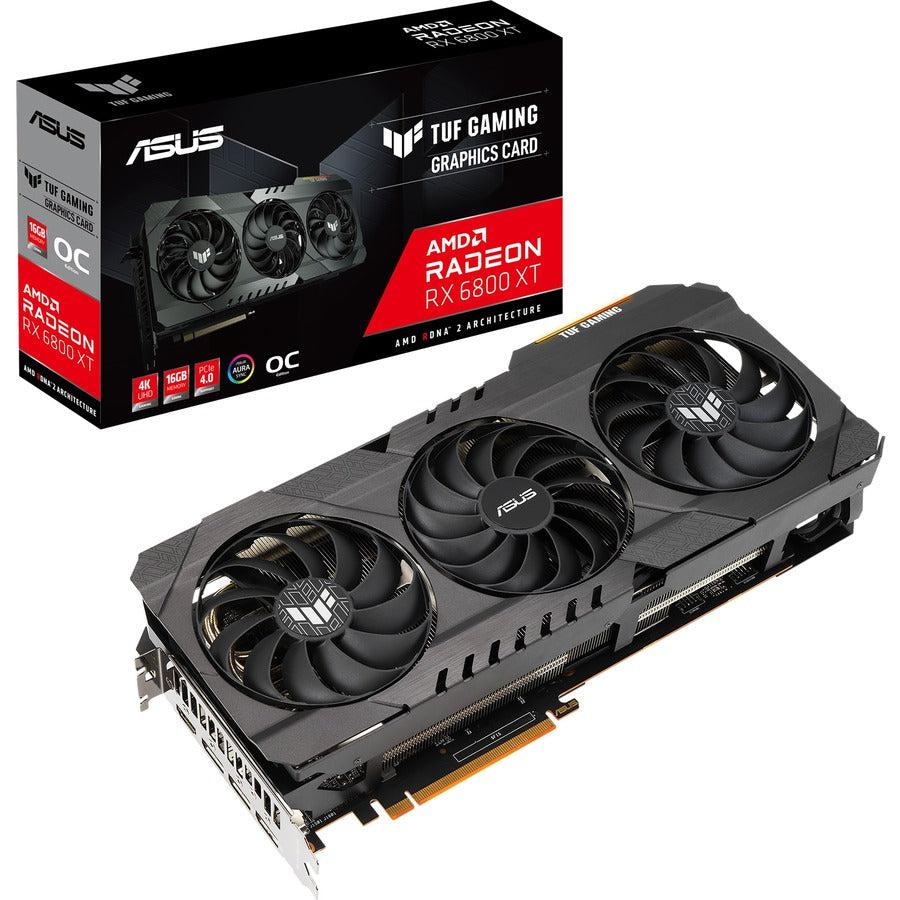

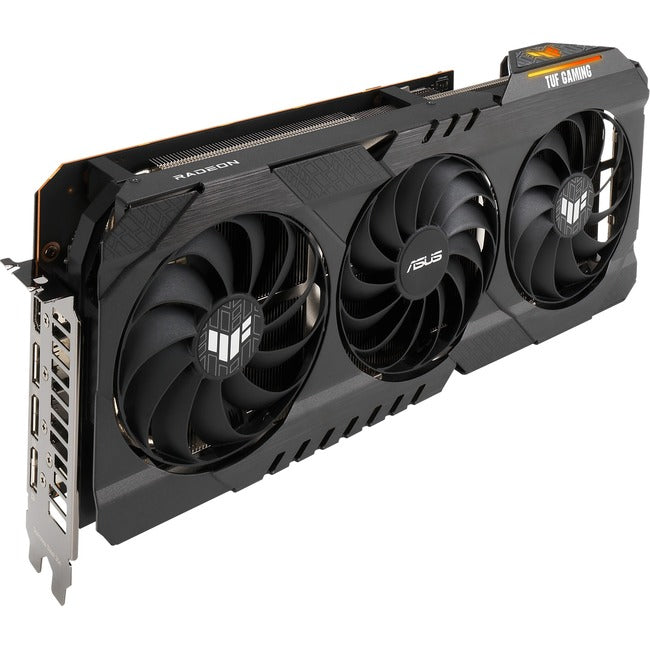

TUF AMD Radeon RX 6800 XT Graphic Card - 16 GB GDDR6
ASUS TUF GAMING Radeon™ RX 6800 XT is a truly tenacious performer
-
Axial-tech fan design has been enhanced with more fan blades and a new rotation scheme. -
Dual ball fan bearings can last up to twice as long as sleeve bearing designs. - An all-aluminum shroud, reinforced frame, and metal backplate enhance durability.
- MaxContact heat spreader features a super flat surface for improved thermal transfer.
- A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
- A vented backplate prevents hot air from recirculating through the cooling array.
-
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
TUF Gaming
Radeon RX™ 6800 XT
BUILT TUF
The TUF GAMING Radeon™ RX 6800 XT is a tenacious beast with a tough metal exterior, super-efficient cooling, and components that offer enhanced endurance. An all-metal shroud houses three powerful axial-tech fans with dual ball fan bearings and extra blades. Under the exoskeleton, a thick heatsink keeps thermals under tight control and TUF components, selected for maximum durability and performance, keep the card ahead of the pack. You asked for a mean machine... this one is ready for action.
FANS
BIGGER, BETTER COOLING
This generation, our Axial-tech fan design has matured with an increased blade count on all three fans: 13 on the center fan and 11 on the auxiliary fans. The barrier rings on the side fans have been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan's extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader. The fan design growth is specifically optimized for a massive new heatsink that features more fins and surface area than previous iterations.
FANS
QUIET CUNNING
To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan is reversed. This reduces air turbulence inside the cooling array for another boost to overall thermal performance. Fans will also only start spinning when the GPU temperature hits 60 Celsius and shut off when temps drop below 55 Celsius, helping to reduce noise when the system is idling or under light load.
HEATSINK
MAXCONTACT
To get heat up off the die and into the heatsink array, we've engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.
HEATSINK
2.9-SLOT DESIGN
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.9-slot footprint.
TUF COMPONENTS
Robust military-grade capacitors were selected for the card's power design. They and other components are soldered to the PCB using our Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications. To ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.
DESIGN
METAL COAT
A machined all-aluminum shroud creates a robust outer shell and a no-nonsense industrial design and grayscale colorway fits into any build with ease.
- AMD Radeon™ RX 6800 XT delivers supreme video graphics with stunning visual
- Built-in 16 GB GDDR6 memory for a crisp and detail display
- Built-in low-power fan keeps the board cool and ensures a long-lasting usability
Product Type: Graphic Card
Environmentally Friendly: Yes
Environmental Certification: RoHS
Slot Space Required: Triple
Cooler Type: Fan Cooler
Brand Name: TUF
Form Factor: Plug-in Card
Length: 13"
Manufacturer: ASUS Computer International
Product Model: TUF-RX6800XT-O16G-GAMING
Product Name: Radeon RX 6800 XT Graphic Card
Product Line: Strix
Manufacturer Part Number: TUF-RX6800XT-O16G-GAMING
Manufacturer Website Address: http://usa.asus.com
Platform Supported: PC
Package Contents:
- Radeon RX 6800 XT Graphic Card
- 1 x TUF Certificate Of Reliability
- 1 x Collection Card
- 1 x Speedsetup Manual
- 1 x ASUS Ruler
