VGA with RS232 over Cat5 / Cat6 Extender Kit, Box-Style Transmitter and Receiver with EDID, 1920 x 1440 at 60Hz, Up to 305 m (1,000-ft.)
Tripp Lite VGA with RS232 over Cat5 / Cat6 Extender Kit, Box-Style Transmitter and Receiver with EDID, 1920 x 1440 at 60Hz, Up to 305 m (1,000-ft.). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1440 pixels, Cable types supported: Cat5,Cat6. AC input voltage: 5 V. Transmitter dimensions (WxDxH): 25.4 x 63.5 x 88.9 mm. Package width: 259.1 mm, Package depth: 165.1 mm, Package height: 55.9 mm. Master (outer) case width: 589.3 mm, Master (outer) case length: 348 mm, Master (outer) case height: 297.2 mm

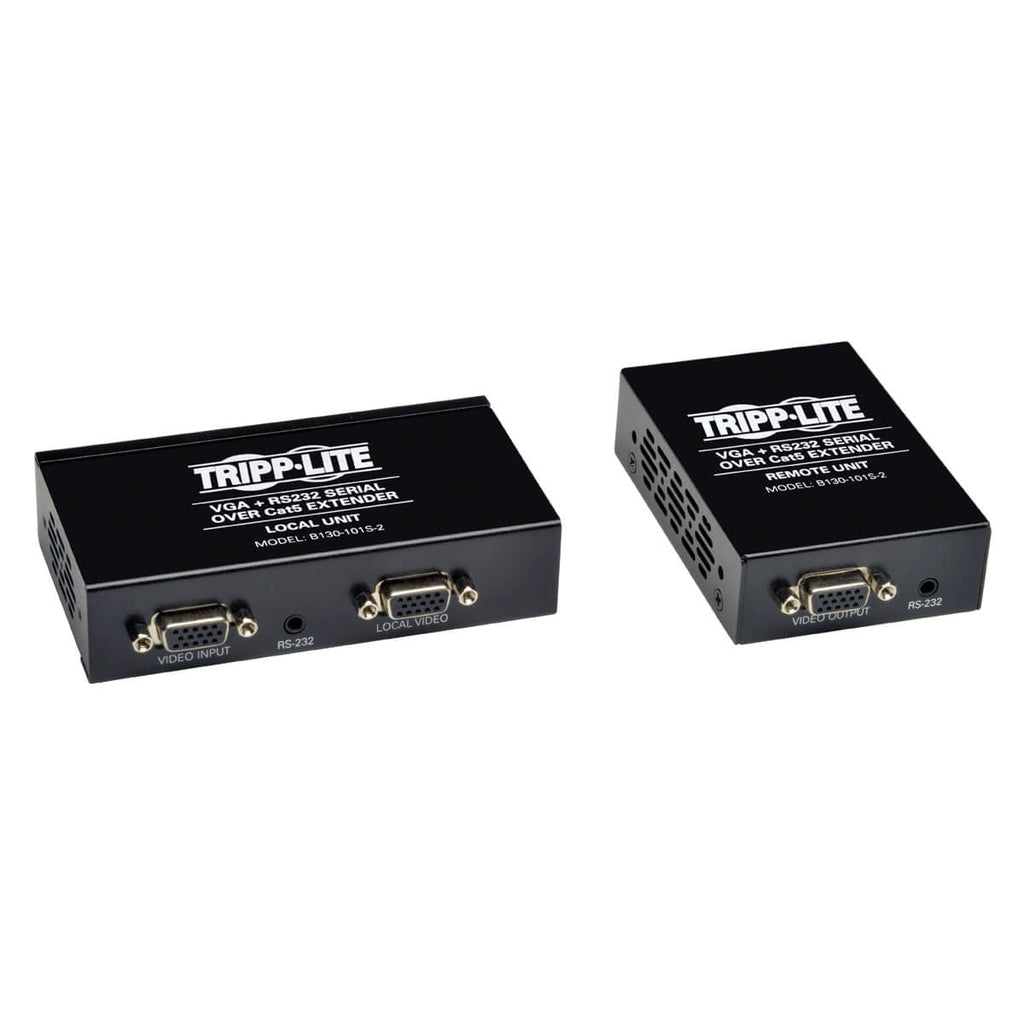

Tripp Lite's B130-101S-2 allows you to extend a 1920 x 1440 (60Hz) Video and RS232 Serial signal up to 500 ft., or a 1024 x 768 (60Hz) Video and RS232 Serial signal up to 304.8 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. The local (Transmitter) unit features an additional VGA port for the connection of a local monitor. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wall mounted, rack mounted or pole mounted. Ideal for digital signage situations needing serial access, such as bar code scanners or touchscreen monitors.
- Extends a 1920 x 1440 (60Hz) Video and RS232 Serial signal up to 152.4 m (500-ft.), or a 1024 x 768 (60Hz) Video and RS232 Serial signal up to 304.8 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) - For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K - EDID copy feature ensures optimal display compatibility - Supports bi-directional communication

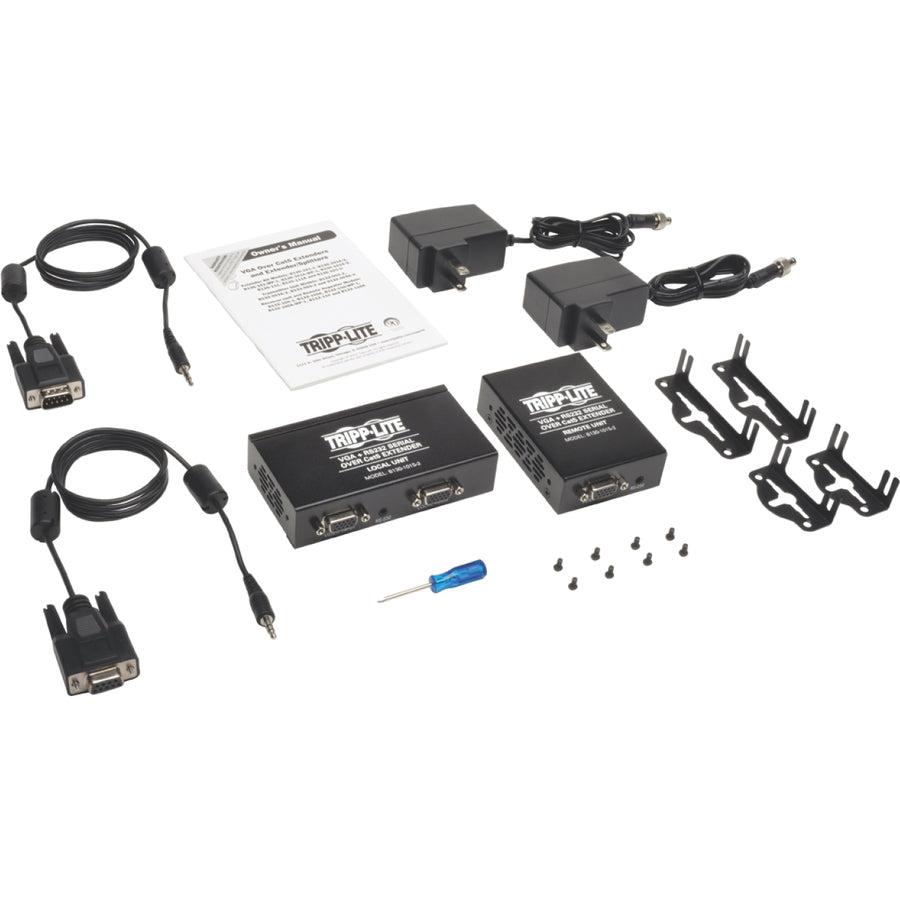

- Extends a 1920 x 1440 (60Hz) Video and RS232 Serial signal up to 152.4 m (500 ft.), or a 1024 x 768 (60Hz) Video and RS232 Serial signal up to 304.8 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) - For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K - EDID copy feature ensures optimal display compatibility - Supports bi-directional communication - The local (Transmitter) unit features an additional VGA port for the connection of a local monitor - The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image - Includes mounting hardware for both the local and remote units, allowing them to be wallmounted, rackmounted or pole mounted - Ideal for digital signage situations needing serial access, such as bar code scanners or touchscreen monitors - International AC Adapter B110-INT required for use with UK, European, and Australian power connections
