UPS Maintenance Bypass Panel for SUT60K - 3 Breakers
Tripp Lite UPS Maintenance Bypass Panel for SUT60K - 3 Breakers. Product type: Bypass switch, Mounting type: Wall-mount, Product colour: Black. Input voltage: 120 V. Width: 901.7 mm, Depth: 198.1 mm, Height: 800.1 mm. Products per master (outer) case: 1 pc(s), Master (outer) case width: 1066.8 mm, Master (outer) case length: 914.4 mm

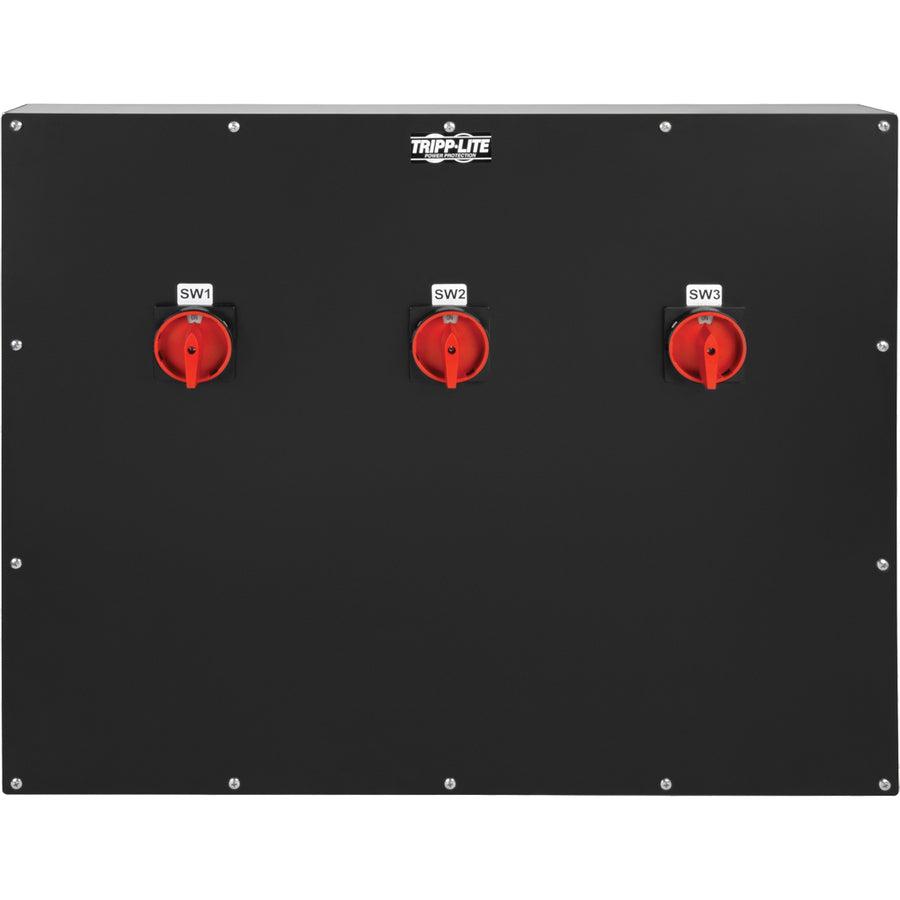

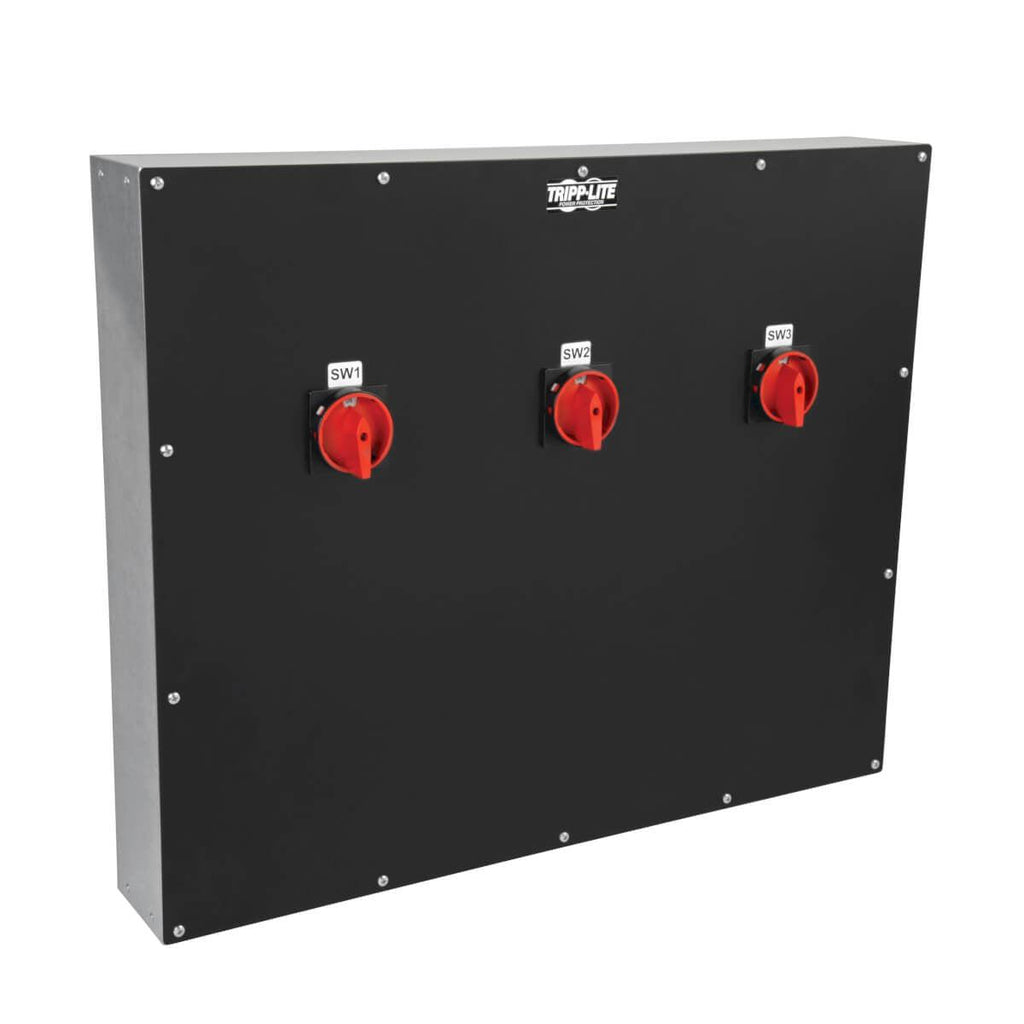

Bypass an SUT60K UPS to Perform Maintenance For use with Tripp Lite’s SUT60K 3-phase UPS system, the SUT60KMBP maintenance bypass panel (MBP) maintains total continuity of power to connected load circuits when bypass of the UPS is required for regular service and maintenance. This UPS maintenance bypass panel has three 4-pole circuit breakers for Input, Bypass and Output. The breakers have removable handles to allow the panel’s trim cover to be removed for internal access. Maximum current capacity is 225A.

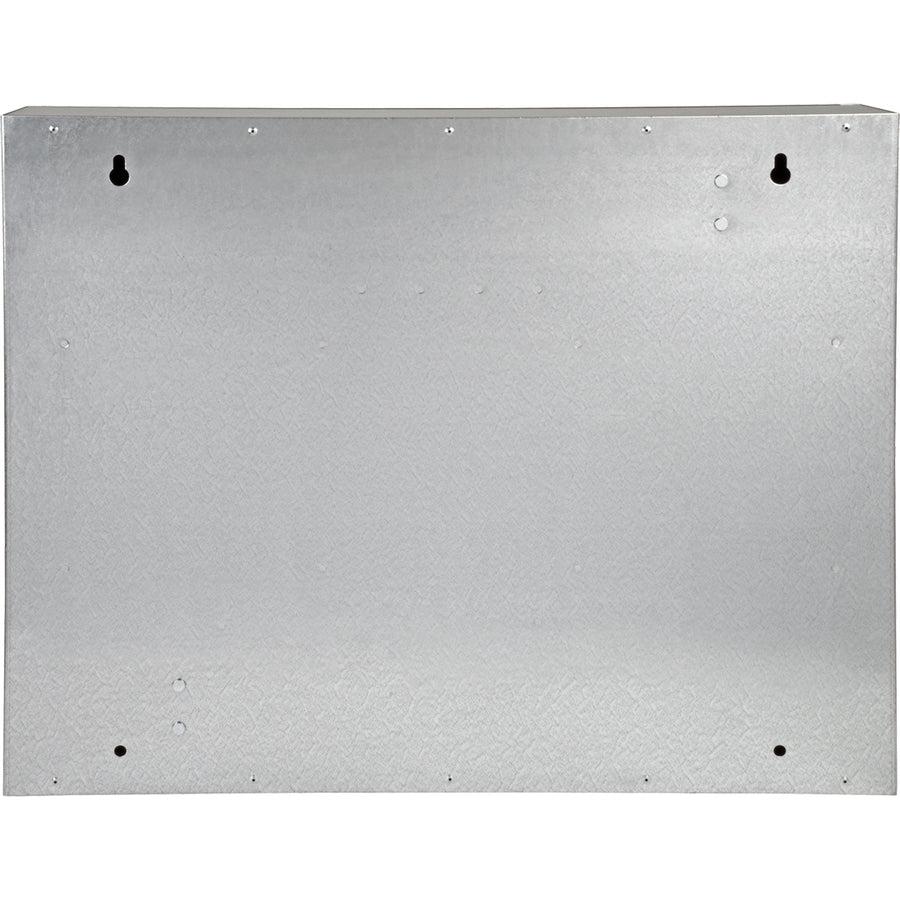

Convenient Wall-Mount Installation Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth and solid wall (mounting hardware not included).
One-Year Warranty The SUT60KMBP is backed by a one-year limited warranty, ensuring reliability and performance.
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SUT60KMBP
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
SUT60KMBP
Product Name
UPS Maintenance Bypass Panel for SUT60K - 3 Breakers
Product Type
Bypass Panel
UPC
037332222374
Height
31.5"
Width
38.5"
Depth
5.9"
Weight (Approximate)
85 lb
Miscellaneous
Package Contents
UPS Maintenance Bypass Panel for SUT60K - 3 Breakers
Installation and Operation Manual
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
