UPS Maintenance Bypass Panel for SUT30K - 3 Breakers
Tripp Lite UPS Maintenance Bypass Panel for SUT30K - 3 Breakers. Product type: Bypass switch, Mounting type: Wall-mount, Product colour: Black. Input voltage: 120 V. Width: 508 mm, Depth: 116.8 mm, Height: 444.5 mm. Products per master (outer) case: 1 pc(s), Master (outer) case width: 558.8 mm, Master (outer) case length: 635 mm

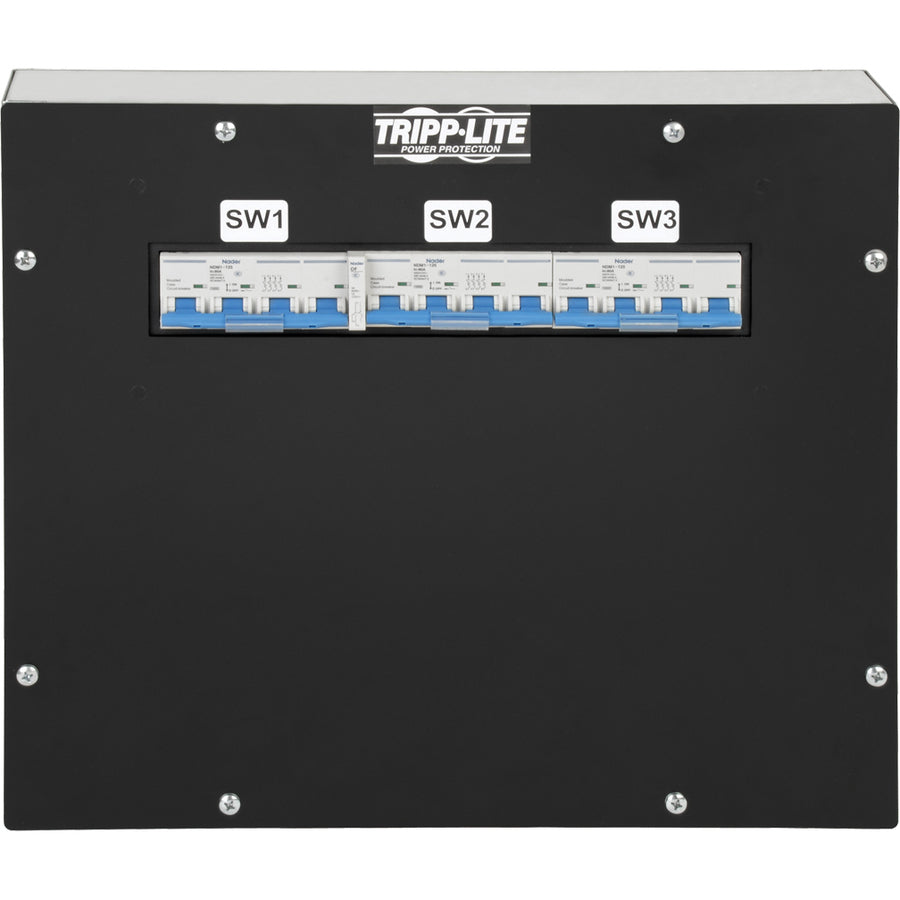

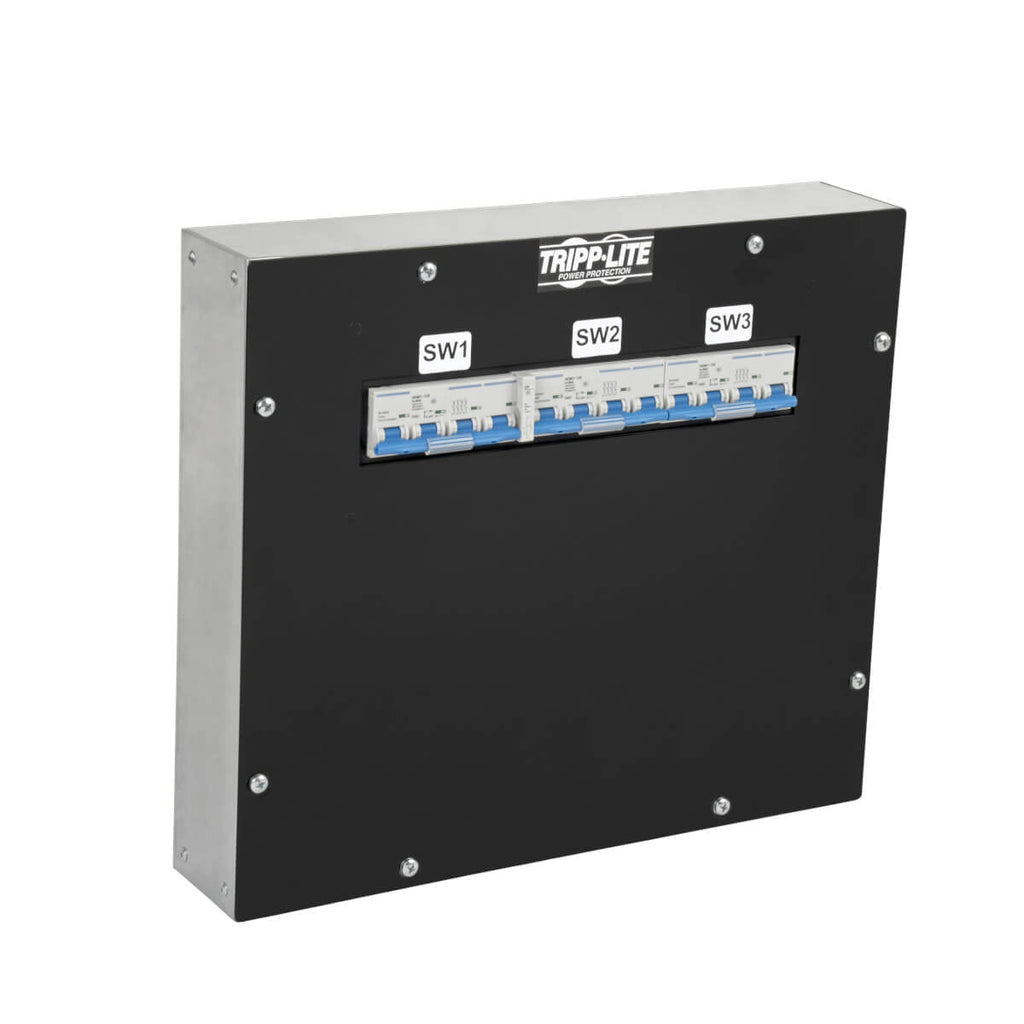

Bypass an SUT30K UPS to Perform Maintenance For use with Tripp Lite’s SUT30K 3-phase UPS system, the SUT30KMBP maintenance bypass panel (MBP) maintains total continuity of power to connected load circuits when bypass of the UPS is required for regular service and maintenance. This UPS maintenance bypass panel has three 4-pole circuit breakers for Input, Bypass and Output. The breakers have removable handles to allow the panel’s trim cover to be removed for internal access. The short circuit rating is 10 kAIC. Maximum current capacity is 125A.

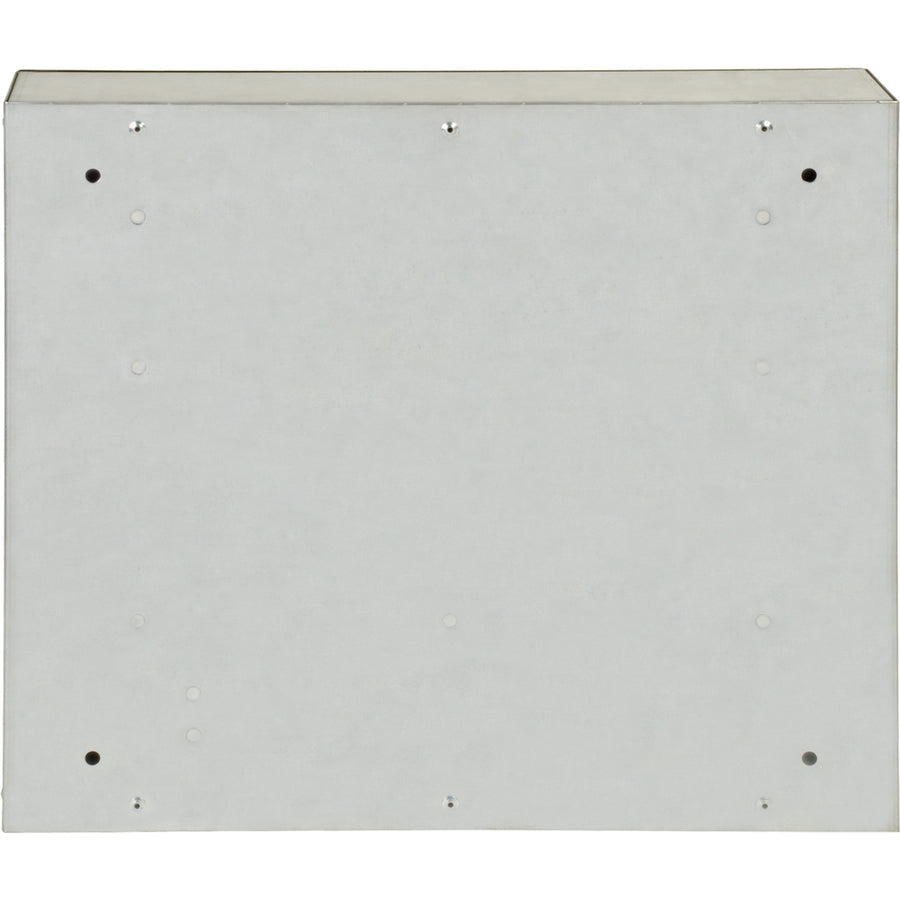

Convenient Wall-Mount Installation Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth and solid wall (mounting hardware not included).
One-Year Warranty The SUT30KMBP is backed by a one-year limited warranty, ensuring reliability and performance.
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SUT30KMBP
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
SUT30KMBP
Product Name
UPS Maintenance Bypass Panel for SUT30K - 3 Breakers
Product Type
Bypass Panel
UPC
0037332222350
Height
17.5"
Width
20"
Depth
4.6"
Weight (Approximate)
28 lb
Miscellaneous
Package Contents
UPS Maintenance Bypass Panel for SUT30K - 3 Breakers
Installation and Operation Manual
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
