Tripp Lite Sut20Kmbpx Ups Maintenance Bypass Panel For Sutx20K - 4 Breakers

UPS Maintenance Bypass Panel for SUTX20K - 4 Breakers

Tripp Lite SUT20KMBPX UPS Maintenance Bypass Panel for SUTX20K - 4 Breakers. Product type: Bypass cabinet, Mounting type: Wall-mount, Product colour: Black. Load capacity: 400 VA, Input voltage: 400 V. Width: 508 mm, Depth: 116.8 mm, Height: 444.5 mm. Products per master (outer) case: 1 pc(s), Master (outer) case width: 635 mm, Master (outer) case length: 254 mm

UPS Maintenance Bypass Panel Keeps Equipment Powered During UPS Maintenance
This wall-mount four-breaker maintenance bypass panel is compatible with Tripp Lite’s SUTX20K 3-phase UPS system. It allows you to reroute power around the UPS, providing an alternate path for electricity that keeps the connected load operational while the UPS is offline for maintenance or repairs.

Features 4 Built-In Circuit Breakers to Isolate Loads

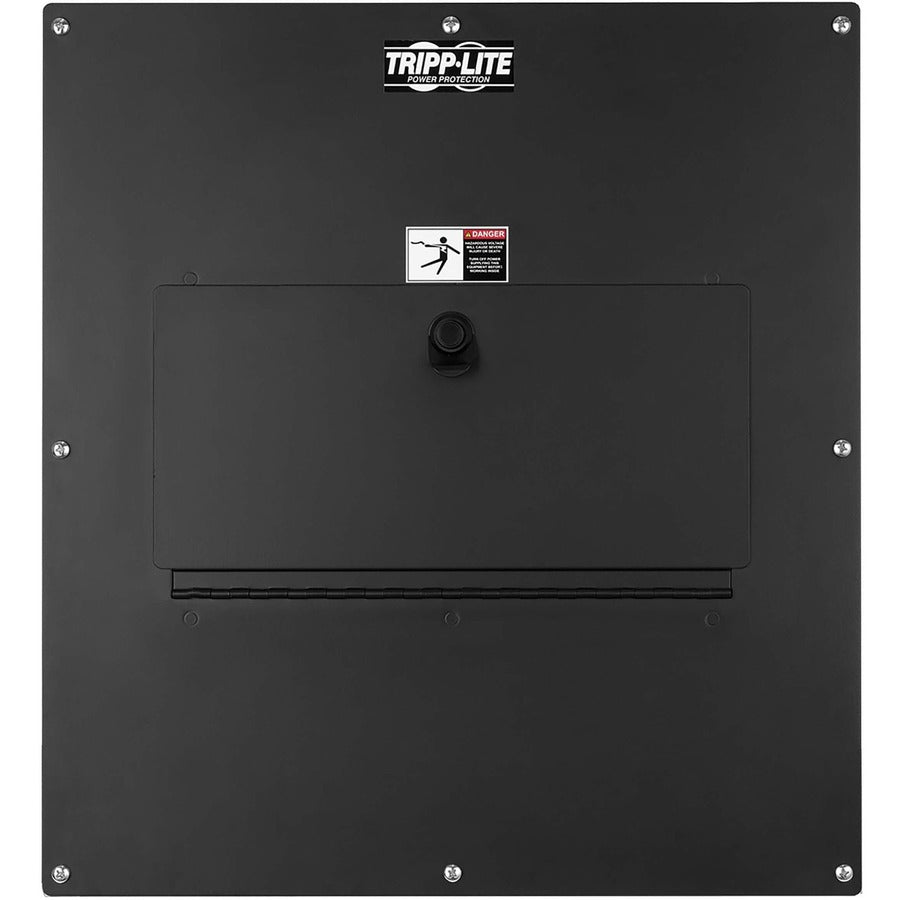

Four 4-pole circuit breakers are connected to heavy-duty buswork and isolate the UPS system from its connected load with no loss of network availability. This allows the load to remain continuously powered without costly downtime. A Kirk-key interlock system enhances safety and security. Removable handles allow the panel’s trim cover to be removed for internal access. The 80A unit has a kAIC rating of 10K.

Switching Between Normal and Bypass Modes Is Easy

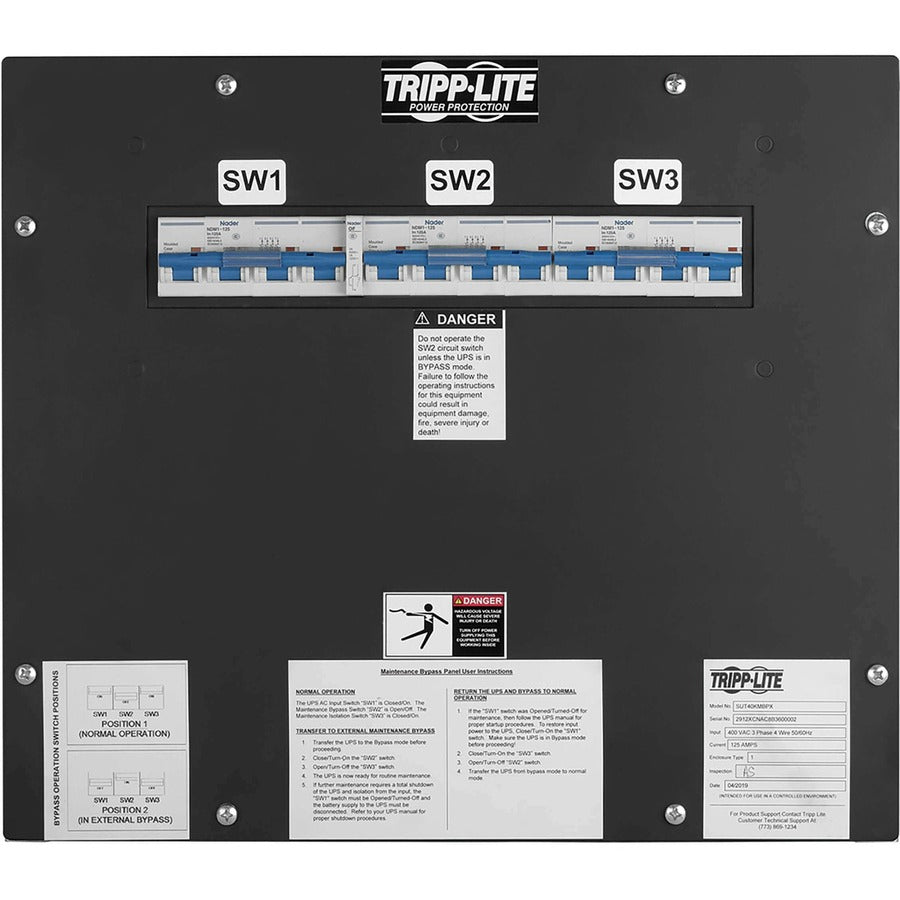

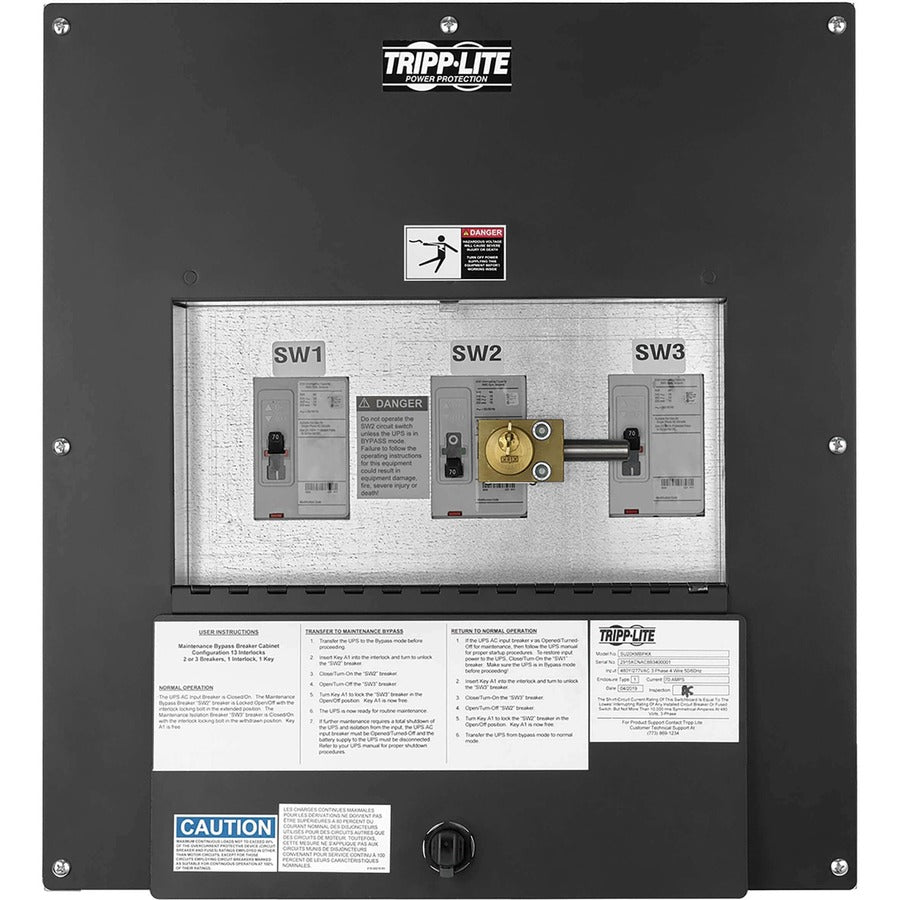

When a UPS needs maintenance, this UPS bypass panel keeps power supplied to components via its mechanical interlock system by switching power to the external bypass breaker. Simply unscrew the interlock switch, rotate the switch from the UPS AC input breaker (SW1) to the bypass breaker (SW2), then turn on the bypass breaker and turn off the UPS and isolation breaker (SW3) to perform UPS maintenance without service interruption.

Convenient Wall-Mount Installation

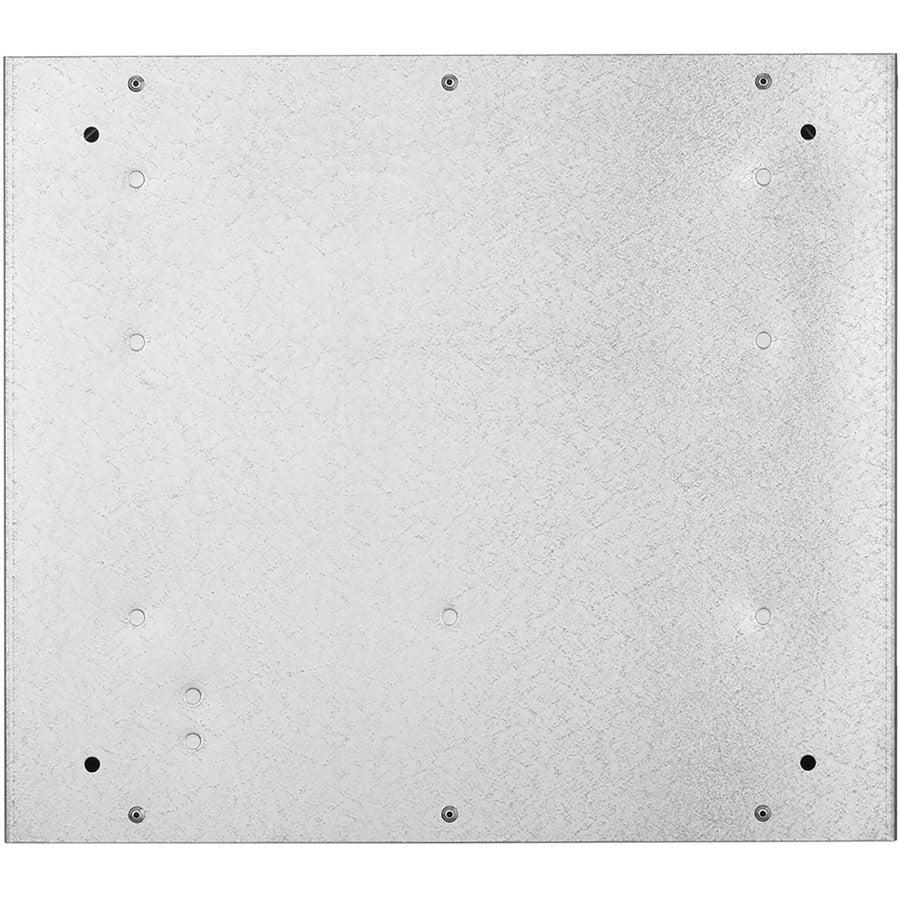

Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth, solid wall (mounting hardware not included).
