Tripp Lite Srwallbrkt6U Smartrack 6U Vertical Wall-Mount Rack Bracket

SmartRack 6U Vertical Wall-Mount Rack Bracket

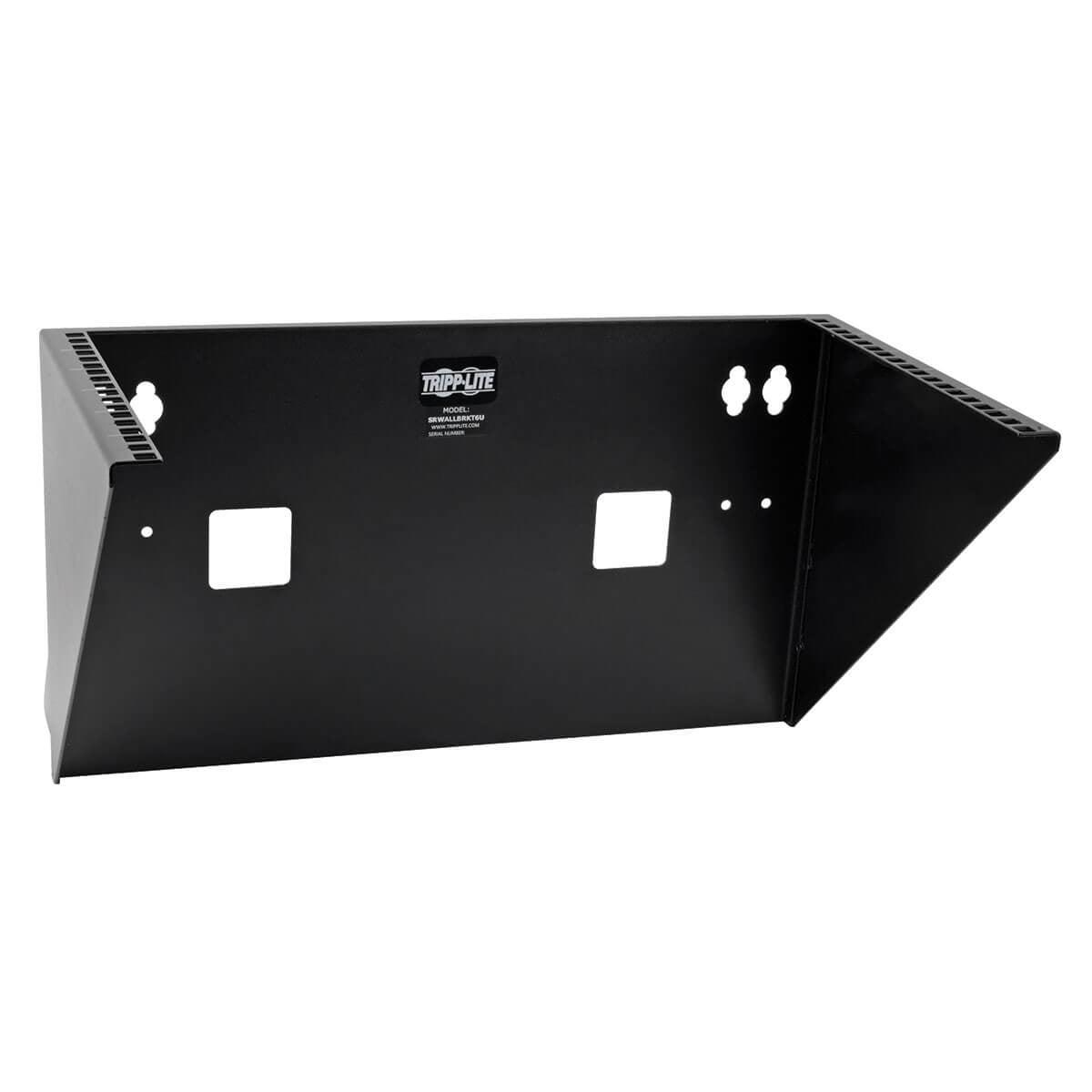

Tripp Lite SRWALLBRKT6U SmartRack 6U Vertical Wall-Mount Rack Bracket. Type: Mounting bracket, Product colour: Black, Maximum weight capacity: 91 kg. Size (imperial): 48.3 cm (19"), Width: 500.1 mm, Depth: 283.2 mm. Quantity per pack: 1 pc(s), Package width: 555 mm, Package depth: 465.1 mm. Master (outer) case width: 570 mm, Master (outer) case length: 1130 mm, Master (outer) case height: 480.1 mm

The SRWALLBRKT6U SmartRack® 6U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch server rack.

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 6U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

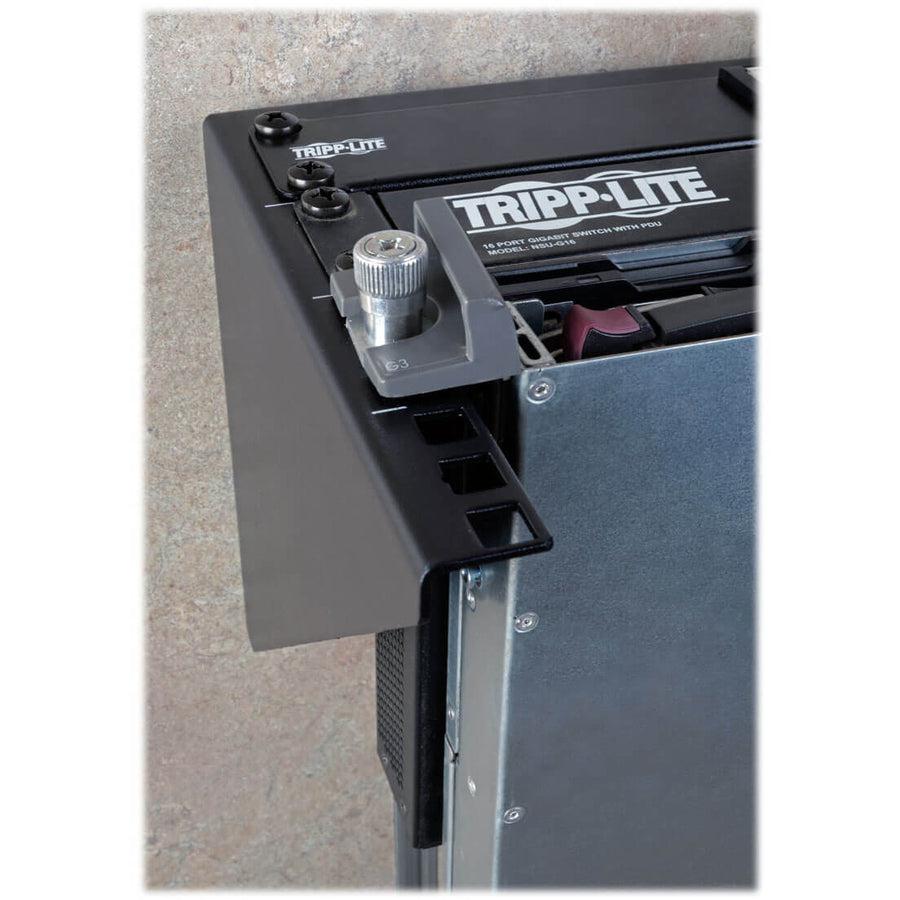

Use the included hardware to attach your 6U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 200 lbs (90.7 kgs). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT6U is compatible with most EIA-standard 19-inch two-post rack equipment.

6U Wall-Mount Bracket Allows Vertical Mounting in a Closet or Back Office
Recommended for home offices and small businesses with no room for standard 19 in. rack
Provides open, unrestricted access to equipment and cabling
Maximum load capacity of 200 lbs (90.7 kgs)
Cold-rolled steel construction with black powder-coated finish designed for long life
Ships fully assembled for quick installation

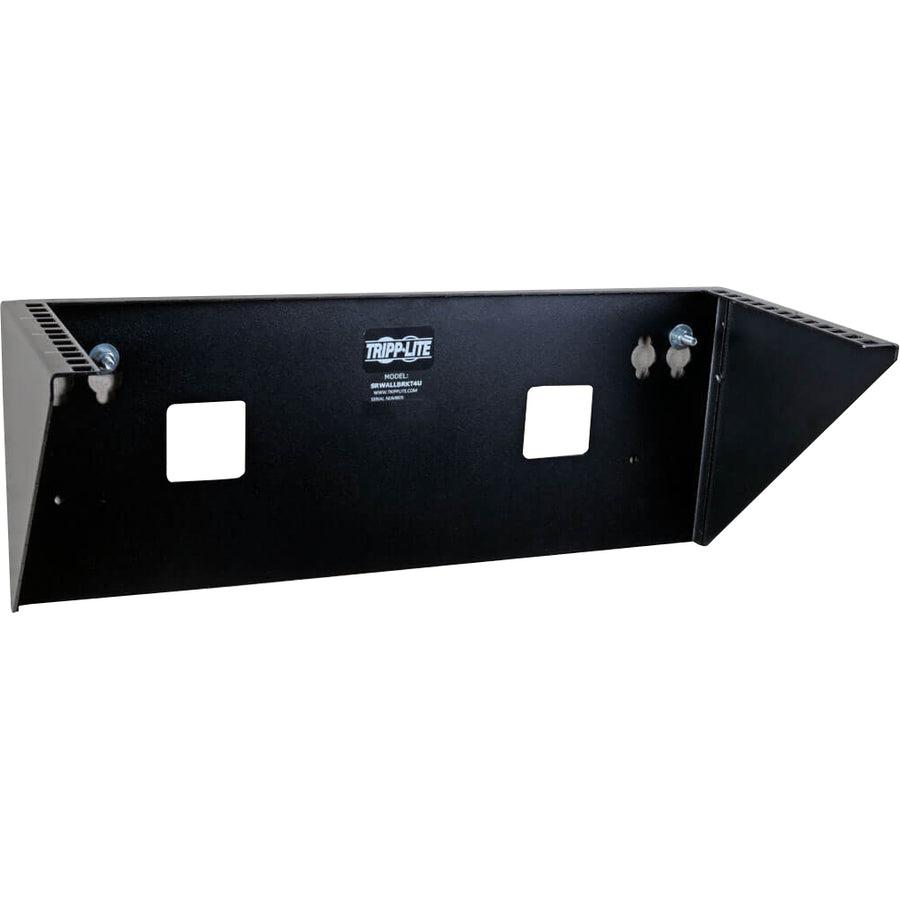

Attaches to the Wall with User-Supplied Hardware

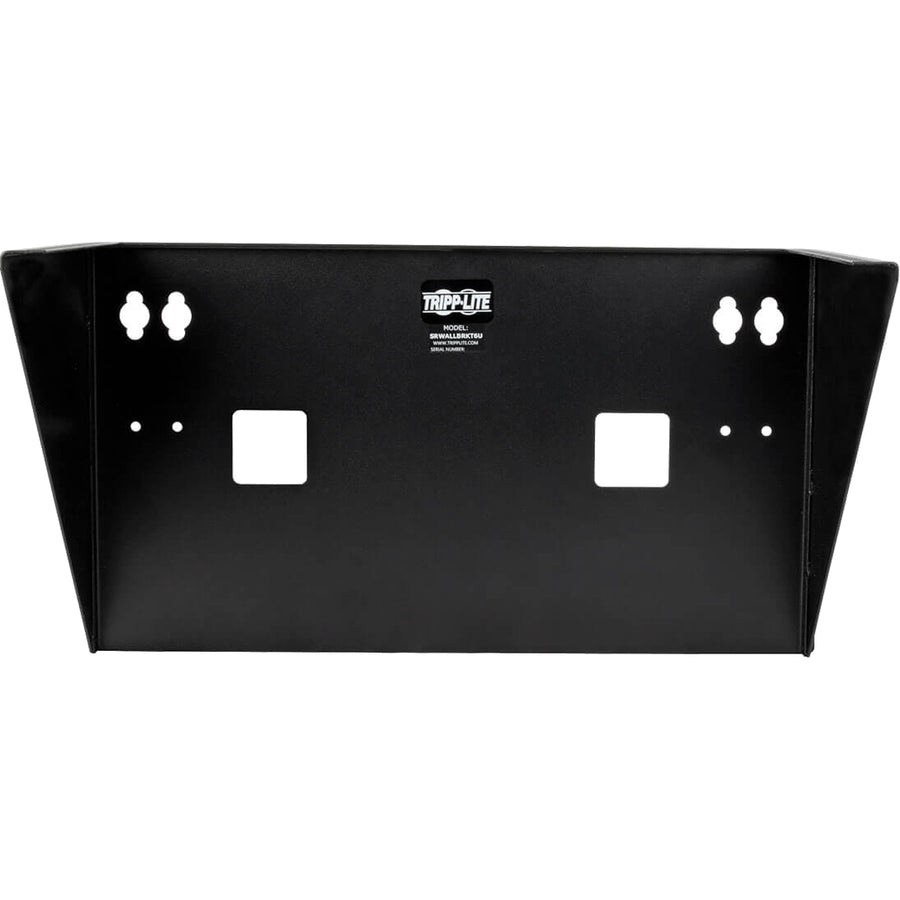

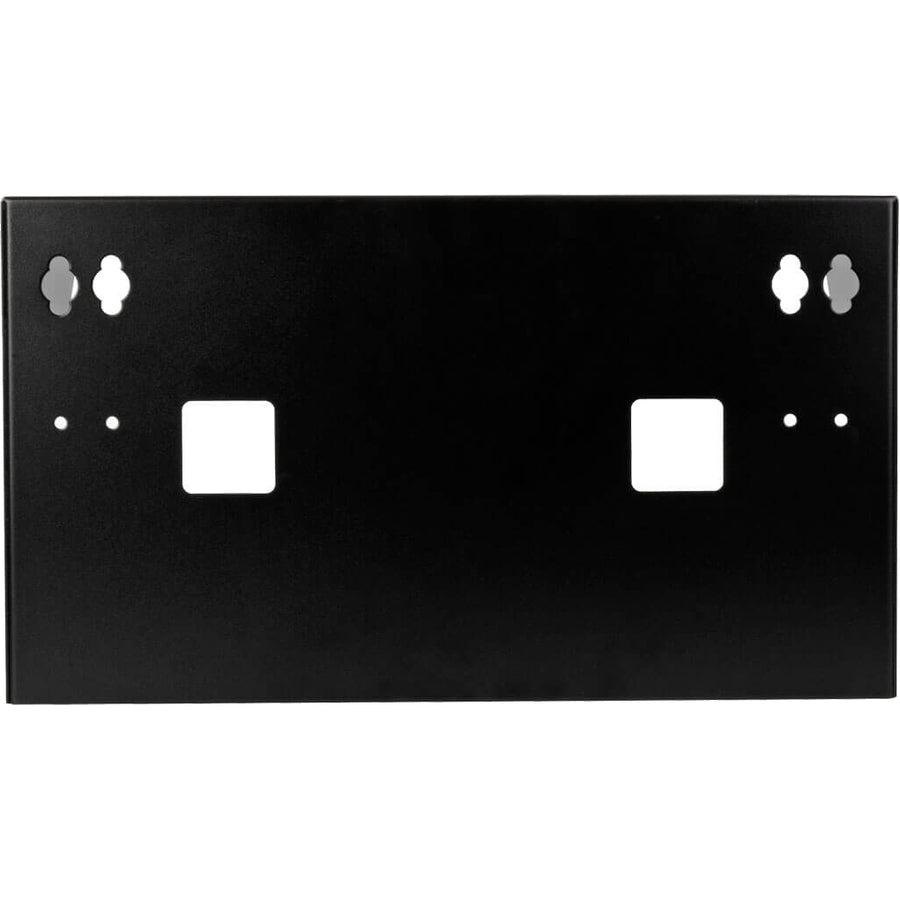

Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Also mounts horizontally beneath a desk or workbench

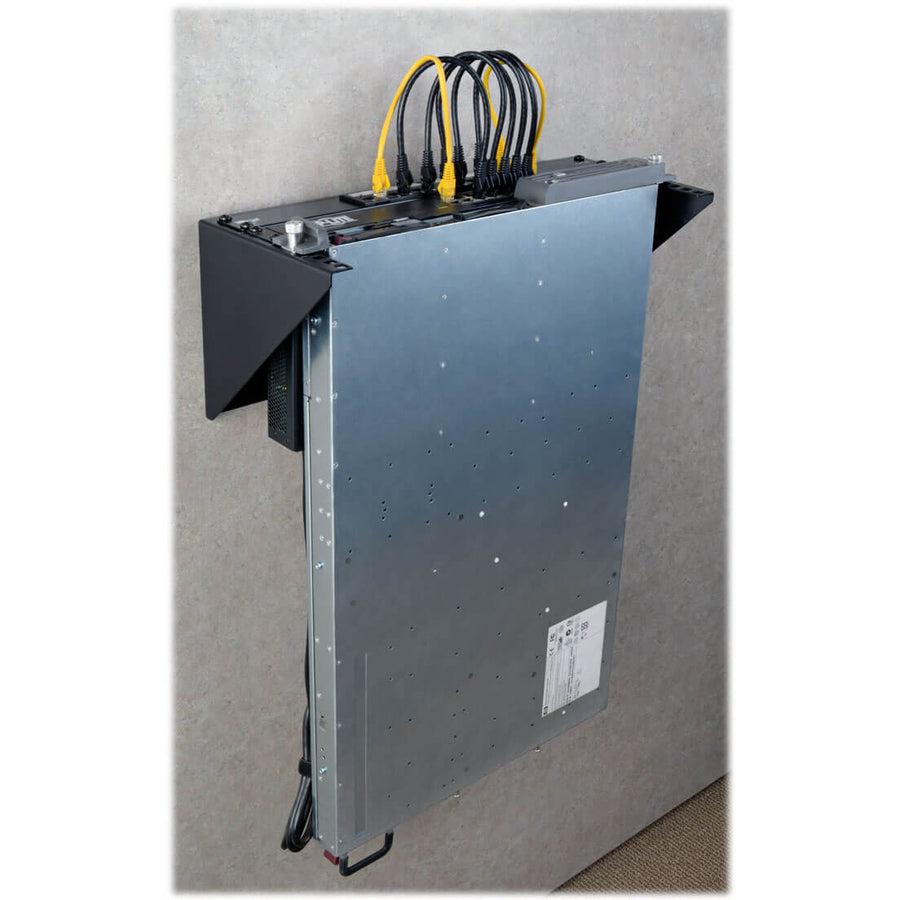

Component hangs flush against the wall for unrestricted out-of-the-way access

Compatible with EIA-Standard 19 in. 2-Post Rack Equipment

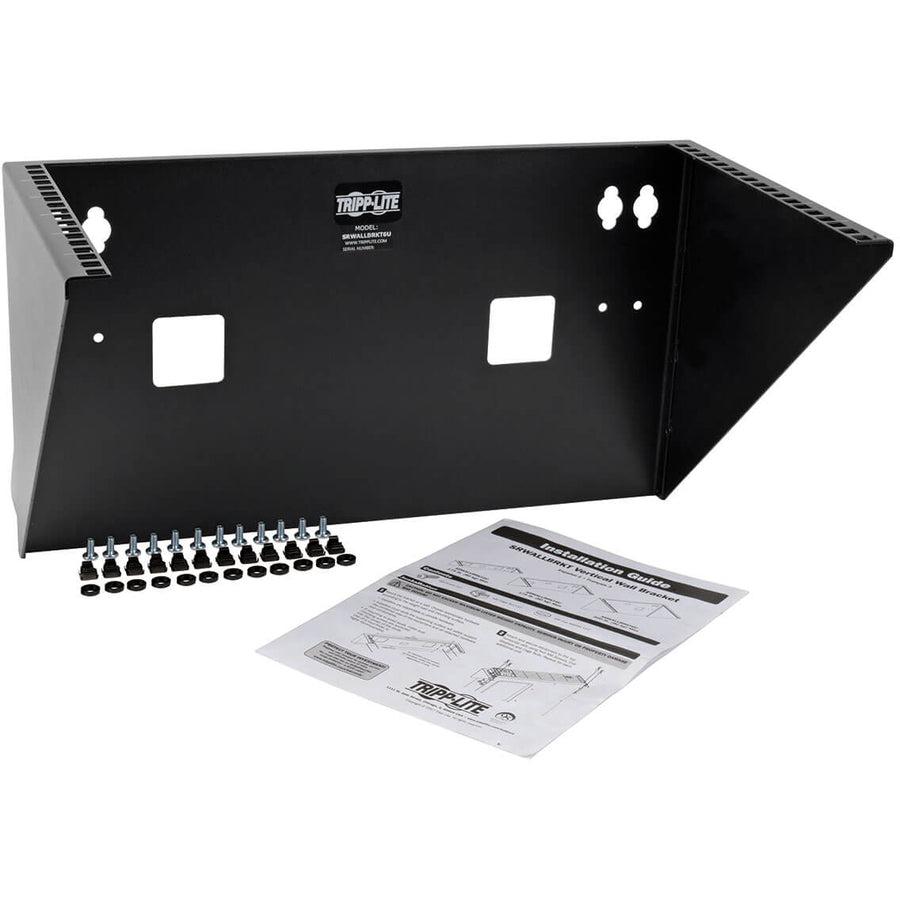

Hardware included for mounting 6U rack equipment
Rails support square-hole mounting
