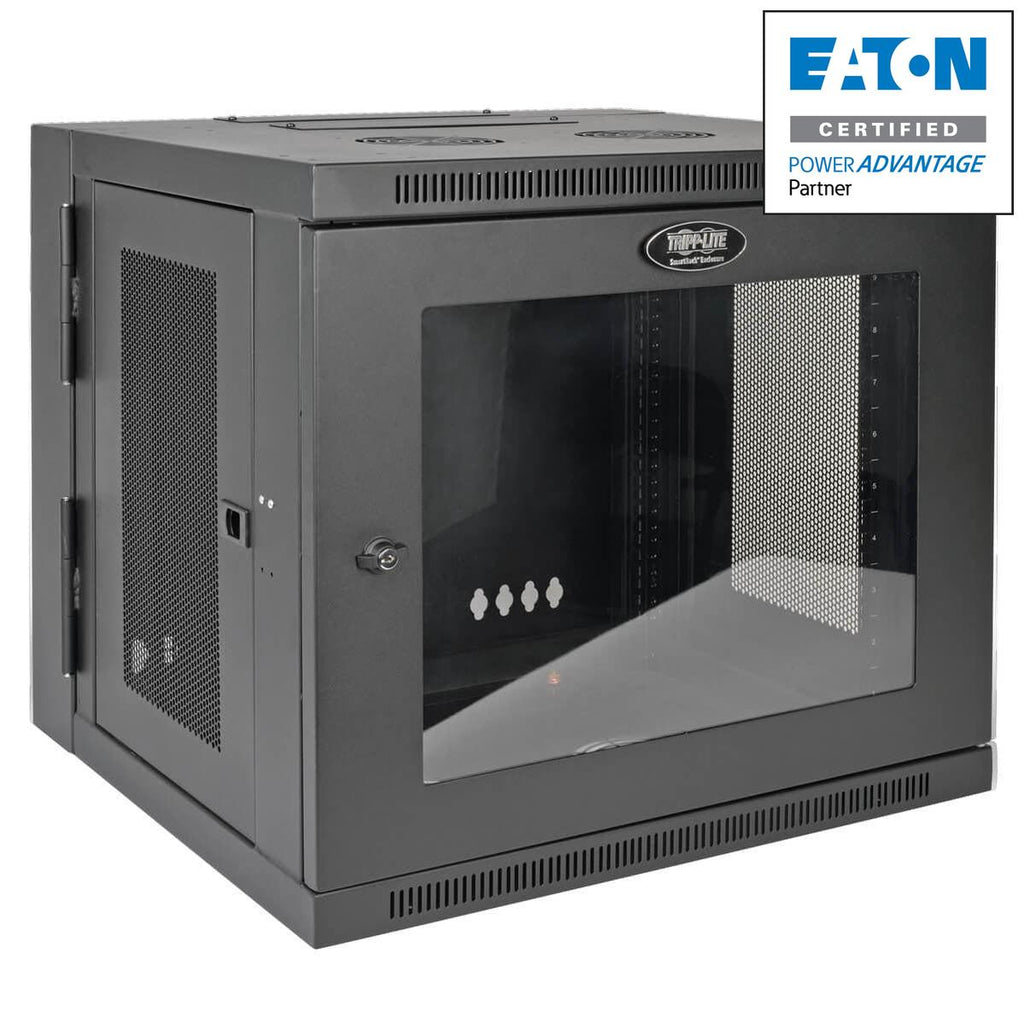

This wall mount rack cabinet is perfect for IT professionals and network administrators who need a 10U enclosure solution for space-constrained environments. Our SmartRack delivers:
-
Switch depth design that accommodates network switches and shallow servers up to 20 inches deep
-

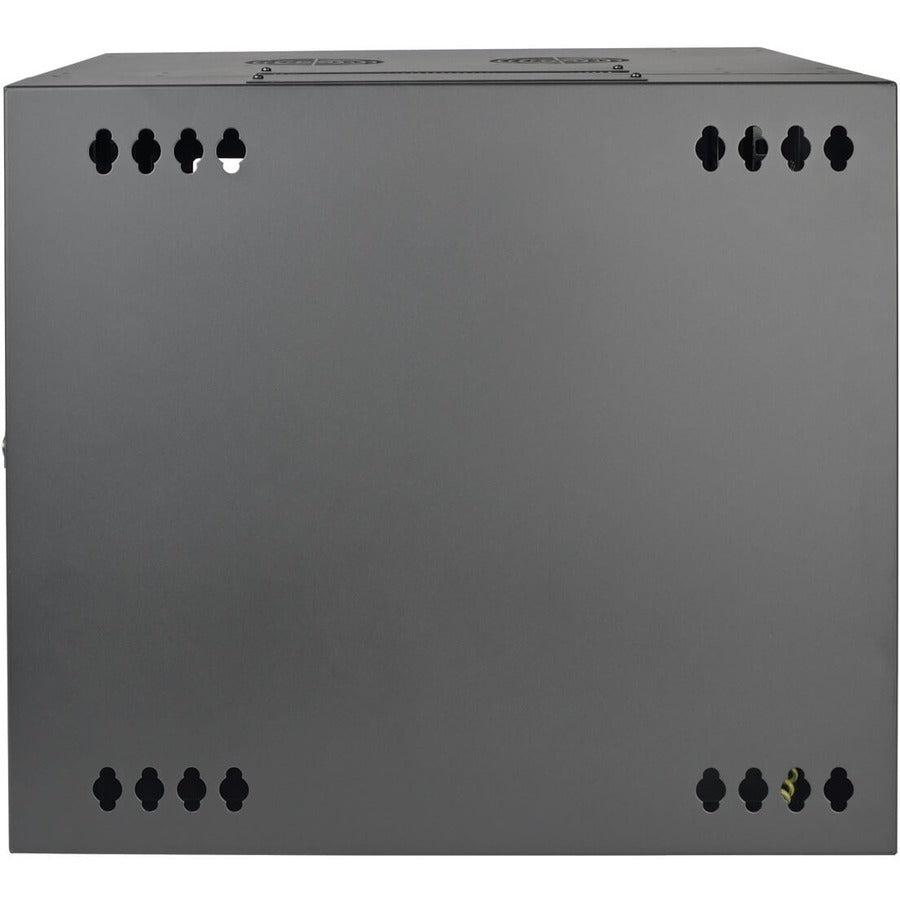

Low profile wall mounting for optimal space utilization in server rooms and closets
-

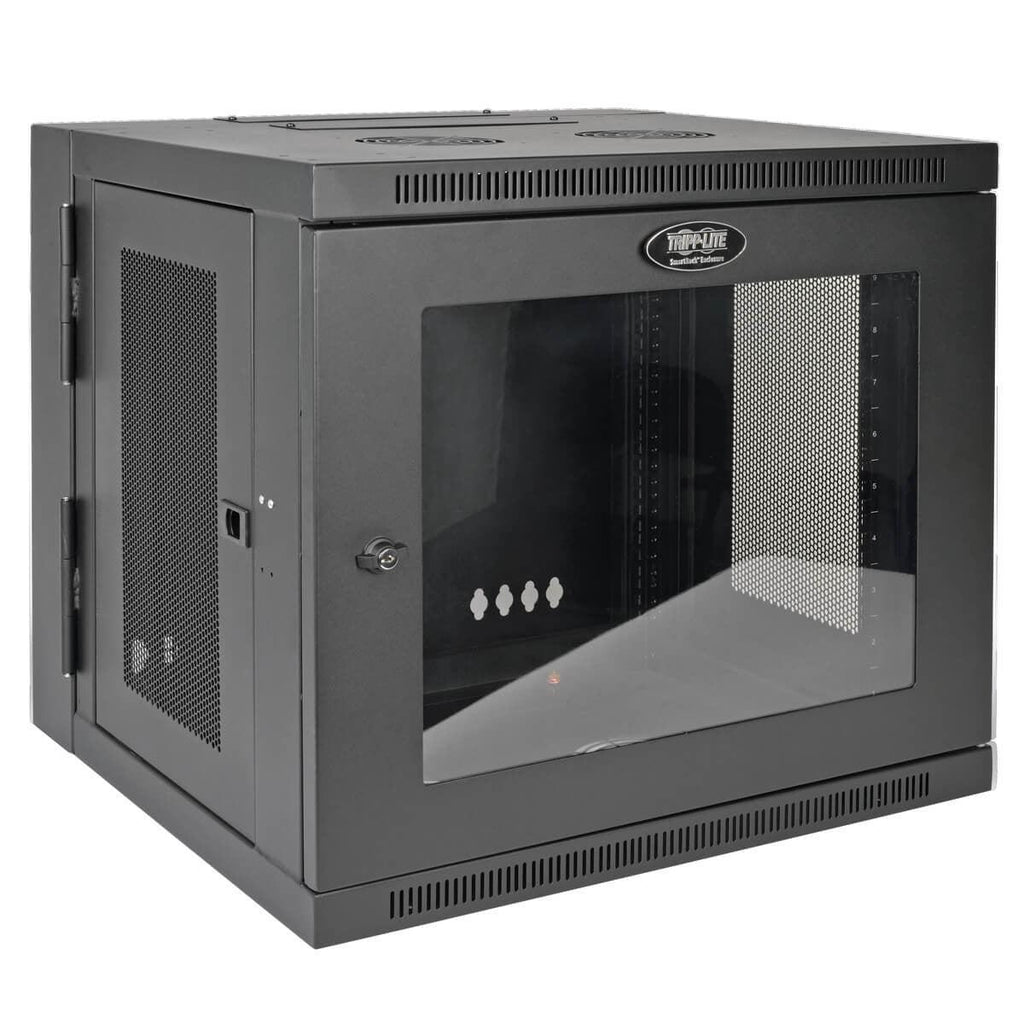

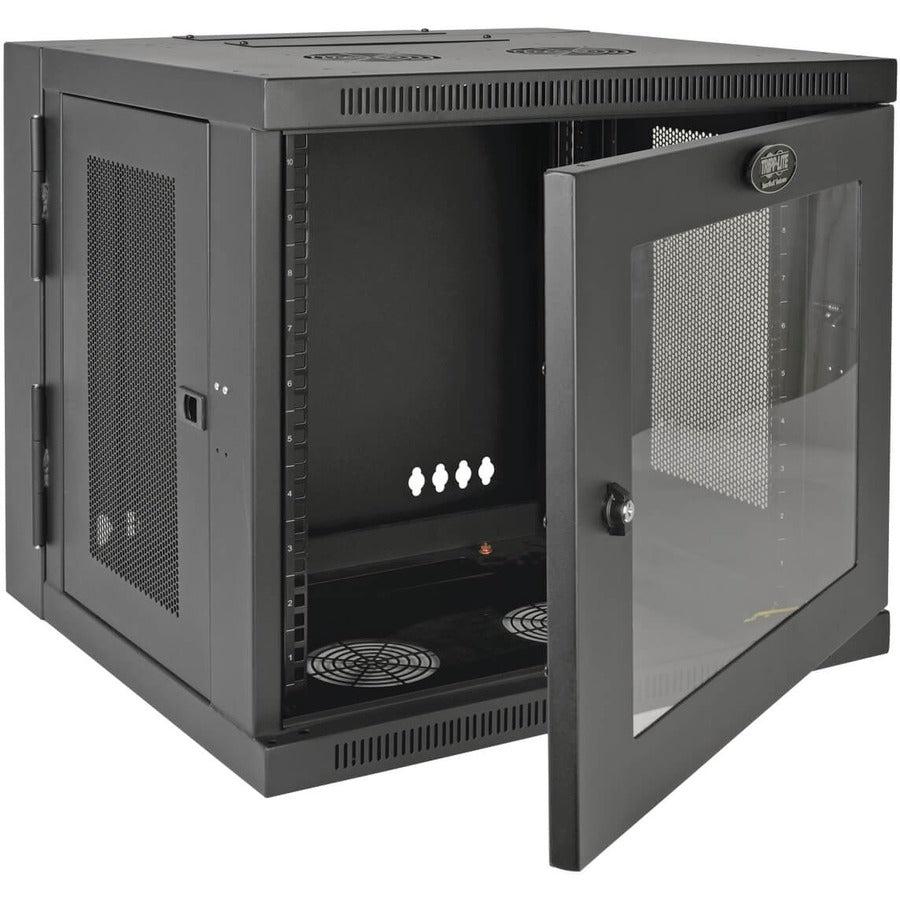

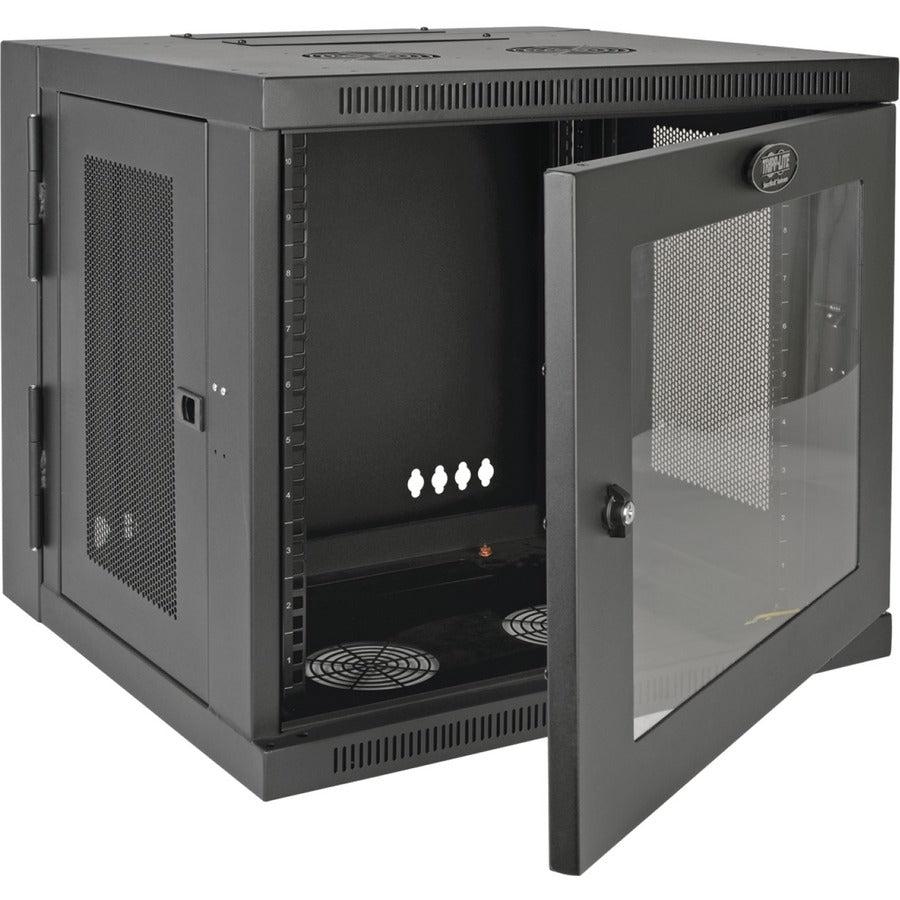

Clear acrylic window providing visual equipment monitoring without door access
-

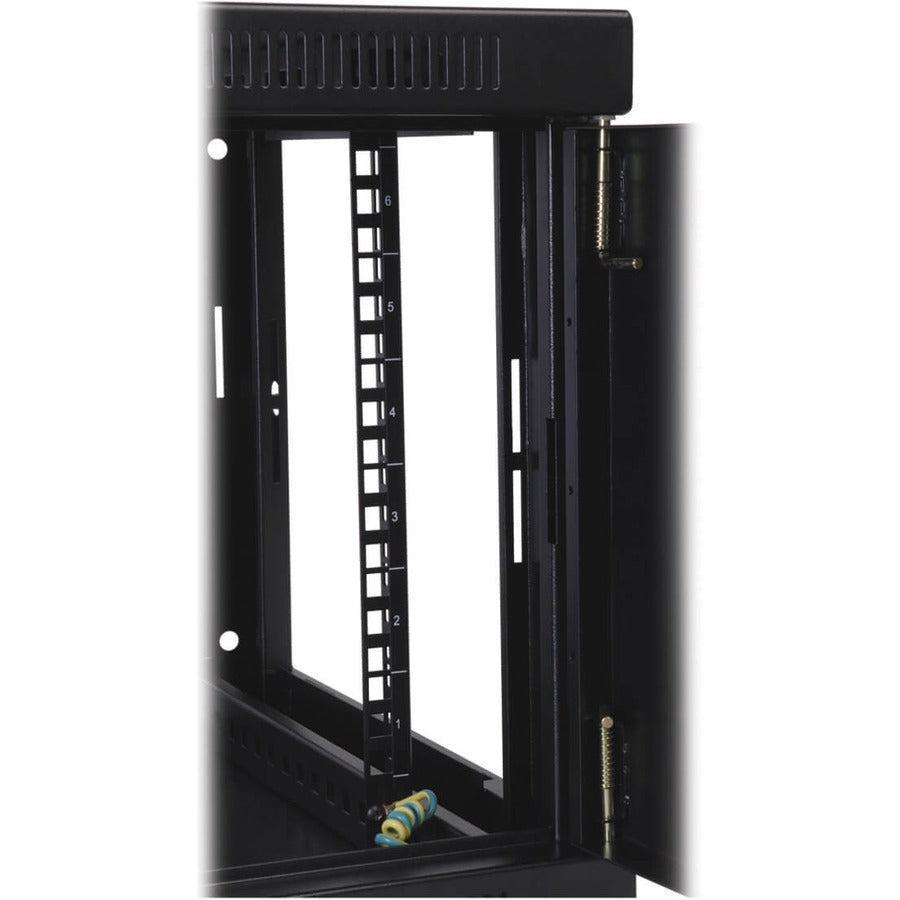

Hinged back panel for easy rear equipment access and cable management
Key Features
-
Wall mount rack design to maximize floor space efficiency
-
10U capacity supporting up to 10 rack units of equipment
- Optimized for switch depth equipment with 20-inch maximum depth

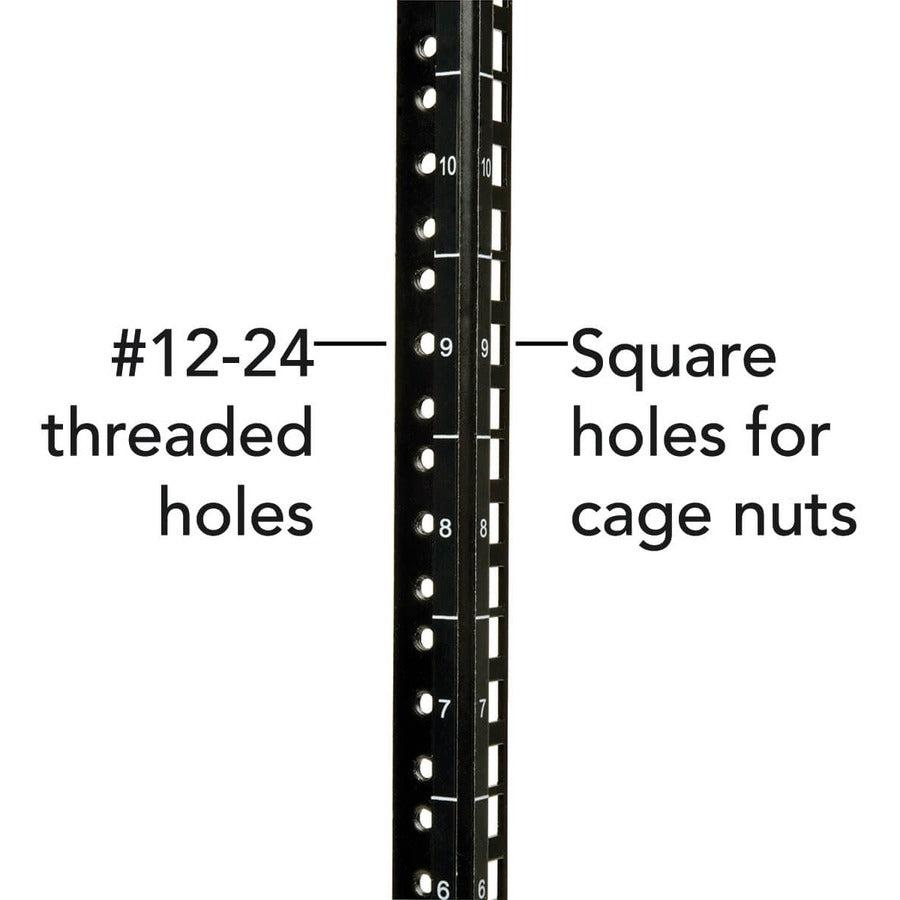

- Consistent rack enclosure standards with EIA-310-D compliance
-
Network equipment compatibility to meet professional installation requirements
Technical Specifications
| Manufacturer |
Tripp Lite by Eaton |
| Model Number |
SRW10USG |
| Type |
Wall Mount Rack Cabinet |
| Rack Units |
10U |
| Equipment Depth |
Up to 20 inches (switch depth) |
| Door Type |
Clear acrylic window with hinged back panel |
| Mounting |
Wall mount configuration |
| Compatible Systems |
Network switches, patch panels, UPS systems, shallow servers |
Frequently Asked Questions
Q: What is the maximum depth for equipment in this wall mount rack cabinet?
A: This switch depth enclosure accommodates equipment up to 20 inches deep, making it ideal for network switches, patch panels, and shallow servers.
Q: Can this 10U wall mount rack support standard 19-inch equipment?
A: Yes, it's engineered for standard 19-inch rack mount equipment with EIA-310-D compliance. Perfect for professional network installations and server room applications.
Q: How much weight can this wall mount rack enclosure support?
A: The SmartRack design provides robust wall mounting capacity for typical network equipment loads — perfect for switch installations and network infrastructure deployment.
Q: Does this rack cabinet meet industry mounting standards?
A: Yes. EIA-310-D compliant design ensures compatibility with standard rack mount equipment and professional installation requirements.
Wall mount rack cabinet 10U for network professionals. Switch depth design with clear window and space-saving wall mount configuration.
