Description

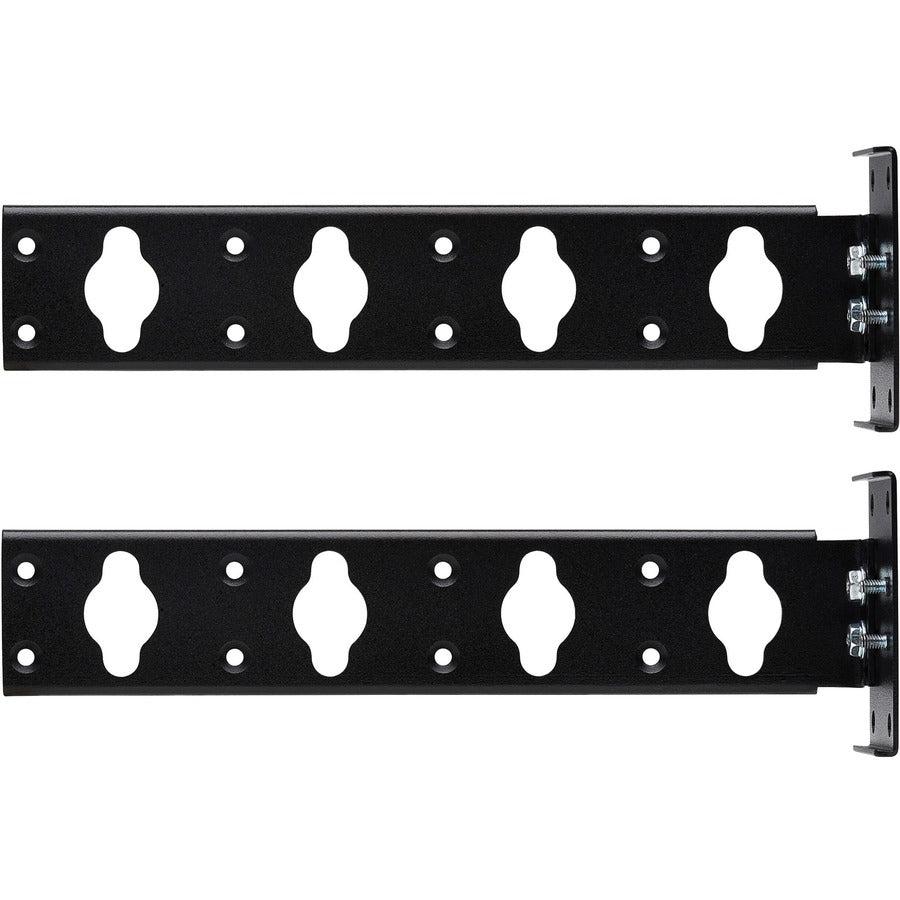

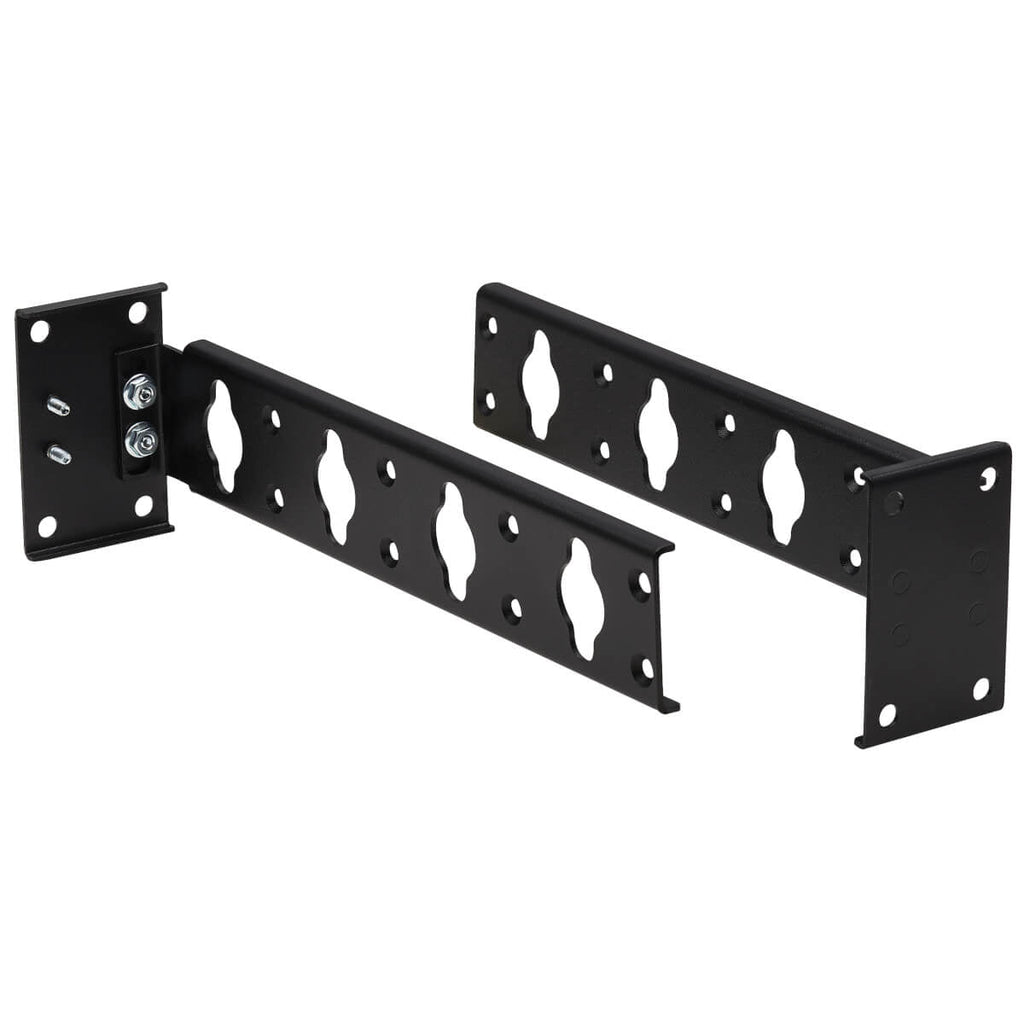

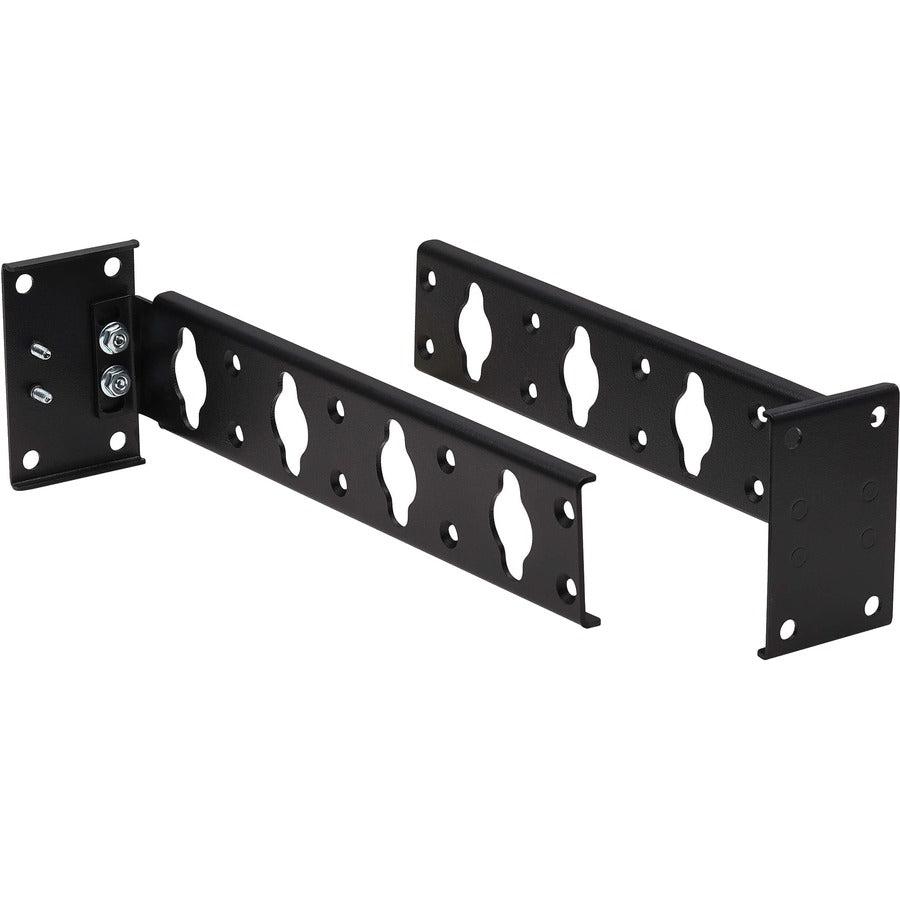

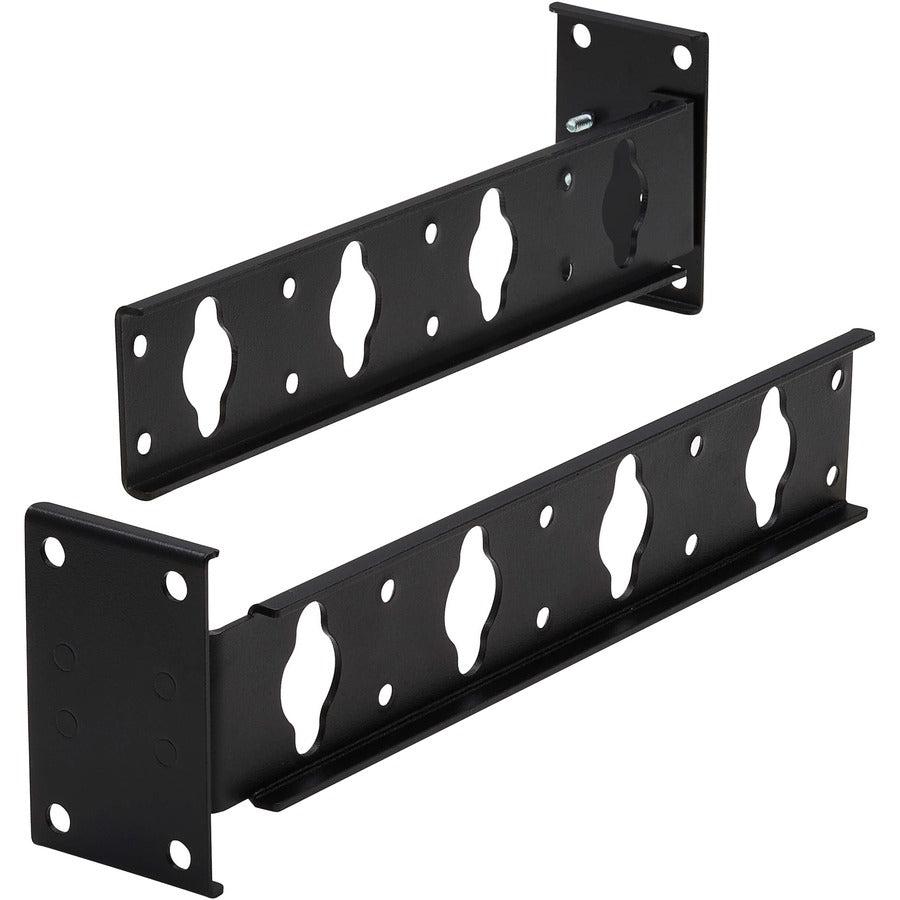

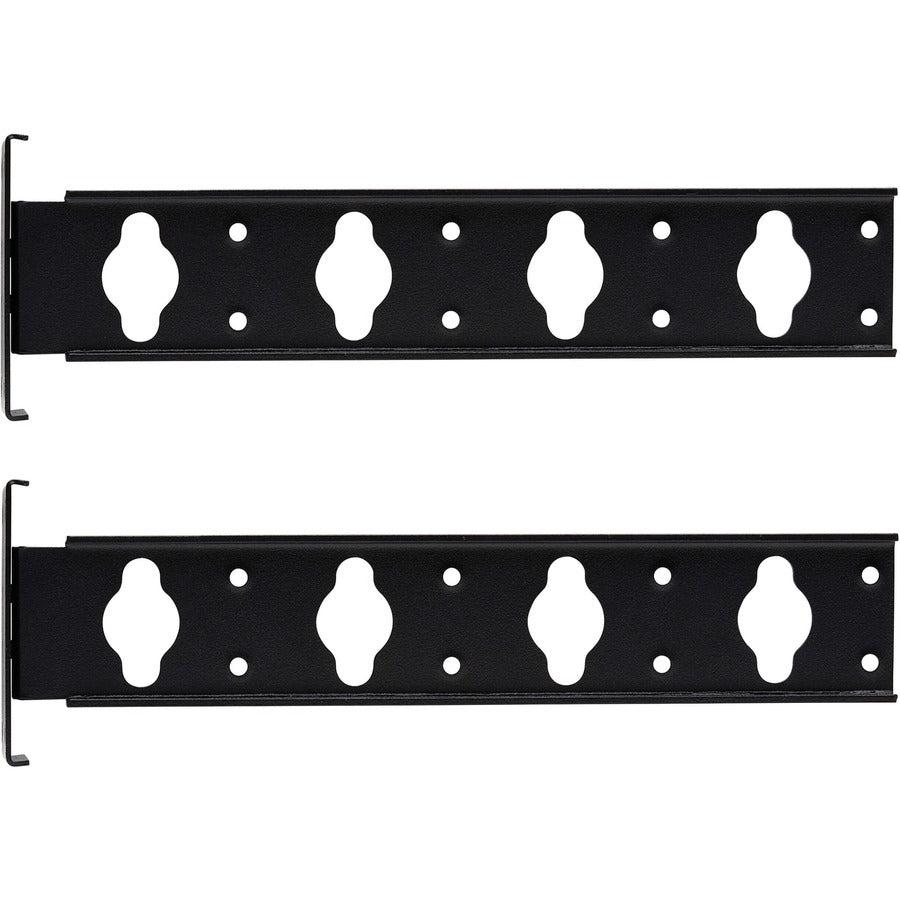

Vertical PDU Installation Bracket for Server Racks
Tripp Lite SRPDU4PHDBRKT Vertical PDU Installation Bracket for Server Racks. Type: Mounting bracket, Product colour: Black, Housing material: Steel. Quantity per pack: 2 pc(s), Package width: 304.8 mm, Package depth: 85 mm. Packaging content: 2 Adapter plates, 4 M6 screws, 4 Cage nuts, 4 8-32 flange nuts. Master (outer) case width: 449.8 mm, Master (outer) case length: 325.1 mm, Master (outer) case height: 260 mm
Bracket Enhances Functionality of Enclosures and Open Frame Racks The SRPDU4PHDBRKT allows the addition of up to three vertical PDUs or cable managers to a Tripp Lite rack enclosure or open frame rack, helping you avoid the need to invest in a larger rack configuration. Upper and lower brackets attach to the frame of a standard or heavy-duty rack enclosure using the included screws and cage nuts. Included adapter plates allow connection to mounting rails in 2-post or 4-post open frame racks. Supports Toolless Mounting of Up to 3 Vertical PDUs or Cable Managers Up to three vertical PDUs or cable management accessories can be mounted to the SRPDU4PHDBRKT brackets. Keyhole slots support toolless button mounting. The brackets also have equipment mounting holes for attaching PDUs and cable managers with fasteners.
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SRPDU4PHDBRKT
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
SRPDU4PHDBRKT
Product Name
Vertical PDU Installation Bracket for Server Racks
Product Type
Mounting Bracket
UPC
037332252722
Height
2.4"
Width
12"
Depth
3.3"
Miscellaneous
Package Contents
Vertical PDU Installation Bracket for Server Racks
