Tripp Lite Srl90Bend18 Cable Ladder Runway E-Bend - 90 Degrees, 18 In. Width

Cable Ladder Runway E-Bend - 90 Degrees, 18 in. Width

Tripp Lite SRL90BEND18 Cable Ladder Runway E-Bend - 90 Degrees, 18 in. Width. Type: Ladder, Product colour: Black, Country of origin: China. Width: 840 mm, Depth: 50.8 mm, Height: 840 mm. Package width: 88.9 mm, Package depth: 889 mm, Package height: 889 mm. Master (outer) case width: 88.9 mm, Master (outer) case length: 889 mm, Master (outer) case height: 889 mm

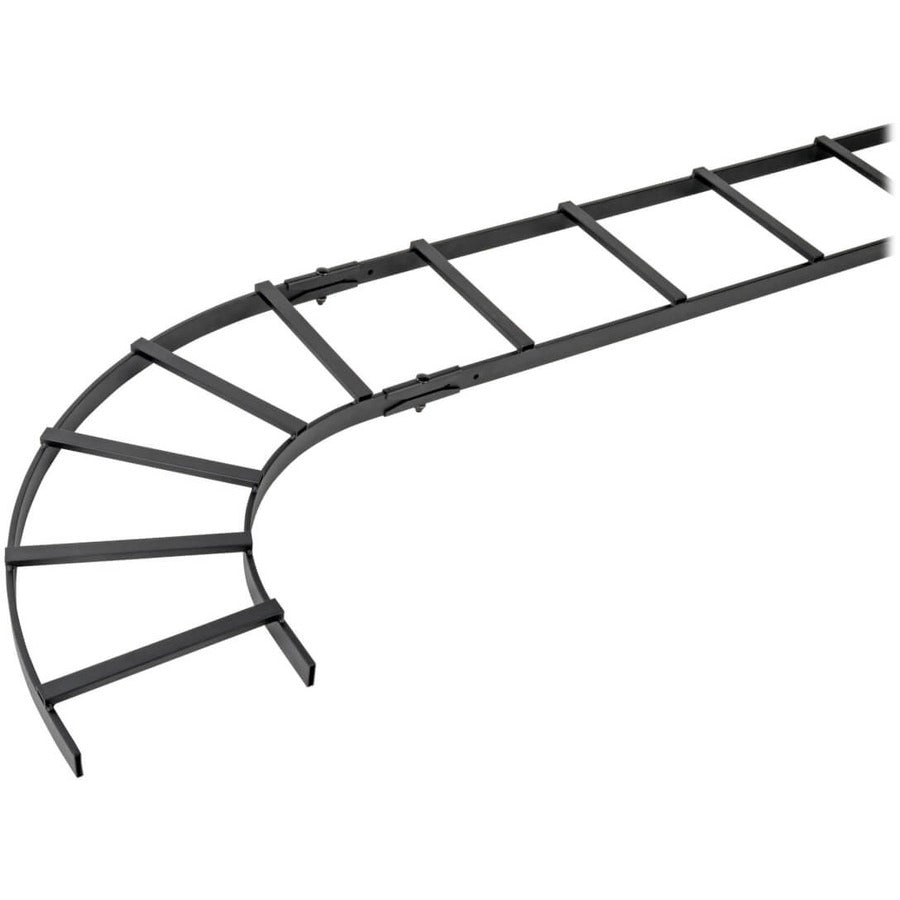

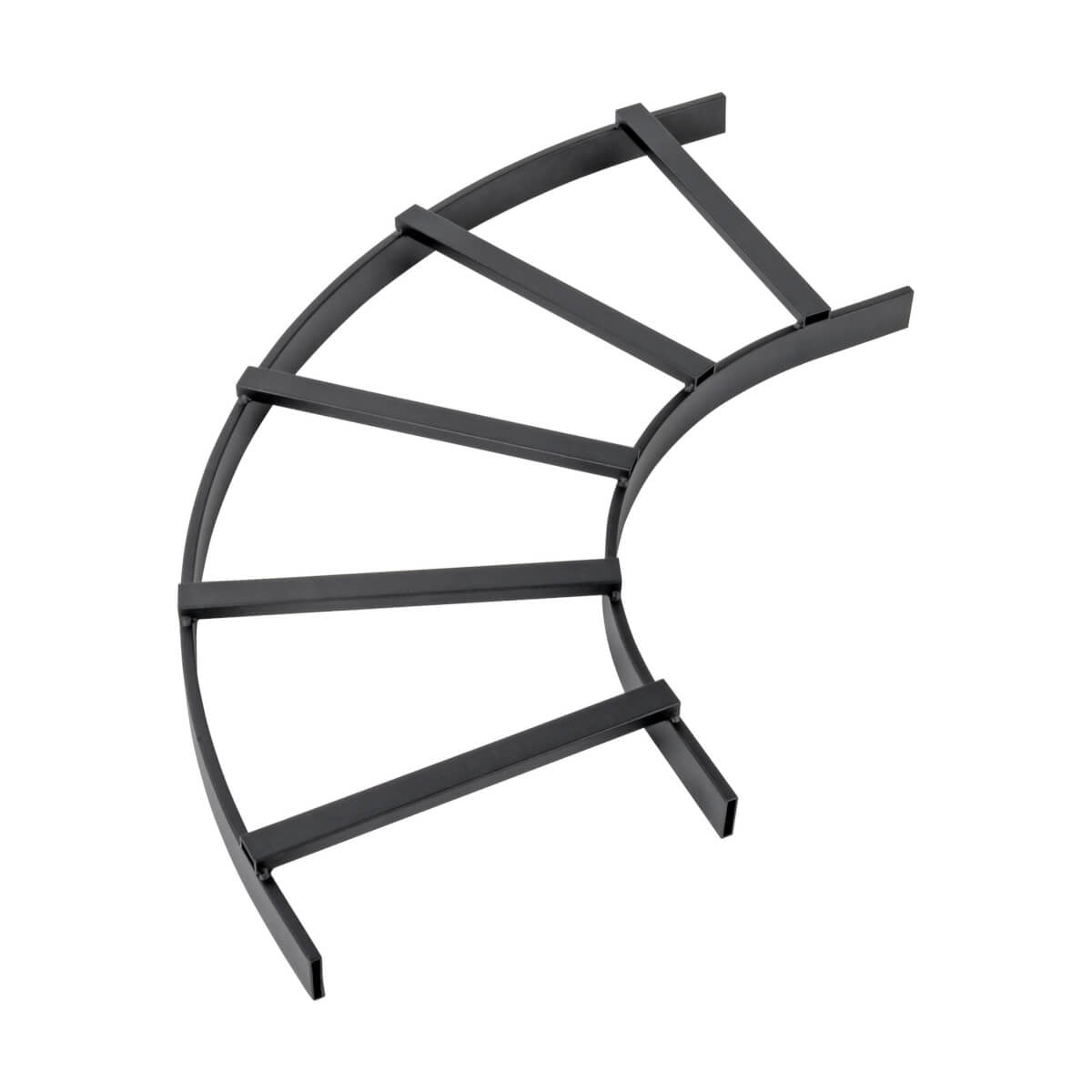

Cable Runway E-Bend Creates a 90-Degree Gradual Sweep for Horizontal Cable Ladder Runs
The SmartRack SRL90BEND18 allows you to place a curved right angle in your horizontal cable runway application. It connects to your 18-inch cable runway above your rack enclosure or open frame rack to allow flexibility in your overhead cable routing. Install it either parallel or perpendicular to the rack for clean, organized cable routing across an aisle or within a row.

Measures 18 in. Wide with a 33 in. Wide Bend
This cable E-bend conforms to minimum-bend radius requirements (typically four times the cable diameter). It’s made from lightweight tubular steel measuring 1.5 x 0.375 inches (38 x 9.5 millimeters). It fits 18-inch (457-millimeter) cable runway widths, and meets Cat5e/6/6a requirements.

Designed for Use with Tripp Lite Rack Cabling Components
The SRL90BEND18 ships fully assembled for connecting right out of the package. It’s compatible with Tripp Lite’s 18-inch SRCABLELADDER18 and SRLBUTTSPLICE kit for toolless assembly. All Tripp Lite accessories are sold separately.
